- About this Item

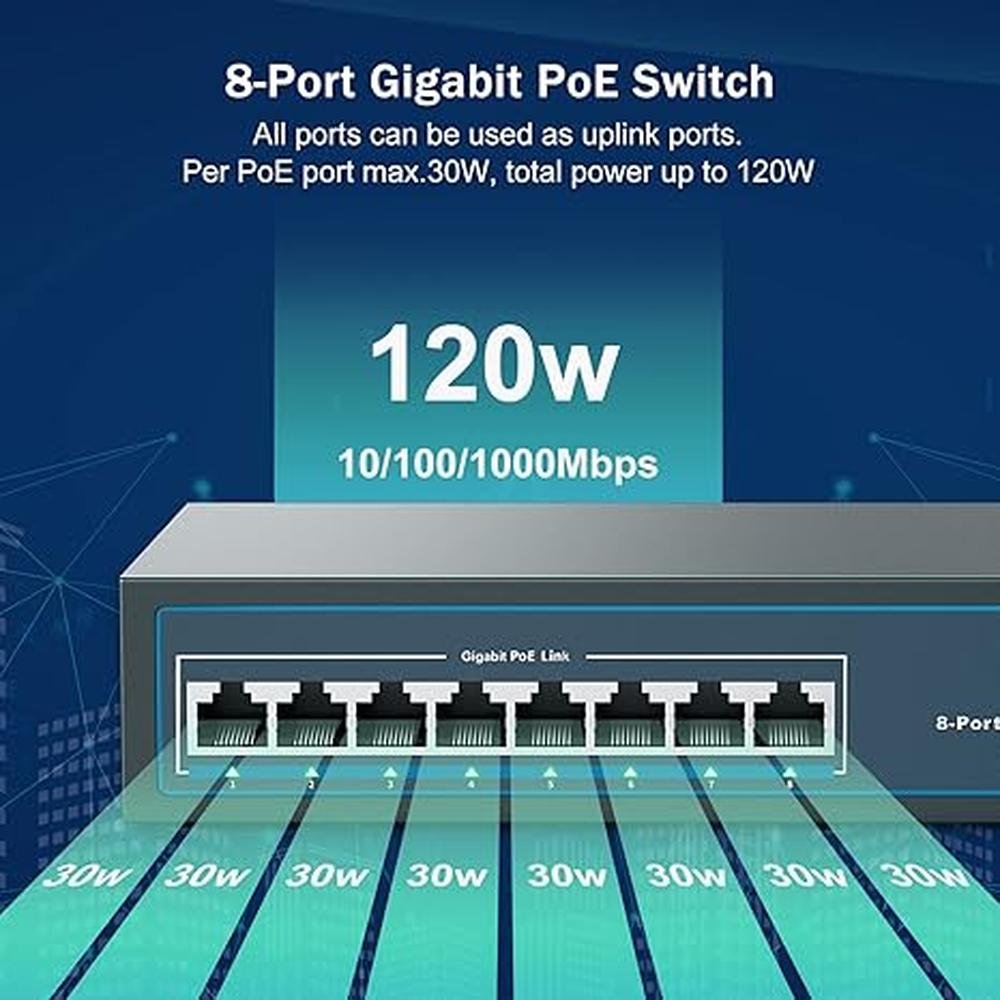

- • High performance This gigabit poe switch has 8 1000Mbps ethernet ports, backplane bandwidth is 12Gbps, has excellent network performance, can support higher speed services

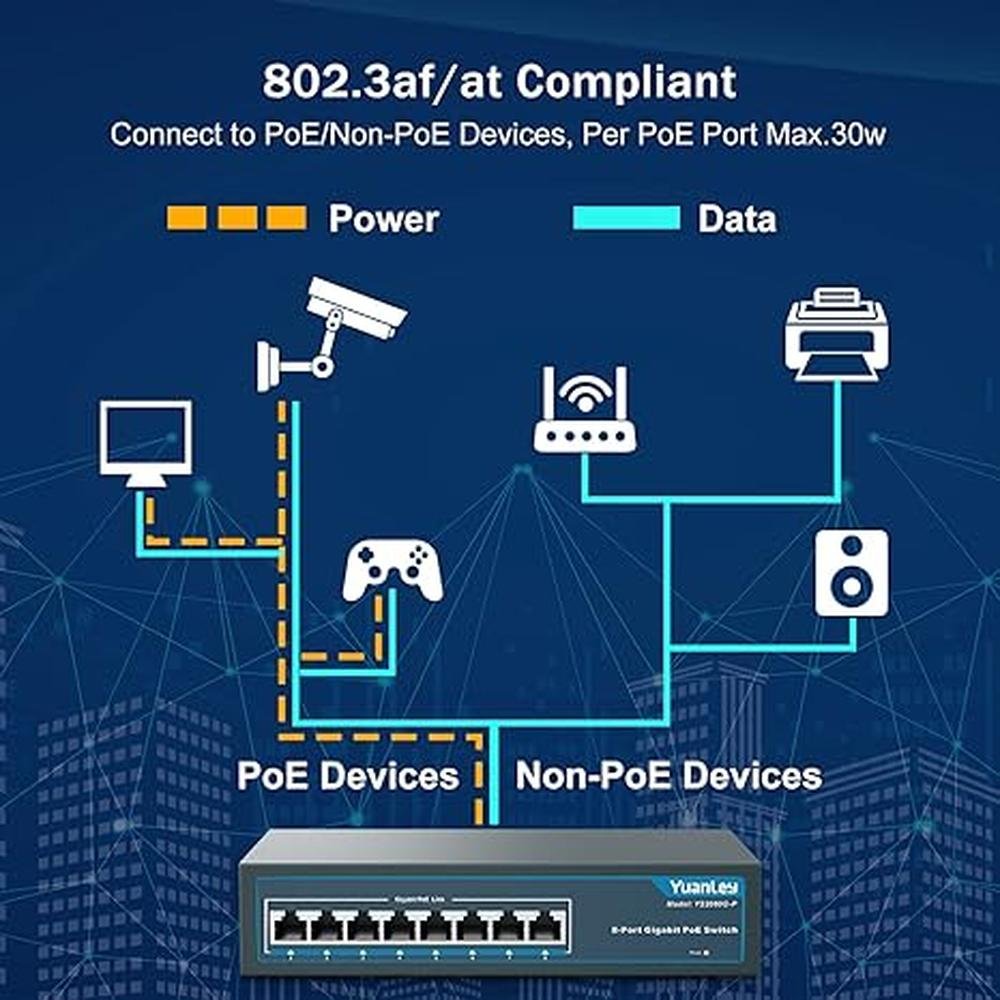

- • 8 PoE Ports All ports support PoE, and support automatic detection, can connect POE and non-POE devices, such as PoE Cameras, APs, computer, nvr, router and so on. All ports can be used as uplink ports.
- • 120W PoE Power Support IEEE 802.3afat PoE power supply. The whole power is 120W, up to 30W per port. Suitable for poe power supply for multiple devices.

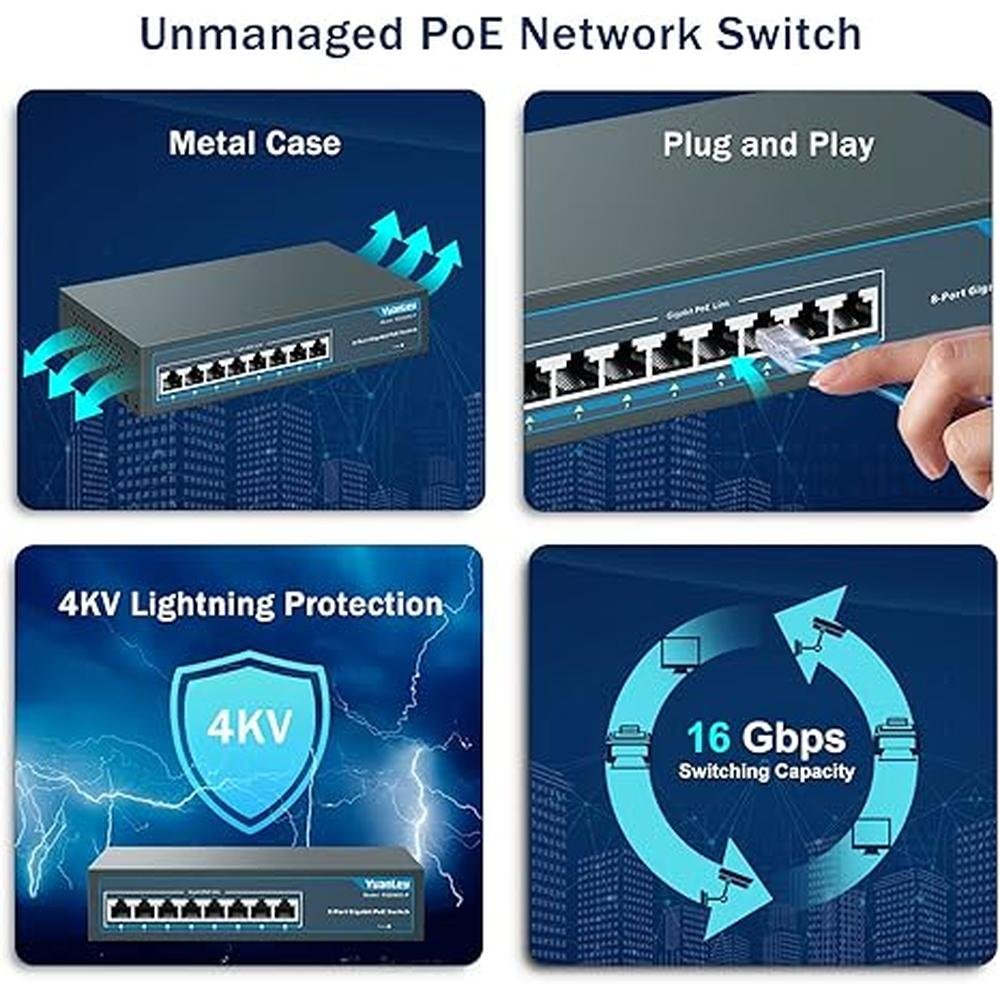

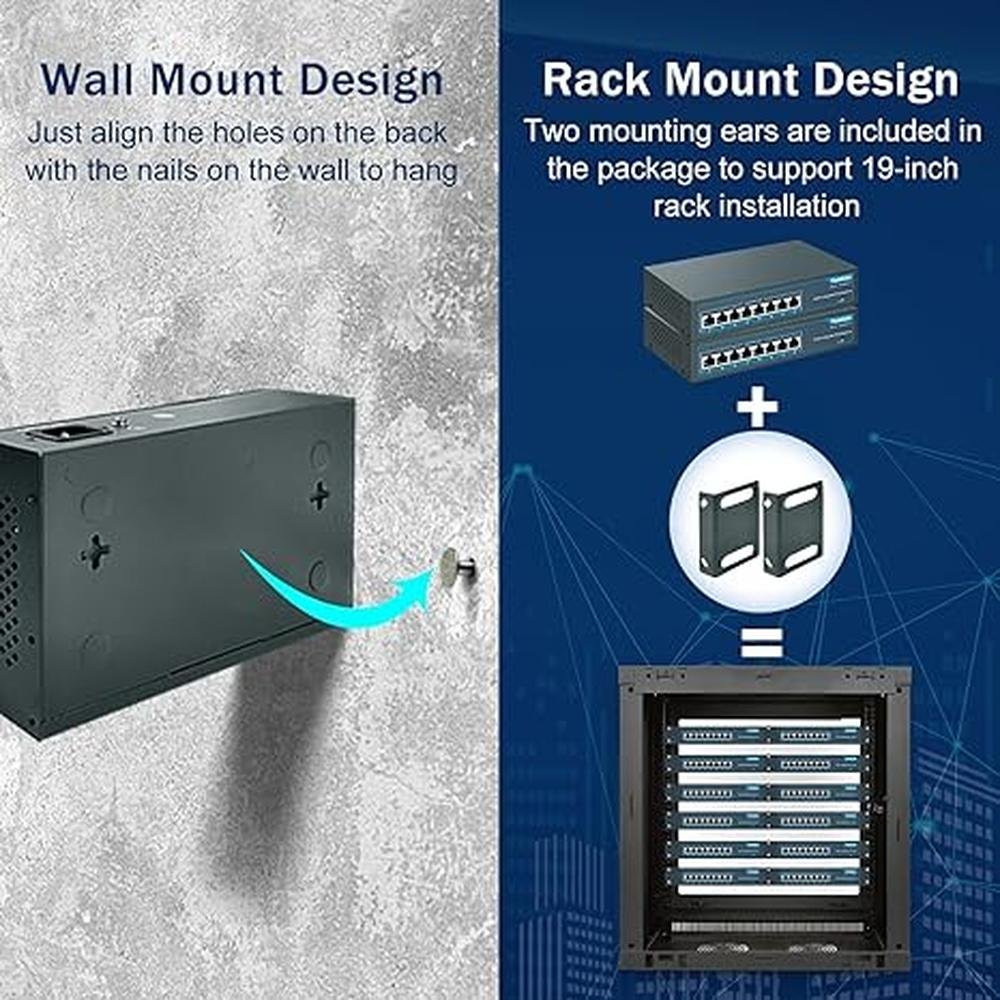

- • Plug and Play Sturdy metal case, no noise, with hanging ears for installation, plug in power and network cable, no configuration required, can be easy installed in various environments.
Specifications & Details
| SKU | PIB082D9FWQH |
|---|---|
| Product Dimensions | 9.06"L x 7.48"W x 2.76"H |
| Item Weight | 0.980 kgs |
| Platform | Not Machine Specific |
| Voltage | 48 Volts (AC) |
| Case Material | Metal |
| Upper Temperature Rating | 55 Degrees Celsius |
| Interface Type | PoE |
| Data Transfer Rate | 1000 Megabits Per Second |
| Current Rating | 2 Amps |
| Manufacturer | YuanLey |
| UPC | 786118199743 |
| Item Weight | 0.980 kgs |
| Item model number | 8 Port | 8*PoE+ (1000Mbps)(120w) |
Product description
bSpecificationsbbr 8x101001000Mbps PoE portbrSupport IEEE802.3afat PoEbr High Whole Power 120W, Each port max reached 30WbrSwitch Capability up to 12Gbpsbr Working Temperature-10--55Cbrbr b8 Gigabit PoE Portsbbr All 8 ports support gigabit speed and all support POE, can supply power to higher bandwidth service.brbr bAuto Detect Devicebbr Automatically detect powered devices, support IEEE802.3afat PoE(include PoE cameras, APs, etc.) and Non-PoE device, does not support 24V passive PoE. brbr bDurable Metal Housingbbr Compact design, sturdy metal case makes it safe to use in various environmentsbrbr bBuilt-in Power Supplybbr Use the built-in industrial power supply to connect directly to the outlet through the power cord. It does not require an external large power adapter, making installation easier and saving space.brbr bNo Noisebbr Bilateral heat dissipation, fanless design, keeps stable and quiet.brbr bEasy to Usebbr Requires no configuration, just plug-and-play, automatic connect to device.brbr
