Specifications & Details
| SKU | PIB0BZ598W8N |
|---|---|
| Brand | LinksTek |
| Series | X540T2 |
| Item model number | X540T2 |
| Operating System | Windows Server 2022 2019 2016 2012R2 2012, Windows 11 10 8.x 7 32/64bit |
| Item Weight | 0.156 kgs |
| Product Dimensions | 4.72 x 2.7 x 0.7 inches |
| Item Dimensions LxWxH | 4.72 x 2.7 x 0.7 inches |
| Color | Matte Black |
| Manufacturer | LinksTek Co,Ltd |
Product description
X540T2 Dual 10GbE RJ45 Ports Converged Networkt Adpater, PCIE X8 10GbE NIC Card
This LinksTek X540T2 Dual 10GbE RJ45 Ports Converged Ethernet Adapter will simplify Desktop PCs, Network Attached Storage (NAS) and Data Centers network migration to 10GbE for Storage, Virtualization, Gaming, 8K HD Video Streaming. Works with legacy Gigabit Ethernet (GbE) switches and Cat 6A. Provide efficient 10GbE network and reliable RJ-45 connectivityfor distances up to 100 meters with cable 6A. Simplified installing ethernet adapter into a server and the auto-negotiation network speed between 1GbE and 10 GbE.Fully supports Intel Virtualization Technology for Connectivity. Support On-chip QoS and Traffic Management; Support Flexible Port Partitioning (FPP); Support Virtual Machine Device Queues (VMDq); Support PCI-SIG SR-IOV; Support Intel Data Direct I/O Technology; Support Intelligent Offloads. The FPP allow servers using SR-IOV function. The QoS functionality that can be used in both virtual and non-virtual servers. Unified Networking solutions combined the traffic of multiple data center networks like LAN and SAN. Users can choose NFS, iSCSI, or FCoE to carry both network and storage traffic at speeds of up to 10 Gb/s. It is a reliable method of connecting servers to iSCSI SANs. The Open-FCoE architecture uses a combination of FCoE initiators in Windows and Linux operating systems and in the VMware ESXi hypervisor to deliver high-performance FCoE 10 GbE ethernet. The adapter is designed to fully offload the FCoE data path to deliver full-featured converged network adapter function.
ATTENTION:
1. PCIE X8 interface supports PCIE X8 or X16 Lane slot.
2. Supports 10GbE and 1GbE standard, do not support 5GbE and 2.5GbE mode.
Technical Specifications:

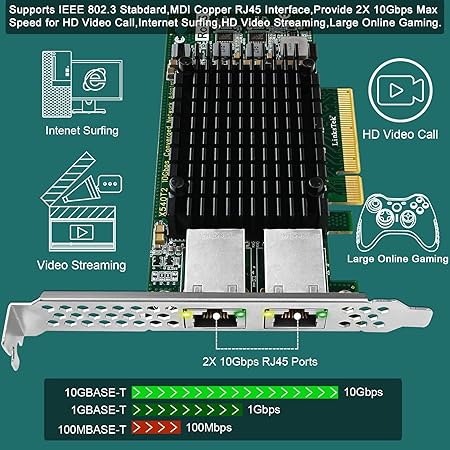

Supports 10GbE and 1GbE
1. Users will get 10Gbps max speed on it's data center and desktop PCs.
2. Supports the 10GbE and 1GbE standard, do not support 2.5GbE and 5GbE standard.
Windows 11, 10 32/64bit
1. Plug and play on Windows Server 2022, 2019, 2016, 2012R2, 2012 systems.
2. Need to install driver on Windows 11, 10, 8.x, 7 32/64bit systems.
3. Linux supports IXGBE driver, no tech-support for Linux.
CAT6A and CAT 6 Standard
1. CAT6A cable supports 10GbE speed in 100 meters. CAT6 cable supports 10GbE speed 55meters.
2. Supports IPV4 and IPV6 standard.

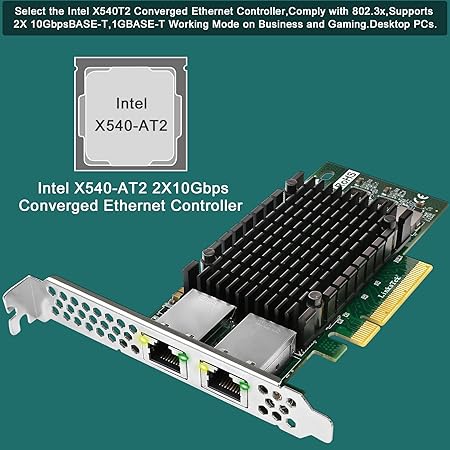

X540AT2 Ethernet Controller
1. Select the Intel X540AT2 2X 10Gbps converged ethernet controller, provide 2X 10GbE ports on Desktop PCs will reduce the power consumption.
2. Will works on Intel, ARM and AMD platform.
PCI Express X8 Interface
1. PCI Express X8 interface design, will works on PCIE X8 and X16 LANE slot.
2. PCIE version 2.0 standard, will compatible with PCIE 2.x, 3.x and 4.x standard.

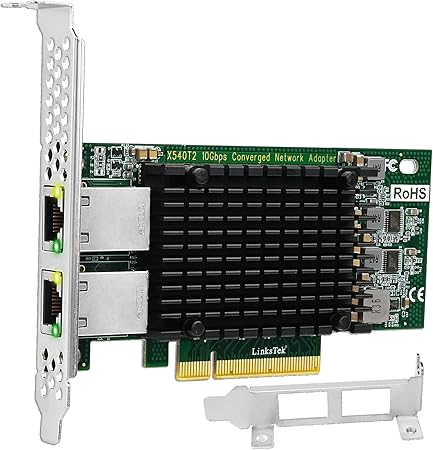

Full Height PCs and Slim PCs
1. Full height bracket mounted on the X540T2, will supports full height PCs.
2. The Low profile bracket in the package, will works on Slim PCs.
Product Description:
This LinksTek X540T2 Dual 10GbE RJ45 Ports Converged Ethernet Adapter will simplify Desktop PCs, Network Attached Storage (NAS) and Data Centers network migration to 10GbE for Storage, Virtualization, Gaming, 8K HD Video Streaming. Works with legacy Gigabit Ethernet (GbE) switches and Cat 6A. Provide efficient 10GbE network and reliable RJ-45 connectivityfor distances up to 100 meters with cable 6A. Simplified installing ethernet adapter into a server and the auto-negotiation network speed between 1GbE and 10 GbE.Fully supports Intel Virtualization Technology for Connectivity. Support On-chip QoS and Traffic Management; Support Flexible Port Partitioning (FPP); Support Virtual Machine Device Queues (VMDq); Support PCI-SIG SR-IOV; Support Intel Data Direct I/O Technology; Support Intelligent Offloads. The FPP allow servers using SR-IOV function. The QoS functionality that can be used in both virtual and non-virtual servers. Unified Networking solutions combined the traffic of multiple data center networks like LAN and SAN. Users can choose NFS, iSCSI, or FCoE to carry both network and storage traffic at speeds of up to 10 Gb/s. It is a reliable method of connecting servers to iSCSI SANs. The Open-FCoE architecture uses a combination of FCoE initiators in Windows and Linux operating systems and in the VMware ESXi hypervisor to deliver high-performance FCoE 10 GbE ethernet. The adapter is designed to fully offload the FCoE data path to deliver full-featured converged network adapter function.

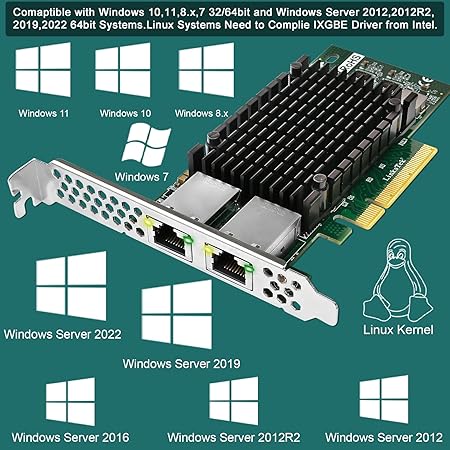

Compatible Systems:
Plug and play on Windows Server 2022, 2019, 2016, 2012R2, 2012 systems.
Need to install driver on Windows 11, 10, 8.x, 7 32/64bit systems.
Linux supports IXGBE driver, need to compile driver by users.
Package:
1X X540T2 1X Low Profile Bracket 1X User Manual 1X Driver CD 1X Mount Screw.
