- About this Item

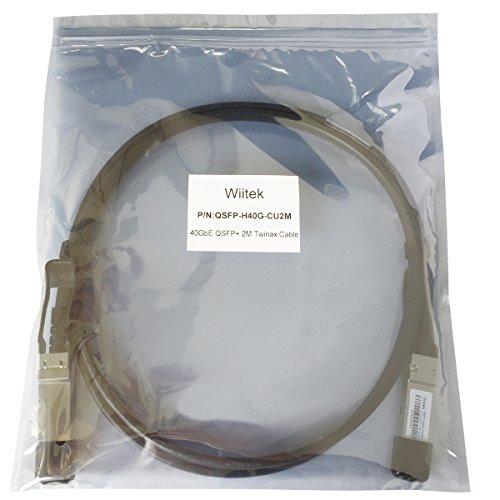

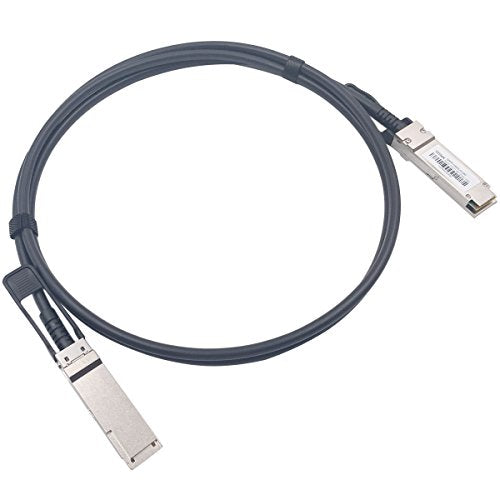

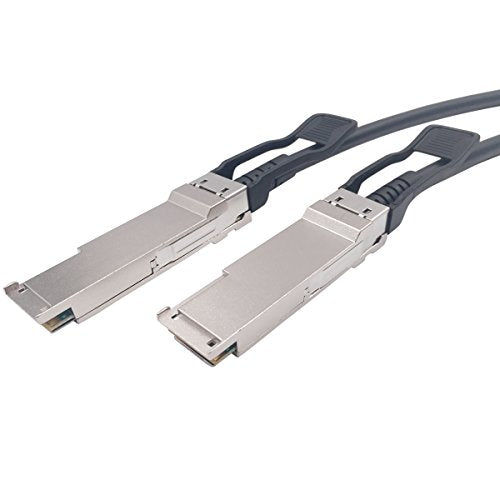

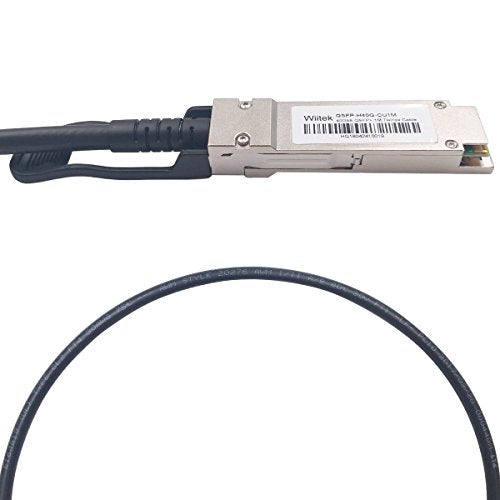

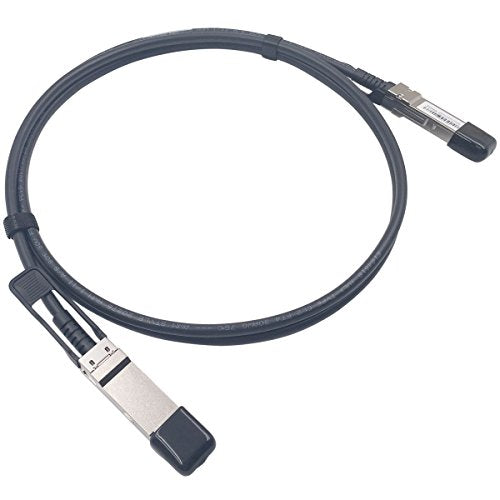

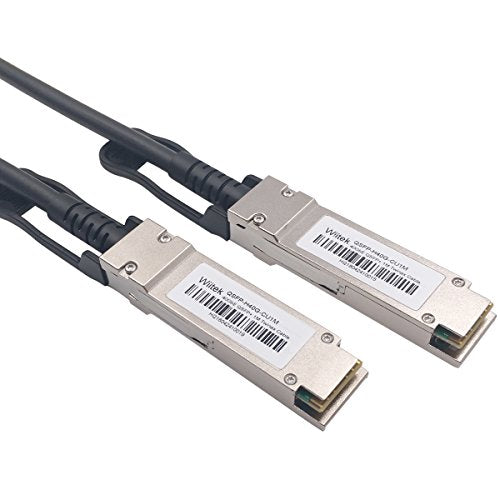

- • 1, QSFP to QSFP DAC Twinax Cable, 30AWG 2m Length, 40Gb QSFP Netowrking Card Connecting Cable
- • 2, 40GbE QSFP Direct Attach Copper Cable, PVC Jacket, Zinc Alloy QSFP Connector Shell

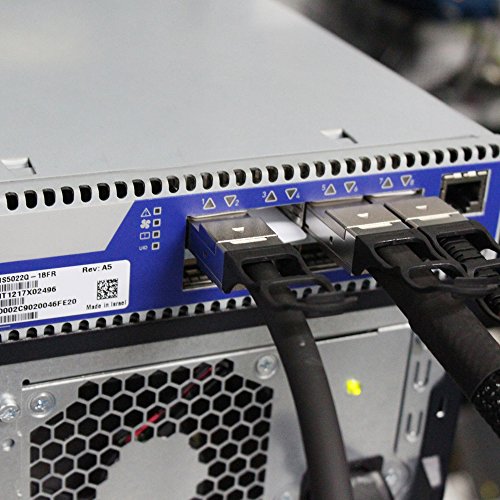

- • 3, Used in InfiniBand QDR, 40 Gigabit Ethernet, Fiber Channel, PCIe, Data Centers, High Performance Computing(HPC) Storage
- • 4, Comaptible with Cisco QSFP-H40G-CU2M, Ubiquiti, D-Link, Juniper, Huawei, Mellanox, Mikrotik and Supermicro
Specifications & Details
| SKU | PIB07CN1MTWR |
|---|---|
| Brand | Wiitek |
| Connector Type | Qsfp+ |
| Cable Type | Fiber Optic, Component, Ethernet |
| Compatible Devices | Router |
| Special Feature | Compact |
| Ethernet cable category | Cat 8 |
| Color | Cisco |
| Connector Gender | Male-to-Male |
| Data Transfer Rate | 40 Gigabits Per Second |
| Shape | Round |
| Number of Pins | 38 |
| Unit Count | 1 Count |
| Item Weight | 0.200 kgs |
| Gauge | 30.0 |
| Specification Met | CE, FCC |
| Indoor/Outdoor Usage | Outdoor, Indoor |
| Number of Items | 1 |
| Manufacturer | Wiitek |
| UPC | 661083595403 |
| Item model number | QSFP-H40G-CU2M |
| Item Weight | 0.201 kgs |
| Product Dimensions | 9.45 x 9.45 x 0.91 inches |
| Item Dimensions LxWxH | 9.45 x 9.45 x 0.91 inches |
| Voltage | 5 Volts |
| Is Discontinued By Manufacturer | No |
Product description
bIntroductionbbr br The Quad Small Form-factor Pluggable (often abbreviated as QSFP or QSFP) is a compact, hot-pluggable transceiver used for data communications applications. brIt interfaces a network device motherboard (for a switch, router, media converter or similar device) to a fiber optic cable. It is a industry format jointly br developed and supported by many network component vendors. QSFP transceivers are designed to support Serial Attached SCSI, 40G Ethernet, 20G40G brInfiniband, and other communications standards.br br bApplicationsbbr br InfiniBand QDR, 40 Gigabit Ethernet, Fiber Channel, PCIebr Switches, Routers, and HBAHCASbr Data Centersbr High Performance Computing(HPC) Storagebr Improved cable management applicationsbr br bProduct NamebWiitek for Cisco QSFP-H40G-CU2M QSFP to QSFP Passive Twinax Cable, 40GbE QSFP Direct Attach Copper Cable,30AWG 2M, Blackbr bCisco PNbQSFP-H40G-CU2Mbr bWire AWGb30AWGbr bCable Lengthb2m(6.5ft)br bConnector TypebQSFP to QSFPbr bMax Data Rateb40Gbpsbr bProtocolsb40G InfiniBand 8x DDR, 4x QDR, 10G40Gigabit Ethernet, Fibre Channelbr bColorbBlackbr
