- About this Item

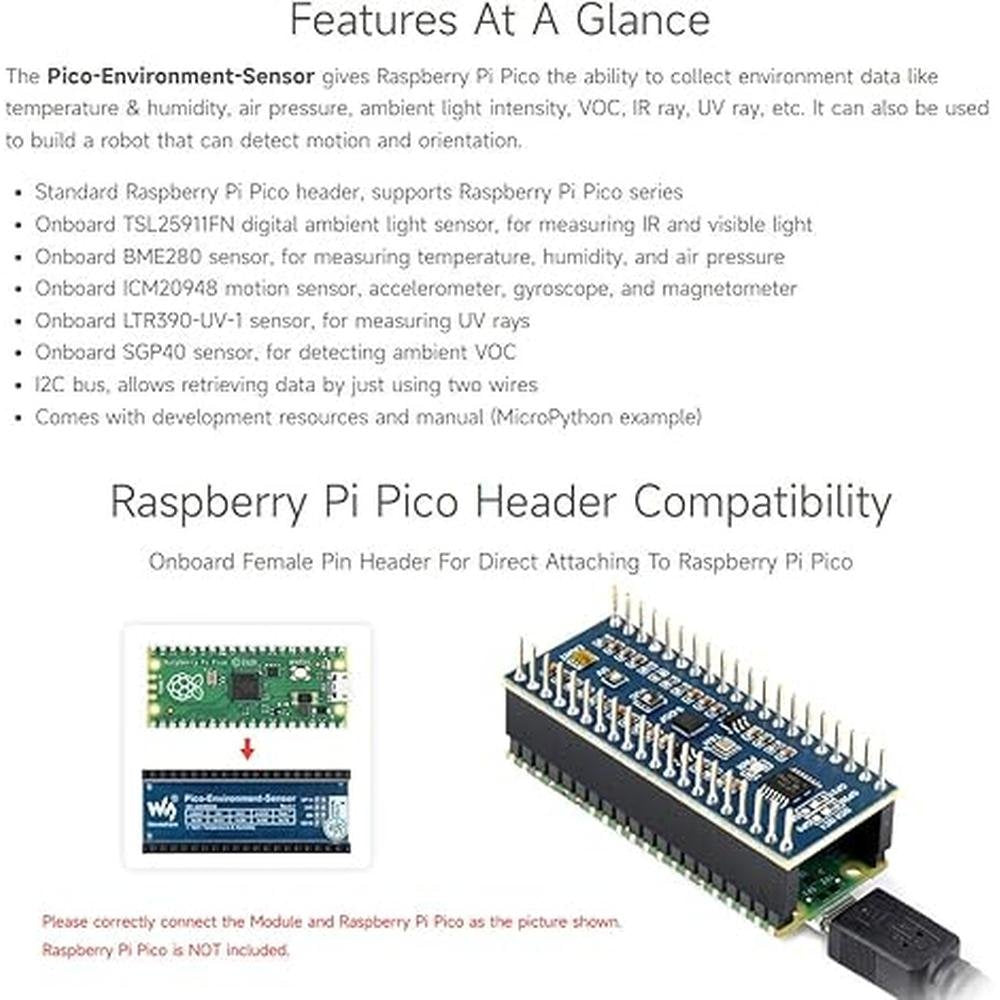

- • Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series
- • Onboard TSL25911FN digital ambient light sensor, for measuring IR and visible light. Onboard BME280 sensor, for measuring temperature, humidity, and air pressure
- • Onboard ICM20948 motion sensor, accelerometer, gyroscope, and magnetometer. Onboard LTR390-UV-1 sensor, for measuring UV rays
- • Onboard SGP40 sensor, for detecting ambient VOC. I2C bus, allows retrieving data by just using two wires
Specifications & Details
| SKU | PIB09B3KS3Z3 |
|---|---|
| Package Dimensions | 2.76 x 1.97 x 0.87 inches |
| Item Weight | 0.010 kgs |
| Manufacturer | Waveshare |
| Item model number | Pico-Environment-Sensor |
Product description
Elevate your Raspberry Pi Picos capabilities with our Environment Sensors Module. This compact (51mm x 21mm x 5mm) board seamlessly connects via the standard Raspberry Pi Pico header, supporting the Pico series. Its equipped with an array of sensors to monitor your environment a TSL25911FN digital ambient light sensor for IR and visible light, a BME280 sensor for temperature, humidity, and air pressure, an ICM20948 motion sensor with accelerometer, gyroscope, and magnetometer, an LTR390-UV-1 sensor for UV rays, and an SGP40 sensor for detecting ambient VOC. Data retrieval is simplified with the I2C bus, using just two wires. The module comes with development resources and manuals for both MicroPython and CC examples, making it easy to integrate into your projects. Whether youre building a weather station, a robot, or any other IoT project, this module is an essential addition to your Raspberry Pi Pico.
