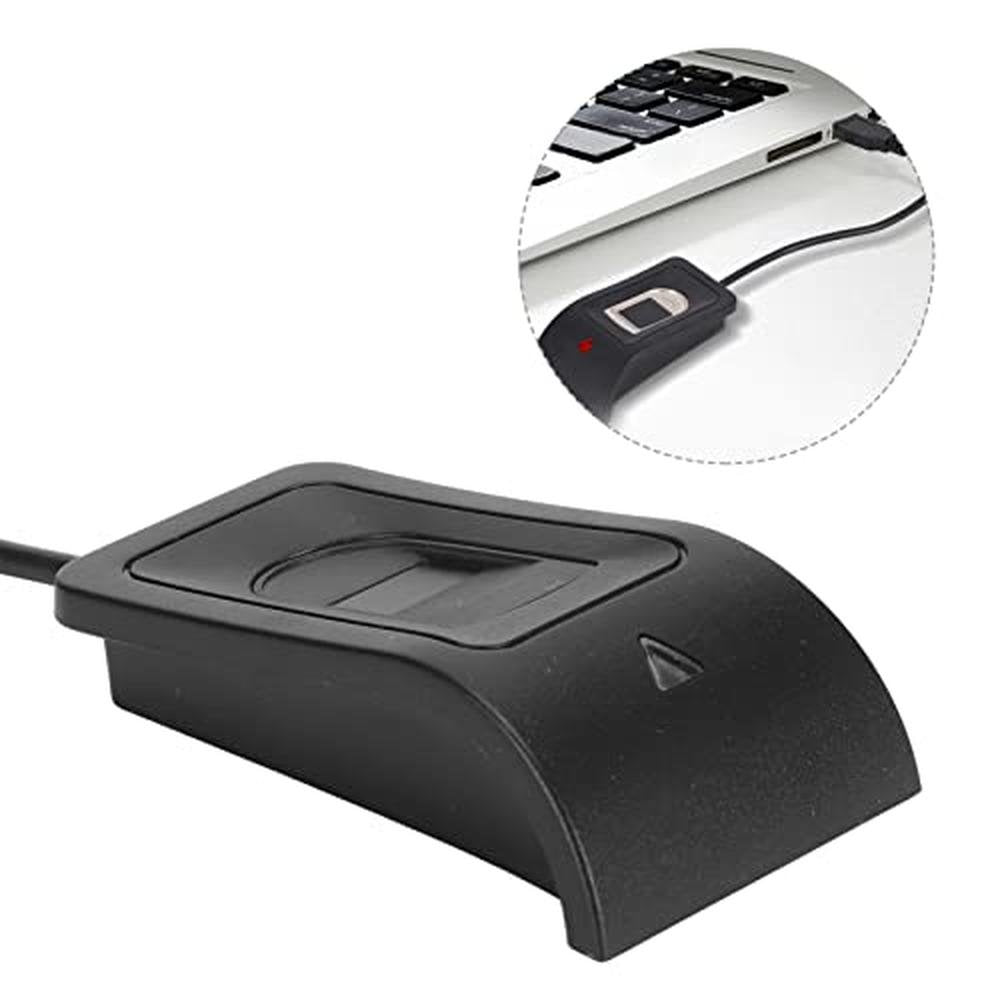

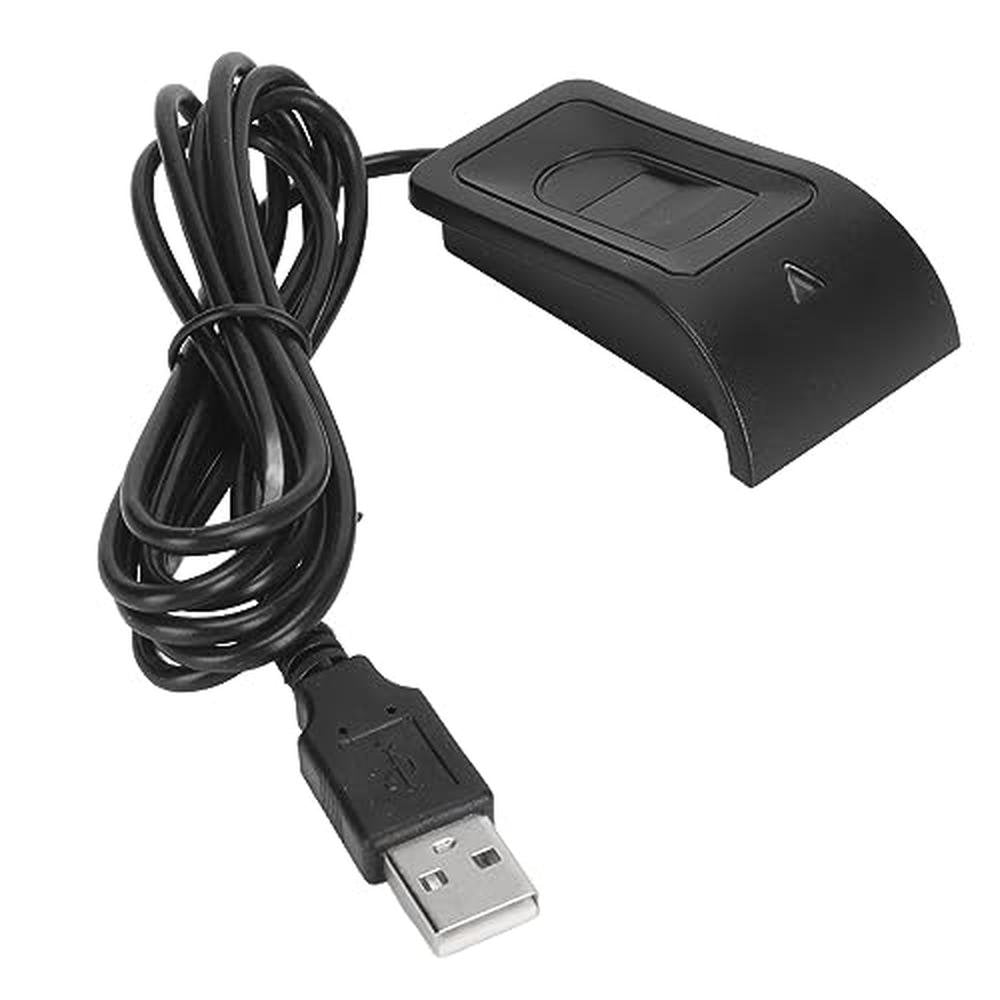

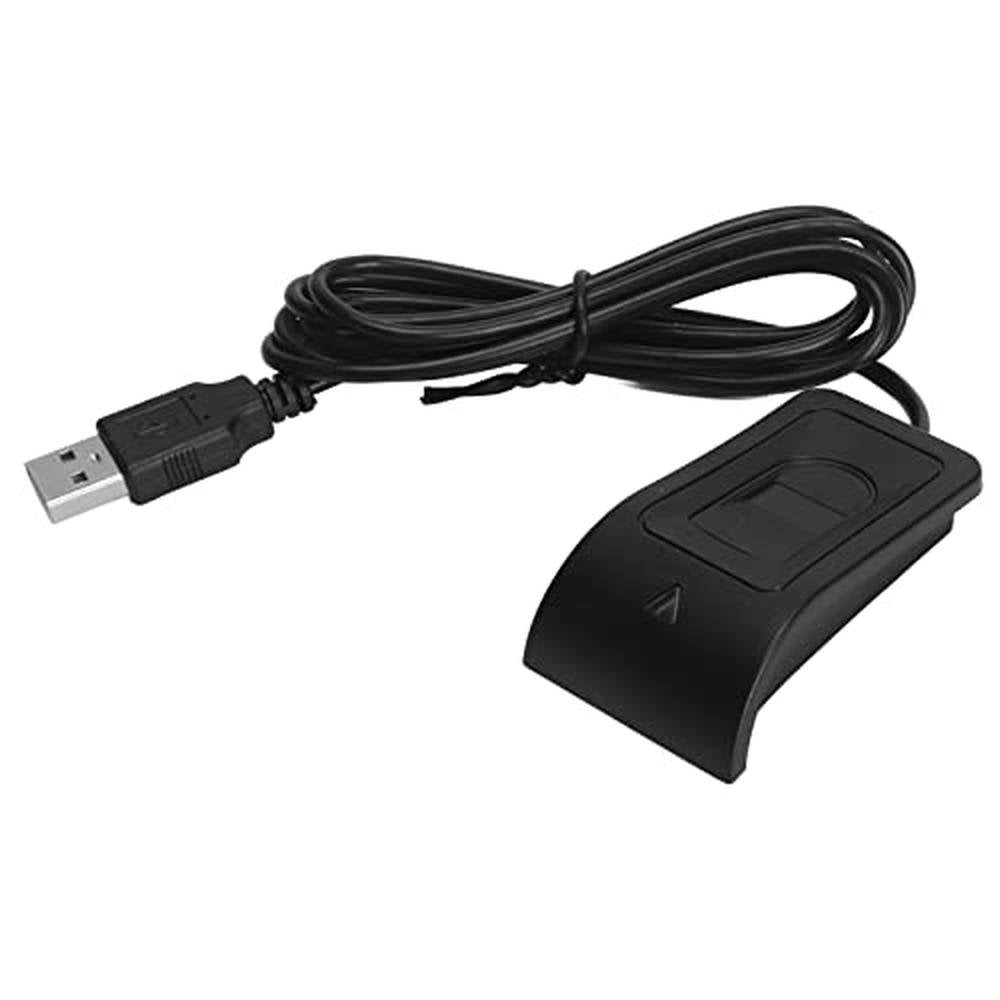

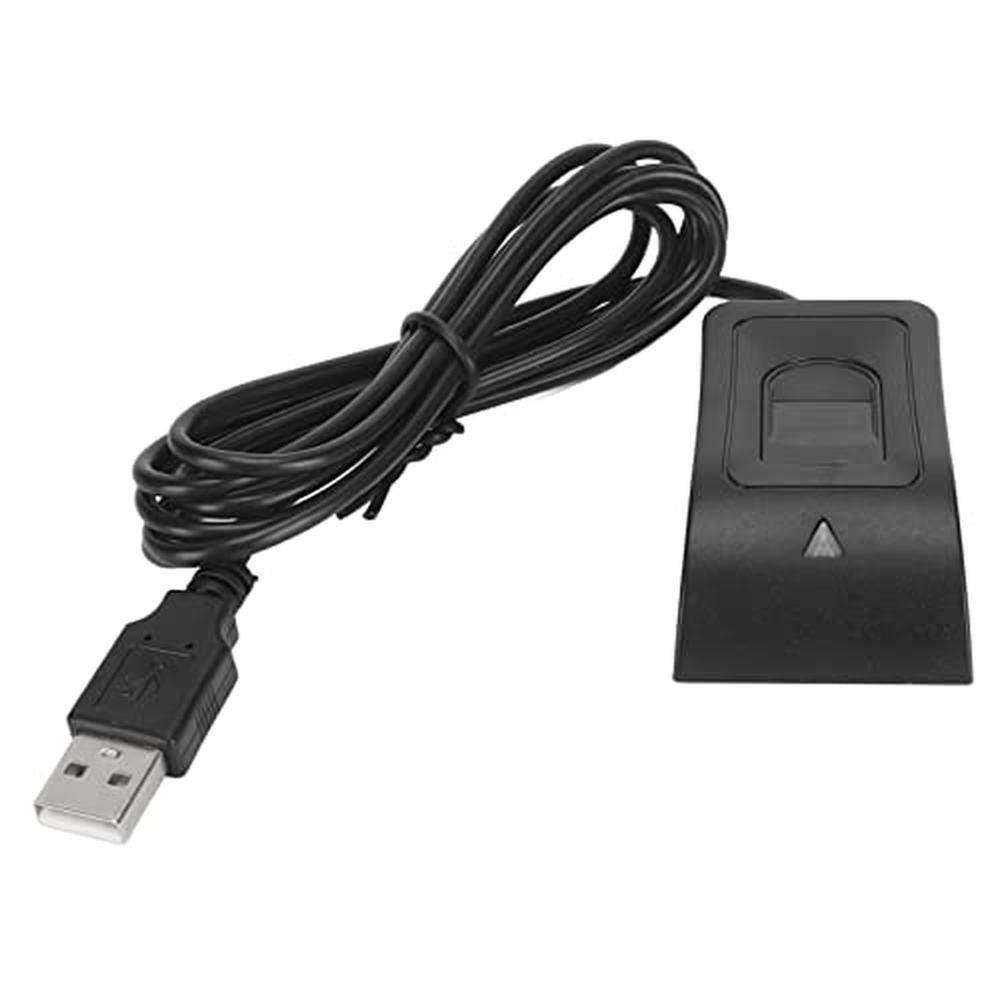

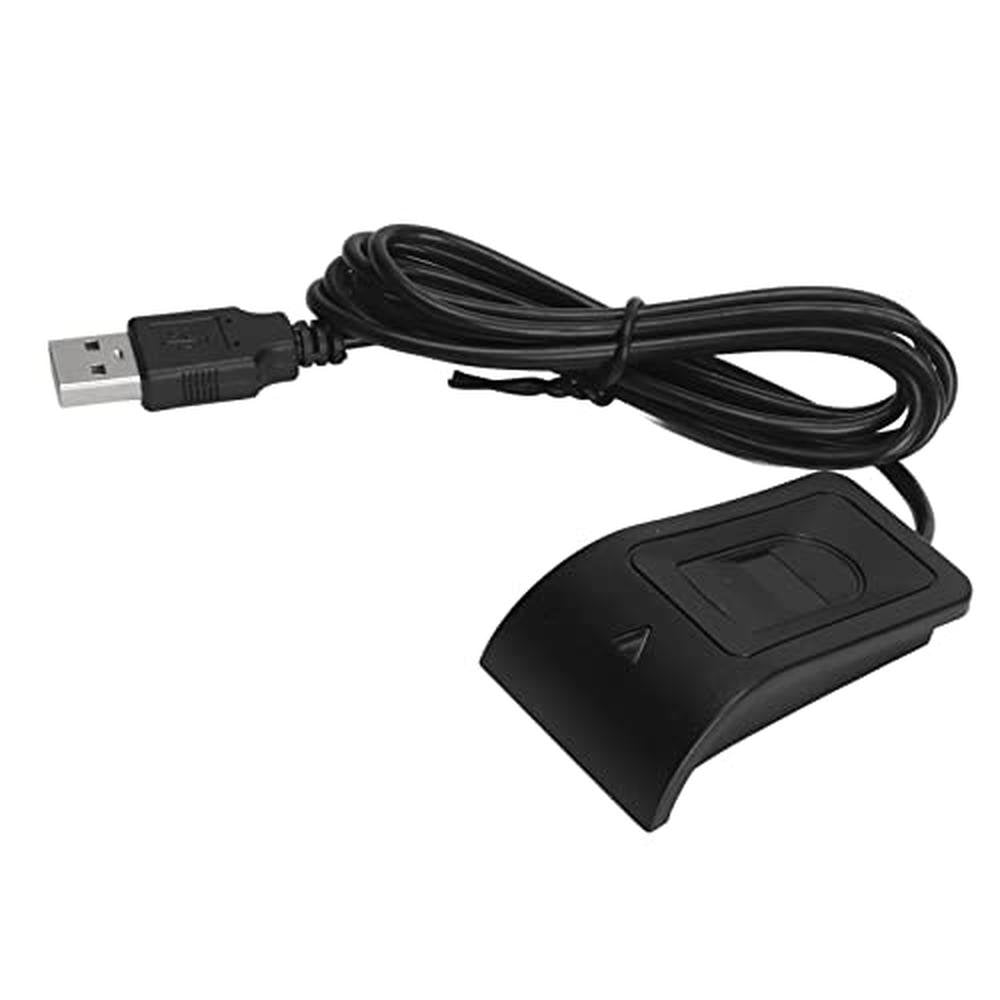

USB Fingerprint Reader Fingerprint for Windows10/11, Hello Automatic Driver Installation with 5ft Extension Cable, Password Operation, Hold 10 Fingerprints

Product description

SpecificationItem Type: Fingerprint Key ReaderMaterial: ABSCPU: 144Hz main frequency, 1M Bits Flash Memory, 128KB SRAMFingerprint Capture: Capacitive captureFingerprint Image Size: 96 x 112 (pixels), 508 DPIFingerprint Registration Capacity: 10 by default, expandable to 5000False Acceptance Rate (FAR): <0.001% (Security Level 3)Rejection Rate (FRR): <0.1% (Security Level 3)Matching Method: 1:N and 1:1 matchingFingerprint Template Size: 570 bytes ByteSecurity Level Setting: Level 1 to Level 5 configurable, factory set value: Level 3Processing Speed:Fingerprint Feature Extraction Time <0.45 seconds1:N matching time (for 3000 full registrations) <1.5 secondsCommunication Interface: UART, 3.3V-TTL level or USB communicationSerial Communication Parameters:No Parity Parity = NONE, 1 stop bit Stop Bit = 1No Flow Control = NONEBaud rate of 9600, 19200, 38400, 57600, 115200 (bps)Factory Setting: 115200bpsOperating Voltage: vin voltage: DC5VOperating Current: less than 30mA, peak less than 80mA (instantaneous current) when collecting fingerprintsSleeping Current: less than 10uA working environmentOperating Temperature: -10C-60CApplicable System: Only support for Win 10 System and abovePackage List1 x Fingerprint Key ReaderNoteNot available for OS X system..
