Upgraded Kelvin Four-Terminal Sensing WESTOBIG Battery Tester Internal ResistanceTester for Universal Batteries Meter, Car Battery Tester, 0-100V 0m-200, Digital Battery Analyzer for Automotive, BLUE_1

Load image into Gallery viewer, Upgraded Kelvin Four-Terminal Sensing WESTOBIG Battery Tester Internal ResistanceTester for Universal Batteries Meter, Car Battery Tester, 0-100V 0m-200, Digital Battery Analyzer for Automotive, BLUE_1

Upgraded Kelvin Four-Terminal Sensing WESTOBIG Battery Tester Internal ResistanceTester for Universal Batteries Meter, Car Battery Tester, 0-100V 0m-200, Digital Battery Analyzer for Automotive, BLUE

Regular price: Rs. 9,029.00
Sale price: Rs. 9,029.00
Regular price: ~~Rs. 10,059.00~~
Unit price: per

Tax included. Free shipping

Brand: WESTOBiG

SKU: PIB0D6BJNTQW

Quantity

Estimated Delivery Date:

Quantity must be 1 or more

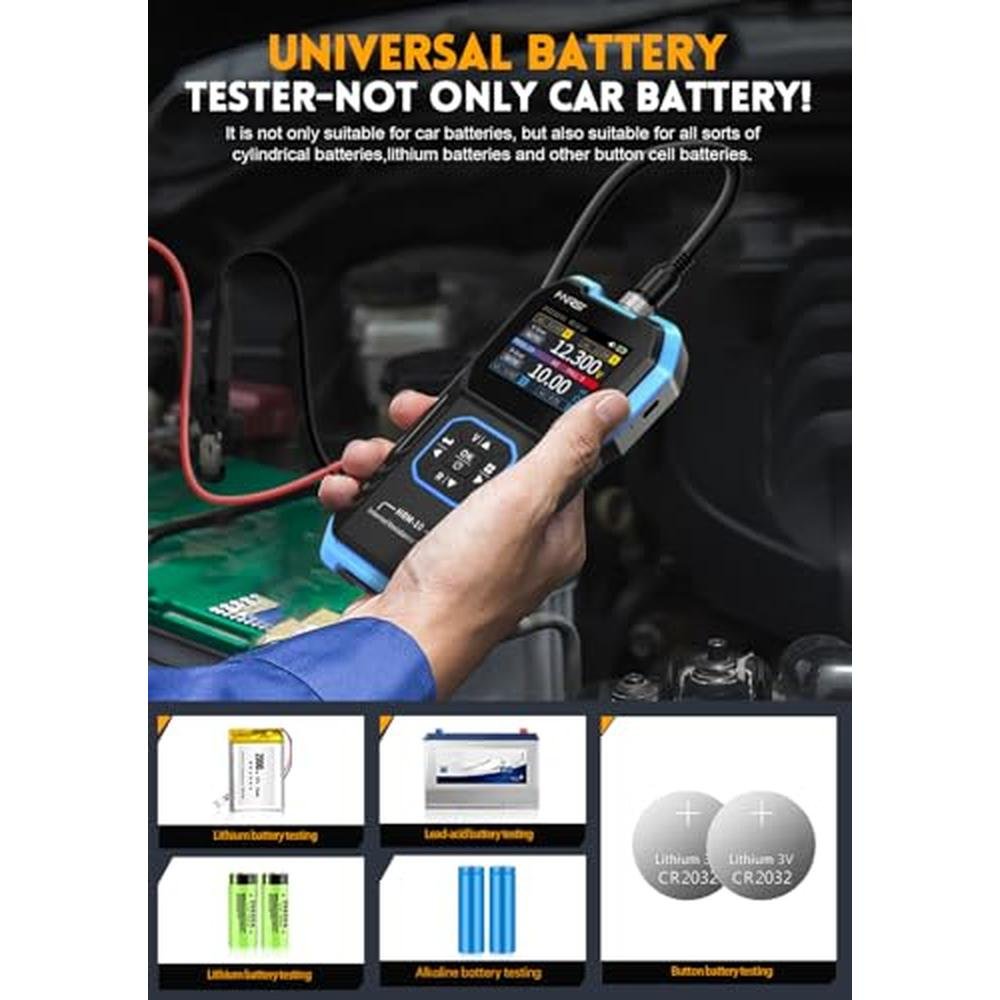

WIDE APPLICATION BATTERY TESTERThe FNIRSI HRM-10 battery tester is not only able to test car batteries, but also other types of batteries such as AA, AAA batteries, button batteries, lithuim batteries, lead-acid batteries,etc. The range of DC voltage is 0 - 100V and resistance 0 - 200. NOTE: The device must not be used with a DC voltage higher than 100V. Do not apply AC voltage under any circumstances.

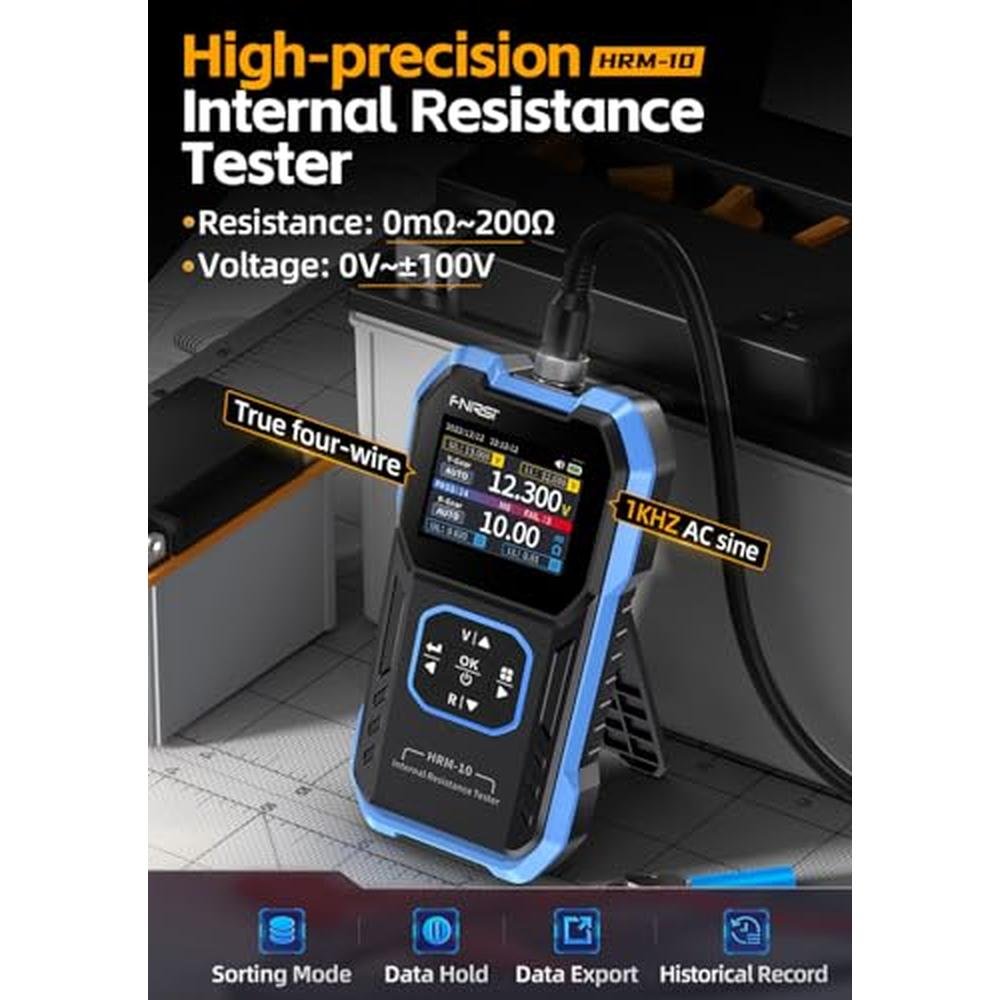

KELVIN FOUR-TERMINAL SENSINGThe FNIRSI HRM-10 comes with a kelvin clip test line. With Kelvin four terminal sensing, it can be possible to accurately measure resistance values less than 0.1 while eliminating the inherent resistance of the lead wires connecting the measurement instrument to the component being measured. It will provide you accurate values and help you identify the problematic batteries.

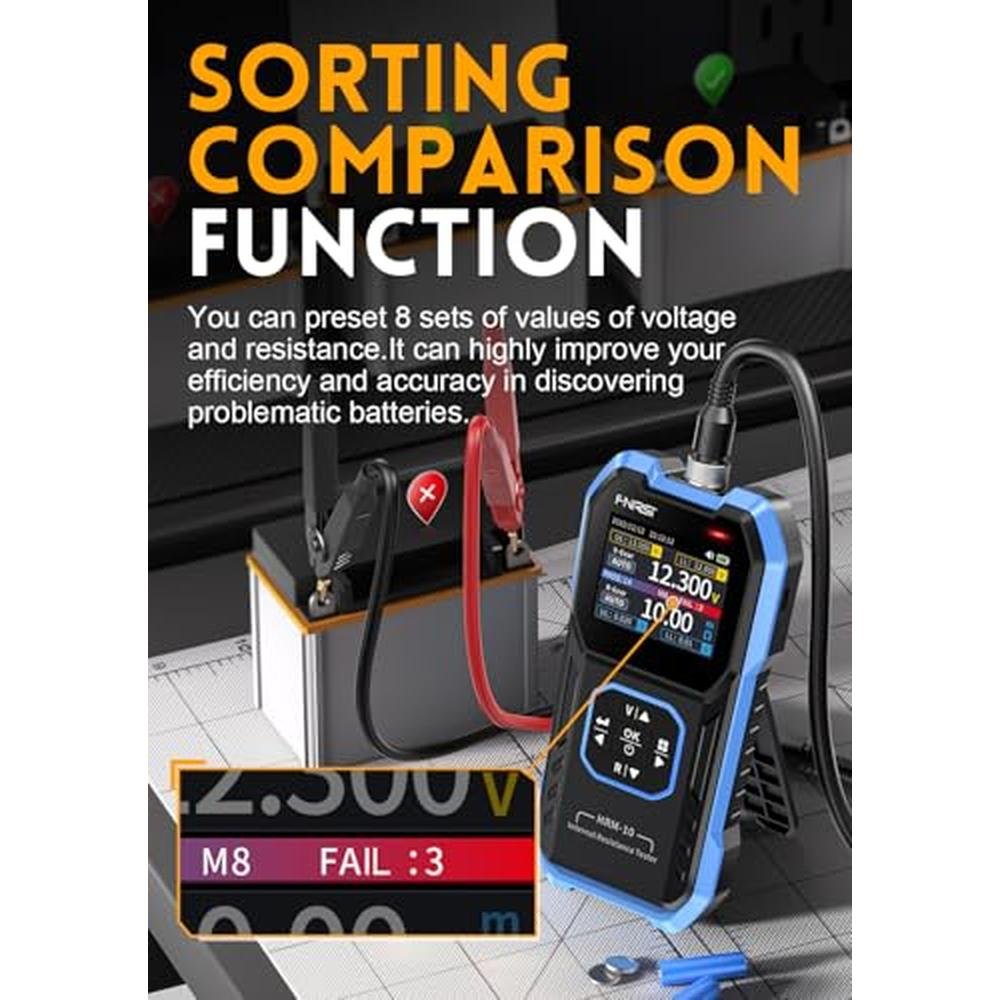

DATA PRESET FUNCTIONThe FNIRSI HRM-10 battery tester has auto mode.Voltage gears is: Automatic, 1V, 10V, 100V and the resistance gear is :Automatic, 20m, 200m, 2, 20, 200. You could preset 8 sets of data and check if the batteries can meet the standard you set and help you quickly find out the problematic batteries.
NO DATA WOULD BE MISSEDThe FNIRSI HRM-10 internal resistance tester can automatically save all the test records. And you could connect the tester to your PC and transfer all the data to PC via EXCEL. It would be convenient for you to analyze.

Product description

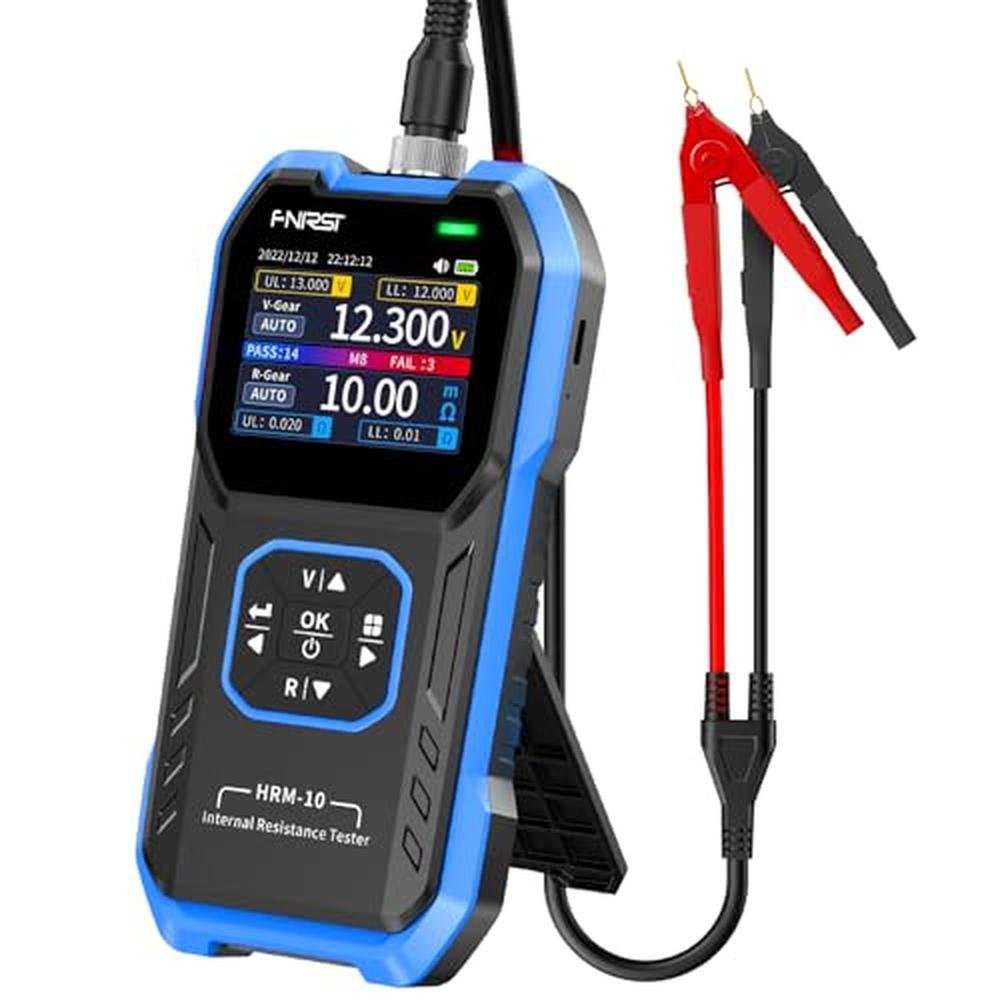

"HRM-10" is our company's first handheld high-precision attery internal resistance meter. It is a true four-wire measurement internal resistance meter, designed with precision, convenient to carry. The device can automatically test internal resistance and voltage values simultaneously, with measurement results displayed on the screen. Users can also manually adjust the voltage and resistance range. The product features a sorting mode, automatically filtering the good and bad batteries based on user-set thresholds. It also supports historical records and exporting data tables of historical measurements. Voltage measuring range:0 100V(DC) Voltage gear:Automatic, 1V, 10V, 100V Resistance measuring range:0 200 Resistance gear:Automatic, 20m, 200m, 2, 20, 200 Accuracy:0.5% Instrument test signal frequency:AC 1Khz Rechargeable:Type-C interface (5V/1A) Built-in battery:1000mAh lithium battery User calibration:Support Sorting mode:Support History recoed:Support Recorded data export:Support Working environment:-10C ~ +45C, relative humidity<80% Storage environment:-20C ~ +80C, relative humidity<80% Size:158.780.528.4mm Weight:225g HRM-10 Host *1 Clip test line *1 Type-C data cable *1 User Manual *1 Packaging box *1.

Technical specifications

SKU	PIB0D6BJNTQW
Power Source	Battery Powered
Upper Temperature Rating	45 C
Measurement Type	Ohmmeter, Voltmeter
