- About this Item
- • Versatile Input Options The SDI HDMI Dual Input Capture Card features both SDI and HDMI dual channel input, allowing you to connect multiple devices for seamless broadcasting and live streaming, ideal for gamers and content creators.
- • High Definition Capture Experience stunning HD 1080P live streaming and video capture, ensuring your broadcasts look professional and polished, capturing every detail in high quality.
- • Broad Compatibility This USB 3.0 HDMI SDI Dual Input Capture Card is compatible with various operating systems including Windows 7, 8.1, 10, 11, and Linux, providing flexibility for various setups and environments.
Specifications & Details
| SKU | PIB088D7464G |
|---|---|
| Brand | UNISHEEN |
| Item model number | UC3300HS |
| Operating System | Linux,Windows |
| Item Weight | 0.119 kgs |
| Product Dimensions | 3.93 x 2.75 x 0.95 inches |
| Item Dimensions LxWxH | 3.93 x 2.75 x 0.95 inches |
| Color | UC3300HS |
| Manufacturer | UNISHEEN |
Product description

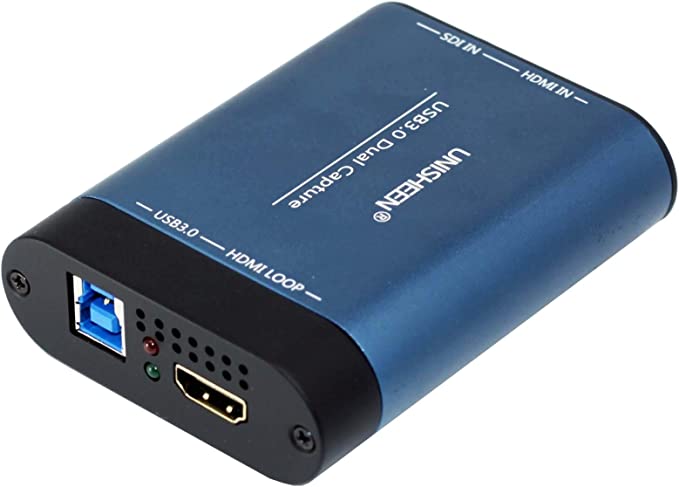

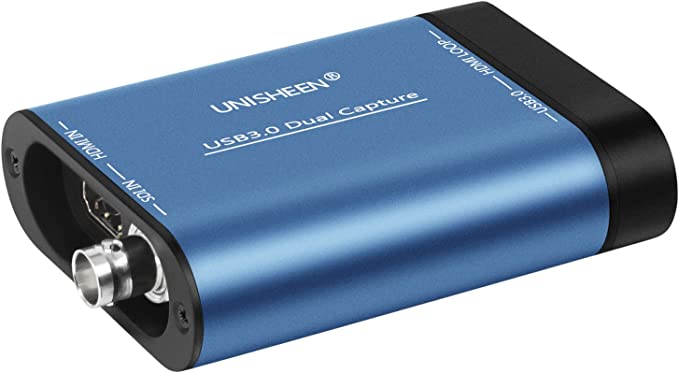

UNISHEEN Live Gamer Video Capture Card 1080P USB 3.0 HDMI SDI Dual Input Capture Card ,Ultra-Low Latency, Record, Stream, Plug & Play
Due to the limitation of the Apple system ( It just allocates only one divice's name ) , the SDI can not be shown on the Apple computer. So if you use it on Apple computer , not recommended ! but on Windows and Linux systems , it works pretty well !
Note: Due to the limit of the USB3.0 Bus speed in chipset ,when you take HDMI and SDI input at the same time,it can only run 1080p30.
General?
Operation system?Support version x86 & x64 from Windows 7?8.1?10?Windows Server 2008 R2 Linux
Compatible software?Windows Media Encoder, ,Adobe Flash Media Live Encoder, Real Producer Plus, VLC, Wire cast, AMCAP etc.…
Compatible development interface?DirectShow (Windows), DirectSound (Windows)
Update?Firmware can be updated by USB port
Dimension?69x90x24mm
Box Dimension?100x146x53mm
Net/Gross Weight?0.2/0.3kg
Working Temperature?0-50 degree
Storage temperature?-20-70 degree
Included in package?*USB Grabber 1pcs *USB3.0 Cable 1pcs *User Manual 1pcs
Interface USB interface USB3.0?360MB/s Bandwidth(Compatiable USB2.0)

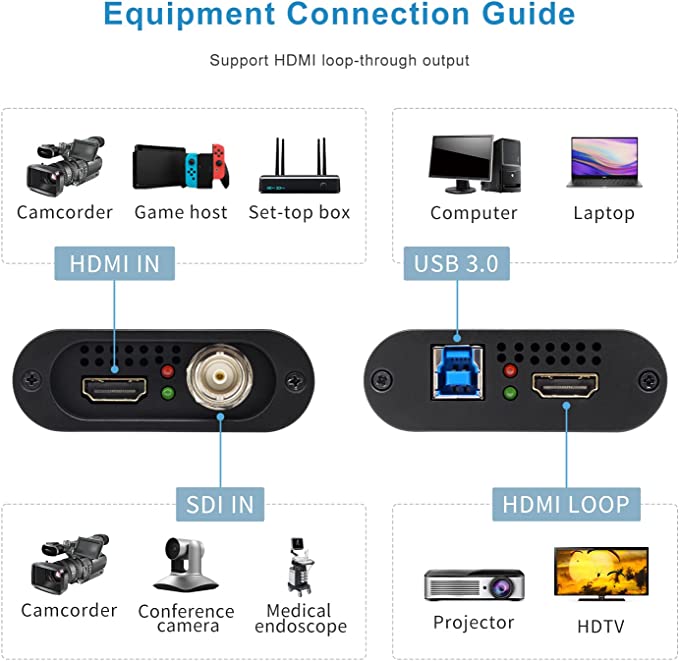

Input interface 1xSDI,1xHDMI(Dual Channel Input)
Output interface Only 1xHDMI Loop?this loop output don't support SDI in)
Video input 1080P50/60,1080I50/60,720P50/60,576P,576I,480P,480I
Audio input HDMI/SDI embedded
HDMI input format HDMI 1.4a compliance, Support 1080P/60HZ 8-bit, (YUV) SD/ HD/3G- SDI, SMPTE-259/274/296/372/424/425/292 compliance
Transmission speed HDMI:165MHZ,SDI:1.485Gb/s?2.97Gb/s
Video capture UVC (USB video class) compliance
Audio capture UAC (USB audio class) compliance
Output color space YUV2 NV12
Recording Mode Software Compression, Real-Time Mode
1080p HDMI SDI Dual Input Capture Card 1080p HDMI Adapter Card 1080p HDMI SDI Video Capture Card 1080p HDMI Adapter Card 1080p Video Recorder HD 2 Channel HDMI Picture-in-Picture
USB interface USB3.0?360MB/s Bandwidth(Compatiable USB2.0) USB3.0 Compatible USB2.0 USB3.0?360MB/s Bandwidth(Compatiable USB2.0) TYPE-C(Compatiable USB3.0/2.0)
Input interface 1xSDI,1xHDMI(Dual Channel Input) HDMI 1xSDI,1xHDMI 1xHDMI
Output interface Only 1xHDMI Loop?this loop output don't support SDI in) Only 1xHDMI Loop?this loop output don't support SDI in) 1xHDMI Loop
Video input: 1080P50/60,1080I50/60,720P50/60,576P,576I,480P,480I 1920x1080@60P/50p,1920x1080@60i/50i/1280x720@60p/50p 720x576i/720x480i 1080P50/60,1080I50/60,720P50/60,576P,576I,480P,480I 4K60P,1080P50/60,1080I50/60,720P50/60,576P,576I,480P,480I 2×HDMI(1.4 Simultaneous input switching) 4096×2160@60P 1920×1080@60P/50p 1920×1080@60i/50i 1280×720@60p/50p 720×576i 720×480i
Audio input HDMI/SDI embedded HDMI/SDI embedded HDMI embedded/1xLine In/1xMic In HDMI Embeded External Audio Line IN Mic IN
Compatible software Windows Media Encoder, ,Adobe Flash Media Live Encoder, Real Producer Plus, VLC, Wire cast, AMCAP etc.… Windows Media Encoder, ,Adobe Flash Media Live Encoder, Real Producer Plus, VLC, Wire cast, AMCAP etc.… Windows Media Encoder, ,Adobe Flash Media Live Encoder, Real Producer Plus, VLC, Wirecast,Vmix,OBS,XSplit AMCAP etc.… :OBS,Xsplit,Wirecast,FLME,QuickTime,VLC,Potplayer,Skype
System Support version x86 & x64 from Windows 7?8.1?10?Windows Server 2008 R2 Linux 32/64 Win7 Win8 Win10 Mac Linux Andriod Windows (7, 8, 8.1,10), Linux (kernel version 2.6.38 and above), OS X (10.8 and above) Support version x86 & x64 from Windows 7?8.1?10?Windows Server 2008 R2, macOS 10.10 or above,Andriod Win 10,Mac OS,Linux
