Product description

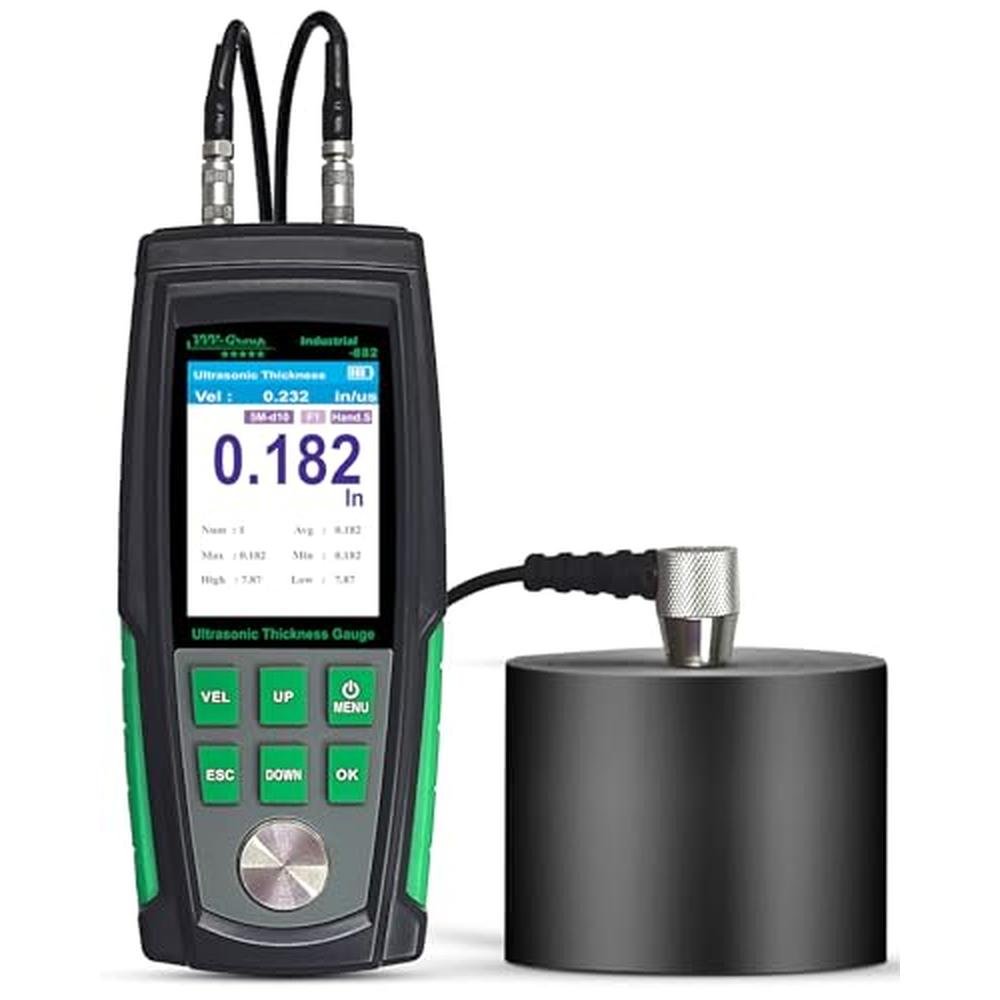

This ultrasonic coating thickness gauge by VVV-Group is a highly accurate and compact instrument used to quickly and accurately measure determining the average thickness of pipelines and pressure vessels of production equipment, and also to find the corrosion degree of various parts in use. It can also be widely used in manufacturing, metal processing, commodity inspection and other testing areas
The intelligent and hand-held ultrasonic thickness gauge is controlled by a microprocessor, which can measure thickness and sound speed of various materials quickly, accurately and without damage by ultrasonic measurement.
Important Note!!!

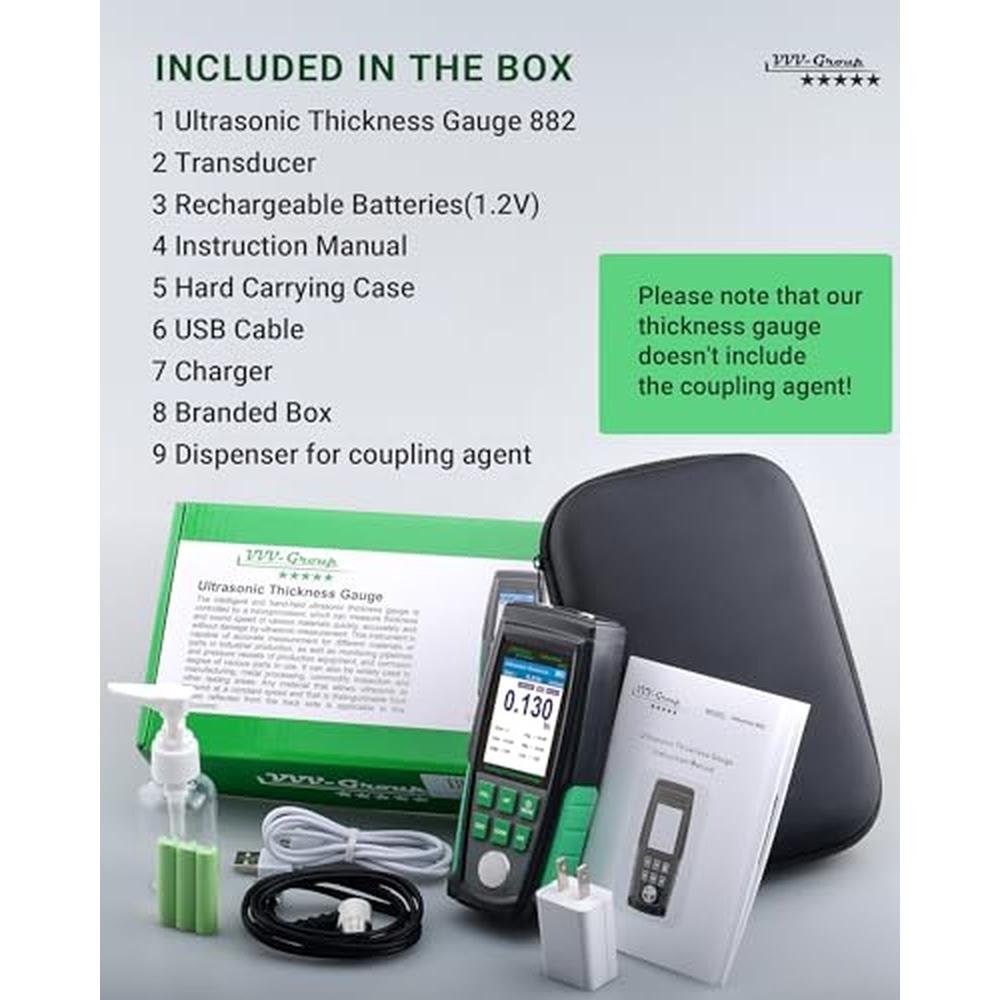

Coupling agent is necessary for measuring. Please note that our thickness gauge doesn't include the coupling agent.

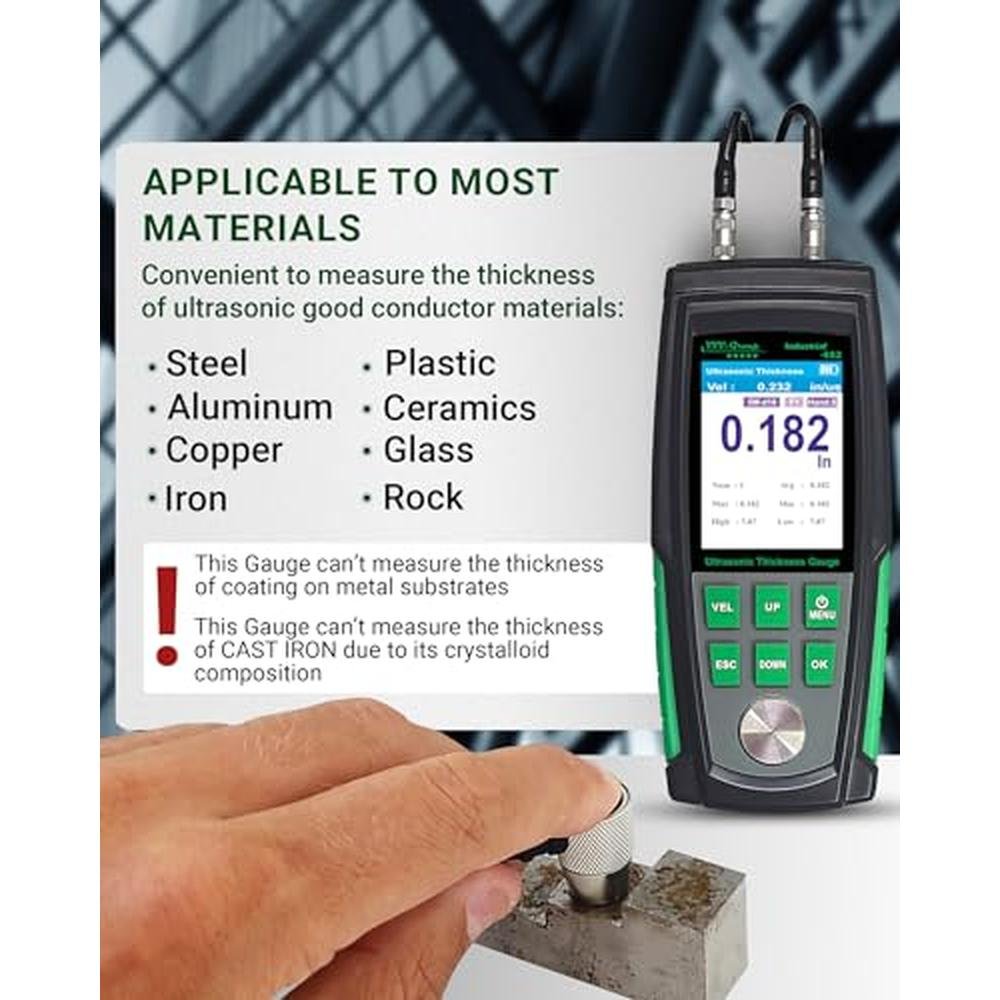

This gauge cannot measure the thickness of cast iron, due to its big crystalloid composition.
This Gauge cannot measure the thickness of coating on metal substrates. For this application you should buy “Coating thickness gauges”.
Functions:
2 types of auto calibration available: soundspeed calibration and basic calibration;

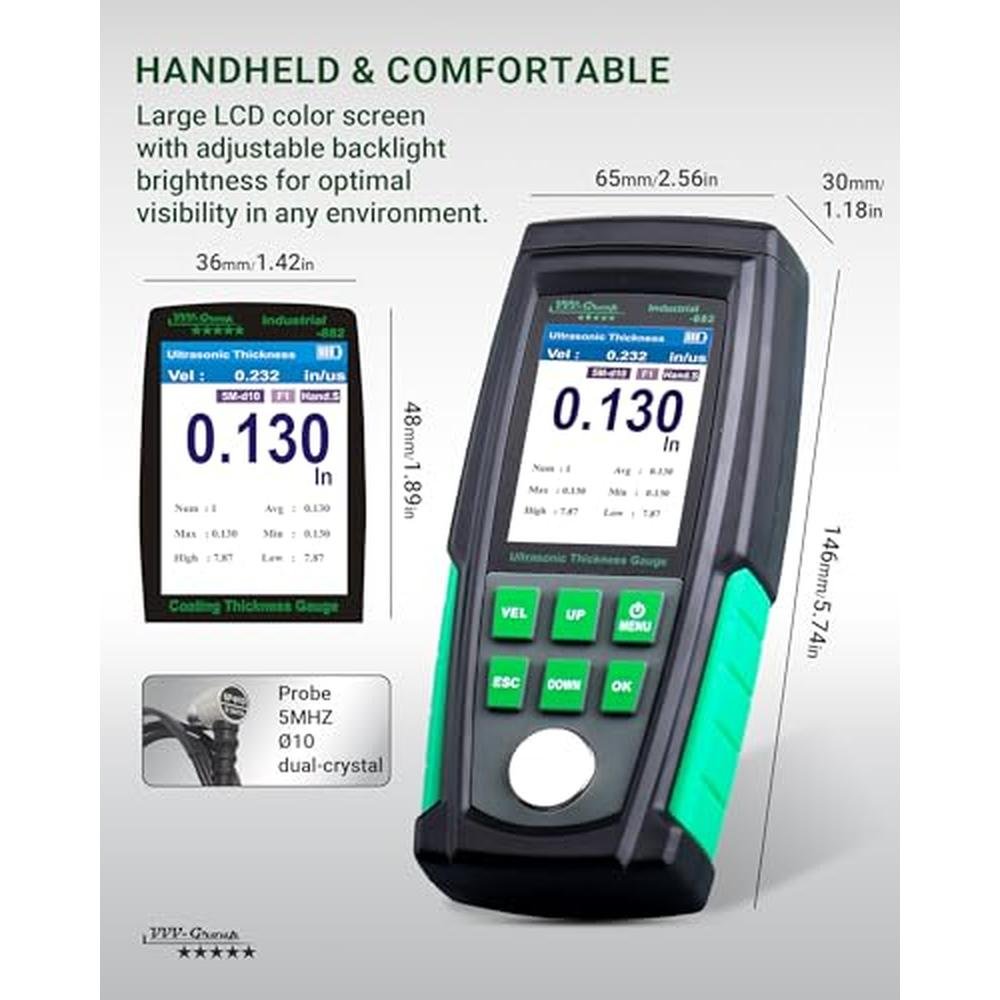

Color-screen LCD display with regulation function backlight brightness and with ability to choose the color of the interface (blue, orange, green, purple, gray backlight);
Menu operation with statistics review with minimum, maximum and standard deviation.
Ultrasonic measurement method.
Measuring the thickness and the sound speed of various materials
Metric unit selection.
Automatic shutdown function with customization 2, 5, 10, 30 minutes or never.
3 Ni-MH rechargeable batteries of 1.2V with USB Charging.

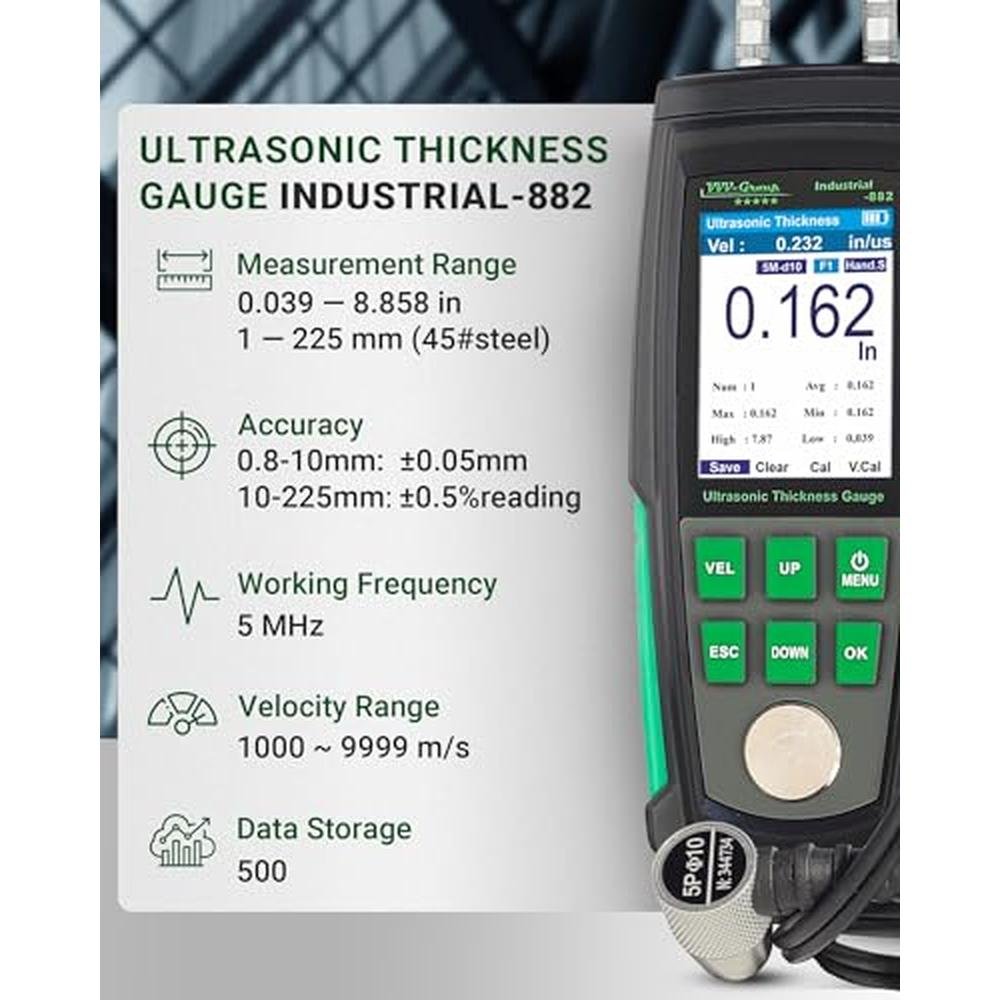

Specifications:
Measuring principle: ultrasonic method;
Measuring range: 0.039 to 8.858 inch(1mm to 225mm);
Resolution: 0.01 mm;
