- About this Item
- • For Pi 4 and 3 B This PoE HAT can be used to deliver clean and reliable power to the raspberry pi 3 model B and raspberry pi 4 model B (not included). Note Its not recommend to use RJ45 with aluminum foil shielding to connect the PoE Hat to the PoE switch.

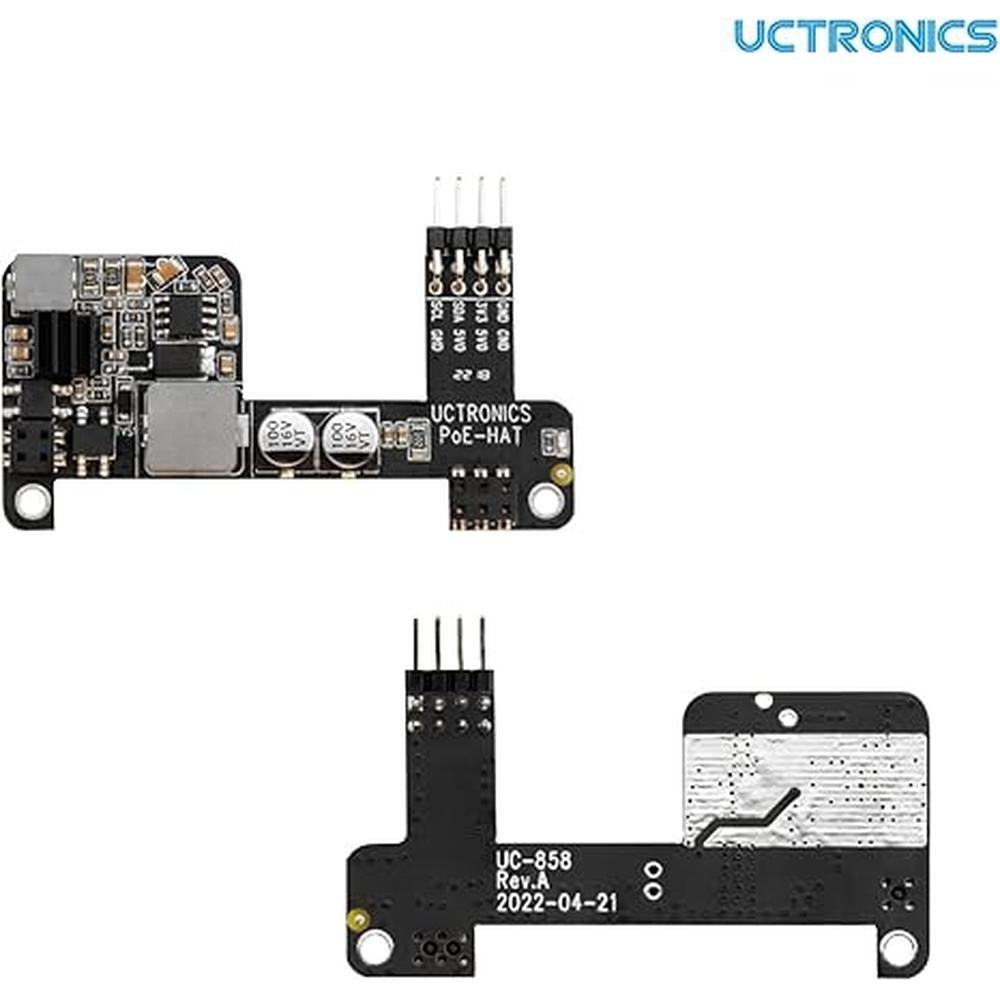

- • Update This lastest UC-858 mini PoE HAT Compatible with 48V non-standard switches so it can supports more brands of switches.
- • Output Power DC 5V (2.5A Max) Total Power Budget 12.5W IEEE 802.3af Compliant

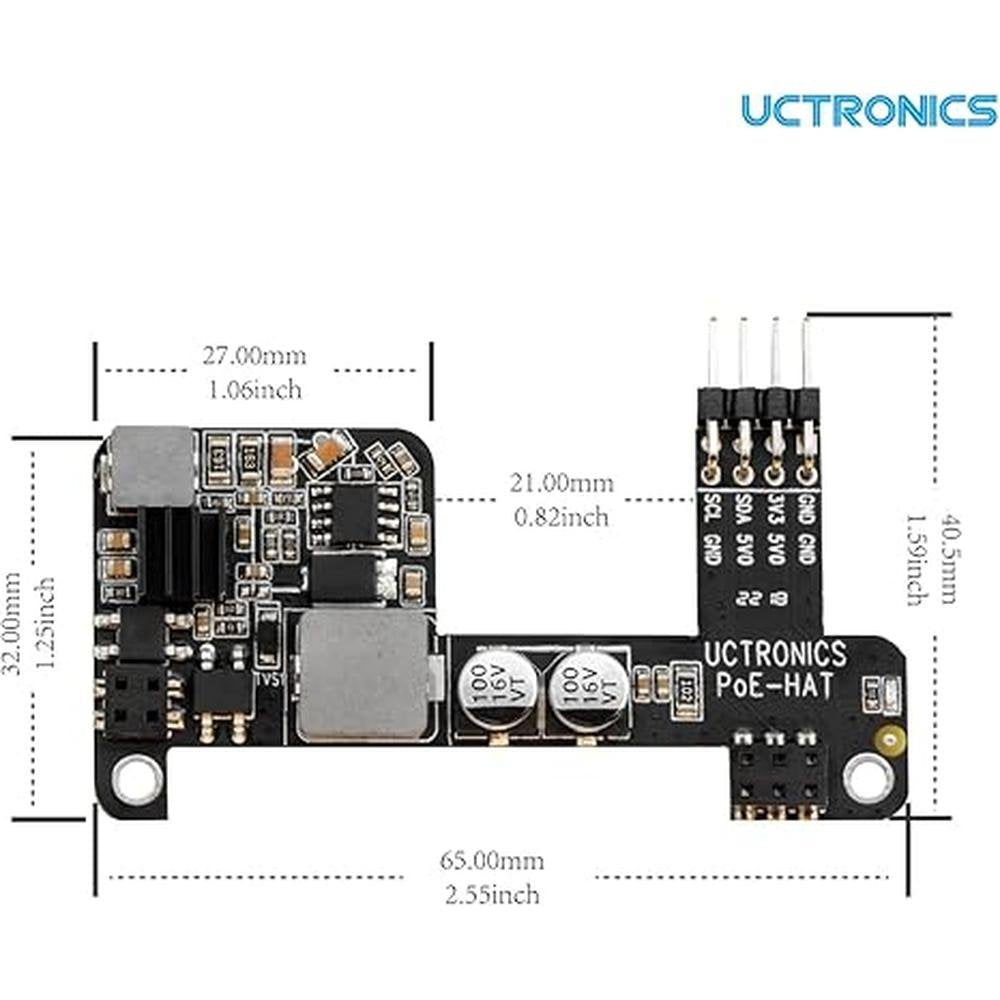

- • Smaller Size 654413mm, nearly half the official size, save more space for your other hardware, can be held in the most case for Raspberry Pi.
Specifications & Details
| SKU | PIB082ZLDMZ6 |
|---|---|
| Wireless Type | 802.11b |
| Brand | UCTRONICS |
| Series | U6109 |
| Item model number | U6109 |
| Operating System | Linux |
| Item Weight | 0.020 kgs |
| Product Dimensions | 3.1 x 2.2 x 0.94 inches |
| Item Dimensions LxWxH | 3.1 x 2.2 x 0.94 inches |
| Color | Mini PoE HAT |
| Processor Brand | Raspberry Pi Foundation |
| Number of Processors | 1 |
| Manufacturer | UCTRONICS |
Product description

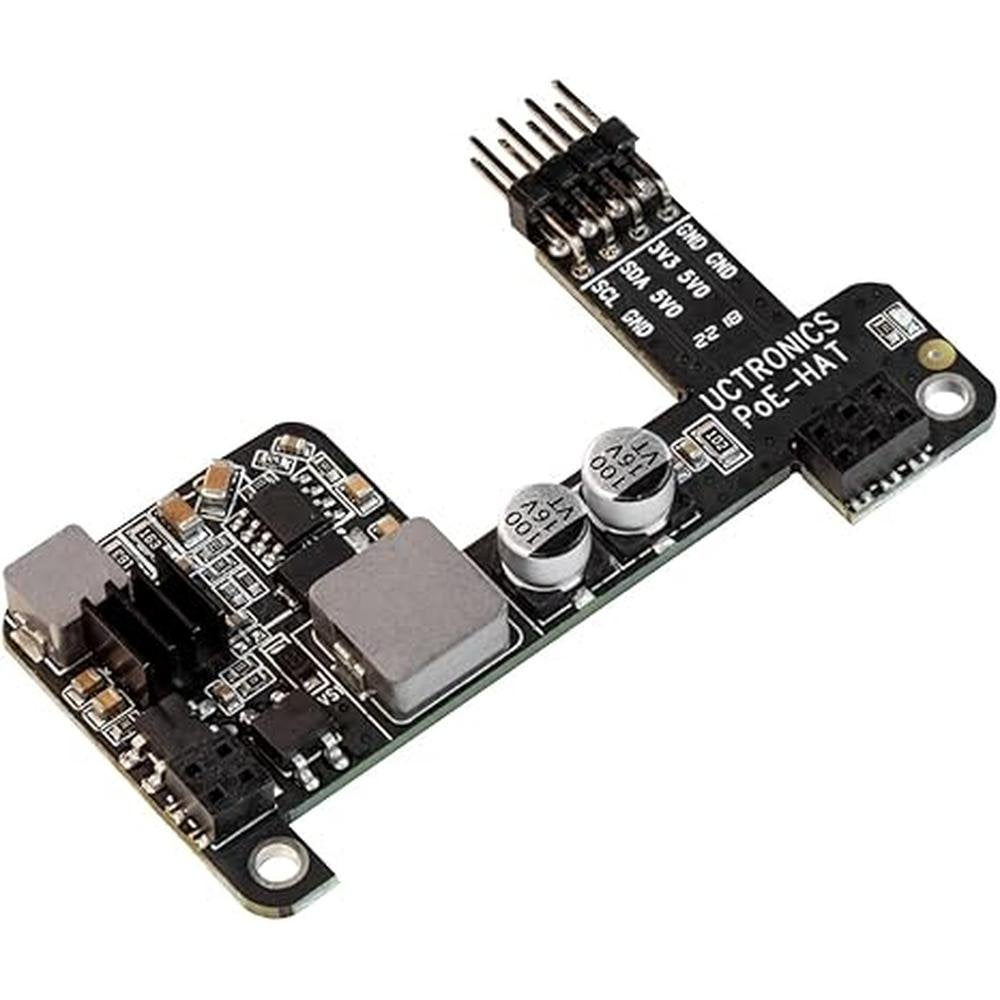

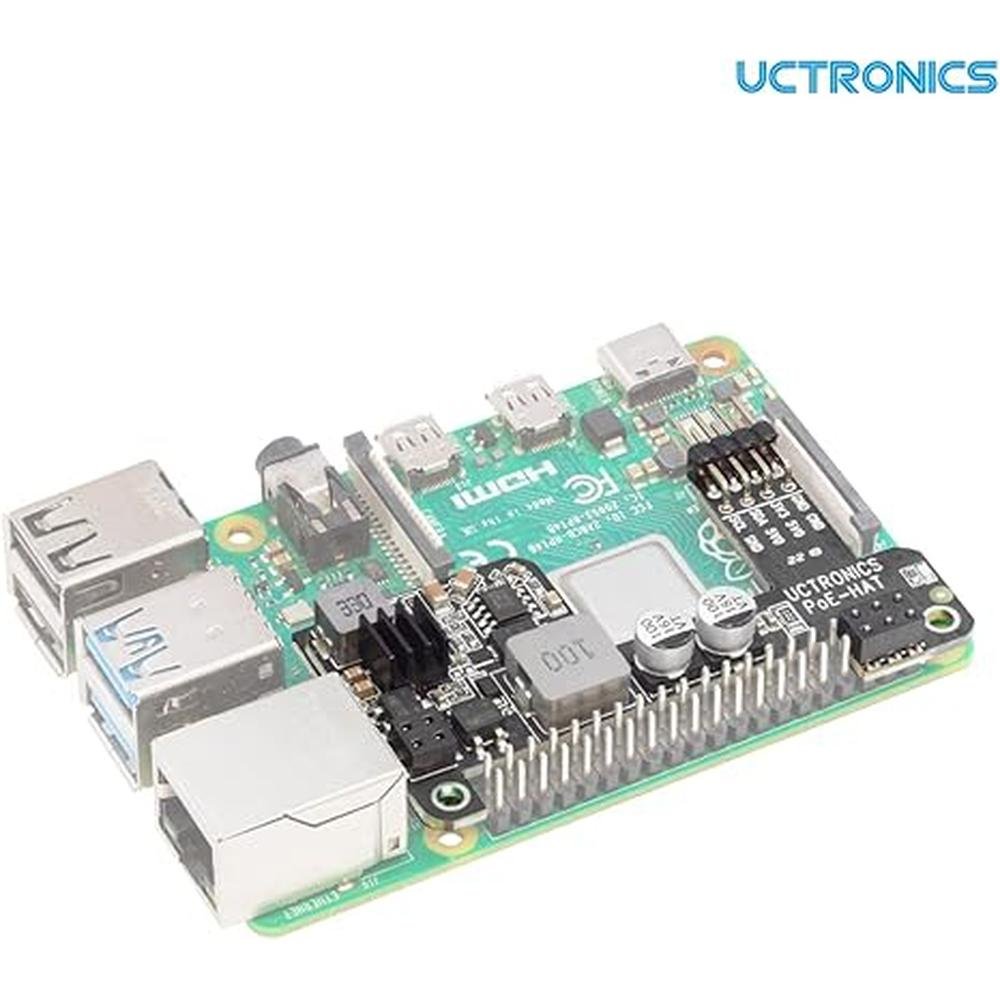

UCTRONICS U6109 PoE HAT for Raspberry Pi is to use with the Raspberry Pi models with PoE pins like Raspberry Pi 3 Model B and Raspberry Pi 4 Model B, so you can power the Raspberry Pi with a single Ethernet cable plugged in.
