- About this Item

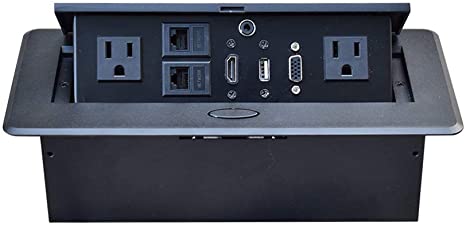

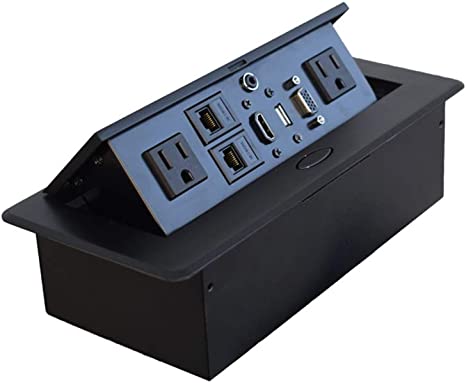

- • configuration US power, 2 RJ45, 1 HDMI, 1 USB data, 1 VGA and 1 x 3.5 mm audio
- • The connectivity box outlet with smooth panel made of aluminium alloy.
- • Panel size 10.5 x 4.6 (266 x 117mm), suggested hole cut size 8.9 x 4.33 (225 x 110mm).
Specifications & Details
| SKU | PIB07PRV4S7C |
|---|---|
| Package Dimensions | 11.06 x 6.06 x 4.57 inches |
| Item Weight | 1.597 kgs |
Product description

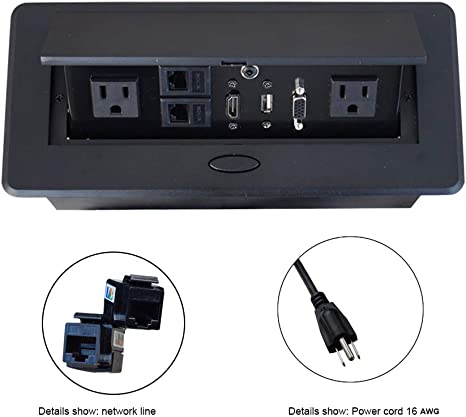

Color:Black Specifications: Material: lid: zinc-aluminum(ZA) alloys, recessed part: iron Color: black Outlet configuration: - 2 x independent AC Power US Type(UL listed) - 2 x RJ45 (support speeds associated with Category 5e-cable) - 1 x HDMI - 1 x USB 2.0 port for the data transfer - 1 x VGA - Comes WITH 1 x 0.35m power cord. - All connections are female to female. Installation suggestion (A manual which will come with the connection box): Panel size: 10.5" x 4.6" (266 x 117mm). Suggested hole cut size: 8.9" x 4.33" (225 x 110mm). For better fix the socket into the hole, we suggest drilling four 0.6" x 0.6" (15 x 15mm) small holes depth 0.18" (4.5mm) on the hole, or fabricating a 10" x 4.33" (256 x 110mm) counterbored hole depth 0.18" (4.5mm). Tips: If you use 4.92ft (1.5 meters) male to female cable to plug into the HDMI outlet, the wire gauge should be 28 AWG. 16.4-32.8ft long cable (5-10 meters) - 26 AWG wire 32.8-39.4ft long cable (10-12 meters) - 24 AWG wire 39.4-49.2ft long cable (12-15 meters) - 22 AWG wire If the cable length is longer than 50ft, we suggest you to use a HDMI signal amplifier to increase the signal strength.
