Product description
Camera specifications: : Sensor: 1/2.6-inch AR0234 sensor Shutter type: Global shutter Interface & connector: USB 3.0, 20-pin connector (USB 3.0 Type-C connector optional) Maximum resolution: 1920 (H) * 1200 (V) Standard resolution: 1920 (H) * 1200 (V) Dynamic range: 70 dB Compression format: MJPEG/YUV2 (YUYV) Performance:: : Resolution & frame rate via USB 3.0 1920x1200 MJPEG 120 fps/YUY2 80 fps 1920x1080 MJPEG 120 fps/YUY2 80 fps 1600x1200 MJPEG 120 fps/YUY2 80 fps 1280x960 MJPEG 120 fps/YUY2 120 fps 1280x720 MJPEG 200 fps/YUY2 200 fps 640x480 MJPEG 200 fps/YUY2 200 fps 512x512 MJPEG 120 fps/YUY2 120 fps Resolution and frame rate under USB 2.0 1920x1200 MJPEG 120 fps/ YUY2 5 fps 1920x1080 MJPEG 120 fps/ YUY2 5 fps 1600x1200 MJPEG 120 fps/ YUY2 5 fps 1280x960 MJPEG 120 fps/ YUY2 5 fps 1280x720 MJPEG 200 fps/ YUY2 10 fps 640x480 MJPEG 200 fps/ YUY2 30 fps 512x512 MJPEG 120 fps/ YUY2 10 fps Adjustable parameters: Brightness, contrast, saturation, hue, sharpness, gamma, white balance, backlight compensation, exposure Power supply: USB 3.0, 20-pin connector Operating voltage: 5 V DC Operating current: 165 mA 210 mA Operating temperature: -10 C to 70 C, storage temperature: -20 C to 80 C USB cable: 2 m Operating system requirements: Windows, Linux, macOS, Android.
Technical specifications
| SKU | PIB0H2VRQVWC |
|---|---|
| Sensor Type | CMOS |
| Connectivity Technology | USB |

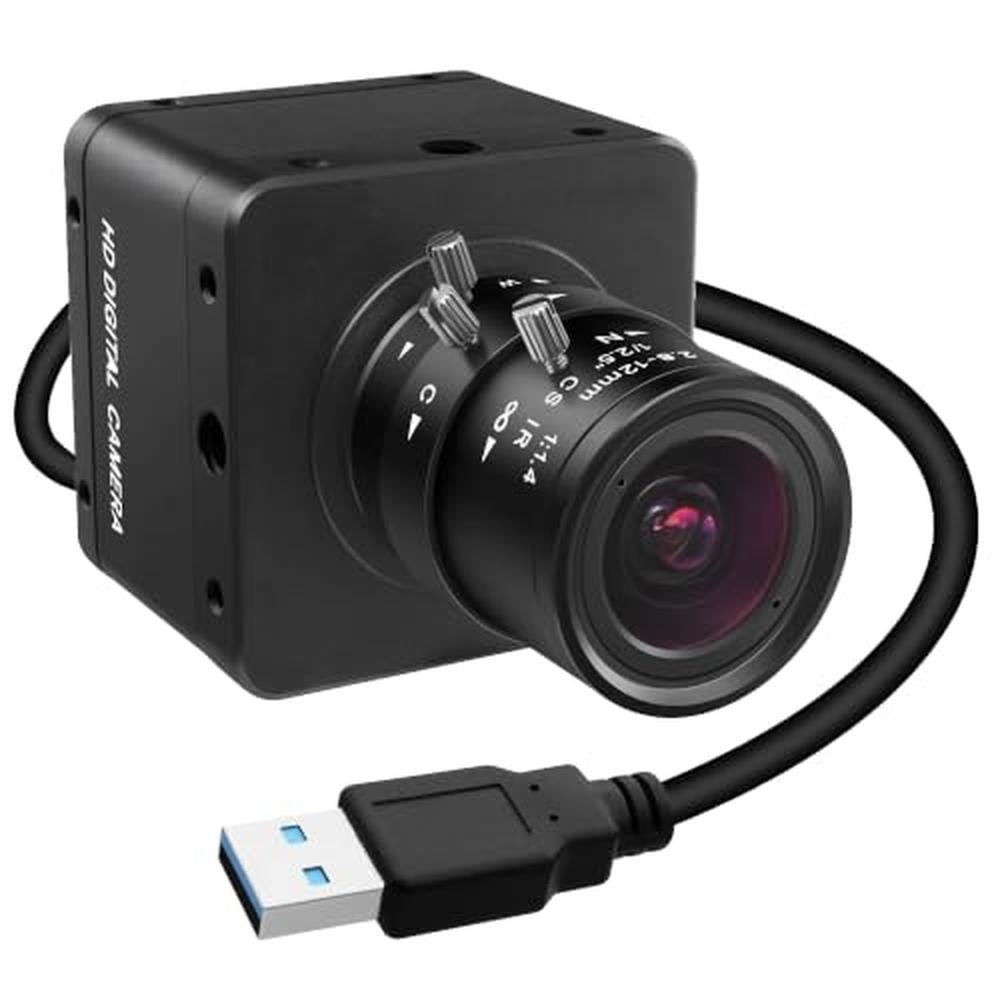

| Color | USB 3.0 Camera with 2.8-12mm Zoom Lens |
| Special Feature | Global Shutter, USB 3.0 interface, Up to 200fps |
| Photo Sensor Size | 1/2.6-inch |
| Form Factor | Compact |
| Item Weight | 0.340 kgs |
| Item Dimensions D x W x H | 3.05"D x 1.97"W x 1.97"H |
