- About this Item

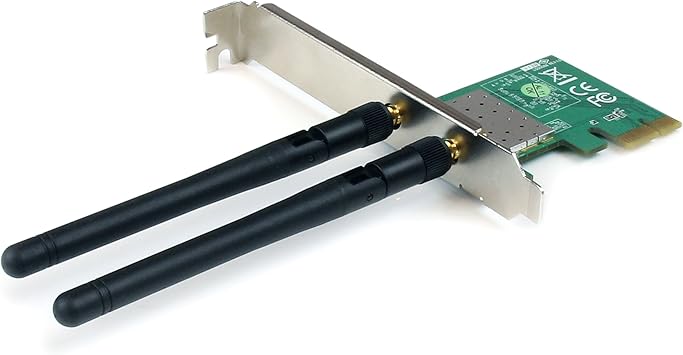

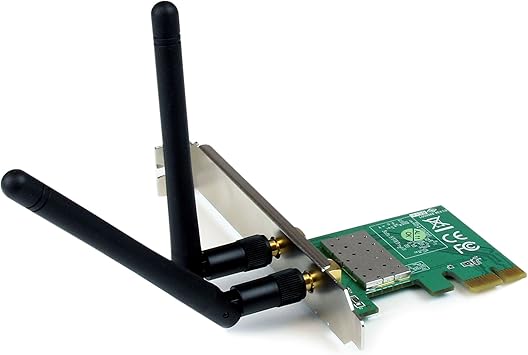

- • ENHANCE YOUR CAPABILITIES Use this internal wireless network card to add high speed Wireless-N connectivity to a desktop PC through PCI Express (PCIe)
- • HIGH COMPATIBILITY PCI Express 2.0 and 802.11n compliance ensure a fast, reliable wireless-N network connection, while still being able to connect to older wireless BG networks
- • EASY INSTALLATION Complete with a low profile half-height installation bracket, this PCI express wireless N card is easy to setup in any sized computer
- • SAFE NETWORK EXPERIENCE With support for the latest wireless network security protocols and QoS, this PCI express wireless card ensures a safe and efficient network experience
Specifications & Details
| SKU | PIB0090X4FFY |
|---|---|
| Product Dimensions | 6.5 x 5.51 x 1.34 inches |
| Item Weight | 0.036 kgs |
| Item model number | PEX300WN2X2 |
| Is Discontinued By Manufacturer | No |
| Manufacturer | StarTech.com |
| Language | English |
| Country of Origin | Taiwan |
Product description

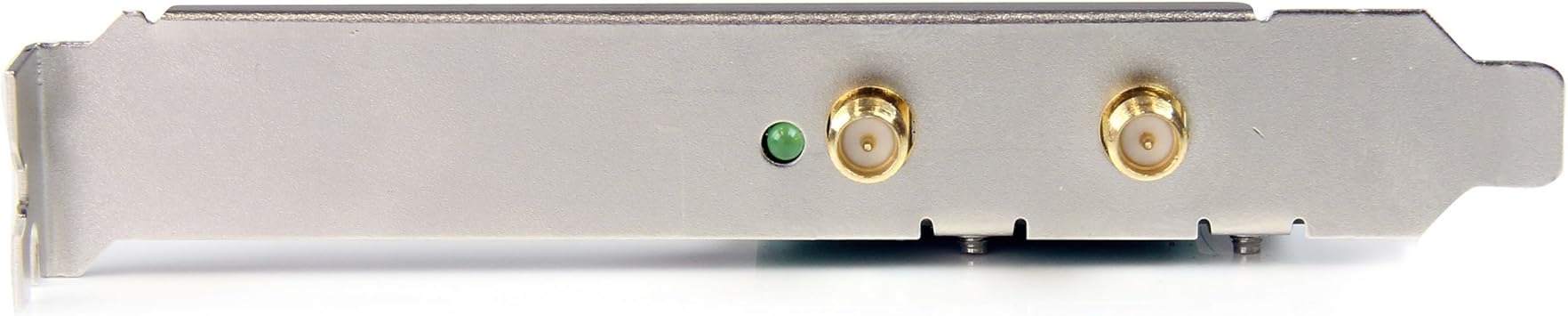

StarTech.com Network adapter has a high speed wireless-N connectivity to a desktop PC through PCI express and features transmission speed of 300 Mbps. StarTech.com Network adapter consists of 2 antennas with gain of 2 dBi. Adapter supports IEEE 802.11n Wi-Fi standard and ensures safe, efficient network experience. PCI express. 300 Mbps. Network adapter wireless security: WEP 64-128-bit, WPA, WPA2, WPS, TKIP, AES. Interface: Wireless Ethernet, Bus type: PCI express, Card type: standard profile. Antenna configuration: 2x2:2 (TxR:S), industry standards: IEEE 802.11b. Connector type: 2 - RP-SMA (coax, reverse polarity subminiature A) female. Bandwidth: 20/40 MHz, Frequency range: 2.4 - 2.484 GHz, Maximum data transfer rate: 802.11n: 300 Mbps. Form factor: Internal. Supported protocols: CSMA/CA, full duplex support, modulation: OFDM/DSSS/DBPSK/DQPSK/CCK. LED indicators: 1 - link/activity (green). Operating temperature: 14 - 158 deg F. 2 transmitter/2 receiver (2x2:2) antenna configuration, compliant with IEEE 802.11n standard, with support for up to 300 Mbps of wireless data bandwidth. Backward compatible with IEEE 802.11b/g standards for up to 11/54 Mbps connections respectively with wireless-B and wireless-G networks. Support for WMM/WMM-PS quality of service (QoS), dual detachable 2dBi antennas. System requirements: Windows XP(64 bit)/Server 2003(32/64 bit)/Server 2008 R2/Vista(32/64 bit)/7(32/64 bit)/8(32/64 bit), Linux 2.6.32 or later. Package contents: PCI express wireless networking card, antenna, low profile bracket, driver CD, instruction manual. Certifications Standards: IEEE 802.11b, 802.11g, 802.11n, FCC, CE. Warranty: 2 years limited.
