- About this Item
- • Compatible with most Gigabit SFP modules
- • Supports FullHalf-duplex Auto-Negotiation, Auto-MDIMDIX
- • Includes low-profilehalf-height installation bracket
- • Compliant with IEEE802.3z 1000Base-SXLX, IEEE 802.1Q VLAN Tagging, IEEE 802.1P Layer 2 Priority Encoding, IEEE 802.3x full duplex flow control, RFC 1157 SNMP v1
Specifications & Details
| SKU | PIB00LPRRJFG |
|---|---|
| Brand | StarTech |
| Series | 1 Port PCI Express Gigabit SFP Network Card |
| Item model number | PEX1000SFP2 |
| Hardware Platform | PC;Mac |
| Operating System | Windows 8 Windows 7 Windows Server 2012 Mac OS X Mavericks (10.9) Linux Windows 10 Windows Server 2016 Windows Server 2019 |
| Item Weight | 0.059 kgs |
| Product Dimensions | 5 x 0.7 x 4.6 inches |
| Item Dimensions LxWxH | 5 x 0.7 x 4.6 inches |
| Color | multicolor |
| Manufacturer | StarTech.com |
| Country of Origin | China |
| Is Discontinued By Manufacturer | No |
Product description

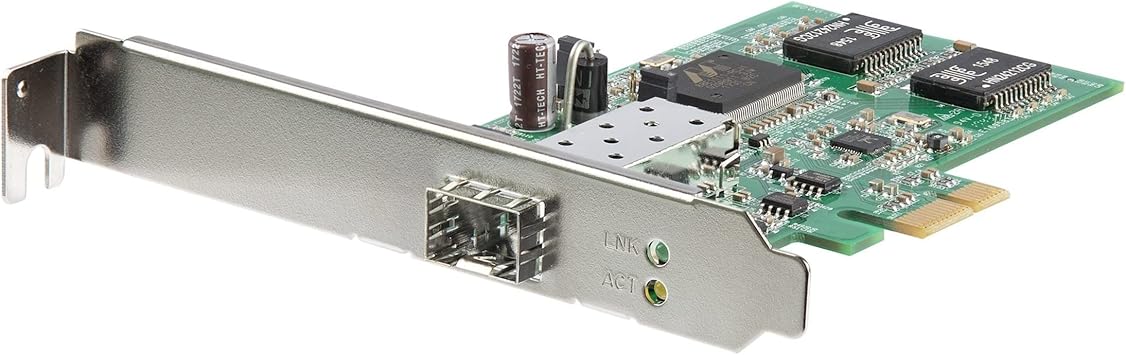

PCI Express gigabit ethernet fiber network card supports maximum data transfer rate of 2 Gb/s at full duplex mode and has a SFP female slot to ensure flexible network configuration. PCI Express gigabit ethernet fiber network card has a dual profile design and includes low profile/half height bracket for easy installation. Card is compatible with Windows 8, 8.1, 7, Vista, XP, Mac OS 10.5, Linux 2.6.x and 3.5.0 OS. 1x PCI express x1, 1x SFP slot female. 4.6"(H) x 0.7"(W) x 5"(D). Windows 8/8.1 (32/64bit)/7 (32/64)/Vista (32/64)/XP (32/64), Windows Server 2012/2008 R2/2003, Mac OS 10.5 and up (Tested up to 10.9), Linux 2.4.x/2.6.x/3.5.0, Microsoft Hyper-V operating systems. Wired. Data transfer rate: 2 Gbps (full-duplex). Form factor: Plug-in card. Buffer size: 48KB. Power consumption: 3.2 W max. Chipset ID: Realtek RTL8168E, Marvell 88E1111B. LED indicators: Link (green), activity (yellow). Temperature: 0 - 45 deg C operating, -20 - 70 deg C storage, Humidity: 5 - 95% RH (non-condensing). Applications: Ideal for secure setups, perfect for remote embedded industrial monitoring systems, and high-speed video surveillance. Compatible with most Gigabit SFP modules. Supports full/half-duplex auto-negotiation, auto-MDI/MDIX. No electronic interference provides a secure fiber network infrastructure through a direct fiber-to-desktop connection. Adapts to your network configuration using the fiber transceiver of your choice, through an open SFP slot. Includes 1 Port PCI Express Gigabit SFP network card, low-profile bracket, driver CD, instruction manual. Certification and standards: CE, FCC, RoHS. Weight: 2 oz. Warranty: 2 years limited.
