- About this Item
- • REMOVABLE M.2 DRIVE BAY Use an available PCIe 4.0 x4 expansion slot to install, remove, or swap PCIe M.2 SSDs (NVMe or AHCI) Supports 2230, 2242, 2260, and 2280 M-Key M.2 NVMe SSDs Capable of reaching high-performance readwrite speeds up to 64Gbps
- • TOOLLESS INSTALLATION Install an M.2 drive into the drive tray or insert the tray into the drive bay without the need for tools PowerActivity LED indicator Drive tray features a latching mechanism and is lockable for secure installation (2 keys incl.)
- • OPTIMAL PERFORMANCE Vented stainless steel frame, bracket, and tray with thermal pads and aluminum cover aid heat dissipation Anti-vibration springs on the drive tray reduce shock or vibrations Optional screw for stability Incl. Low-profile bracket
- • COMPATIBILITY No drivers or software required and works on any operating system including Windows, Windows Server, Linux Supports PCI Express 4.0 and 3.0 motherboards with an available x4, x8, or x16 slot Not compatible with M.2 SATA drives
Specifications & Details
| SKU | PIB0CK4TYM5H |
|---|---|
| Brand | StarTech |
| Item model number | M2-REMOVABLE-PCIE-N1 |
| Operating System | No Drivers or Software Required |
| Item Weight | 0.064 kgs |
| Product Dimensions | 6.6 x 4.7 x 0.7 inches |
| Item Dimensions LxWxH | 6.6 x 4.7 x 0.7 inches |
| Color | Black & Silver |
| Voltage | 3 Volts |
| Manufacturer | StarTech.com |
| Language | English |
| Country of Origin | China |
Product description

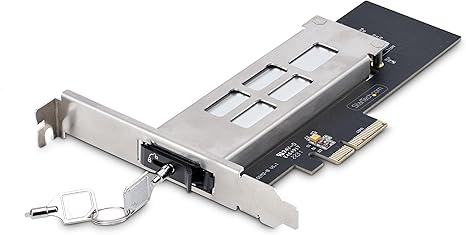

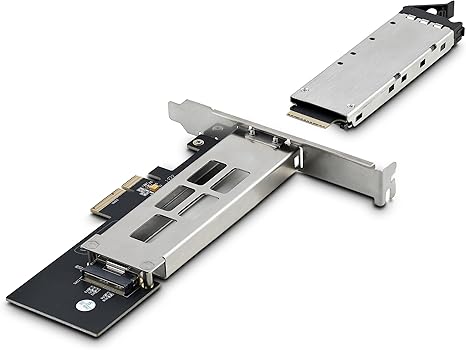

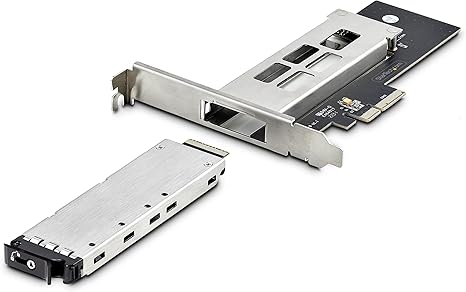

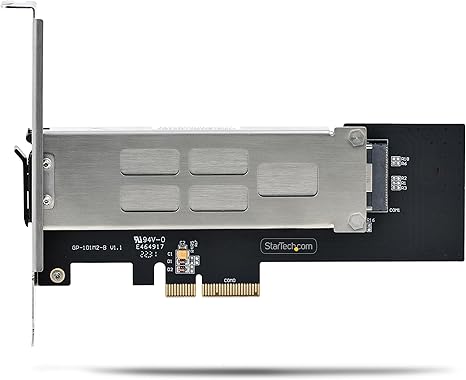

Utilize an available PCIe 4.0 x4 expansion slot for the installation, removal, or interchange of PCIe M.2 SSDs. The drive tray accommodates M-Key M.2 NVMe SSDs in 2230, 2242, 2260, and 2280 sizes. Install an M.2 drive into the drive tray and insert the tray into the drive bay, without the need for tools. The drive tray features a power/activity LED indicator to monitor drive status. A latching mechanism with optional lock (2 keys included) deters the theft of mission-critical data storage devices. The vented stainless-steel frame and tray with thermal pads aids heat dissipation, ensuring optimal and reliable performance while reducing potential thermal throttling. Anti-vibration springs on the drive tray reduce impact during installation and enhance the overall stability and longevity of the drive. A low-profile bracket is included for small form-factor systems. Additional drive trays are sold separately (TR-M2-REMOVABLE-PCIE), providing flexibility and convenience when managing multiple M.2 drives. NVMe PCIe hot swap support is dependent on the motherboard. Verify hot swap support with the manufacturer of the motherboard, and for instructions regarding how to enable this feature. This product is backed for 2-years and free lifetime 24/5 multi-lingual technical assistance.
