- About this Item
- • HIGH-PERFORMANCE USB CARD Upgrade or expand a desktop or servers USB connectivity by adding four USB Type-A ports, each with a dedicated controller capable of up to 5Gbps, via a single PCI Express 2.0 x4 connection
- • 4X INDEPENDENT USB CONTROLLERS Dedicated USB controllers per port enhance data throughput and ensure each device has up to 5Gbps bandwidth available Ideal for simultaneously transferring large files or editing photosvideos on external storage devices

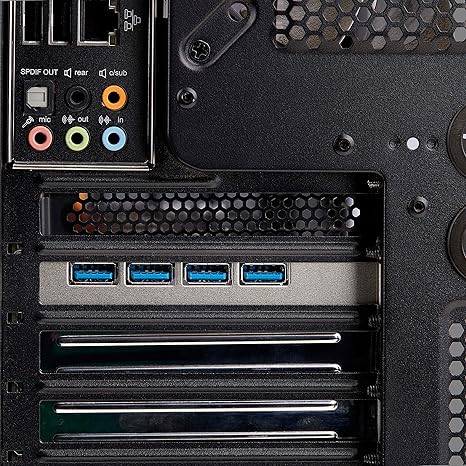

- • HORIZONTAL USB PORTS Enhance compatibility with different computer cases, reducing the risk of port clearance issues, and accommodating a wider range USB devices and cables
- • HIGH POWER USB PCIe Expansion Card with SATALP4 power connectors provides additional power to the USB ports (when motherboard power is insufficient), supporting the Battery Charging 1.2 (5V 1.5A) specification providing up to 5V 2A (10W) per port
Specifications & Details
| SKU | PIB0DCKC11JM |
|---|---|
| Brand | StarTech |
| Item model number | P5Q4A-USB-CARD |
| Operating System | Windows Server 2008 R2, 2012 R2, 2016, 2019, 2022, Windows 7, 8, 8.1, 10, 11, Linux 2.6.31 and up -, LTS Versions only |
| Item Weight | 0.100 kgs |
| Product Dimensions | 6.6 x 4.7 x 0.7 inches |
| Item Dimensions LxWxH | 6.6 x 4.7 x 0.7 inches |
| Color | Black |
| Manufacturer | StarTech.com |
| Country of Origin | Malaysia |
Product description

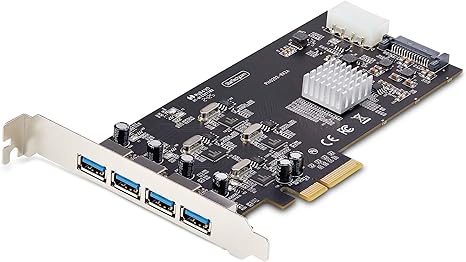

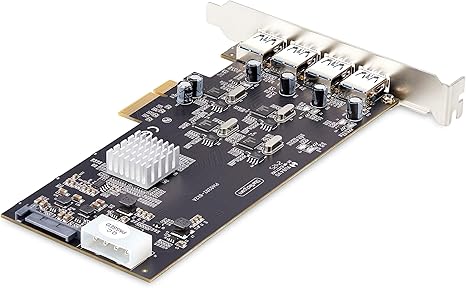

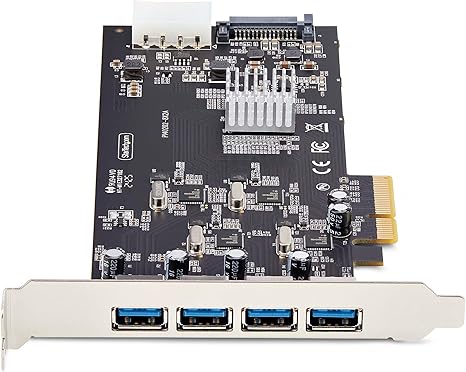

Upgrade or expand the USB connectivity of a desktop computer or server by adding four independent USB Type-A 5Gbps ports over a single PCI Express 2.0 x4 connection. When multiple devices are connected, traditional single-bus USB 3.2 Gen 1 cards share the maximum bandwidth across all ports. By employing four host controller chipsets, each port operates on its own independent channel, providing up to 5Gbps to each USB port, reducing performance bottlenecks and effectively quadrupling the total available bandwidth to 20Gbps. This USB PCIe expansion card can receive supplemental power through SATA or LP4 power, providing up to 5V 1.5A (7.5W) on the USB Type-A ports when the bus power from the motherboard is insufficient. The PCI Express USB card drivers auto-install in most major operating systems, including Windows 8 and later, and Linux. The expansion card supports hardware platforms such as Intel and AMD, and fits in PCI Express x4, x8, and x16 slots. Horizontal USB ports enhance compatibility with different computer cases, reduce the risk of port clearance issues, and accommodate a wider range of USB devices and cables.
