- About this Item

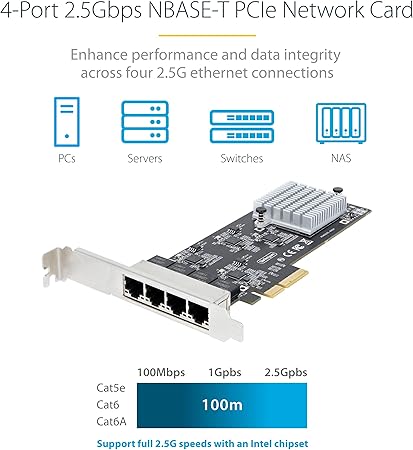

- • 2.5G ETHERNET CARD High-performance PCIe 2.5Gbps quad-port network card with Intel I225-V chip Leverage existing Cat5eCat6 cabling (or better) NBASE-T compatible (802.3bz) PCI Express 2.0 x4 Independent Ethernet controllers for reliable performance
- • IT MANAGEABILITY Intel vPro for remote management and troubleshooting PXE boot enabled to deployment speedsupdates 9K jumbo frame for reduced packet overhead Remotely boot a system using WoL VLAN support for efficient network management

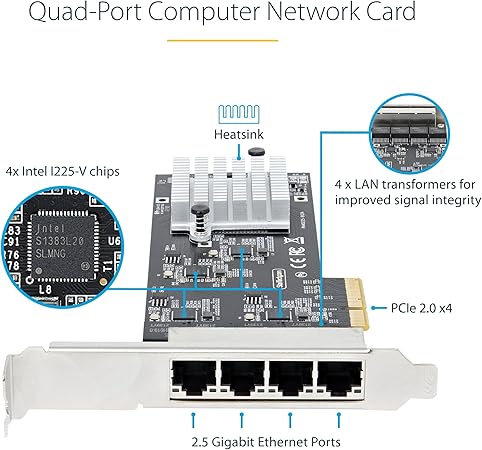

- • BUILD QUALITY LAN card features built-in heatsink to keep controller chips running cool and for optimal performance, LED indicators for link statusspeed, LAN transformers maintain signal quality and reduced EMI for reliable communication

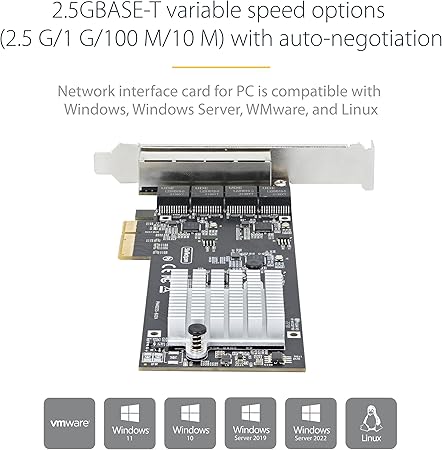

- • COMPATIBILITY 2.5GBASE-T variable speed options (2.5 G1 G100 M10 M) with auto-negotiation Multi-gigabit network interface card for PC is compatible w Windows, Windows Server, VMware, and Linux Low profile bracket included for hardware compatibility
Specifications & Details
| SKU | PIB0C6FGQD9V |
|---|---|
| Brand | StarTech |
| Series | PR42GI-NETWORK-CARD |
| Item model number | PR42GI-NETWORK-CARD |
| Operating System | Windows 10, 11, Windows Server 2019, 2022, VMware ESXi 7.0, Linux 5.8.x and up - LTS Versions only |
| Item Weight | 0.100 kgs |

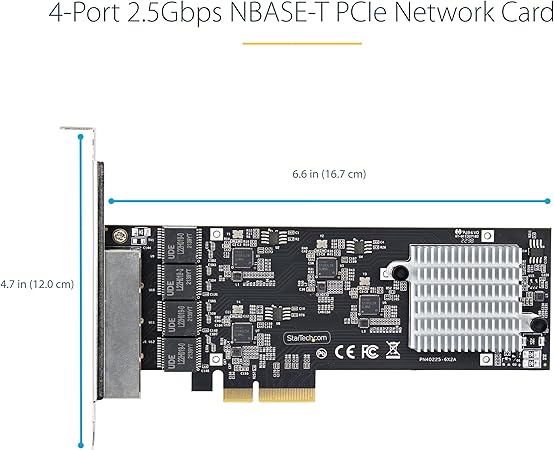

| Product Dimensions | 4.7 x 6.6 x 0.9 inches |
| Item Dimensions LxWxH | 4.7 x 6.6 x 0.9 inches |
| Color | Black |
| Manufacturer | StarTech.com |
| Country of Origin | Malaysia |
Product description
This quad-port 2.5 GbE network interface card (NIC) features independent Intel I225-V chipsets and enables server upgrade or PCIe Ethernet card replacement, offering variable multispeed options (2.5G/1G/100M/10Mbps) to support legacy or latest networking hardware. It enhances network speed, enables Intel vPro for remote management, and supports up to 2.5GBase-T Gbps speeds using Cat5e. To ensure reliable performance, two Intel I225-V chipsets are used, providing independent Ethernet controllers to each port. The card connects via an x4 PCI Express 2.0 (or higher) expansion slot, supports advanced features such as PXE Boot, WoL, VLAN tagging, and full-duplex, and is compatible with Windows, Windows Server, VMware, and Linux. It includes a standard-profile bracket and a low-profile bracket for installation in different systems, and is backed for two years, including free lifetime 24/5 multi-lingual technical assistance.
