- About this Item
- • SINGLE PORT SERIAL TO IP CONVERTER Connect different RS232 serial devices remotely over an IP-based network Use for POS systems, barcode readers, sensors, weighing systems, CNC controllers PLCs DB9 serial port supports up to 921.6Kbps TAA Compliant
- • UNIFIED ECOSYSTEM EXPERIENCE All our device servers share the same management software and Web UI Viewmanage individual devices with a common UI on any OS Windows software to set up virtual com ports and viewmanage all device servers on the network
- • VERSATILE CONFIGURATIONS RJ45 LAN to RS232 converter support TCP clientserver mode to enable serial tunneling between two device servers over a LAN Exportimport settings, custom naming location, admin password protection, and upgradeable firmware
- • ETHERNET AND POWER OPTIONS Single 10100Mbps RJ45 port wauto-negotiation Serial device server operates over Telnet (RFC2217)UDPTCP Serial to LAN converter includes a power adapter supports 5V over pin 9 for serial devices
Specifications & Details
| SKU | PIB0D7MYGZKD |
|---|---|
| Product Dimensions | 1.8 x 3.2 x 1 inches |
| Item Weight | 0.153 kgs |
| Item model number | I13-SERIAL-ETHERNET |
| Batteries | 1 AAAA batteries required. |
| Manufacturer | StarTech.com |
| Language | Italian |
| Country of Origin | Taiwan |
Product description

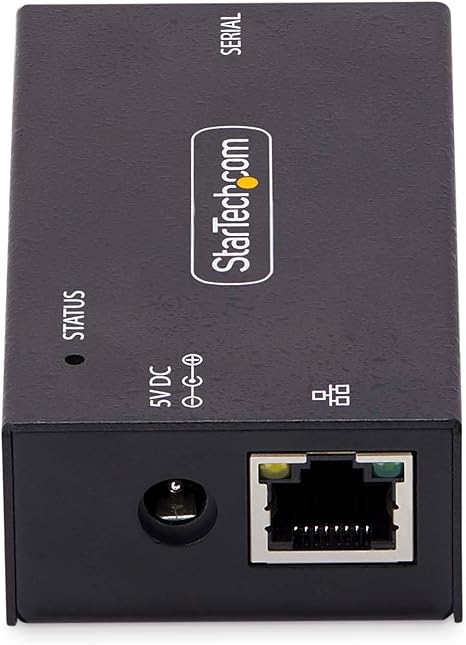

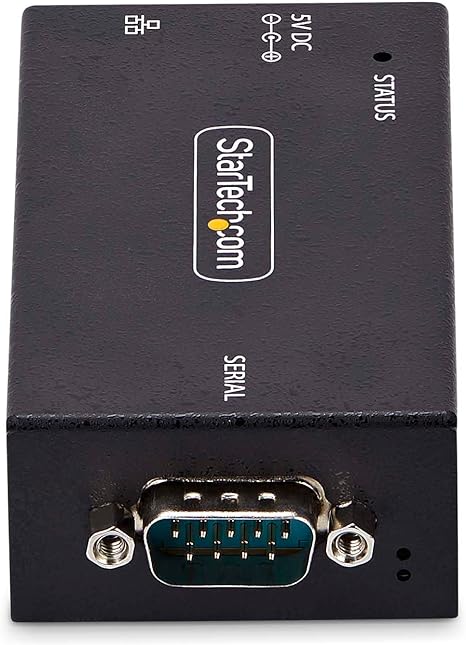

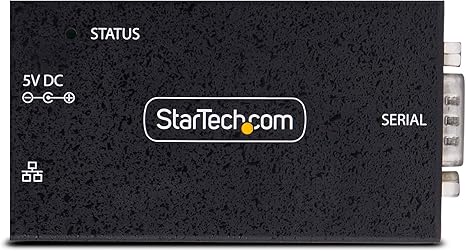

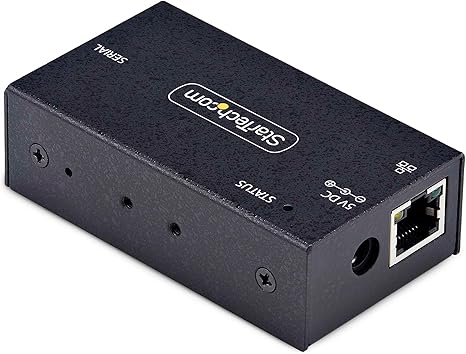

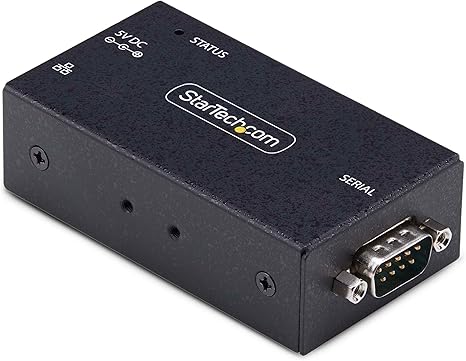

This single port serial-to-IP converter enables remote control of different RS232 devices over an IP network. It's highly customizable with a Windows-based Device Server Manager (DSM) for creating virtual COM ports, facilitating seamless migration of existing serial applications. The converter's compact design (1.8x1x3.2in) and robust full-metal enclosure make it ideal for harsh environments where space is at a premium. It includes all necessary hardware for wall and DIN rail mounting. The converter features a single RJ45 10/100 Mbps Ethernet port, supports Telnet Server (RFC2217), TCP Server, TCP Client, and UDP protocols, and includes a universal power adapter. Supports Level-4 ESD protection (15kV air/8kV contact) and can supply 5VDC over pin 9 if required.
