SMALLRIG Rosette Extension Arm Dogbone with Length Adjustable, M6 Rosette 31.8mm - 1870

Rs. 11,616.00
Rs. 11,616.00
Rs. 16,616.00
Sold out
Tax included. Free shipping
SKU: PIB01MV5S2Q5
Delivery: 15 Days

About this item

  • In addition, the rosette for arri standard could be a female and a male head.

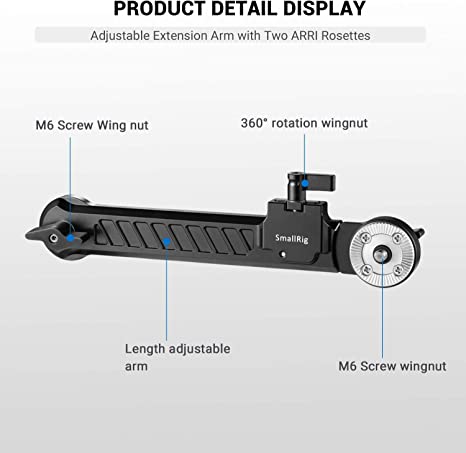

  • SmallRig Extension Arm with Rosette 1870 is an adjustable rosette arm with NATO rail device. It could be used on both sides.
  • It is equipped with standard rosettes (M6, 31.8 mm diameter) on opposite ends. It provides 167mm-255mm of extension for ARRI standard rosette handgrips and other gear
  • With a NATO rail in the middle, which allows to adjust the distance forwards and backwards just through quickly tightening and loosening the M5 thumbscrew
  • Arri-Style rosette could attach rosette handle, such as SmallRig wooden handle 1941 and Rosette Handle 1810. Rosette could attach Sony FS5 Camcorder Baseplate 1827 and other rosette devices as well

Product description

360 Rotation Adjustment

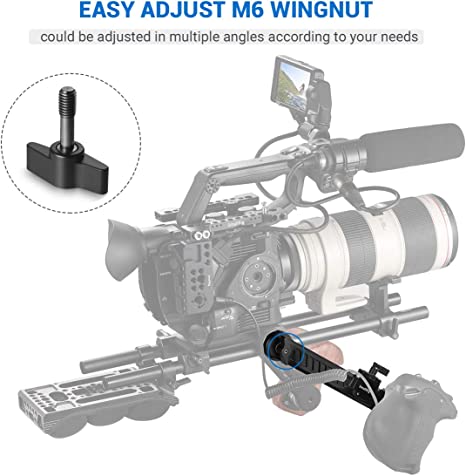

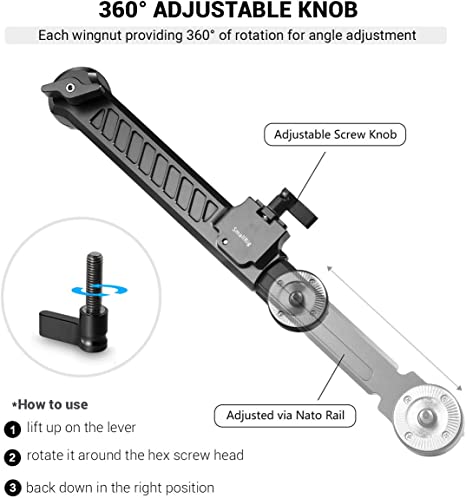

This handgrip comes with an Arri-standard rosette (31.8mm diameter) and an M6-threaded locking lever. It allows free angle adjustment.
Adjustable Extension Arm

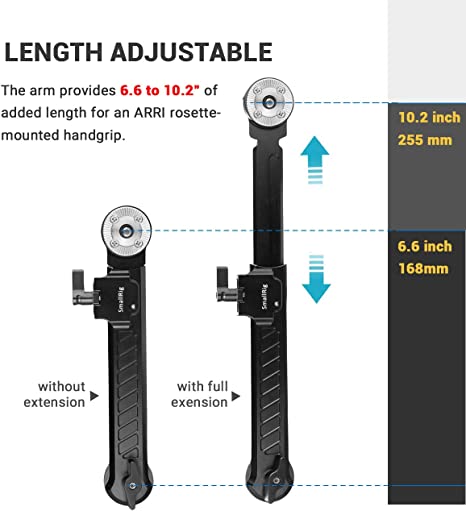

The extension arm is adjusted via NATO rail, with the extension range of 168-260mm. The screw can prevent accidental removal.
Optional Accessories
Arri-standard rosette could attach rosette handle, such as SmallRig wooden handle 1941 and Arri-standard Rosette Handle 1810. Arri-standard rosette could attach Sony FS5 Camcorder Baseplate 1827 and other rosette devices as well. In addition, the Arri-standard rosette could be a female and a male head.
Aluminum Alloy Rod-12inch Wooden Handle 1941 Wooden Handle 1891 15mm Carbon Fiber Rod 8inch Universal Shoulder Pad with 15mm Rod Clamp Folding Tool Set
Material(s) Aluminum Alloy Aluminum Alloy/Wood Aluminum Alloy/Wood Aluminum Alloy Aluminum Alloy Aluminum Alloy

Technical specifications

SKU PIB01MV5S2Q5
Product Dimensions 7.99 x 1.97 x 1.38 inches
Item Weight 0.159 kgs
Item model number 1870
Is Discontinued By Manufacturer No
Manufacturer SMALLRIG
