Sipeed Tang Primer 25K GW5A FPGA Development Board, 64Mbits Linux RISCV Single Board Computer, with MIPI 2.5Gbps Ethernet PMOD Port for FPGA Education, Support SDRAM HDMI Camera Module (SDRAM Bundle)

Regular price
Rs. 9,999.00
Sale price
Rs. 9,999.00
Regular price
Rs. 10,653.00
Sold out
Unit price
per
Out of stock
Tax included. Free shipping
SKU: PIB0CNW7MK12
Estimated delivery
Mastercard
Visa
Google Pay
UPI

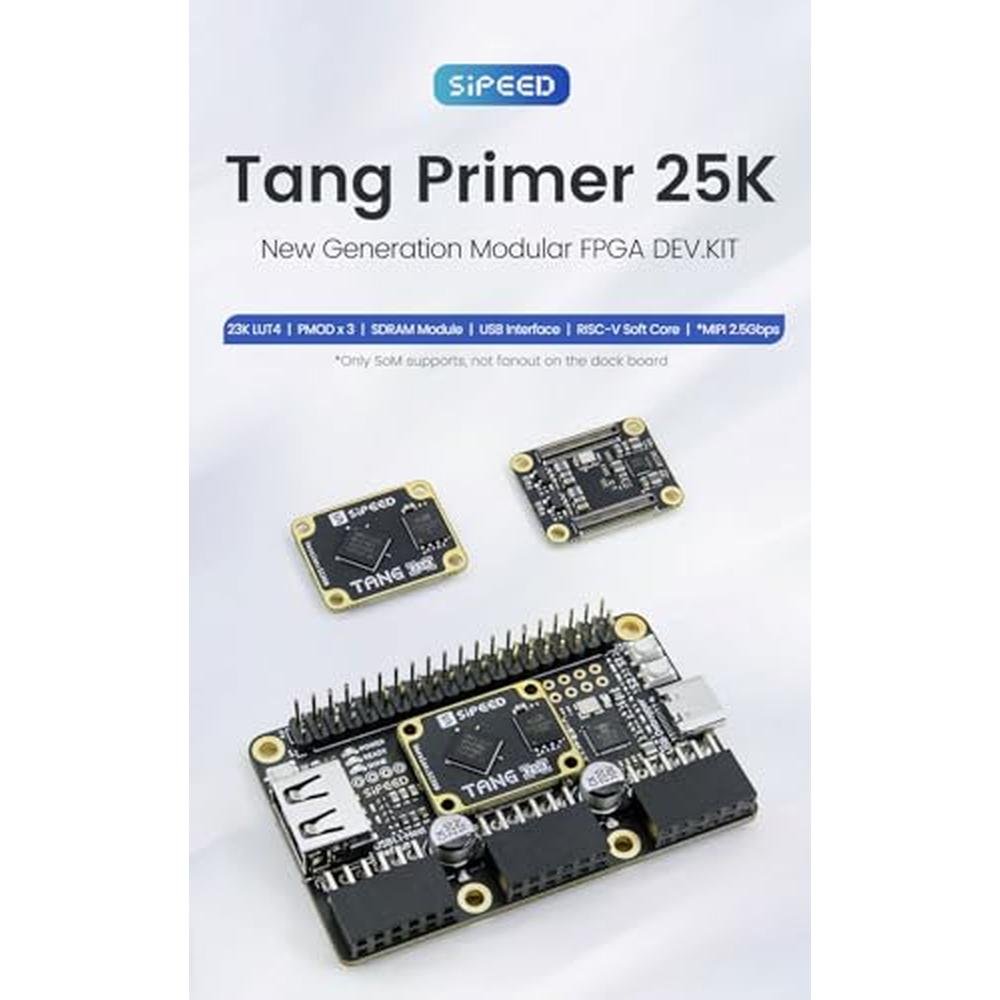

  • [FPGA RISCV CPU] Tang Primer 25K Dock single board computer is a new generation of modular development board with onboard RISC-V soft core, 23K LUT4 FPGA GW5A RISCV CPU, supports MIPI 2.5Gbps Ethernet, and is equipped with a USB-JTAG debugger , 3x PMOD interface, 1x USB interface and 1x 40P pin header interface to facilitate FPGA programming.

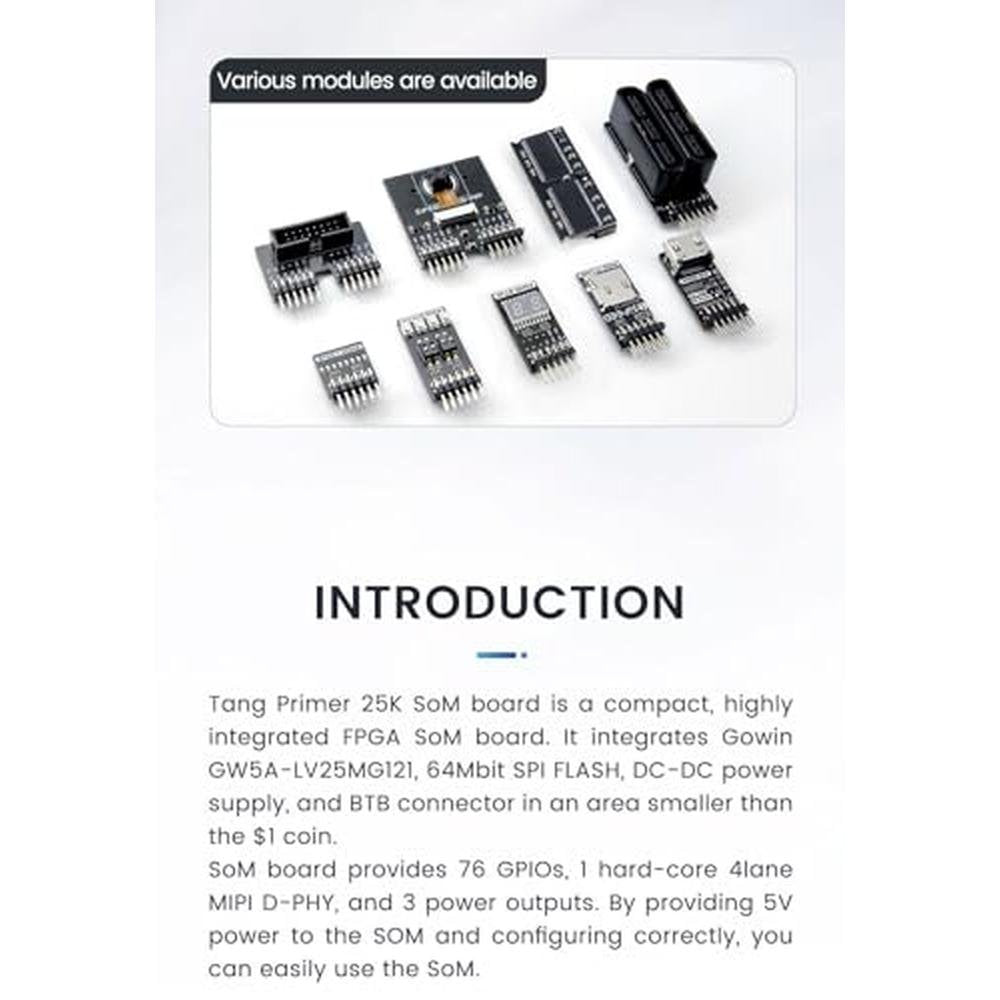

  • [PMOD Interface Module] The Tang Primer 25K Dock single board computer supports using the PMOD interface to connect simple modules such as HDMI modules, game controller modules and LED modules. It can also use the 40 PIN GPIO interface to connect SDRAM modules, dual DVP camera modules and other more complex functions. module.
  • [Small Size, High integration] Tang Primer 25K Dock single board computer is a small, highly integrated FPGA development board. It only needs to provide a 5V power supply to the core board and correctly set the configuration pins. It can be applied to any space with limited space. scene.

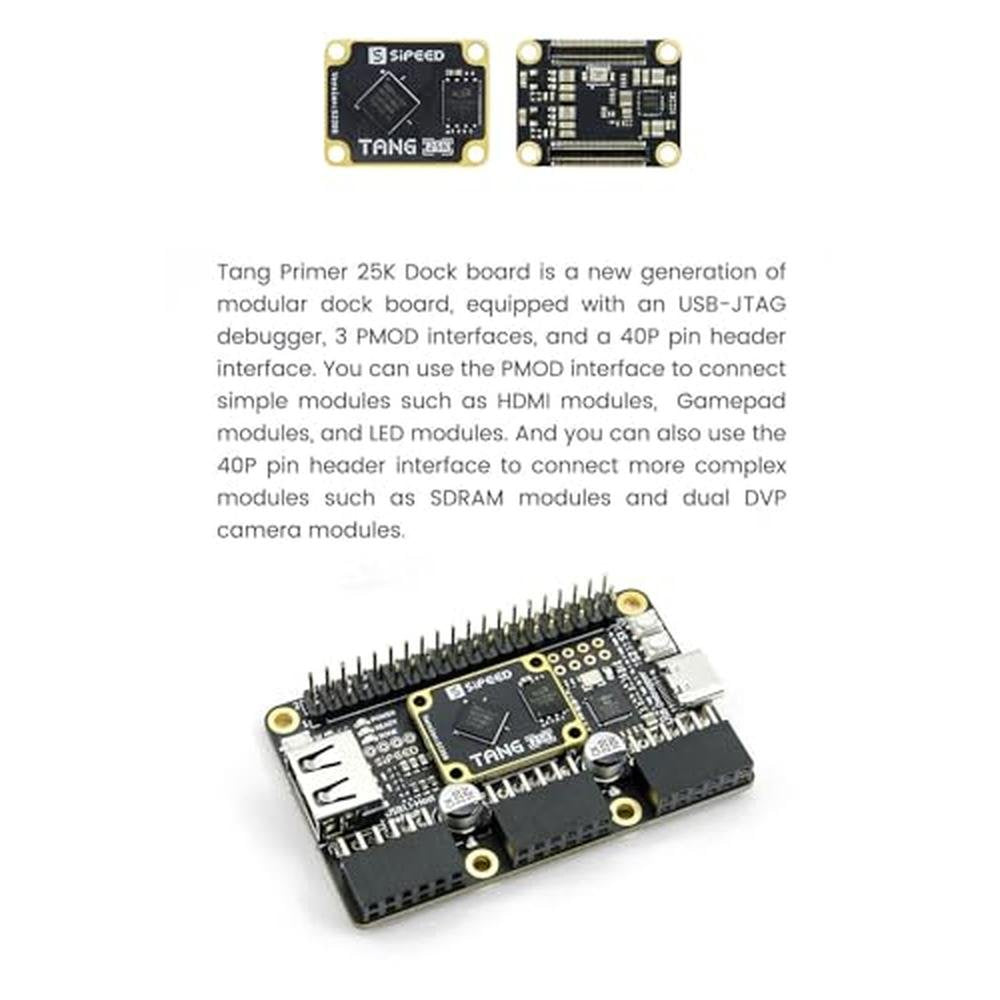

  • [Rich Peripheral Pins] Tang Primer 25K Dock development board integrates Gowin GW5A-LV25MG121, 64Mbit SPl FLASH, DC-DC power supply and BTB connector. Its core board leads to 76 GPIOs and 1 hard core 4lane MIPI line and 3 power outputs for users to use.

Product description

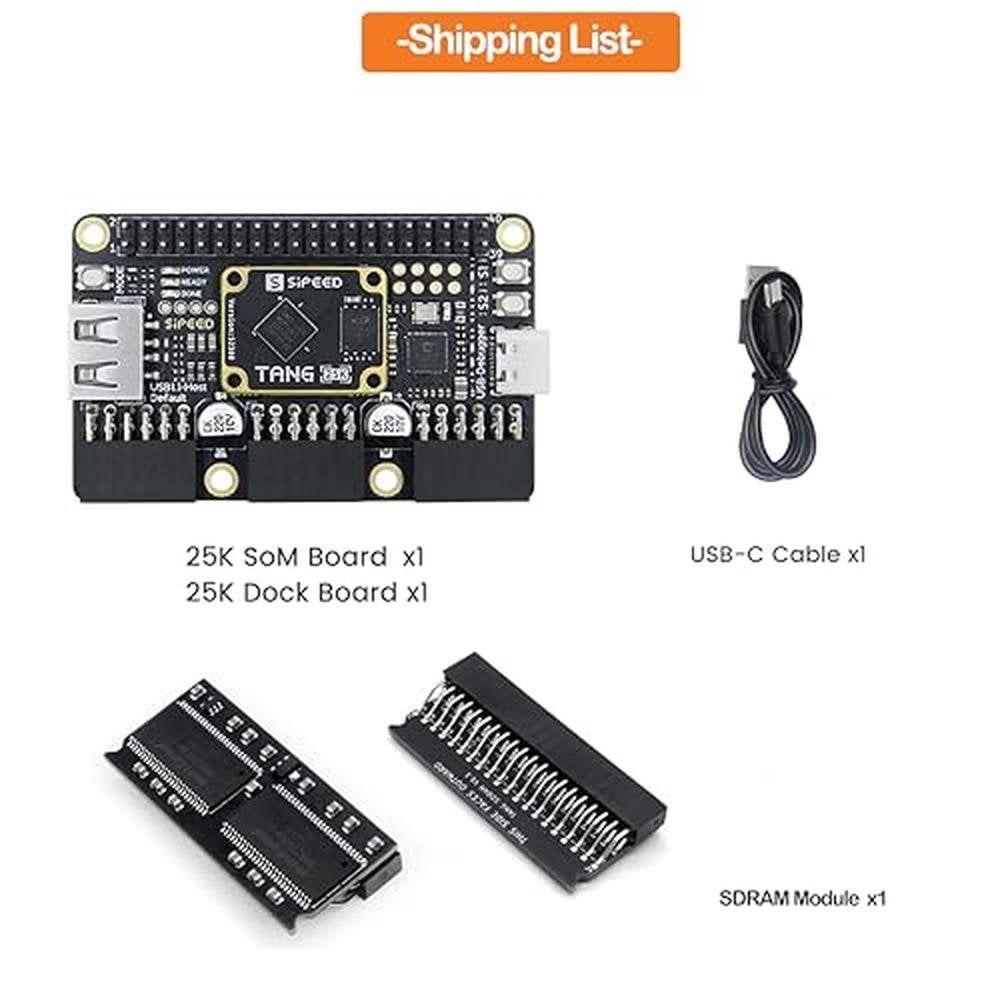

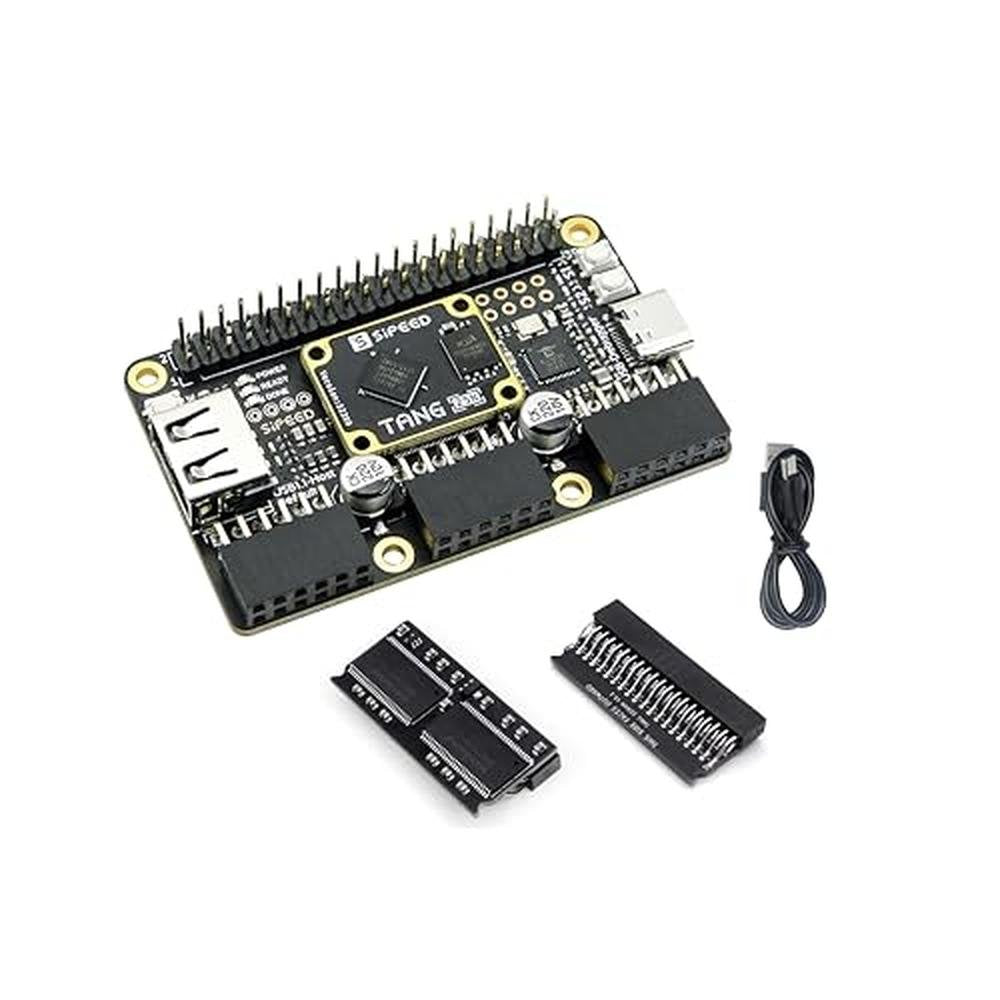

-Specification- CPU: GW5A-LV25MG121 FPGA SoC Flash: 64Mbits NOR Flash Debugger: on-board high-speed debugger, support JTAG + UART, using the USB-C port burning USB-A: one, can be used as a USB1.1 Host to connect the gamepad and other HID devices IO pin: a 2x20Pin 2.54 pin Support SDRAM module General IO:75 MIPI IO: 4lane Data PMOD: 3 pcs Pushbuttons: 2 pcs Size: 64x40mm -Package Content- Shown as picture Combo x1 -Technical Support- Github Link:"github.com/sipeed/TangPrimer-25K-example" Card Location Map: "file:///C:/Users/Lenovo/Downloads/Tang_Primer_25K_Dock_60033_ibom.html" Please click "WayPonDEV" and ask a question. Please leave the message "wpd#youyeetoo&com (#--->@,&--->.)" or skype: monica_9122..

Technical specifications

SKU PIB0CNW7MK12
RAM Memory Installed 64 MB
Memory Storage Capacity 64 MB
Connectivity Technology Ethernet/USB/PMOD/GPIO
Operating System Linux
Processor Brand FPGA GW5A-LV25 Chip (22nm)
Wireless Compability 802.11a/b/g/n/ac
Compatible Devices HDMI modules, game controller modules, LED modules, SDRAM modules, dual DVP camera modules, keyboards, gamepads
RAM Memory Technology LPDDR3
Processor Count 1
Total Usb Ports 1
