Sipeed 6+1 Mic Array Sound Source Localization Beamforming Speech Recognition Microphone Array Sipeed Authentic

Rs. 4,539.00
Rs. 4,539.00
Rs. 5,069.00
Sold out
Tax included. Free shipping
Brand: MiiElAOD
SKU: PIB0BCHWZZ8X
Estimated Delivery Date:

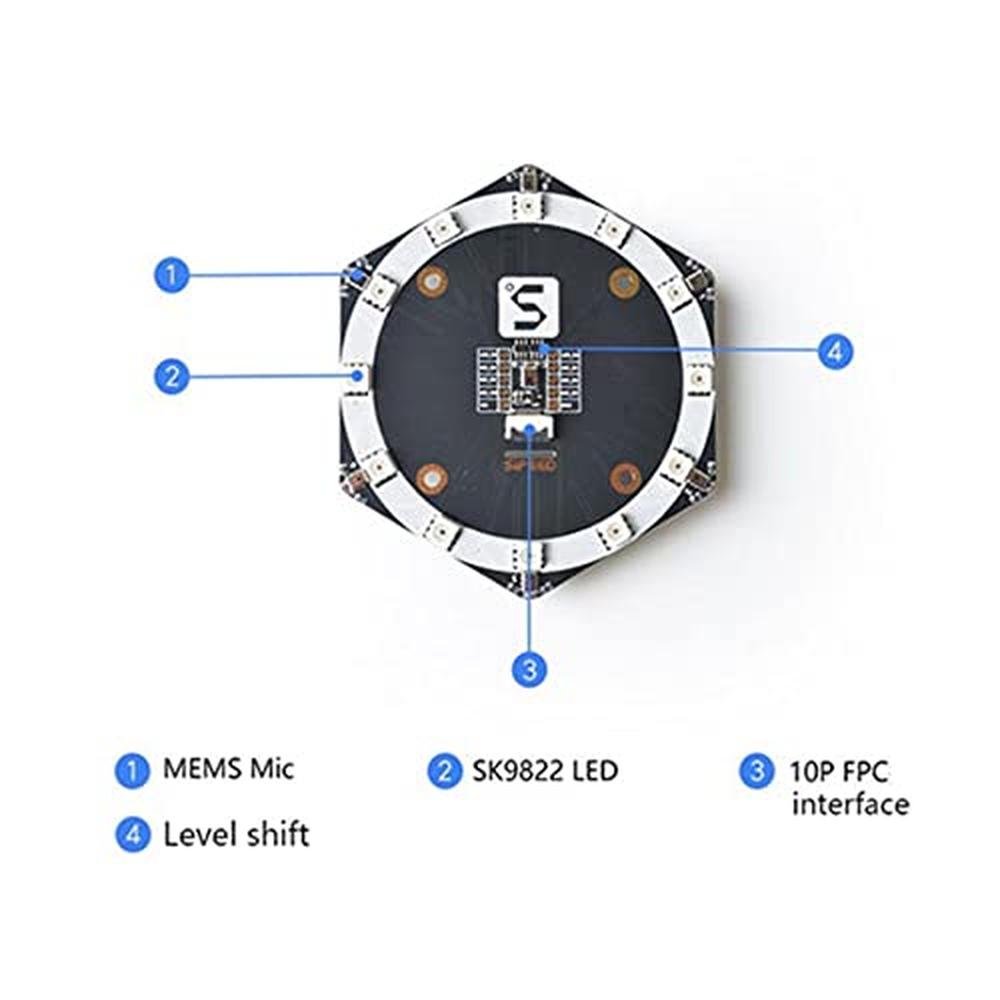

  • Package: 1pcs Sipeed 6+1 Mic Array
  • Microphone: 6+1 MSM261S4030HO form
  • Lighting: 12 LEDs are cascaded through dual signal lines
  • Interface: 10P FPC and 2*5P 2.54mm terminal

Product description

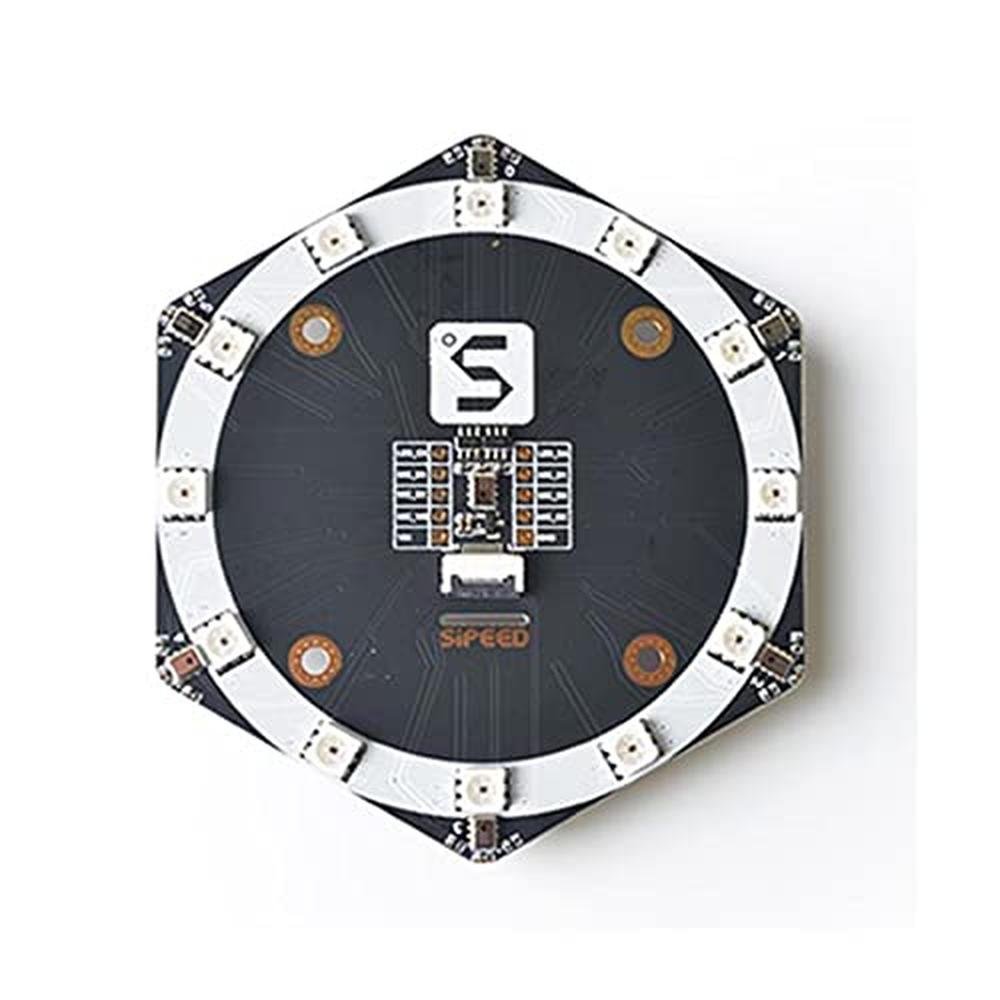

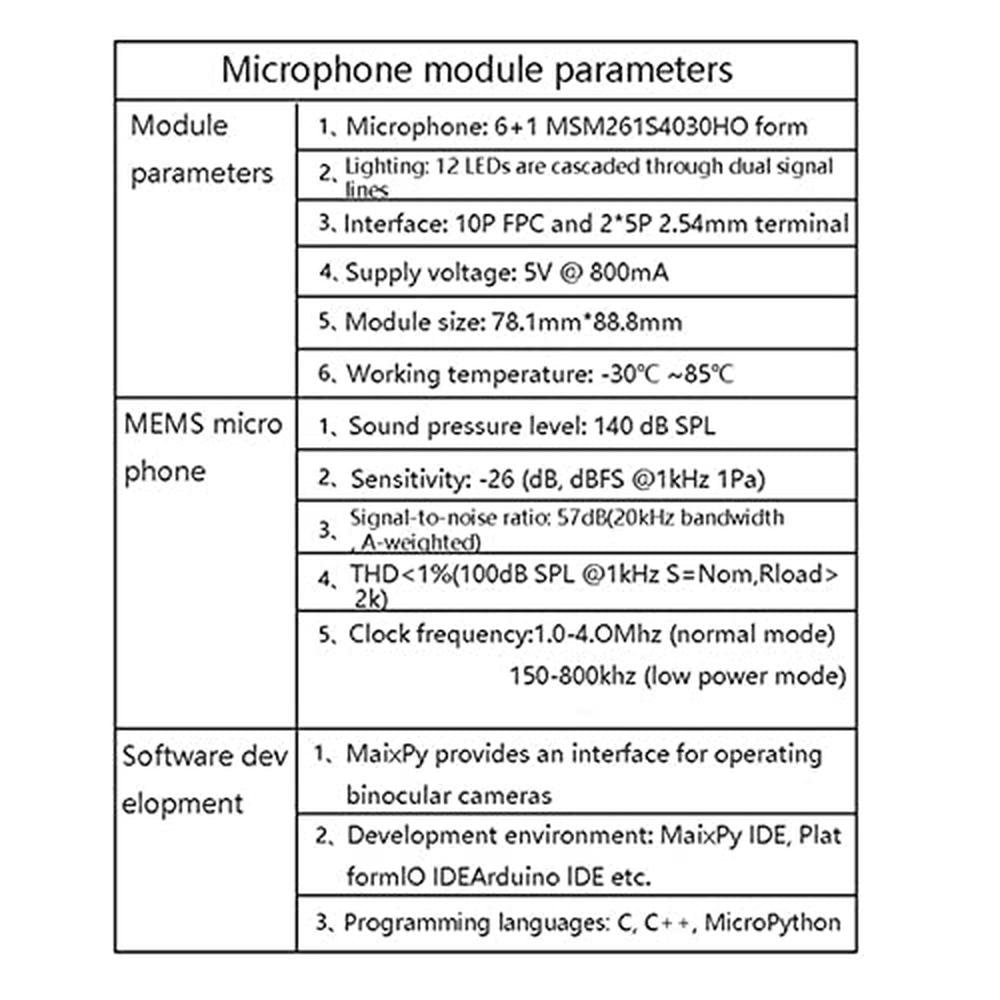

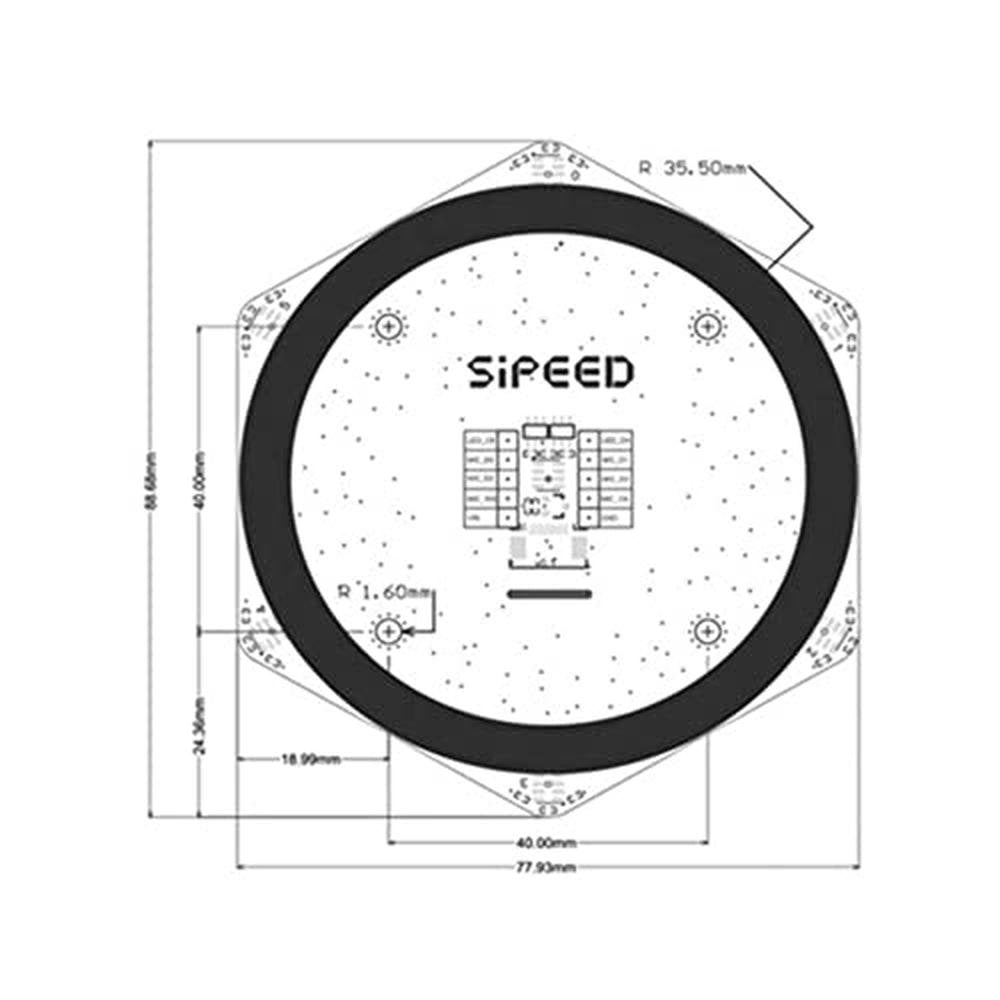

Introduction The microphone array module is designed by Sipeed based on theMSM261S4030HO digital microphone chip.The module has high voice recognition sensitivity and signal-to-noise ratio, and can be used in soundsource localization, voice recognition, beamforming and other demanding occasions. Module parameters 1Microphone: 6+1 MSM261S4030HO form 2Lighting: 12 LEDs are cascaded through dual signal lines 3Interface: 10P FPC and 2*5P 2.54mm terminal 4Supply voltage: 5V@ 800mA 5Module size: 78.1mm*88.8mm6Working temperature: -30C ~85C MEMS micro phone 1Sound pressure level: 140 dB SPL 2Sensitivity: -26(dB, dBFS @1kHz 1Pa) 3Signal-to-noise ratio: 57dB(20kHz bandwidth 4THD<1%(100dB SPL @1kHz S=Nom,Rload>2k) 5Clock frequency:1.0-4.OMhz (normal mode) 150-800khz (low power mode) Software development 1MaixPy provides an interface for operating binocular cameras 2Development environment: MaixPy IDE, PlatformlO IDEArduino IDE etc. 3Programming languages: C, C+ + , MicroPython.

Technical specifications

SKU PIB0BCHWZZ8X
Connectivity Technology 802.11b
Operating System Linux
Processor Brand Kendryte
Wireless Compability 802.11b
Compatible Devices Camera
RAM Memory Technology DDR3L
Processor Count 1
