REVODATA PoE Splitter 2.5G 36W 12V/3A, DC 5.5 * 2.1mm Plug PoE to DC 12V/3A Output, 2.5G Ethernet Comply IEEE802.3bt, Plug and Play (PS5712BG)

Product description

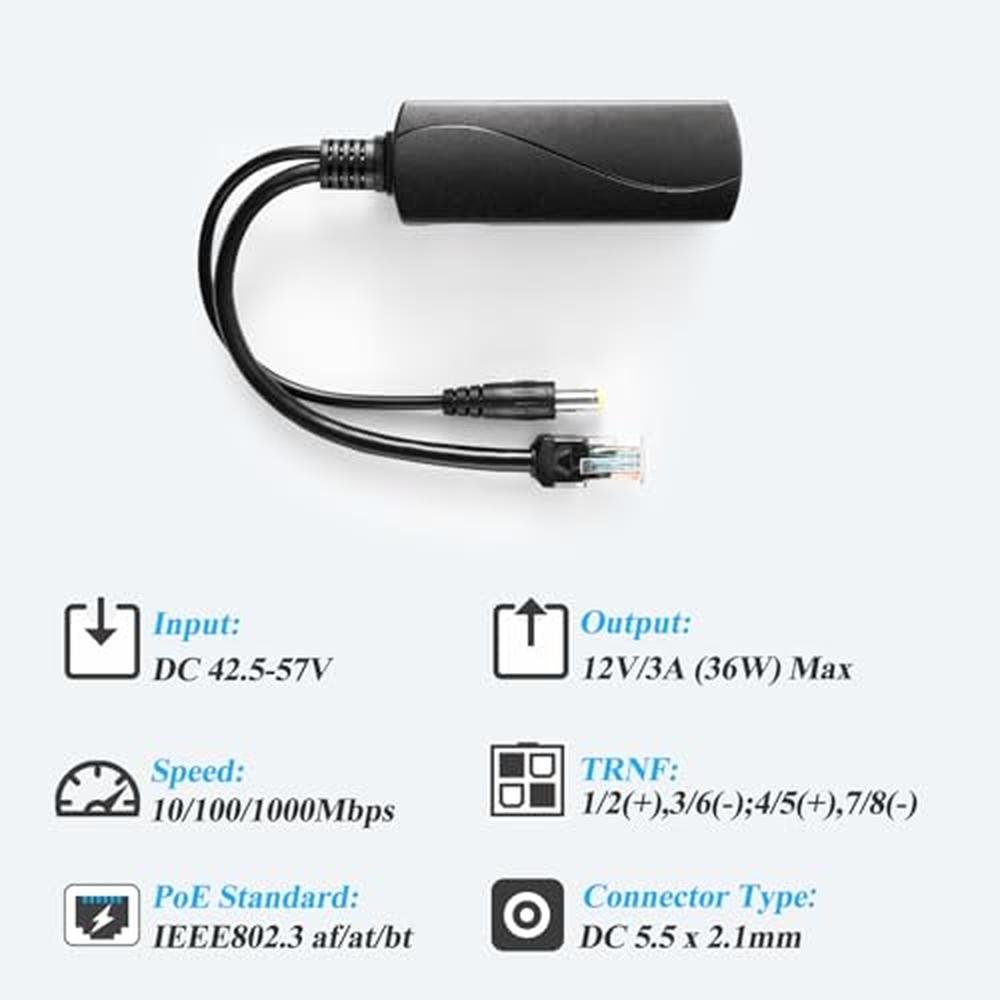

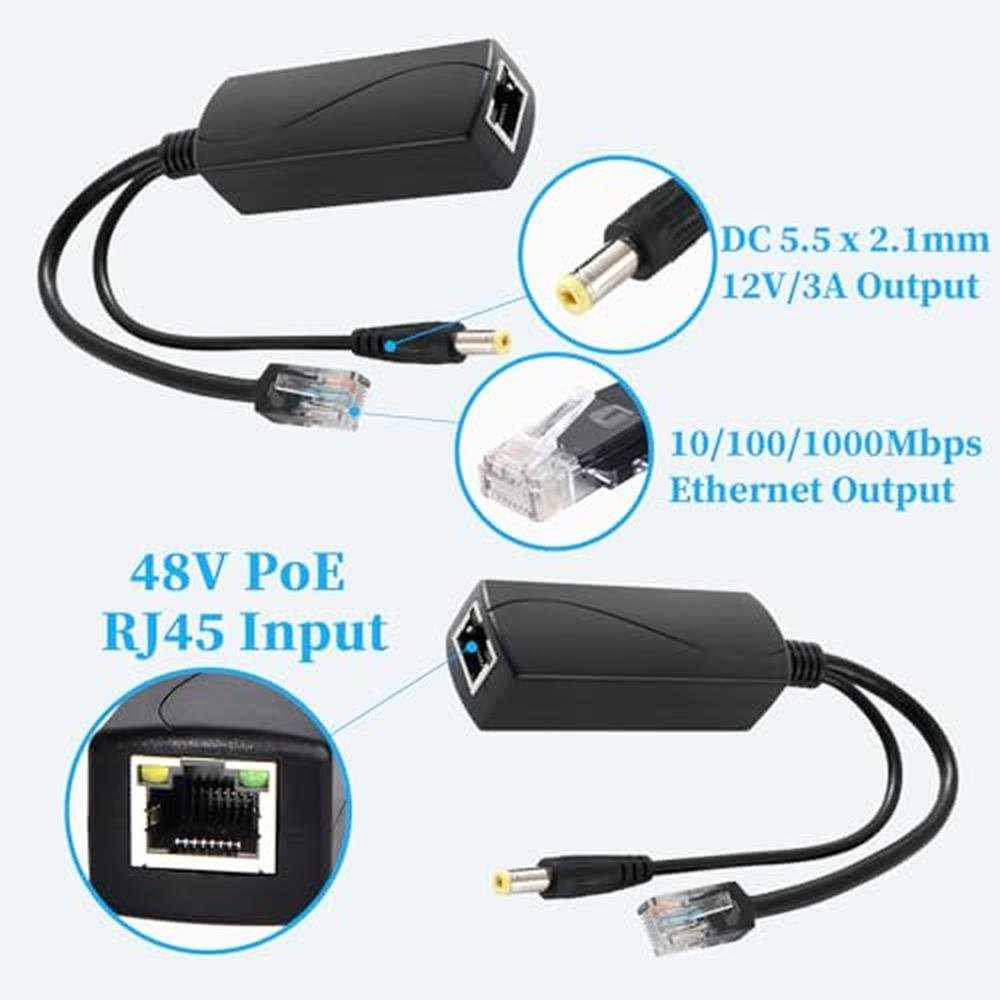

Note: 2.5Gbps speed performance requires 2.5GB capable networking infrastructure, please eusure your network environment support 2.5G Ethernet.If you need the output to reach 12V/3A, the input device must support the IEEE802.3BT protocol, otherwise the output can only reach 12V/1A or 12V/2A.Specifications:Comply with IEEE802.3af/at/BTSupport 2.5Gbps data transmissionPD support 44V - 57V voltage transmission, Automatically detects power supply from PSE power supply module12V/3A 36W power output, easy to access Poe network for non-PoE terminalSupport the isolation circuit protection, can effectively protect electrical equipment.Support the short circuit, overvoltage protection1500V high voltage isolationModel: PS5712BGTransfer Rate: 2.5Gbps, 10/100/1000Mbps(Gigabit)Power Input: DC 42.5-57VPower Output: DC 12V/3AStandard: IEEE802.3 af/at/btTRNF: 1/2(+),3/6(-);4/5(+),7/8(-)Interface Type: 1 Input RJ45 port, 1 output RJ45 port, 1 DC output(5.5x2.1mm)LED: Yellow PoE lampTemperature: Work within -20~50,Storage within -30~60Humidity: Work within 10%~90% (Non-condensing), Storage within 5%~95% (Non-condensing)DC Plug: 5.5 x 2.1mmDimension: 27.5 x 2.8 x 2.3cmWeight: 0.05kgPackage Content:1 * POE Splitter (PS5712BG).
