- About this Item
- • Equipped with Intel E810-XXVAM2 controller
- • Dual 25GbE (supports 10Gbps) ports allows connecting to multiple high speed networking devices
- • PCIe Gen 3 x8 (compatible with PCIe x4, x1, up to x4 slots are recommended)
- • Supports Port Trunking to combine both ports to achieve up to 50 Gbps transfer speeds for accelerating file sharing and intensive data transfer
Specifications & Details
| SKU | PIB0CKKR59TB |
|---|---|
| Package Dimensions | 7.6 x 5.71 x 2.05 inches |
| Item Weight | 0.230 kgs |
| Manufacturer | QNAP |
| Country of Origin | Taiwan |
Product description

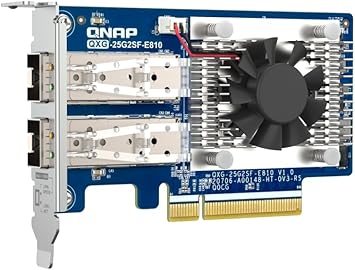

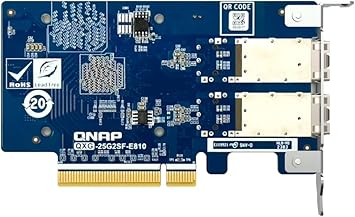

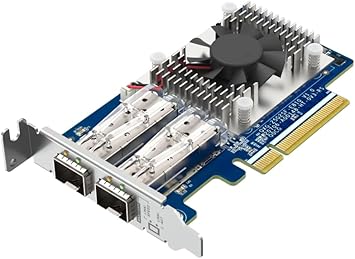

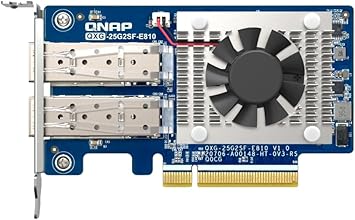

The dual-port QXG-25G2SF-E810 25GbE network expansion card with Intel® Ethernet Controller E810-XXVAM2 supports PCIe Gen4 (backwards compatible with Gen3) and provides up to 25Gbps transfer speeds (10/25Gbps supported). By using SMB Multichannel to aggregate multiplied network connections, you maximize available bandwidth and can achieve up to 50Gb/s for accelerating file sharing and intensive data transfer. With Network Offload support, the QXG-25G2SF-E810 greatly boosts network efficiency and is ideal for I/O-intensive and latency-sensitive virtualization applications, data centers, and multimedia transmission/real-time video editing.
