- About this Item
- • The BCM5719-4P is compatible with x86 and x64 servers utilizing the PCIe v1.x and v2.x interfaces
- • PCIe x4,compatible with pci-e x8,x16.Comes with Low Profile Bracket
- • Wide range of applicationsCloud and Web2.0 data center servers,Enterprise data center servers,Private Cloud,Machine Learning (ML) clusters,High-Performance Computing (HPC) clusters,Multi-node container platforms,NVMe storage disaggregation (NVMe-oF),Database servers
- • OS SupportCentOS, Debian, Microsoft Windows, Oracle Linux, Oracle Solaris, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, SUSE Linux Enterprise Server, Ubuntu, VMware, VMware ESX(Esxi 5678), VMware vSphere, Windows Hyper-V, Windows Server
Specifications & Details
| SKU | PIB0BDRVFL2R |
|---|---|
| Product Dimensions | 4.65 x 2.68 x 0.71 inches |
| Item Weight | 0.159 kgs |
| Manufacturer | ULANSON |
Product description

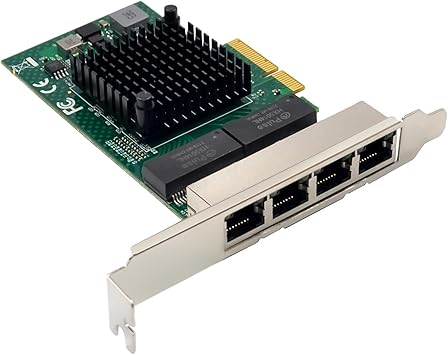

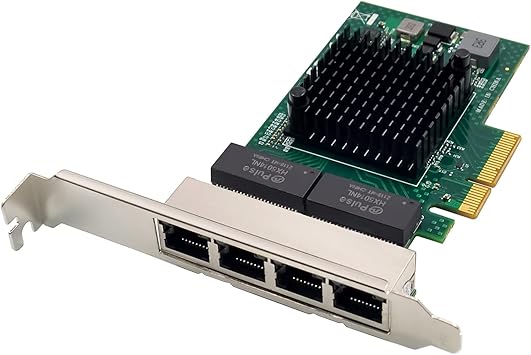

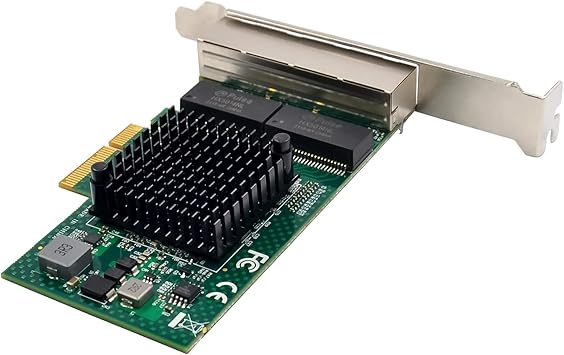

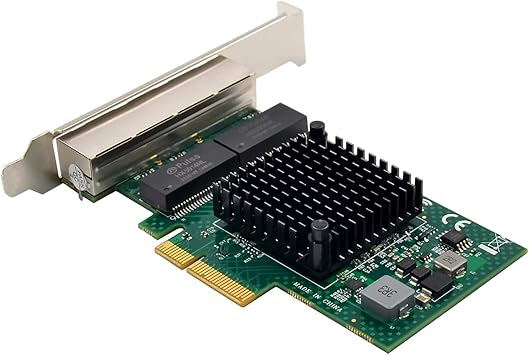

The Broadcom BCM5719-4P is a quad-port 10/100/1000 Mb/s x4 PCI Express (PCIe) Specification v2.1 Ethernet server adapter that supports the IEEE 802.3ab standard over Category-5 twisted pair cable. The card supports offload technologies, including Large Send, TCP segmentation, and TCP/UDP/IP checksum, and Receive Side Scaling (RSS) that deliver optimal network throughput, lower host processor utilization and, as a result, improve system overall performance. The server adapter ships in a small form factor that is suitable for both low-profile and standard chassis configurations.
Features
The BCM5719-4P Ethernet server adapter supports the following features:
Bus type—x4 PCI Express 2.0 (5 GT/s)
Data rate—10/100/1000 Mbps per port, per direction
MAC controller—BCM5719-4P
Quad-port 10/100/1000BASE-T Ethernet server adapter
x4 PCI Express v2.1 at 5 GT/s or 2.5 GT/s
Hardware assist for IEEE 1588 and IEEE 802.1AS time synchronization implementations
I/O Virtualization supported with 17 receive queues and 16 transmit queues per port
Full line-rate performance across all ports
Broad OS and hypervisor support
PXE support
Support for VMware NetQueue and Microsoft VMQ
Link aggregation and automatic load-balancing
Wake-on-LAN support
MSI and MSI-X support
IPv4 and IPv6 offloads
TCP, UDP, and IP checksum offloads
Large Send Offload (LSO)
TCP Segmentation Offload (TSO)
ACPI v2.0
SMBus 2.0
IEEE 802.3ab 1000BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3i 10BASE-T
IEEE 802.1q—VLAN tagging support
IEEE 802.3x—Flow control
IEEE 802.3az—EEE
Receive Side Scaling (RSS)
Transmit Side Scaling (TSS)
VLAN support with VLAN tagging
Jumbo frame support for frames larger than 1500 Bytes
Broadcom Advanced Control Suite (BACS)
management application
iSCSI remote boot support
OS Support
Microsoft—Windows Server 2008, 2008 R2, and 2012, all editions
Linux – Red Hat Enterprise Linux (RHEL) 5.9/5.8, 6.4/6.3
– Novell SUSE Linux Enterprise Server (SLES) 10 SP4/SP3, 11 U3/U2
VMware—vSphere 5.x
Citrix—XenServer 6.1
Package contents
1xPCIe 1G LAN Card

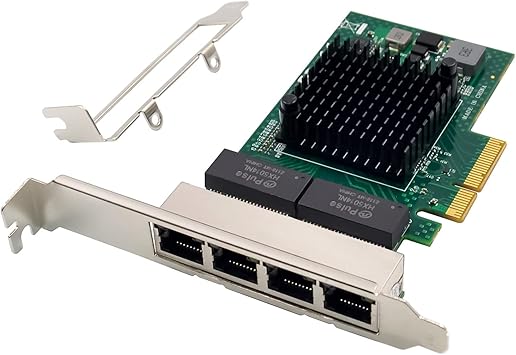

1x Low profile Bracket
1xManual
1xCD Driver
Application areas:
Cloud and Web2.0 data center servers
Enterprise data center servers
Private Cloud
Machine Learning (ML) clusters
High-Performance Computing (HPC) clusters
Multi-node container platforms
VMe storage disaggregation
Database servers
