- About this Item
- • The Realtek RTL8125 chipset, compliant with IEEE 802.3az and IEEE 802.3u supports the PCIe 2.1 interface. It provides up to a 250 increase in data rate and requires no changes to existing cable infrastructure.
- • Compatible with the IEEE 802.3u specification for 10100Mbps Ethernet, the IEEE 802.3ab specification for 1000Mbps Ethernet and the IEEE 802.3bz specification for 2500Mbps Ethernet. It supports an auxiliary power auto-detect function and will auto-configure related bits of the PCI power management registers in PCI configuration space.
- • This Quad port 2.5Gbps PCIe network card adds four copper Ethernet port to your Server or Desktop computer and provides Multi-Gigabit Ethernet access to your network at four speeds 2.5bps, 1G, 100Mbps and 10Mbps.
- • Support Wake-On-LAN and RealWow Technology (remote wake-up), remotely power onoff your computer with WOL, good for centralized management
Specifications & Details
| SKU | PIB09V28PXMR |
|---|---|
| Brand | ULANSeN |
| Item model number | TXA197 |
| Operating System | Unix, Linux, Windows ME, DOS, Windows 98 |
| Item Weight | 0.087 kgs |

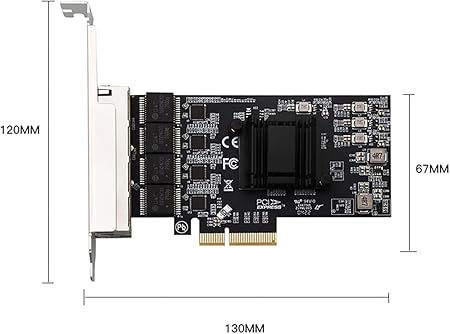

| Product Dimensions | 5.12 x 2.64 x 0.71 inches |
| Item Dimensions LxWxH | 5.12 x 2.64 x 0.71 inches |
| Color | multicolor |
| Manufacturer | ULANSON |
Product description

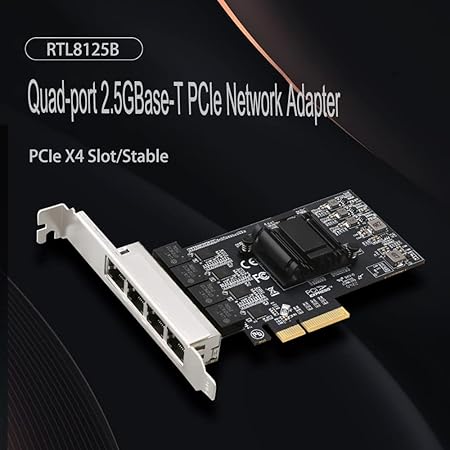

The RTL8125B 2.5G quad-port network adapter combines a quad-speed IEEE802.3-compliant media access controller with a quad-speed Ethernet transceiver that is compliant with the 10/100Mbps Ethernet IEEE802.3u specification, the IEEE802.3ab 1000Mbps Ethernet specification and the IEEE802.3bz 2500Mbps Ethernet specification. It is also available via CAT5e UTP cable or CAT3 UTP (10Mbps only) cable to provide high speed transmission. It is suitable for multiple market segments and emerging applications, such as desktops, workstations, servers, communication platforms and embedded applications.
Specification:
Auto-negotiation with extended next page functionality
Support for switching/sex/skew correction Cross-detection and auto-correction
Support for hardware ECC (Error Correction Code), hardware CRC (Cyclic Redundancy Check) function
Support for PCI MSI (Message Signal Interrupt) and MSI-XSupport for ECMA-393 ProxZzzy standard for sleeping hosts
Wake-on-LAN and "RealWow!" technology (remote wake-up) support
Compatible with IEEE802.3, IEEE802.3u, IEEE802.3ab
Supports IEEE1588v1, IEEE1588v2, IEEE80.2AS time synchronization
Supports IEEE802.1Qav credit based shaping algorithm Support IEEE802.1P Layer 2 priority coding
Main Chipset: ASM1812+Realtek RTL8125B
Support IEEE802.1Q VLAN tagging
Support IEEE802.3az-2010 Support for IEEE802.3bz-2016 (NGBASET)
Support for full duplex flow control (IEEE802.3x)
Support jumbo frames up to 16K bytes
Support for Virtual Machine Queuing (VMQ)
Support quad-core receive-side scaling (RSS)
Bus Type: PCIe x1 2.5Gbps/5.0Gbps, revision v2.1
Transmission Media: 4 x 2.5G RJ45 ports
Transfer Rate: 2.5G/1000/100Mbps
Network Mode: 2.5G and 1G Lite mode supported
System Requirements:
Linux , Win 7/Win 8/Server 2008/Win 8.1/Server 2012/ Win 10 32/64bit
Packing list
1xPCIE 2.5G LAN Card

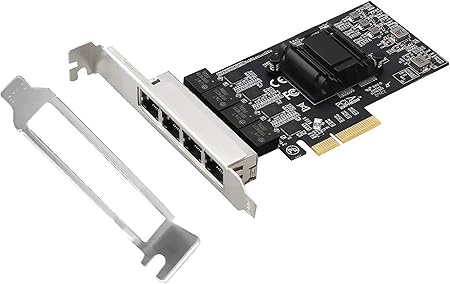

1x Low profile Bracket
1xManual
Quad-Port 2.5GBase-T PCIe Network Adapter 2.5GBase-T PCIe Network Adapter Dual-Port PCIe Gigabit Network Card Dual-Port PCIe Gigabit Network Card
Buying Options
Buying Options
Buying Options
Buying Options
Customer Reviews
13
1,352
669
10
Bus Type PCI Express 2.1 (5 GT/s) PCI Express 2.1 (5 GT/s) PCI Express 2.0 (2.5 GT/s) PCI Express 1.0 (2 GT/s)

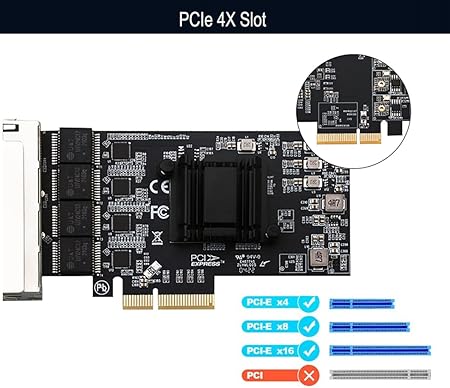

Bus Width X4 lane PCI Express, operable in X8 and X16 slots X1 lane PCI Express, operable in X2, X4, X8 and X16 slots X1 lane PCI Express, operable in X2, X4, X8 and X16 slots X1 lane PCI Express, operable in X2, X4, X8 and X16 slots
Card Type Standard/Low Profile Standard/Low Profile Standard/Low Profile Standard/Low Profile
Chipset ASM1812+RTL8125B RTL8125B Intel – 82575/6EB Intel – 82571EBIntel – 82571EB
Wake-On-LAN ? ? ?
Support PXE ? ? ? ?
Max. Speed 2.5Gbps 2.5Gbps 1000Mps 1000Mps
