Specifications & Details
| SKU | PIB07CK2D7FB |
|---|---|

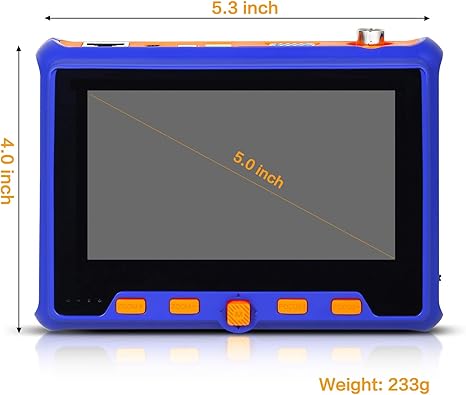

| Product Dimensions | 5 x 1 x 4 inches |
| Item Weight | 0.499 kgs |
| Item model number | SGEF-5900ACT |
| Batteries | 1 Lithium Ion batteries required. (included) |
| Is Discontinued By Manufacturer | No |
| Manufacturer | SGEF |
Product description
5900ACT-6 in 1 CCTV Tester
Tester is simple in design, easy to operate and easy to carry, making it easy for Central TV technicians or installers to install and maintain CCTV systems and increase productivity by reducing field time .
Tips: ? This tester NOT supports IP Camera
CCTV TESTER

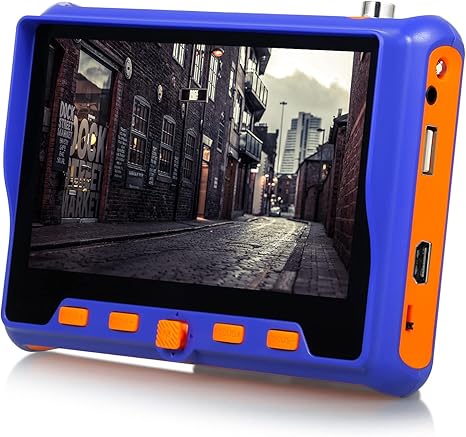

5-inch TFT LCD Screen 6 in 1 CCTV Tester PAL/NTSC (Auto adapt),Hybrid camera tester is able to test and debug coaxial TVI camera &AHD camera & CVI camera and traditional CVBS analog camera .The LCD screen video monitor with high resolution can show clear image when troubleshooting a security camera system.
AHD&CVI&TVI,&Analog Camera
AHD Camera: support 720P/1080P/3MP/4MP/5MP/8MP
CVI Camera: support 720P/1080P/3MP/4MP/5MP/8MP
TVI Camera :support 720P/1080P/3MP/4MP/5MP/8MP
CVBS Camera: PAL/NTSC, 960H Camera,800tvl/1000tvl/1 200tvl analog camera

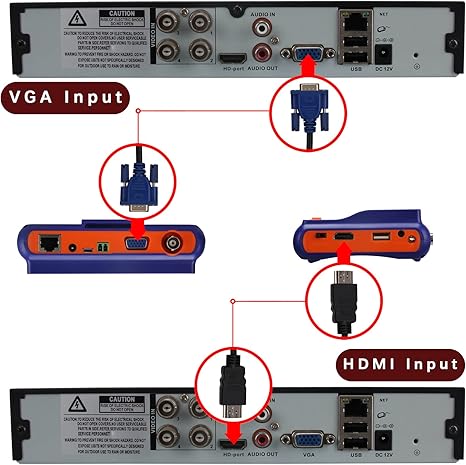

HDMI input
support 1024x768 &1280x720 & 1280x1024 & 1440x900 & 1920x1080 resolution ,HDMI access switch to HDMI mode.
VGA input
support 1024*768 and 1280*1024 and 1440x900 and 1920x1080 resolutions .
UTC Coaxial /Call OSD Menu
Support RS485 ,Compatible with multiple PTZ protocols (PELCO-D / PELCO-P etc.); baud rate: 2400, 4800, 9600,14400 (optional).
UPT/BNC cable, measure the connecting status, display the sequence of connection and the NO.

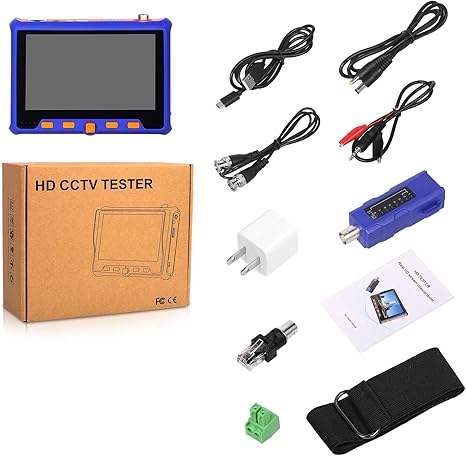

Product Accessories:
? Portable Wrist Band 5 inch LCD Monitor CCTV Camera Tester
? 3000mAh Lithium Battery (Built-in)
? 5V 1A Adapter& Power Output Cable
? Wrist Strap
? BNC Video Cable
? DC output cable
? Audio test cable
? Network cable test unit
? Coax cable test convertor
? User manual
5900ACT 5800ACT 6900ACT
Add to Cart
Buying Options
Add to Cart
Customer Reviews
47
—
42
Price
$94
89 —
$94
99
Display Size 5 '' 5 '' 5 ''
Screen Resolution 800*480 800*480 800*480
Analog Camera Yes Yes Yes
AHD Camera 720p~8MP 720p~1080P 720p~8MP
CVI Camera 720p~8MP 720p~1080P 720p~8MP
TVI Camera 720p~8MP 720p~1080P 720p~8MP
HDMI input Yes No Yes
VGA input Yes Yes Yes
IP Camera No No No
SDI Camera No No No
