- About this Item
- • 1. FebSmart X540T2 is a PCI Express X8 interface to 2X 10GbE copper RJ45 ports network adapter. It i
- • 2. Network Controller: Intel Ethernet Controller X540-AT2. Data Rate Each Port: 10GbE, 1GbE, 100Mb (
- • 3. Supports Wake Up on LAN. Supports PCI-SIG SR-IOV. Supports Virtual Machine Device Queues (VMDq).
- • 4. Compatible Systems: 1. Windows Server 2022, 2019, 2016, 2012R2, 2012 and Windows 11, 10, 8.x, 7 (
Specifications & Details
| SKU | PIB0BMZ8PQFN |
|---|---|
| Product Dimensions | 5 x 0.72 x 6 inches |
| Item Weight | 0.159 kgs |
| Item model number | X540T2 |
| Manufacturer | FebSmart Co,.Ltd |
Product description
PCI Express X8 Lane Interface to 2X 10GbE Ethernet Adapter, 2X 10GbE PCIE NIC Card
FebSmart X540T2 is a PCI Express X8 lane interface to 2X 10GbE copper RJ45 interface network adapter. It is based on Intel X540-AT2 original ethernet controller, will provide stable and superspeed 10Gbps max network connection on Windows Desktop PCs, Windows Servers, Network Attached Storage (NAS), VMWare PCs and Linux PCs.
Technical Specifications:
1. Supports Wake Up on LAN and Remote Boot up.
2. Supports Virtual Machine Device Queues (VMDq).
3. Supports PCI-SIG SR-IOV. Supports Flexible Port Partitioning.
4. Support Storage Over Ethernet iSCSI, FcoE and NFS Working Mode
5. Supports RJ45 Category 6 55 Meters, and Category 6A 100 Meters.
6. Supports 10GBASE-T, 1GBASE-T, and 100MBASE-T, 10MBASE-T Mode.
7. Supports System Interface Type: PCIe V2.1 (5.0 GT/s), PCIE X8 Lane Interface.
8. Supports Intel Data Direct I/O Technology. Supports Simplified I/O Virtualization.
9. Supports IEEE 802.3 Auto-negotiation on IEEE 802.3an, 802.3, 802.3u, and 802.3ab.
ATTENTION:
1. PCIE X8 interface, works on PCIE X8, X16 Lane slot.
2. Users can download driver from Intel site or our site.
Mainly Working Mode
Coverge to 20GbE Ethenet on PCs

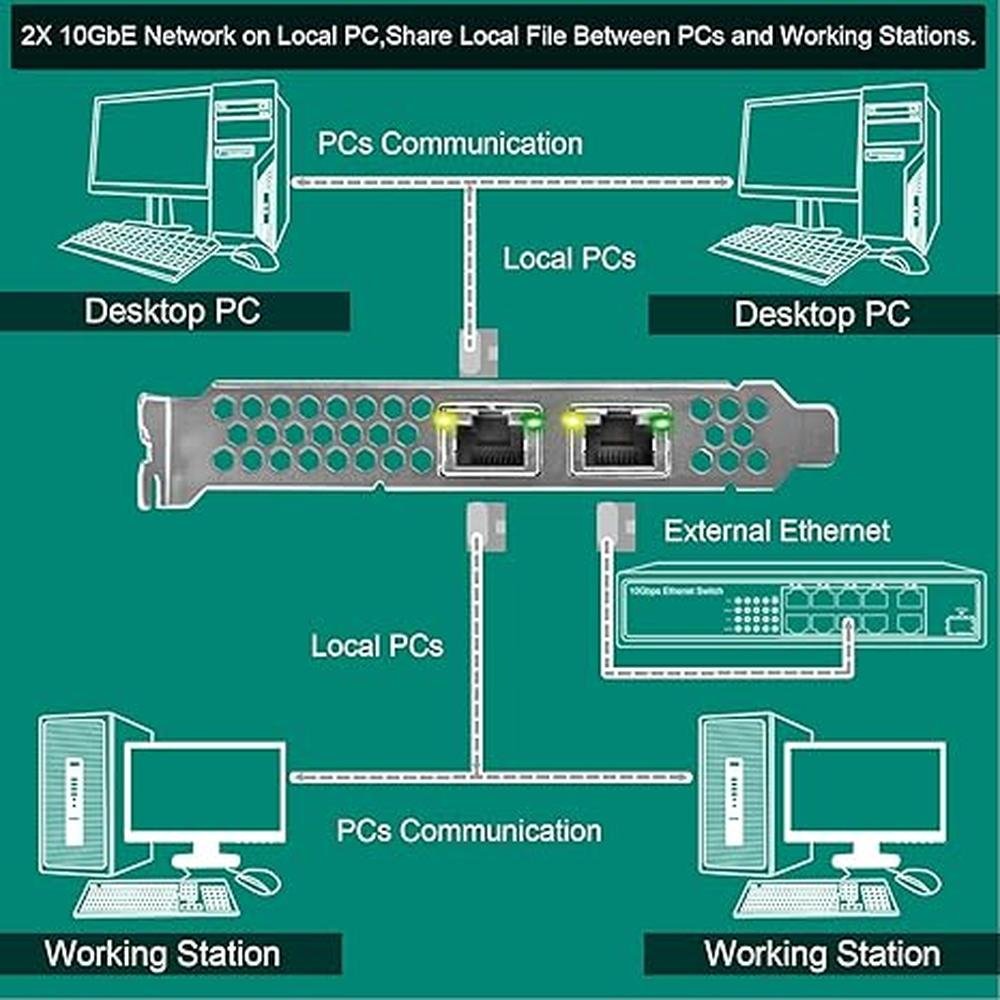

Communicate with 2X 10GbE Local PCs

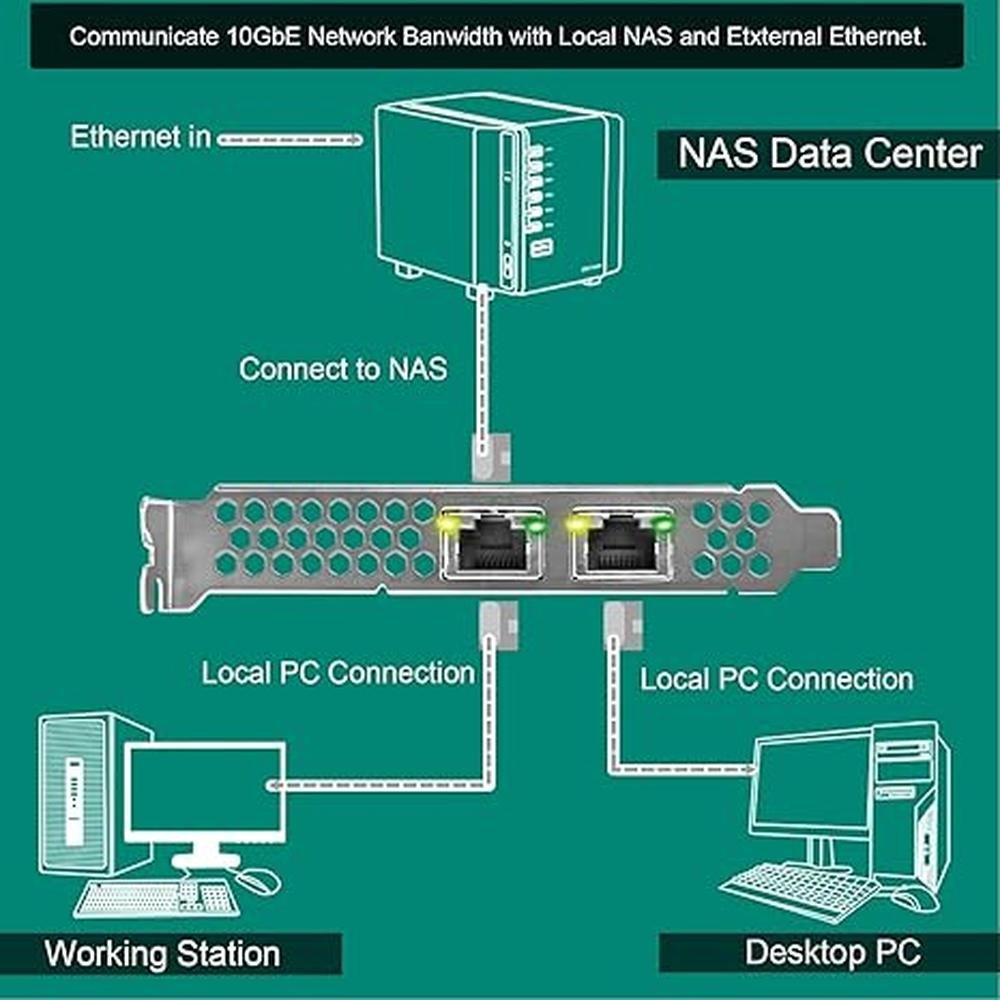

Share 10GbE Network on NAS and PCs
Technical Specifications:

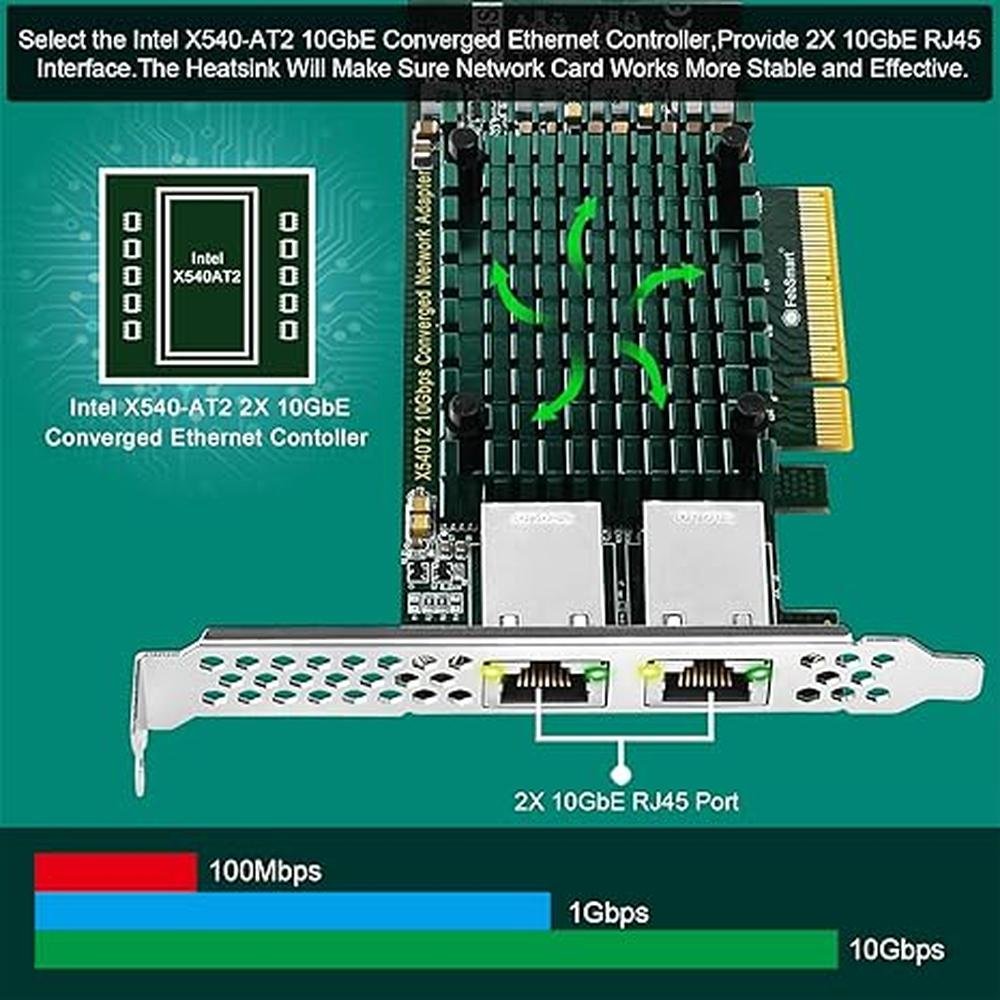

Intel X540AT2 Ethernet Controller
1. Select the Intels X540AT2 2X 10GbE Coverged Ethernet Controller, will provide 2X 10GbE Copper RJ45 ports.
2. Fully supports IEEE 802.3 Auto-negotiation on IEEE 802.3an, 802.3, 802.3u, and 802.3ab.
3. Auto communicates 10GBASE-T, 1GBASE-T on desktop PCs.

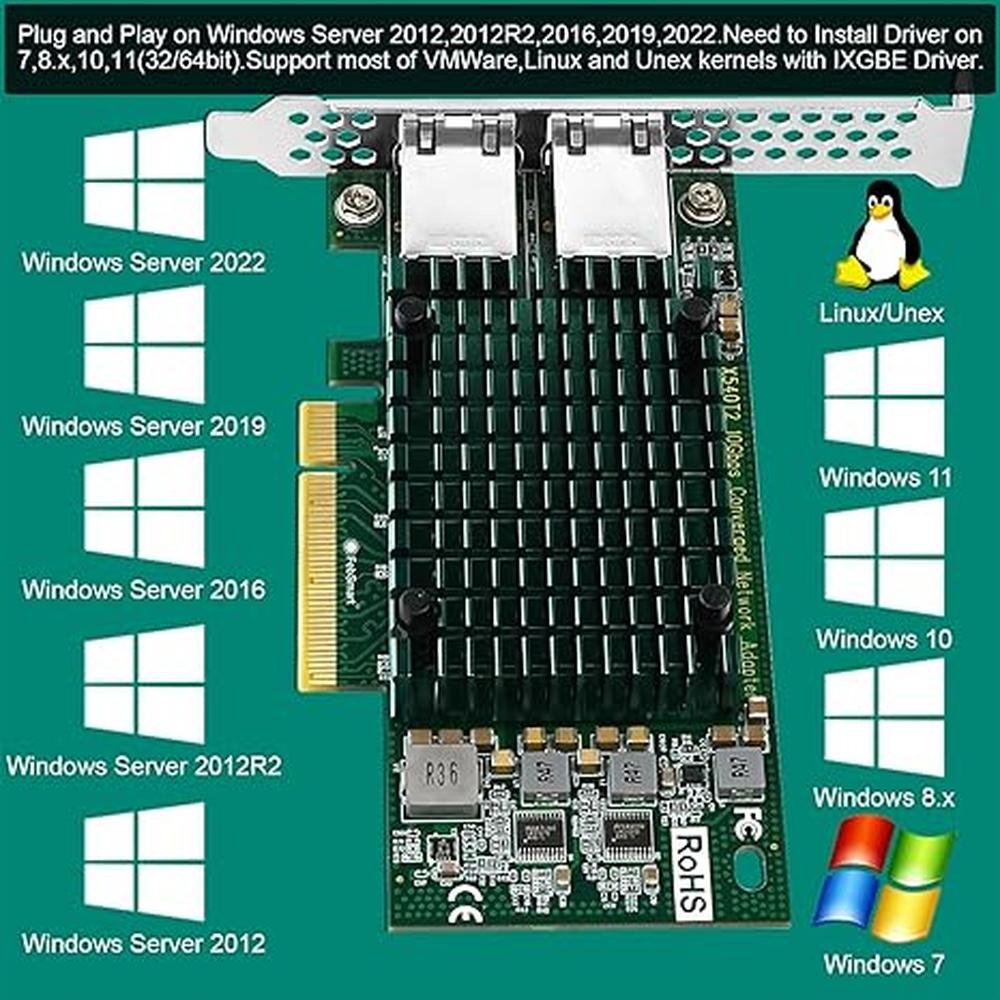

Supports Most Windows Desktop PCs
1. Plug and Play on Windows Server 2022, 2019, 2016, 2012R2, 2012.
2. Need to install driver by hand on Windows 11, 10, 8.x, 7 (32/64bit).
3. Linux kernels drivers IXGBE (Intel official site driver).
Slim PCs and Standard Size PCs
1. The full height bracket mounted PCIE NIC card, will allow users add it on standard size PCs.
2. The low profile bracket in the package, will works on slim PCs.
3. Users need change to the low profile bracket by hand.
2X 10GbE for Storage and Gaming
1. Supports 2X 10GbE RJ45 copper ports for Network Converge, local PCs comunications and online storage.
2. Lighting fast 4K and 8K video source streaming and online GAMING.
PCI Express X8 Lane Interface
1. PCI Express 2.x design, will compatible with PCIE 2.x, 3.x, 4.x slot.
2. PCIE X8 Lane interface, will works on PCIE X8, X16 Lane slot.
VMDq, SR-IOV, iSCSI, FcoE and NFS
1. Supports Wake Up on LAN and Remote Boot up.
2. Supports Virtual Machine Device Queues (VMDq).
3. Supports PCI-SIG SR-IOV. Supports Flexible Port Partitioning.
4. Support Storage Over Ethernet iSCSI, FcoE and NFS Working Mode
Product Description:
FebSmart X540T2 is a PCI Express X8 lane interface to 2X 10GbE copper RJ45 interface network adapter. It is based on Intel X540-AT2 original ethernet controller, will provide stable and superspeed 10Gbps max network connection on Windows Desktop PCs, Windows Servers, Network Attached Storage (NAS), VMWare PCs and Linux PCs.
Technical Specifications:
1. Supports Wake Up on LAN and Remote Boot up. 2. Supports Virtual Machine Device Queues (VMDq).
3. Supports PCI-SIG SR-IOV. Supports Flexible Port Partitioning. 4. Support Storage Over Ethernet iSCSI, FcoE and NFS Working Mode
5. Supports RJ45 Category 6 55 Meters, and Category 6A 100 Meters. 6. Supports 10GBASE-T, 1GBASE-T, and 100MBASE-T, 10MBASE-T Mode.
7. Supports System Interface Type: PCIe V2.1 (5.0 GT/s), PCIE X8 Lane Interface. 8. Supports Intel Data Direct I/O Technology. Supports Simplified I/O Virtualization. 9. Supports IEEE 802.3 Auto-negotiation on IEEE 802.3an, 802.3, 802.3u, and 802.3ab.
Compatible System:
1. Windows Server 2022, 2019, 2016, 2012R2, 2012 and Windows 11, 10, 8.x, 7 (32/64bit).
2. Linux kernels drivers IXGBE (Intel official site driver).
3. RHEL 7.9, RHEL 8.4 / 8.5, RHE to 7.8 and 8.0 to 8.3.
4, SLES 12 SP5, SLES 15 SP3, SLES 12 SP4 and previous 15 SP2 and previous.
5, Ubuntu 18.04 and later systems, Ubuntu 20.04, and later systems.
6. FreeBSD 12.2, 13, 12.1 and previous systems.
Package: 1X X540T2, 1X Low Profile Bracket, 1X Mount Screw, 1X User Manual, 1X Mini CD.
