UeeKKoo

PCIe to M.2 Adapter with PoE Function Compatible with Raspberry Pi 5, Pi 5 POE HAT M.2-M-Key HAT+ Supports NVMe Protocol M.2 SSD 2230/2242, IEEE 802.3af/at Network Standard with Metal Heatsink

Regular price
Rs. 4,949.00
Sale price
Rs. 4,949.00
Regular price
Rs. 0.00
Sold out
Unit price
per
Out of stock
Tax included. Free shipping
SKU: PIB0DFWXG88M
Estimated delivery
Mastercard
Visa
Google Pay
UPI

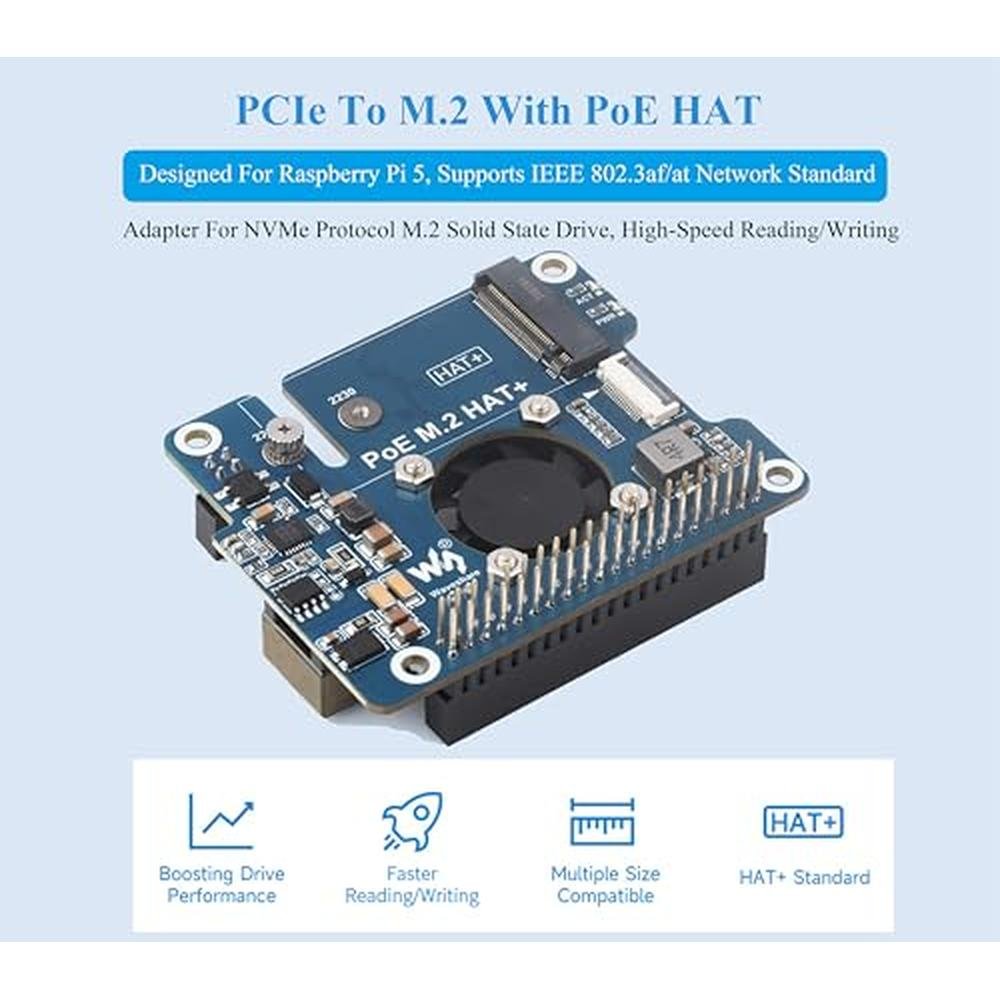

  • This is PCIe To M.2 Adapter With PoE Function compatible with Raspberry Pi 5. It combines Power over Ethernet (PoE) and PCIE to M.2 functions. Supports IEEE 802.3af/at network standards
  • Power Over Ethernet---Providing both network connection and power supply for your Raspberry Pi in one cable

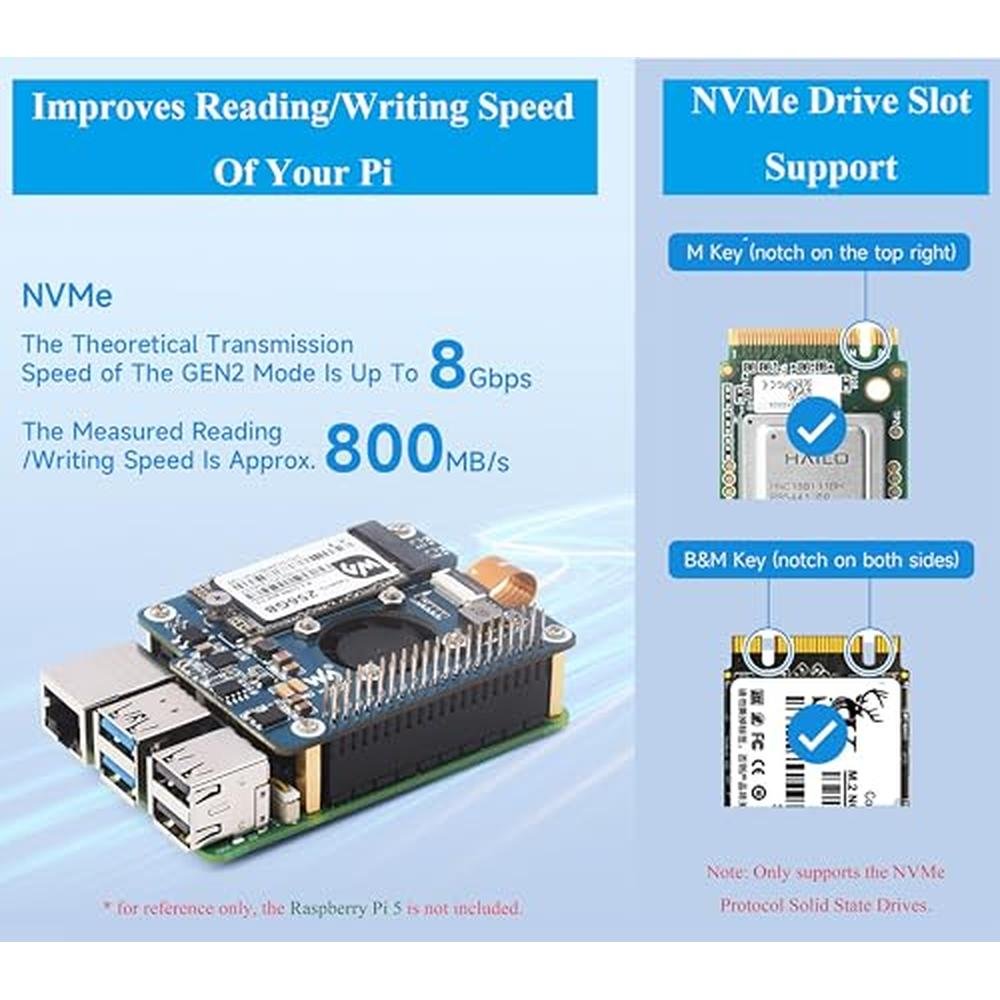

  • Support NVMe Drive Protocol --- Compatible With 2230/2242 Size M.2 Solid State Drive. Supports Gen2 and Gen3 Modes, Supports Booting PI5 From Solid State Drive

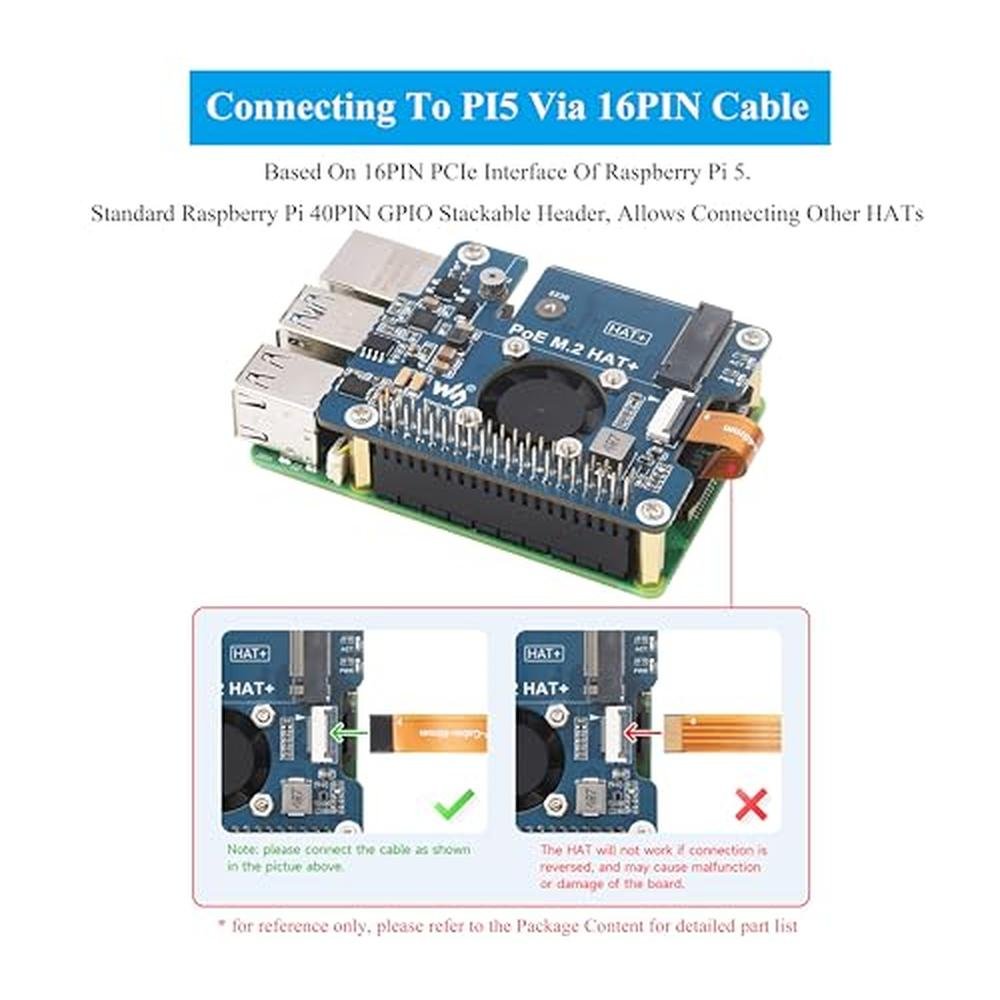

  • Connecting to PI5 via 16PIN Cable---Based on 16PIN PCIe Interface of Raspberry Pi 5. Standard RPi 40PIN GPIO stackable header, allows connecting other HATs

Product description

PCIe To M.2 Adapter With PoE Function For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Supports 802.3af/at network standard, Pi 5 PoE HAT Features 1. This is PCIe To M.2 Adapter With PoE Function compatible with Raspberry Pi 5. It combines Power over Ethernet (PoE) and PCIE to M.2 functions. Supports IEEE 802.3af/at network standards. It supports M.2 NVME hard drives of 2230 and 2242 sizes, and supports SSD booting of Raspberry Pi. 2. Power Over Ethernet---Providing both network connection and power supply for your Raspberry Pi in one cable 3. Support NVMe Drive Protocol --- Compatible With 2230/2242 Size M.2 Solid State Drive. Supports Gen2 and Gen3 Modes, Supports Booting PI5 From Solid State Drive 4. Connecting to PI5 via 16PIN Cable---Based on 16PIN PCIe Interface of Raspberry Pi 5. Standard RPi 40PIN GPIO stackable header, allows connecting other HATs 5. With Active Cooling fan---Accelerate Cooling Effect, More Stable Performance. Onboard Dual LED Indicators--- Easy to monitor the Working Status 6. Onboard 5V & 12V header outputs---5V header provides up to 4.5A output (MAX 25W for 12V+5V total output power). Be able to power extra devices while providing stable power to Raspberry Pi Specifications Network Standard: IEEE 802.3af/at PoE PoE Power Input: 37V ~ 57V DC in Power Output: GPIO Header: 5V 4.5A (MAX) 2P Header: 12V 2A (MAX) Dimensions : 56.5 70.0mm Package Content PoE M.2 HAT+ x1 Metal heatsink x1 16P-Cable-40mm x1 Thermal tape (3PCS) x1 Screws pack x1.

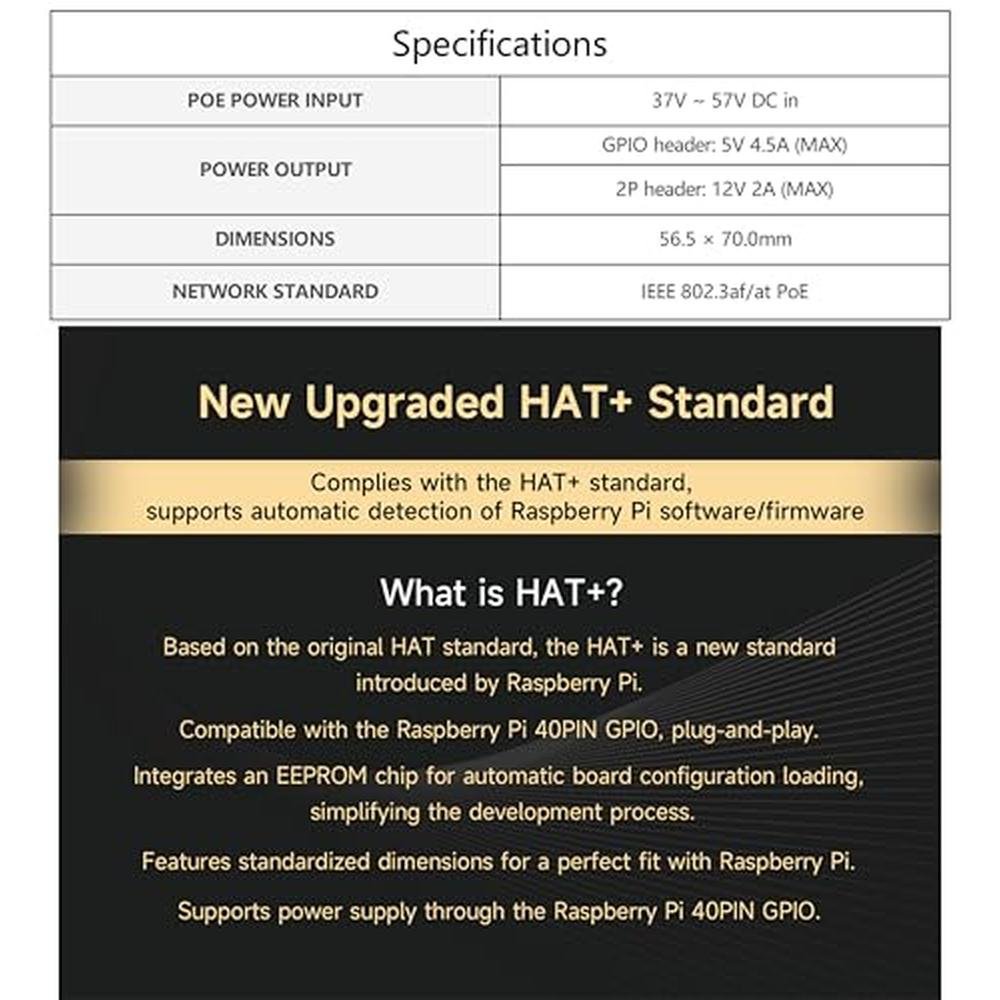

Technical specifications

SKU PIB0DFWXG88M
Brand UeeKKoo
Model Number PCIe To M.2 With PoE HAT
Number of Items 1
Number of Packs 1
Manufacturer UeeKKoo
Unit Count 1 Count

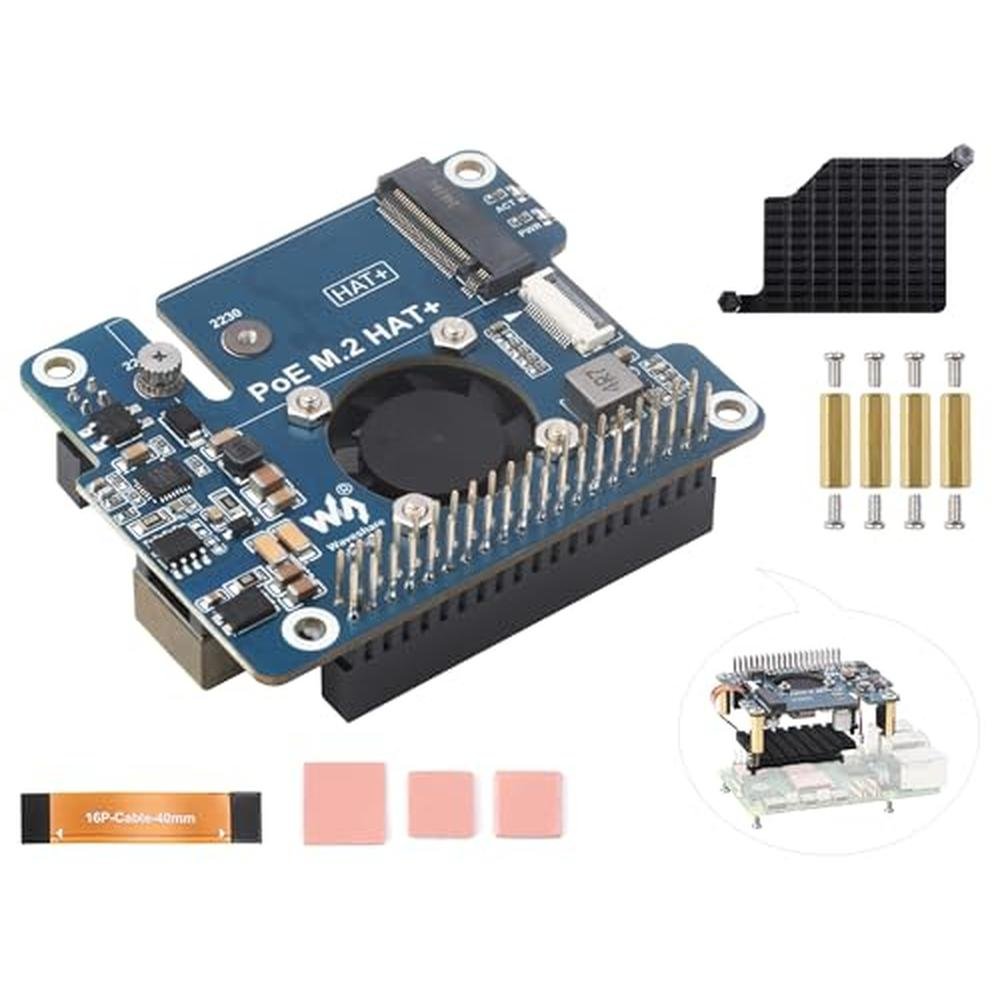

Built-In Media 16P-Cable-40mm x1, Metal heatsink x1, PoE M.2 HAT+ x1, Screws pack x1, Thermal tape (3PCS) x1
Mfr Part Number PCIe To M.2 With PoE HAT
