Product description

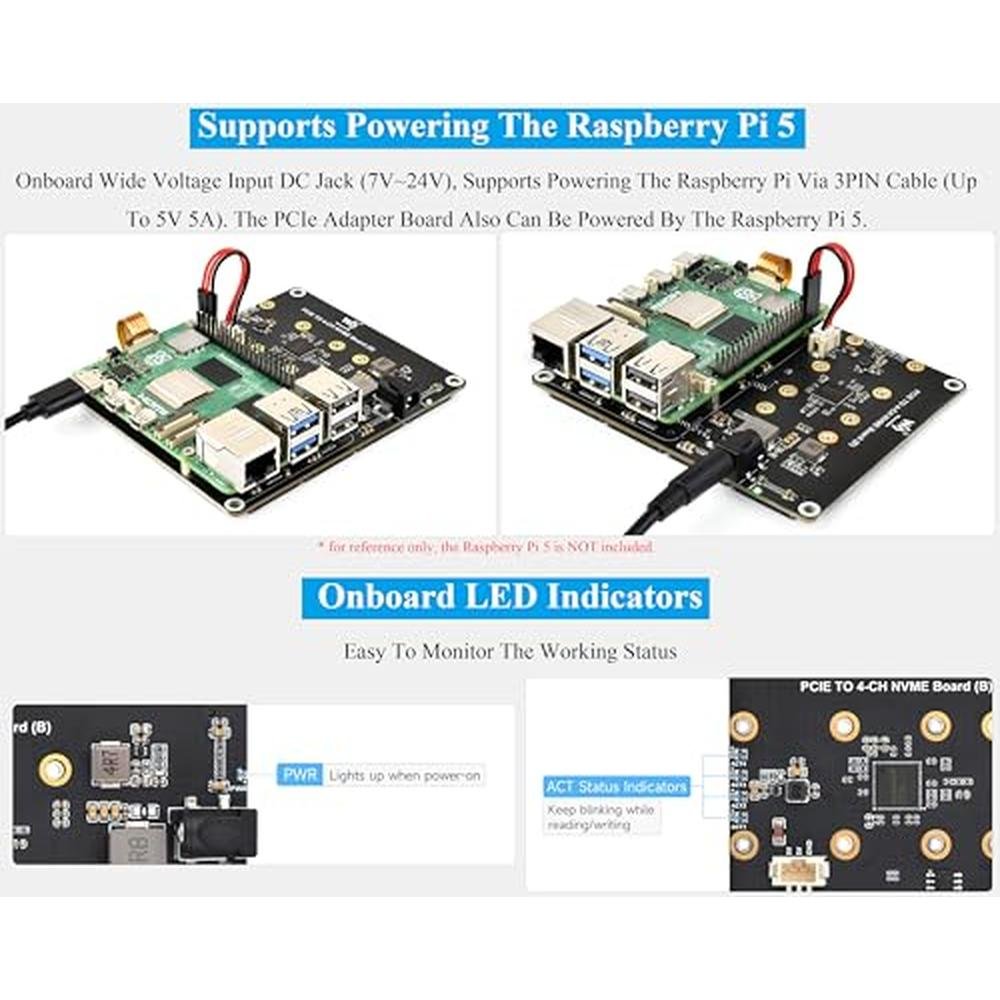

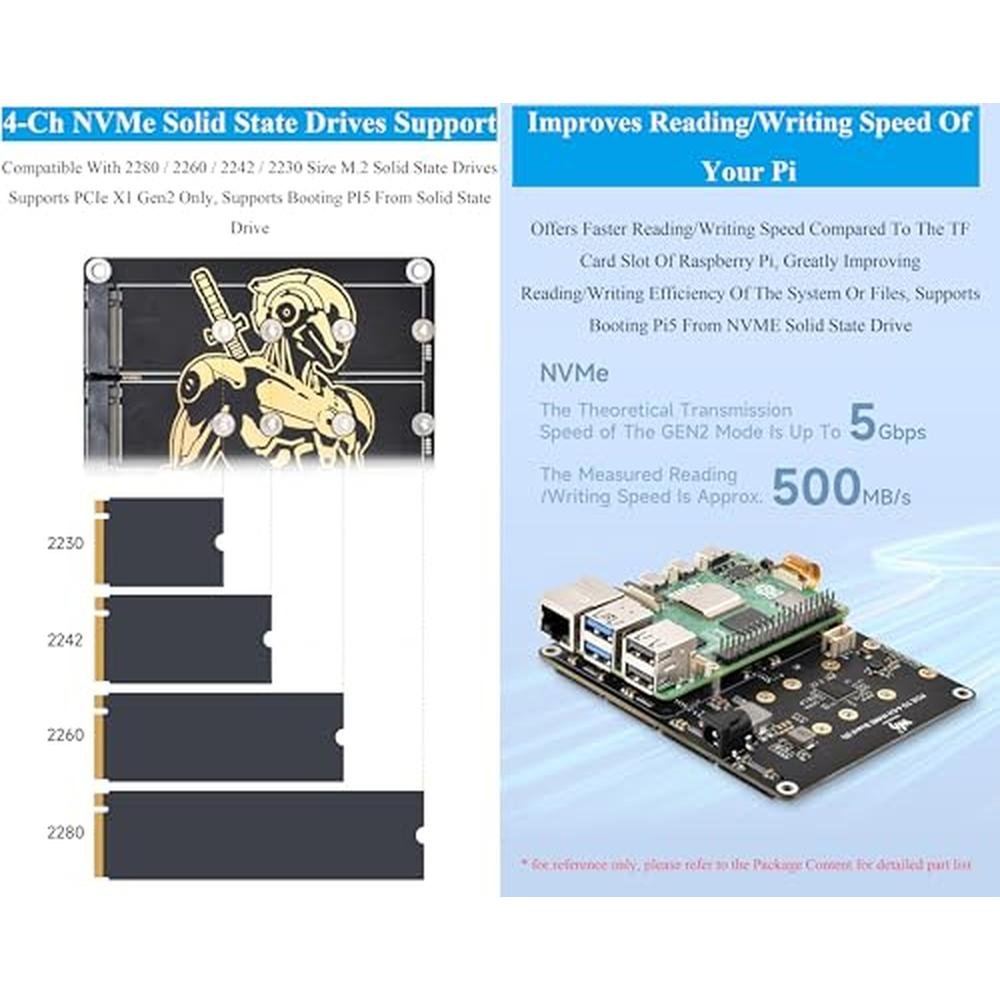

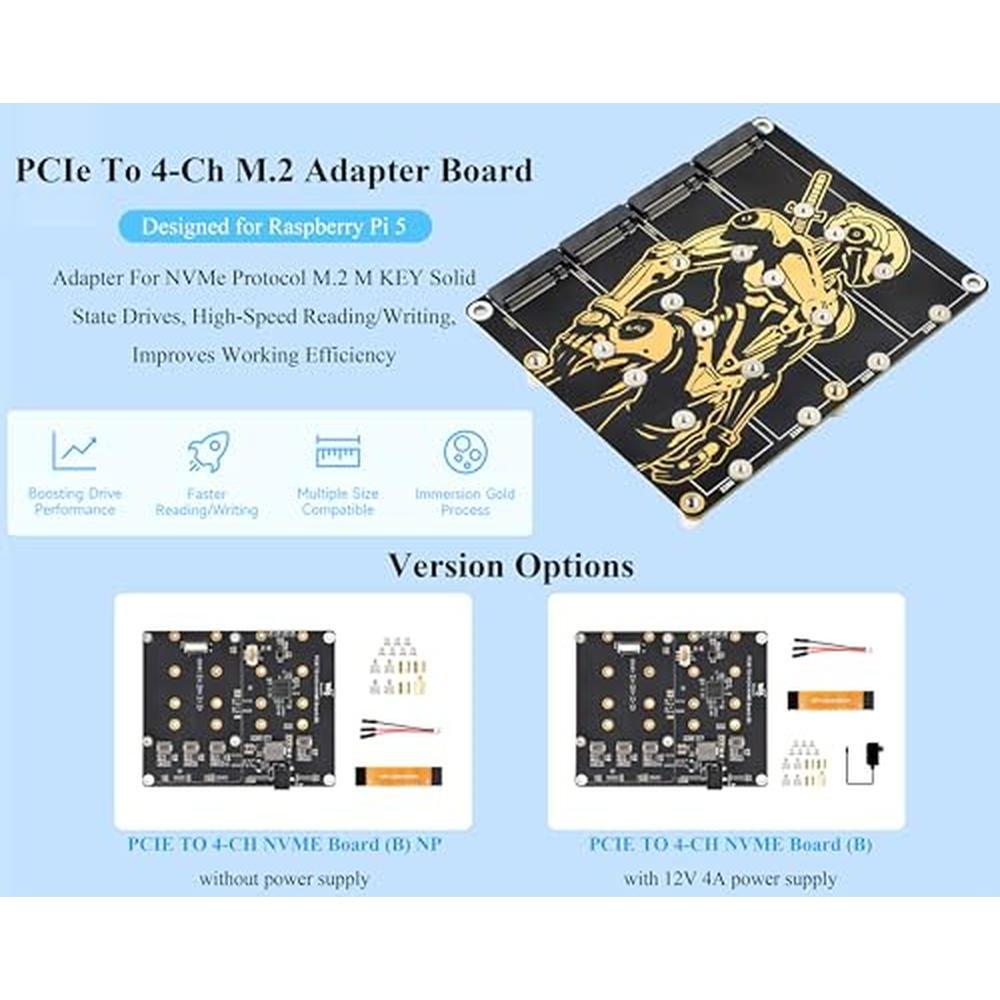

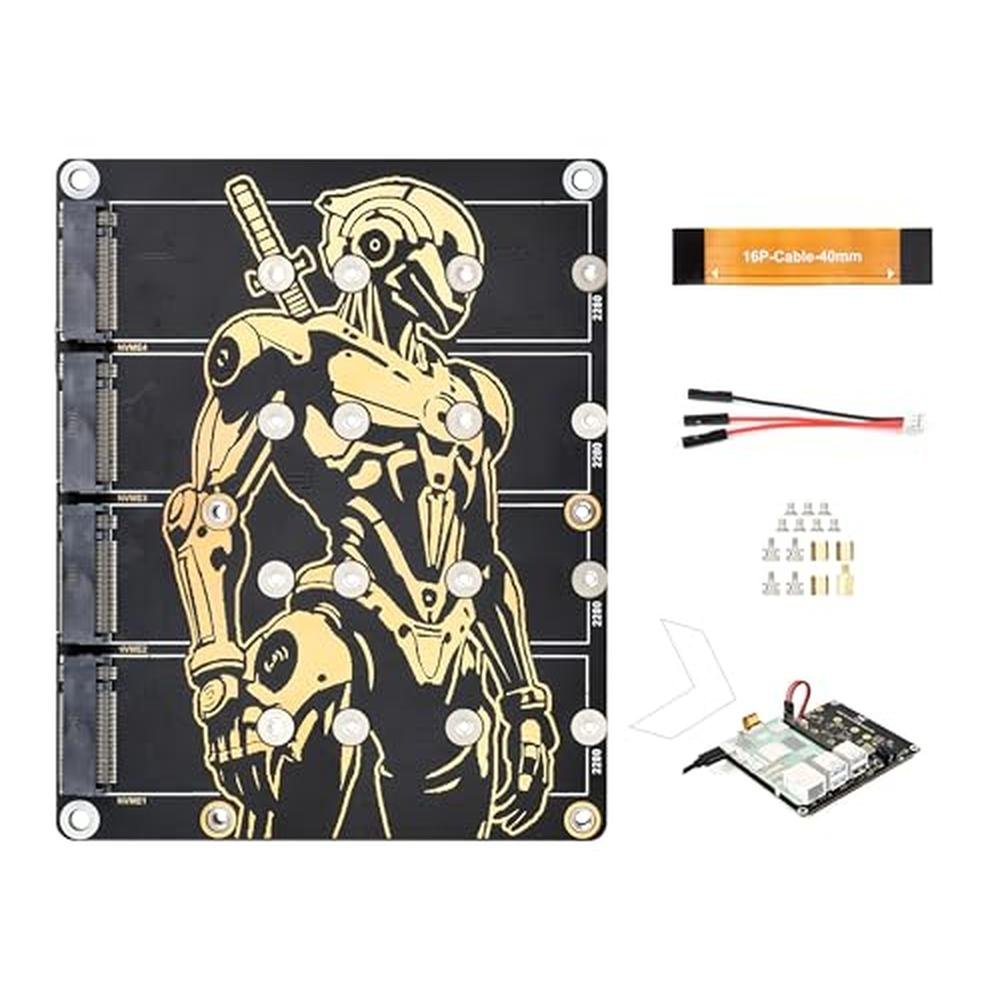

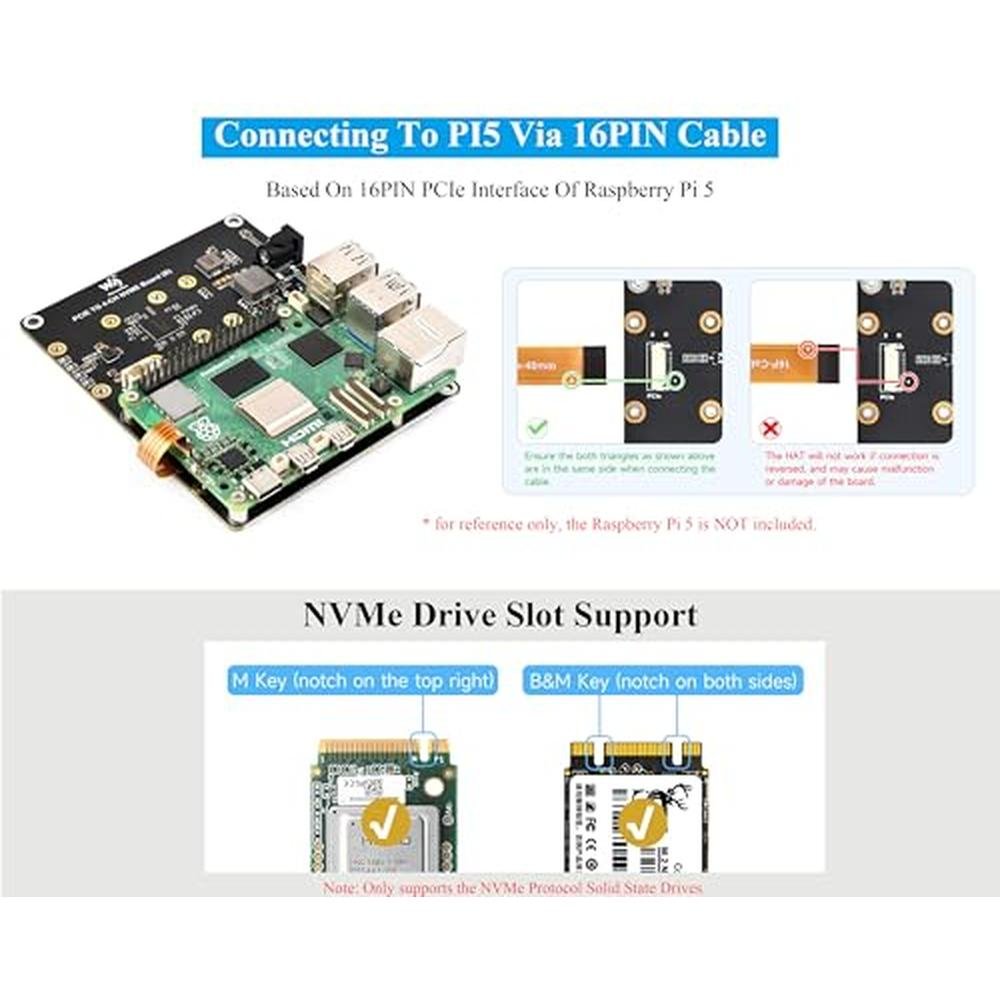

Features 1.PCIe To 4-Ch M.2 Adapter Board, Compatible with Raspberry Pi 5. For NVMe Protocol M.2 M KEY Solid State Drives, High-Speed Reading/Writing, Improves Working Efficiency 2. Supports 4-CH NVMe Solid State Drives. Compatible With 2280 / 2260 / 2242 / 2230 Size M.2 Solid State Drives. Supports PCIe x1 Gen2 only, Supports Booting PI5 From Solid State Drive 3. Supports powering the Pi 5. Onboard wide voltage input DC jack (7V~24V), supports powering the Pi via 3PIN cable (up to 5V 5A). The PCIe adapter board also can be powered by the Pi 5. 4. Improves reading/writing speed of your Pi. Offers faster reading/writing speed compared to the TF card slot of Pi, greatly improving reading/writing efficiency of the system or files. Supports booting Pi5 from NVME Solid State Drive 5. Connecting to PI5 via 16PIN Cable. Based on 16PIN PCIe Interface of Pi 5. Onboard LED Indicators. Easy to monitor the Working Status Comes with relevant resources and tutorials to help you get started quickly: bit.ly/4hfgCOQ Package Content PCIE TO 4-CH NVME Board (B) x1 Screws pack x1 PH2.0 3PIN cable x1 16P-Cable-40mm x1.
Technical specifications
| SKU | PIB0F18TFMS2 |
|---|---|
| Brand | UeeKKoo |
| Model Number | PCIE TO 4-CH NVME Board (B) NP |
| Number of Items | 1 |
| Number of Packs | 1 |
| Manufacturer | UeeKKoo |
| Unit Count | 1 Count |
| Built-In Media | 16P-Cable-40mm x1, PCIE TO 4-CH NVME Board (B) x1, PH2.0 3PIN cable x1, Screws pack x1 |
| Mfr Part Number | PCIE TO 4-CH NVME Board (B) NP |
