- About this Item
- • Supports IEEE 802.1Qav Audio-Video Bridging (AVB) for customers that require tightly controlled media stream synchronization, buffering, and reservation.
- • Supports IEEE 1588802.1AS for precision timestamping of packets. IEEE 1588 provides a mechanism for clock synchronization requirements of measurement and control systems.

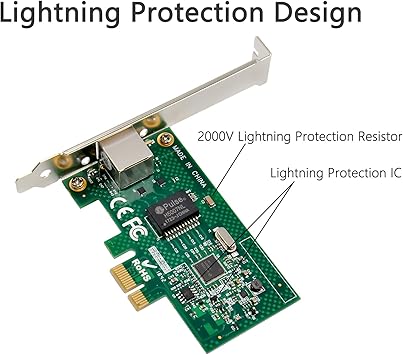

- • Lightning Protection DesignThis network card is designed with lightning protection to protect your computer from damage during lightning storms
- • OS SupportsWindows 8.11011Windows Server 20122012 R2201620192022 ,LinuxRHEL9.1 8.7 RHEL8.x (8.5 and previous) SLES15 SP4 SLES15 SP3 and previous SLES12 SP5 SLES12 SP4 and Previous Ubuntu 22.04 LTS Ubuntu 20.04 LTS Debian 11 13 12.3 12.2 and Previous
Specifications & Details
| SKU | PIB0C712QGC3 |
|---|---|
| Product Dimensions | 3.7 x 2.17 x 0.07 inches |
| Item Weight | 0.082 kgs |
| Item model number | ST729-I210AT |
| Manufacturer | C&N |
Product description

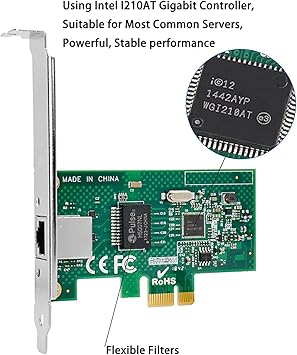

The PCIe Network card with Intel I210 provides a full-featured Gigabit Ethernet Media Access Control (MAC) and Physical-Layer (PHY) for Desktop, Server, and Embedded Applications. This controller is ideal for embedded applications such as industrial automation, in-vehicle infotainment, medical, print imaging, telecommunications infrastructure, and for military.
Features
PCI Express V2.1. 2.5 GT/s x1 Lane. Compatible with x1, x2,x4, x8, x16 standard and low-profile PCI Express slots.
IEEE 802.3 autonegotiation
1Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab PHY specifications compliant
Integrated PHY for 10/100/1000 Mb/s for multi-speed, full, and half-duplex
IEEE 802.3x and IEEE 802.3z compliant flow control support with software-controllable Rx thresholds and Tx pause frames
Automatic cross-over detection function (MDI/ MDI-X)
IEEE 1588 protocol and 802.1AS implementation
Audio-Video Bridging (AVB) Support (802.1Qav)
Controller is designed for low power consumption
IEEE 802.3az - Energy Efficient Ethernet (EEE)
Active State Power Management (ASPM)
LAN disable function
Full wake up support
Low Power Link Up - Link Speed Control
Power Management Protocol Offload (Proxying)
Latency Tolerance Reporting (LTR)
Supports Receive-side scaling (RSS)
Supports IPv 4, IPv 6 protocols
Supports Jumbo Frames up to 9.5K
Supports Checksum offloading
PXE network boot support
Intel Boot Agent software--Linux boot via PXE or BOOTP, Windows Deployment Services, or UEFI
Vital Product Data (VPD) Support
Supports OS:
Windows 8.1/10/11?Windows Server 2012/2012 R2/2016/2019/2022 ,Linux*:RHEL9.1 & 8.7? RHEL8.x (8.5 and previous)? SLES15 SP4? SLES15 SP3 and previous ?SLES12 SP5 ?SLES12 SP4 and Previous ?Ubuntu 22.04 LTS? Ubuntu 20.04 LTS ?Debian 11 13 / 12.3 12.2 and Previous
Packing list
1 x PCIe Gagibit Network card Intel I210AT
1 x User’s Manual
1 x CD

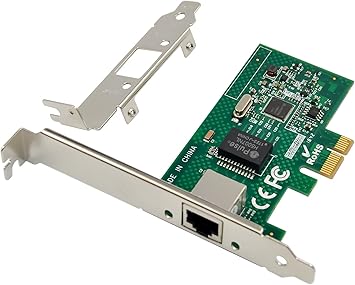

1 x Low profile bracket
Mutil- Compatibility
Support Server 2012/ WIN 7/WIN8/WIN8.1/WIN10/Linux and many other operating systems in the market.
