- About this Item
- • Integrated 101001000BASE-T Transceiver,Includes Half Height Bracket
- • PCI-E v1.0a compliant,
- • Automatic MDI Crossover Function
- • Automatic Detection and Correction of Pair Swaps, Pair Skew and Pair Polarity
Specifications & Details
| SKU | PIB076HHS1WF |
|---|---|
| Product Dimensions | 5 x 0.8 x 5 inches |
| Item Weight | 0.100 kgs |
| Item model number | 8541588194 |
| Is Discontinued By Manufacturer | No |
| Manufacturer | ULANSON |
Product description

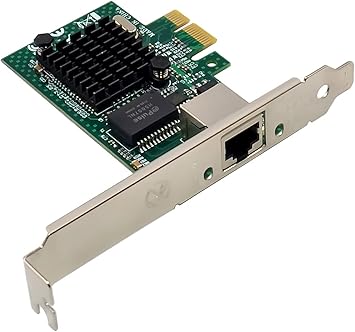

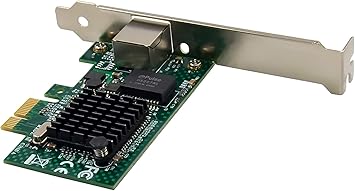

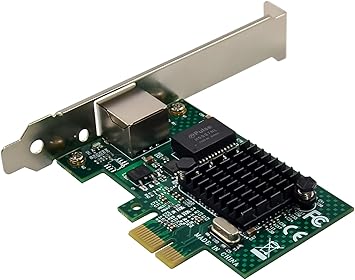

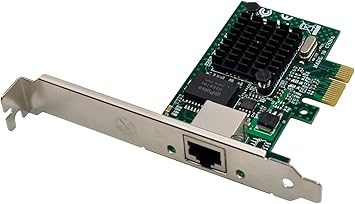

Broadcom NetXtreme 10/100/1000Mbps Gigabit Desktop PCI-E Network Card - BCM5751 NIC
Description
The PCIe BCM5751 NetXtreme Gigabit network card is a fully integrated 10/100/1000BASE-T Gigabit Ethernet media access control and physical layer transceiver solution for high-performance network applications. The BCM5751 combines a triple-speed,IEEE802.3 compliant media access control ,PCI Express bus interface, on-chip buffer memory, and integrated physical layer transceiver in a single device, it is provides a complete single-chip Gigabit Ethernet NIC or LOM solution.
Specification?
?High-performing, auto-negotiating 10/100/1000 connection
?Easy, cost-effective migration to Gigabit Ethernet over existing CAT-5 cabling
?Connectors: RJ-45
?IEEE Standard/Network Topology: 10BASE-T, 100BASE-TX, 1000BASE-T
?Bus Speed: 32/33, 32/66
?Data Rate(s) Supported per Port: 10,100,1000 Mbps
?IEEE Support: 802.2 and 802.3ab?Ethernet Controllers: BCM5751(PEG1)
?Port Density: 1 Port
?Standard: IEEE Std 802.3 IEEE Std 802.2 IEEE Std 802.3x IEEE 802.1p IEEE Std 802.3z
?PCI-Express 1.1 form factor- 1 x 2.5Gbps line
?Integrated 10/100/1000 BASE-T transceiver
?10/100/1000base-T triple-speed MAC
?High-speed RISC core with 24-KB cache?SMBus 2.0 controller
?Wake-on-LAN power switching circuit
?Half duplex at 10/100Mbp operation and full duplex operation at all supported speeds
?TCP, IP, and UDP checksum
?Microsoft large Send Offload
?Large burst read?Interrupt coalescing
?Industry-compliant alerting features
?Alert Standard Format (ASF)2.0 support
?Secure power-on and power-off
?Fast hardware authentication (SHA-1, HMAC, MD5)
?Ture hardware random number generation
?Integrated TPM functionality
?TCP/IP stack offloads significantly reduce utilization of CPU
?TCP/IP stack offloads significantly increase throughput to enable faster downloads of large files
?Drivers for NT/2000/XP/Win7 / Win8 / Win10 / Vista / Sever2008 / Sever 2012 / Linux2.2 and above
Package content
?1 x PCIe BCM5751 NetXtreme Gigabit Network card
?1 x User’s Manual
?1 x CD

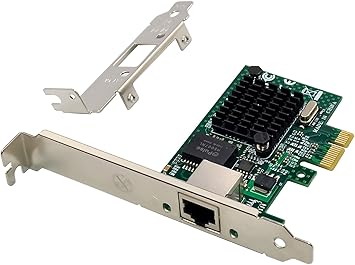

?1 x Low profile bracket
