Specifications & Details
| SKU | PIB09M9WD1YZ |
|---|---|
| Product Dimensions | 8.39 x 5.51 x 0.79 inches |
| Item Weight | 0.139 kgs |
| Item model number | X540-T1-Euqvos |
| Manufacturer | Euqvos |
Product description
Data Link Protocol 10 Gigabit LAN
Data Rate / Port 10 GbE/1 GbE/100 Mb/s
Network Transport Protocol TCP/IP, UDP/IP, IPSec, iSCSI
Compliant Standards IEEE 802.1p, IEEE 802.1Q, IEEE 802.2, IEEE 802.3ac, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ad
*Plug and Play, Easy to use

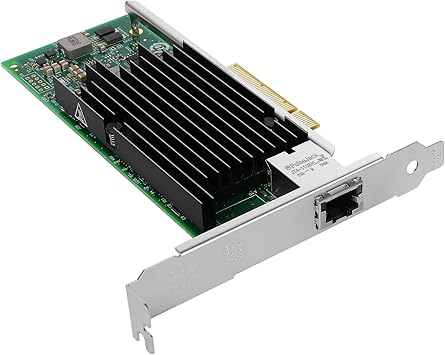

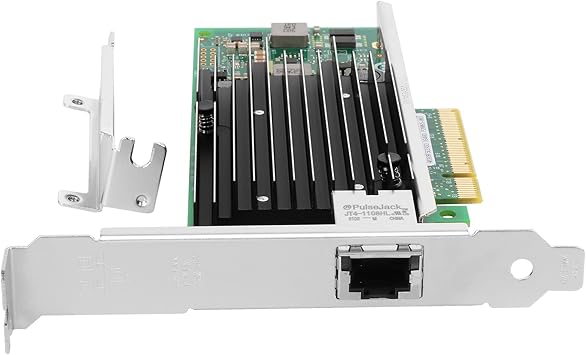

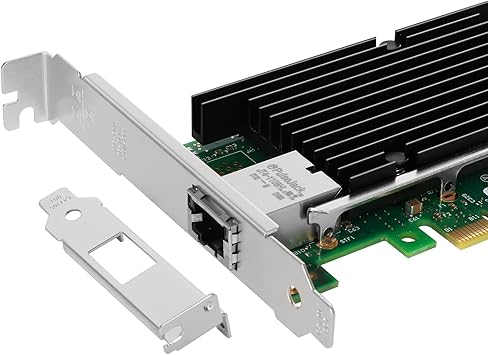

Single RJ45 Port, PCI-E hot swapping is supported, plug and play, you can change the module at any time.

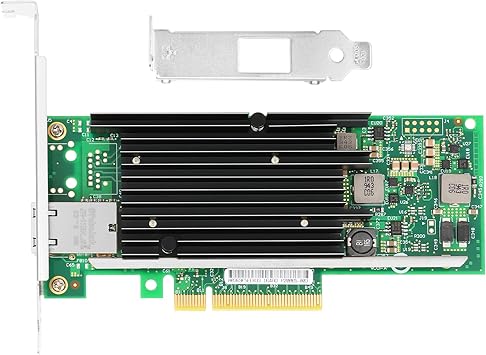

*Intel X540AT2 Controller Chip, More Stable
Euqvos X540-T1 uses the original Intel X540AT2 controller chip, which have stable performance. Suitable for most common servers. supports I/O virtualization can effectively prevent packet loss and make the server high-speed and more stable.

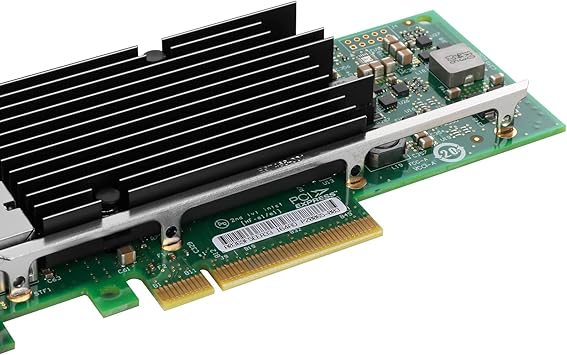

*PCI-E x8 Slot, Thicken gold-plated technology
Thicken gold-plated technology, it can avoid Data Distortion, make the transmission more stable.
*10Gigabit Network
100MbE/1GbE/10GbE RJ45 ports, connected with CAT6A up to 100m (CAT6 up to 55 m) to meet your demands.
*Wide Compability
Supports Multiple Operating Systems:
Windows Server 2008/R2, 2012, 2012/R2, 2016, 2019; Windows7/ 8/10;Stable Kernel version 3.x/2.6x/4.x or later;FreeBSD* 9.X/10.X/11.X/12.X;Linux* RHEL 6.X, 7.X/8.0, SLES 11.X, 12.X, 15.X;Ubuntu* 14.x LTS, 16.x LTS, 18.x LTS; VMware ESX, etc.
*Good heat dissipation
Alloy heat sink, cooling more effectively, which can ensure that the adapter card runs stably and smoothly for a long time.
E-X540-T1-10G-1RJ45 E-X540-T2-10G-2RJ45 E-X550-T1-10G-1RJ45 E-X550-T2-10G-2RJ45 E-X520-DA1-10G-1S E-X520-DA2-10G-2S
Buying Options
Buying Options
Buying Options
Buying Options
Buying Options
Buying Options
Customer Reviews
356
356
356
356
356
356
Contoller Intel X540 Intel X540 Intel X550 Intel X550 82599EN 82599ES
Port 1xRJ45 2xRJ45 1xRJ45 2xRJ45 1xSFP+ 2xSFP+
Data Rate of Port 10Gb/s 10Gb/s 10Gb/s 10Gb/s 10Gb/s 10Gb/s
System Interface Type PCIe v2.1 (5.0 GT/s) PCIe v2.1 (5.0 GT/s) PCIe v3.0 (8.0 GT/s) PCIe v3.0 (8.0 GT/s) PCIe v2.0 (5.0 GT/s) PCIe v2.0 (5.0 GT/s)
Speed & Slot Width 5.0 GT/s, x8 Lane 5.0 GT/s, x8 Lane 8.0 GT/s, x4 Lane 8.0 GT/s, x4 Lane 5.0 GT/s, x8 Lane 5.0 GT/s, x8 Lane
SR-IOV Yes Yes Yes Yes Yes Yes
Operating Systems Windows 7/8/10; Windows Server 2008/2012/2016/2019; Linux RHEL 6/7/8,SLES 11/12/15; Ubuntu 14/16/18/19/20; Debain 9/10/11; FreeBSD 10/11/12; Vmware Esxi 6/7 Windows 7/8/10; Windows Server 2008/2012/2016/2019; Linux RHEL 6/7/8,SLES 11/12/15; Ubuntu 14/16/18/19/20; Debain 9/10/11; FreeBSD 10/11/12; Vmware Esxi 6/7 Windows 7/8/10; Windows Server 2008/2012/2016/2019; Linux RHEL 6/7/8,SLES 11/12/15;Ubuntu 16/18/19/20; Debain 9/10/11; FreeBSD 10/11/12; Vmware Esxi 6/7 Windows 7/8/10; Windows Server 2008/2012/2016/2019; Linux RHEL 6/7/8,SLES 11/12/15;Ubuntu 16/18/19/20; Debain 9/10/11; FreeBSD 10/11/12; Vmware Esxi 6/7 Windows 7/8/10;Windows Server 2003/2008/2012/2016/2019;Stable Kernel version 3.x,2.6x;SUSE Linux Enterprise Server 10/11;Red Het Enterprise Linux*5.6;Centos/RHEL 6/7/8;Ubuntu 14/16/18/19/20; Debain 9/10/11;FreeBSD 10/11/12; Vmware Esxi 6/7;SLSE 11/12 Windows 7/8/10;Windows Server 2003/2008/2012/2016/2019;Stable Kernel version 3.x,2.6x;SUSE Linux Enterprise Server 10/11;Red Het Enterprise Linux*5.6;Centos/RHEL 6/7/8;Ubuntu 14/16/18/19/20; Debain 9/10/11;FreeBSD 10/11/12; Vmware Esxi 6/7;SLSE 11/12
Unsupported Syestems Mac OS Mac OS Mac OS Mac OS QNAP QSA-308-Series Switch; Mac OS QNAP QSA-308-Series Switch; Mac OS
Operating Temperature 0 ?~ 55 ? (32 °F to 131 °F) 0 ?~ 55 ? (32 °F to 131 °F) 0 ?~ 55 ? (32 °F to 131 °F) 0 ?~ 55 ? (32 °F to 131 °F) 0 ?~ 55 ? (32 °F to 131 °F) 0 ?~ 55 ? (32 °F to 131 °F)
Storage Temperature `-20 ? ~ 65 ? (-4°F to 149 °F) `-20 ? ~ 65 ? (-4°F to 149 °F) `-20 ? ~ 65 ? (-4°F to 149 °F) `-20 ? ~ 65 ? (-4°F to 149 °F) `-20 ? ~ 65 ? (-4°F to 149 °F) `-20 ? ~ 65 ? (-4°F to 149 °F)
