Specifications & Details
| SKU | PIB0BNQX8H38 |
|---|---|
| Brand | LinksTek |
| Series | PCIE-I225 |
| Item model number | PCIE-I225 |
| Operating System | Windows 11, 10 64bit and Windows Server 2022, 2019 |
| Item Weight | 0.045 kgs |
| Product Dimensions | 4.72 x 2.7 x 0.7 inches |
| Item Dimensions LxWxH | 4.72 x 2.7 x 0.7 inches |
| Color | Matte Black |
| Manufacturer | LinksTek Co,Ltd |
Product description
PCI Express X1 Interface to 2.5Gbps RJ45 Network Adapter, Intel I225 2.5GbE Ethernet Controller PCIE NIC Card
The LinksTek PCIE-I225 is a PCI Express 3.1 X1 interface to 2.5GbE cooper RJ45 port network adapter. It is based on Intel 2.5GbE ethernet controller I225V, will supports MDI (copper) standard 2500BASE-T,1000BASE-T, 100BASE-TX, 10BASE-TE connections (IEEE 802.3,802.3u, 802.3ab). It is mainly designed for home use and office use Windows 10, 11 64bit and Windows Server 2019, 2022 Desktop PCs for large online gaming, HD video streaming, online phone calls, internet surfing and live broadcast.
Product Features:
Supports wake up online.
Supports boot up via the EFI (64 bit).
Supports IEEE 1588 protocol and 802.1AS.
Support for packets up to 9.5 KB (Jumbo Frames).
Supports TCP/UDP, IPv4 checksum offloads (Rx/ Tx).
Supports Transmit Segmentation Offloading (TSO) (IPv4, IPv6).
Supports MDI (Copper) standard IEEE 802.3 ethernet interface up to 2.5Gb/s.
Technical Specifications:

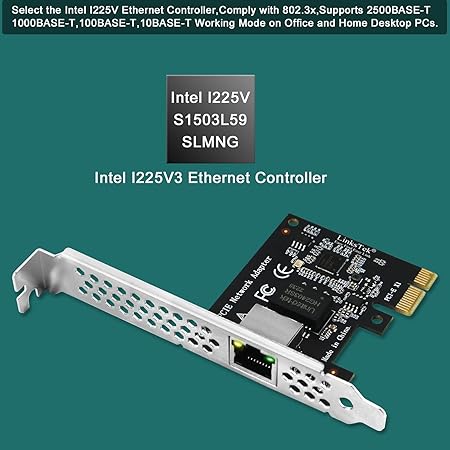

Intel I225V Ethernet Controller
1. It is based on Intel I225V ethernet controller, will compatible with Intel, AMD and ARM hardware platform Desktop PCs.

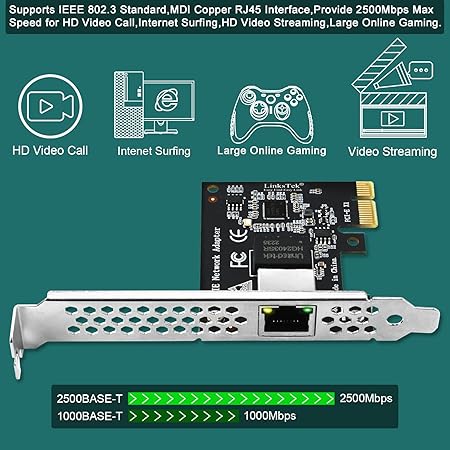

2500Mbps Max Connection Speed
1. Supports MDI copper standard 2500MBASE-T, 1000MBASE-T, 100MBASE-T, 10MBASE-T.
2. Compatible with IEEE 802.3,802.3u, 802.3ab.

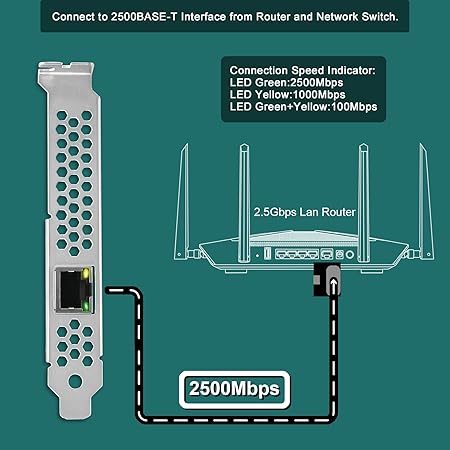

MDI Copper Standard RJ45 Interface
1. The MDI copper 2500Mbps RJ45 Ports, supports IPV4 and IPV6 standard.
2. The RJ45 NIC card ports supports CAT5, CAT6, CAT6A standard RJ45 cables or switchs.

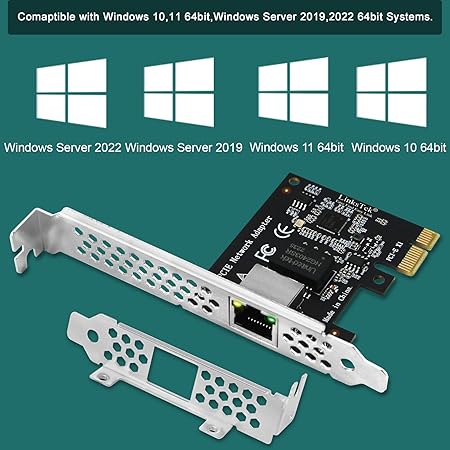

Windows 11, 10 64bit
1. Plug and play on Windows 11 64 bit system.
2. Need to install driver on Windows 10 64bit and Windows Server 2022, 2019 systems.
3. For Windows Server 2022, 2019 please vist our site download driver and follow the installation steps.
PCI Express 3.1 X1 Interface
1. It is based on PCI Express standard V3.1, will compatible with PCIE standard 1.x, 2.x, 3.x and 4.x.
2. PCIE X1 interface design, will works on PCIE X1, X2, X4, X8, X16 slot.
3. Users must make sure Desktop PCs have one empty active and open PCIE slot before purchase.

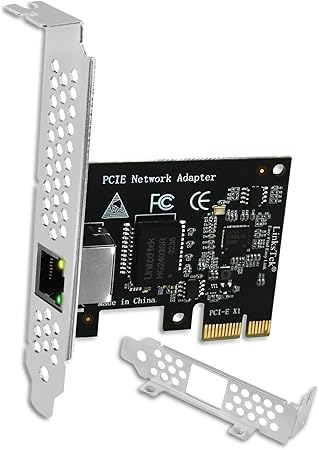

Full Heigh PCs and Slim PCs
1. It will comes with full height bracket for standard size PCs/full height PCs. And the low profile bracket for slim PCs.
Product Description:
The LinksTek PCIE-I225 is a PCI Express 3.1 X1 interface to 2.5GbE cooper RJ45 port network adapter. It is based on Intel 2.5GbE ethernet controller I225V, will supports MDI (copper) standard 2500BASE-T,1000BASE-T, 100BASE-TX, 10BASE-TE connections (IEEE 802.3,802.3u, 802.3ab). It is mainly designed for home use and office use Windows 10, 11 64bit and Windows Server 2019, 2022 Desktop PCs for large online gaming, HD video streaming, online phone calls, internet surfing and live broadcast.
Technical Specifications:
Supports wake up online.
Supports boot up via the EFI (64 bit).
Supports IEEE 1588 protocol and 802.1AS.
Support for packets up to 9.5 KB (Jumbo Frames).
Supports TCP/UDP, IPv4 checksum offloads (Rx/ Tx).
Supports Transmit Segmentation Offloading (TSO) (IPv4, IPv6).
Supports MDI (Copper) standard IEEE 802.3 ethernet interface up to 2.5Gb/s.
Compatible System:
Windows 10 64bit, Windows 11 64bit and Windows Server 2019, 2022 64bit.
Package List:
1X PCIE-I225 1X User Manual 1X Mini Driver CD 1X Low Profile Bracket 1X Mount Screw
