Product description

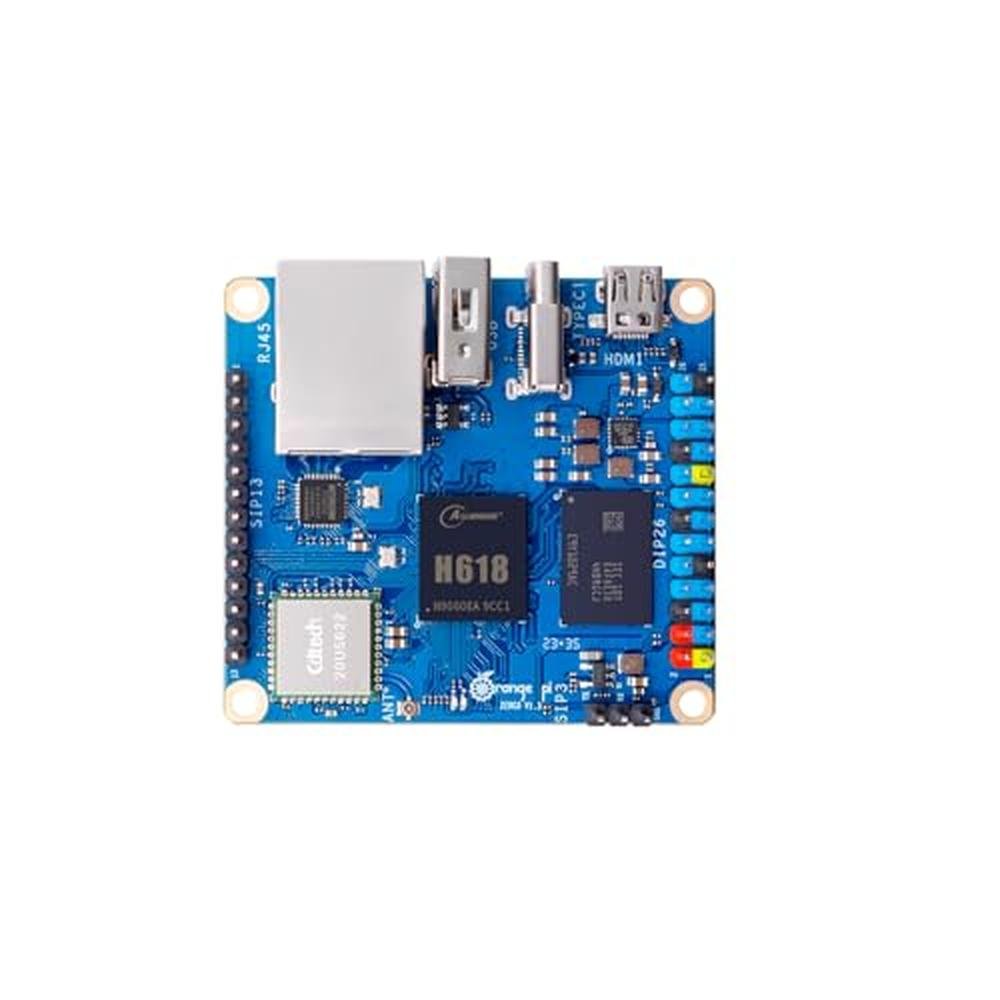

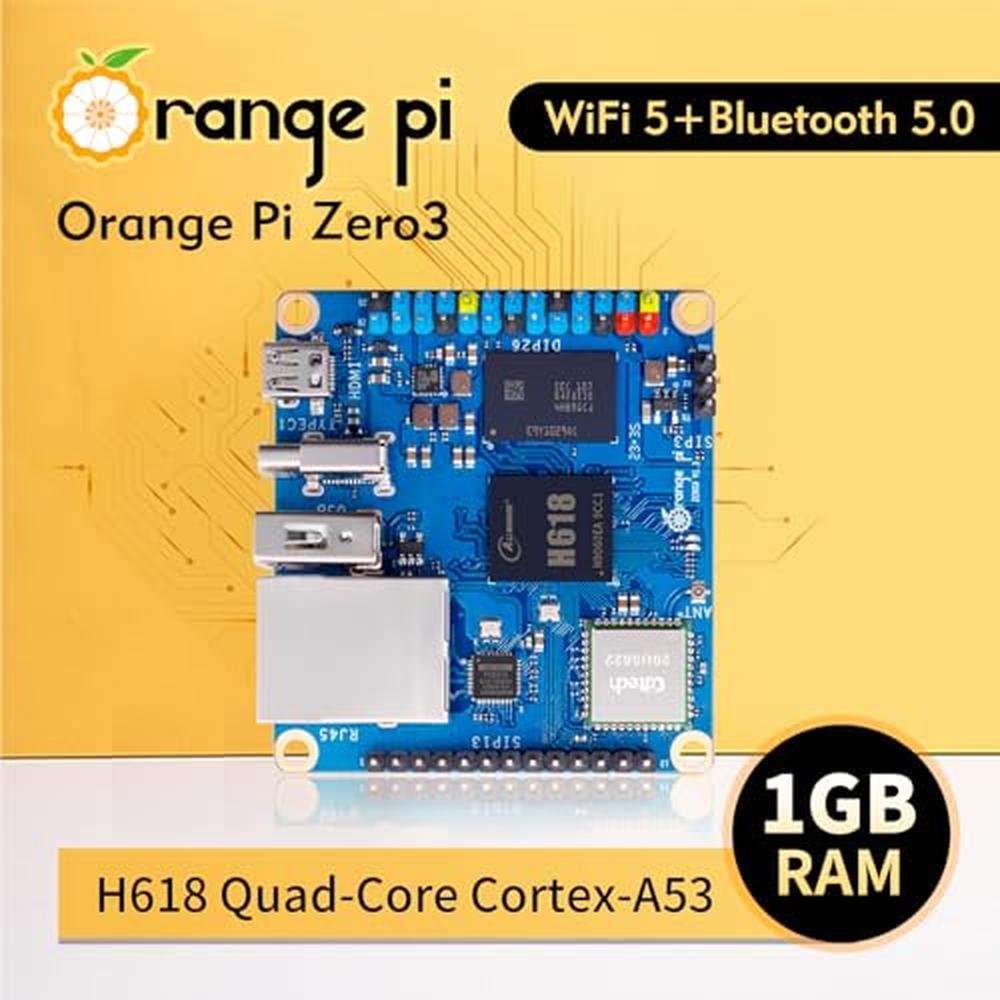

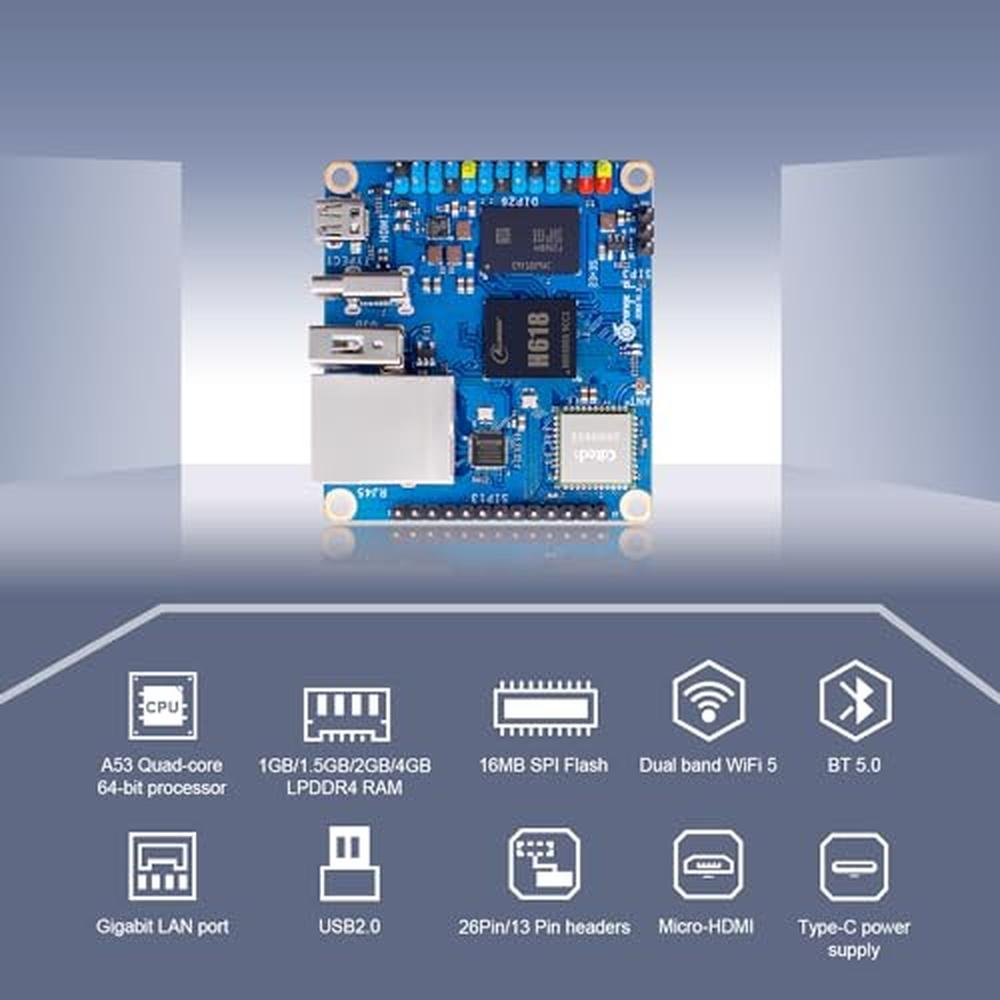

Hardware specificationCPU: Allwinner H618 Quad-core Cortex-A53 processor 1.5GHzGPU: Mali G31 MP2 Supports OpenGL ES 1.0/2.0/3.2, OpenCL 2.0, Vulkan 1.1Memory: 1GB/1.5GB/2GB/4GB LPDDR4On-board storage: 16MB SPI FlashPower management: AXP313AOn-board WiFi + Bluetooth: Supports WiFi5 and Bluetooth 5.0Network: 10M/100M/1000M Ethernet interfaceAudio input/output: 13Pin expansion port supports 2-ch output 1-ch inputVideo output: Micro HDMI up to 4K@60fps TV-Out:13Pin supports 1-ch TV CVBS outputUART: 3Pin Debug UARTUSB: USB 2.0 * 3(two of which lead from the expansion board)SD card interface: Micro SD card interfaceExpansion interface: 26Pin GPIO interface 13Pin GPIO interfacePower input: 5V3A,Type-c connectorOS Support: Android 12 TV,Debian11,Debian12,Ubuntu22.04,Ubuntu20.04PCB: 50mm*55mm.
Technical specifications
| SKU | PIB0GWZZP5B2 |
|---|---|
| RAM Memory Installed | 1 GB |
| Memory Storage Capacity | 16 MB |
| Processor Speed | 1.5 GHz |
| Connectivity Technology | Bluetooth, Ethernet, HDMI, USB, Wi-Fi |
| Operating System | Android 12, Debian 11/12, Ubuntu 22.04/20.04 |
| Processor Brand | Allwinner |
| Compatible Devices | Earphones, TVs, Infrared devices, and other devices compatible with 13Pin and 26Pin GPIO interfaces |
| RAM Memory Technology | LPDDR4 |
| Processor Count | 4 |
| Total Usb Ports | 3 |
