- About this Item
- • AUTOMATICALLY adapts to 10 Mbits, 100 Mbits (Fast Ethernet) or 1000 Mbits (Gigabit) Speed And Extends in over Multi Mode Fiber to up to 550 m 0.34 miles - (Transmission Wavelength - 850 nm, ST connector)

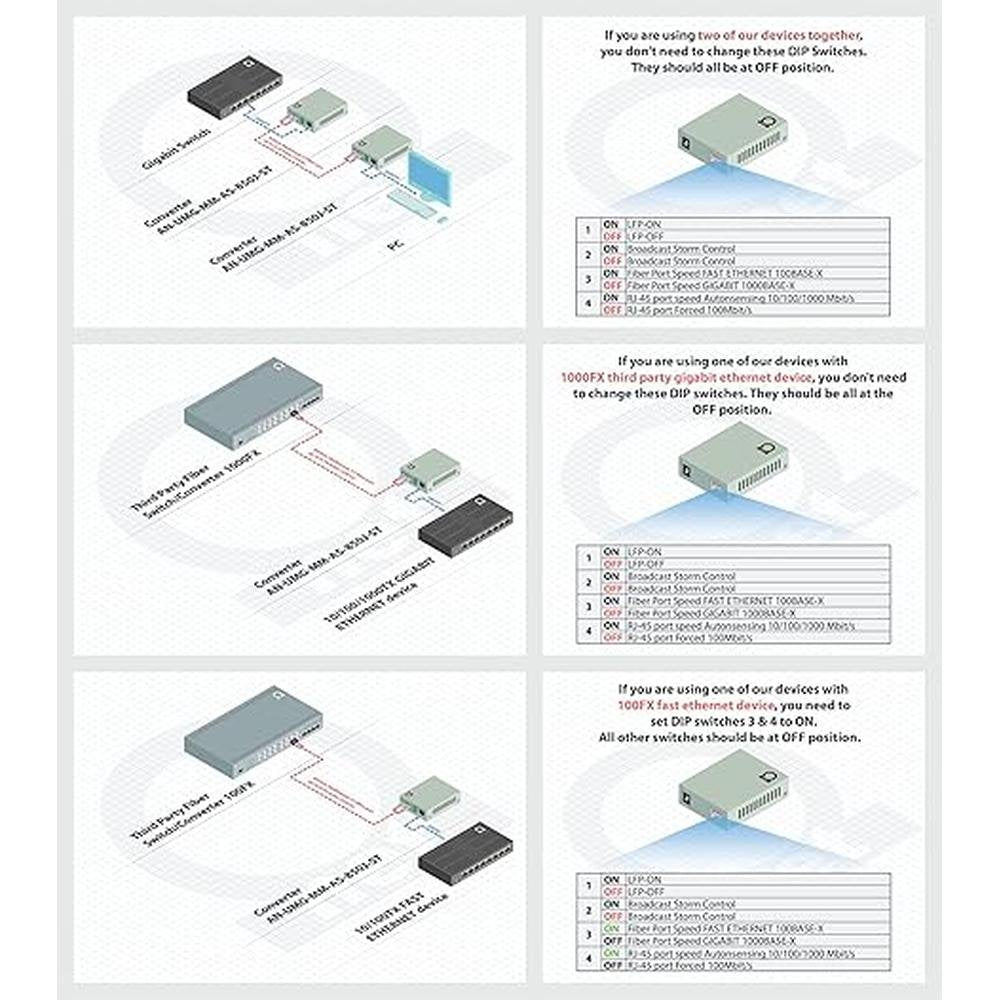

- • Supports Dual Speed Fiber Mode (configurable by dip switch) Select 1000Base-SX or 100Base-SX interconnecting with existing fiber nodes is easy with this media converter. Wavelength 850nm, Use it with Multimode Fiber Only.
- • SUPPORTS Jumbo Frame LLF feature - for increased end-to-end TCP performance

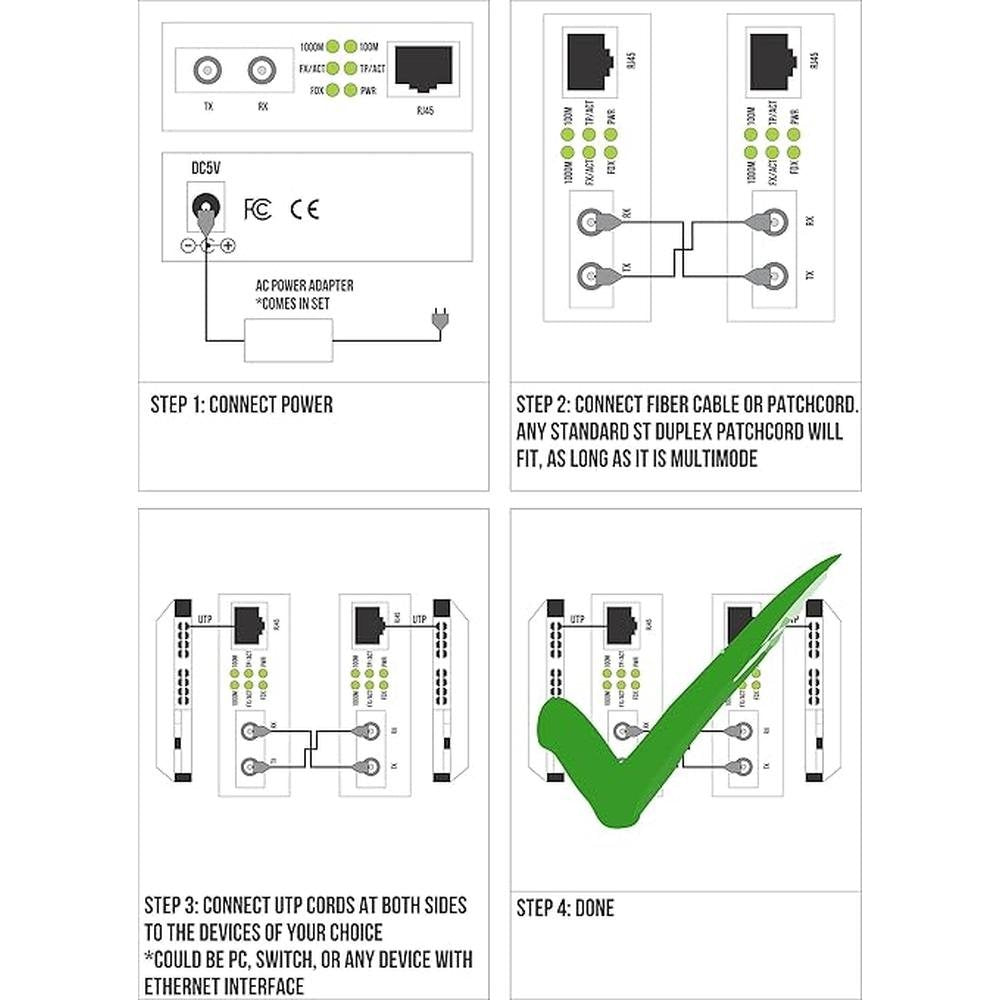

- • PLUG PLAY - Simply plug in an ST optical port and UTP RJ-45 port, and it will work immediately
Specifications & Details
| SKU | PIB07DWXXTT9 |
|---|---|
| Product Dimensions | 3.7 x 2.76 x 1.04 inches |
| Item Weight | 0.400 kgs |
| Manufacturer | AD-net Technology., CO LTD |
| Item model number | AN-UMG-MM-AS-850J-ST |
| Is Discontinued By Manufacturer | No |
Product description
pbExtend your Gigabit or Fast Ethernet Network Over Multi Mode Fiber Up to 550 m - 0.34 miles - (using 850 nm Wavelength ST connector fiber optical module is already pre-built on board) With Easebp pb AN-UMG-MM-AS-850J-ST Will Automatically Detect 10 Mbits or 100 Mbits Fast Ethernet or 1000 Mbits Gigabit port - You just need plug in the cables and it will work right away bp p Powering it up? Easy, it will come with AC power adapter in set, just plug itp p All These Important Features Are bAll Supportedbp ul liCompliant with IEEE 1000Base-T and 1000Base-SXli liOne 101001000Base-T RJ-45 port autosensing featuredli liOne 1000Base-SX Multi Mode Dual Fiber type Port with ST connector - up to 550 m (0.34 miles) distanceli liStatus LED indicators for Power, LinkActivity, Full-Duplex, and Speedli liStandards IEEE802.3zab 10010001000Base-T 1000Base-SXli liPower supply 100 to 240VAC 50 to 60Hzli liDimensions 70.5mm - 2.77in - (L) X 94mm 3.7in (W) X 26.5mm 1.04in (H)li liEnvironment Relative humidity 5 to 90li liOperating temperature 0 to 70 degree celsius li liCE, FCC, ROHS, LVD certified li liSupports Jumbo Ethernet frames up to 9000 bytes (if needed, configurable by dip switches) li liSupports LLF feature - Link Loss Feature - (if needed, configurable by dip switches) li p Media converter will extend Your LAN network with any standard Ethernet interface to distances with 550 nm (0.34 miles) or less - you no need to use attenuator also for significantly less distances than 550 nm (0.34 miles) as well. p p Setup of these units are really easy as the 3 steps shown in picture gallery, and all default settings will work for all of your cases, but for sophisticated users we had created some more customized settings available via dip switches on units back panel.p p Its always bgoodb to have versatile and adaptive unit to all Your cases p
