Product description

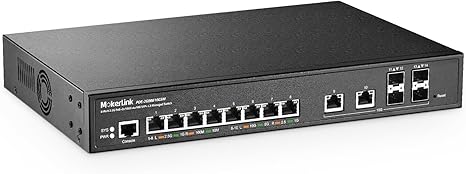

The POE-2G08610GSM is a layer3 managed PoE switch with 8x2.5GbE PoE+ and 6x10GbE port. Each PoE+ port can supply up to 30W power to PDs with up to total 136W power budget. With Layer3 features such as QoS, 802.1Q VLAN, LACP, IGMP Snooping, It provides a cost-effective and reliable solution.

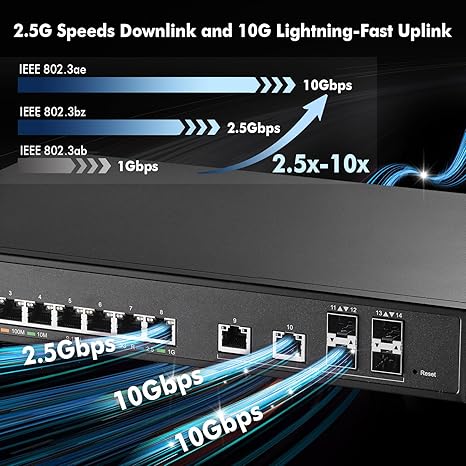

8x 2.5G Ports for WiFi 7/6 or NAS
8× 2.5 Gbps ports smash the 2.5G barrier and unlock the full potential of WiFi 7/6 APs and NAS server. No need to upgrade cabling infrastructure Doubles network bandwidth by leveraging existing CAT-5E cabling infrastructure.
6x10GE Uplink Slots for Servers or Core Switch
2× 10GE RJ45 ports and 4x 10G open SFP+ slots enable high-bandwidth, long-distance connectivity and non-blocking switching capacity. Adaptive 1G, 10G sfp modules that can connect to core servers and switches.

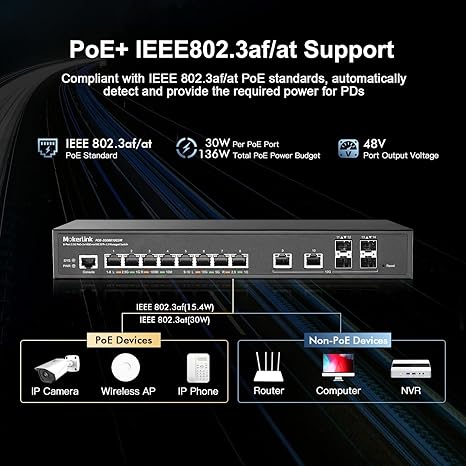

PoE+ Solution with PoE Auto-detection
The switch auto detects powered devices (PD) and power consumption levels, up to 30W per port. Connected to any IEEE 802.3af/at end-nodes such as speed dome IP cameras, APs, also support non-PoE devices such as NAS server, PCs.
Mounting flexibility
Flexible deployment options for desktop or rack-mount in your office and home, meet the network environment requirement.
Power Saving
It supports the IEEE 802.3az Energy-Efficient Ethernet standard. Switches automatically adjust power consumption according to the link status and cable length
Power and Port Protection
With a dedicated and intelligent microchip, power backfeed and lighting protection, It can avoid damaging the ports and power.
Smart Web Management 802.1Q VLAN Link Aggregation(LACP) QoS(Quality of Service) Loop Detection

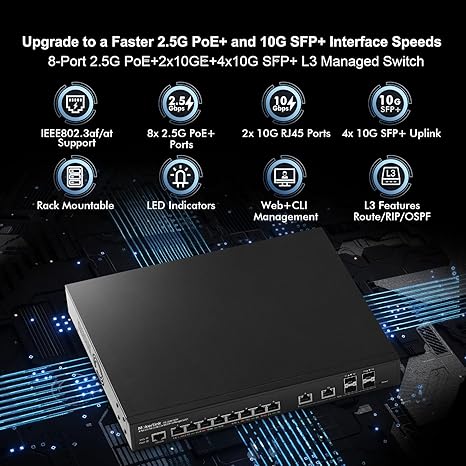

Technical Parameter
Ports 4*10G Base-X+2*1000/2500/5000/10000Base?T+8*10/100/1000/2500 Base?T
Switching Capacity / Backplane 160G
Forwarding Rates 119.04Mpps
MAC Address Table 32K
Jumbo Frames Support
PoE Standard Port 1-8 support IEEE 802.3at (PoE+), IEEE 802.3af (PoE), Up to 30W per Port
Pin Assignment Alternative A (Pin 1,2/3,6)
LED Indicators PWR?SYS?Link/ACT LED
Power Input AC 100-240V 50/60Hz, Total Power consumption ?150W, Mainboardpower ?28W
Mounting Desktop / Rack-mount, Metal Housing
Structure Information Product Dimensions :319*207*45mm, Product Net Weight: 2KG,
Environment Operating Temperature: 0~40°C, Storage Temperature: -40 °C to 70 °C, Operation Humidity: 10%~90%?non condensing, Storage Humidity:5%~95%?non condensing
SMART FEATURES VLAN, QoS, IEEE 802.3ad LACP Trunk-Static Trunk, IGMP Snooping, Port Mirroring, Broadcast Storm Control
