- About this Item

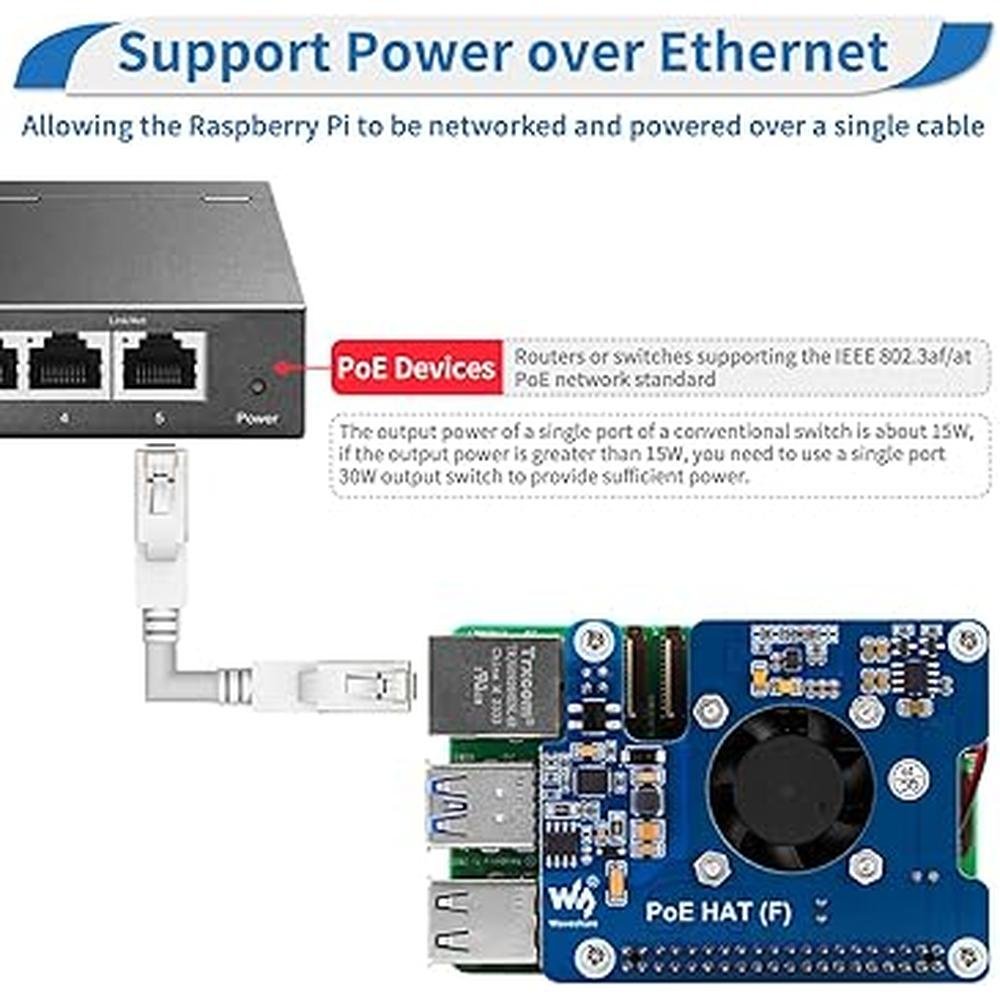

- • Power Over Ethernet Raspberry Pi 5 PoE HAT(F), supports IEEE 802.3afat network standard. Ideal for use with PoE routers or switches that support the IEEE 802.3afat network standard, allowing the Raspberry Pi to be networked and powered with a single cable

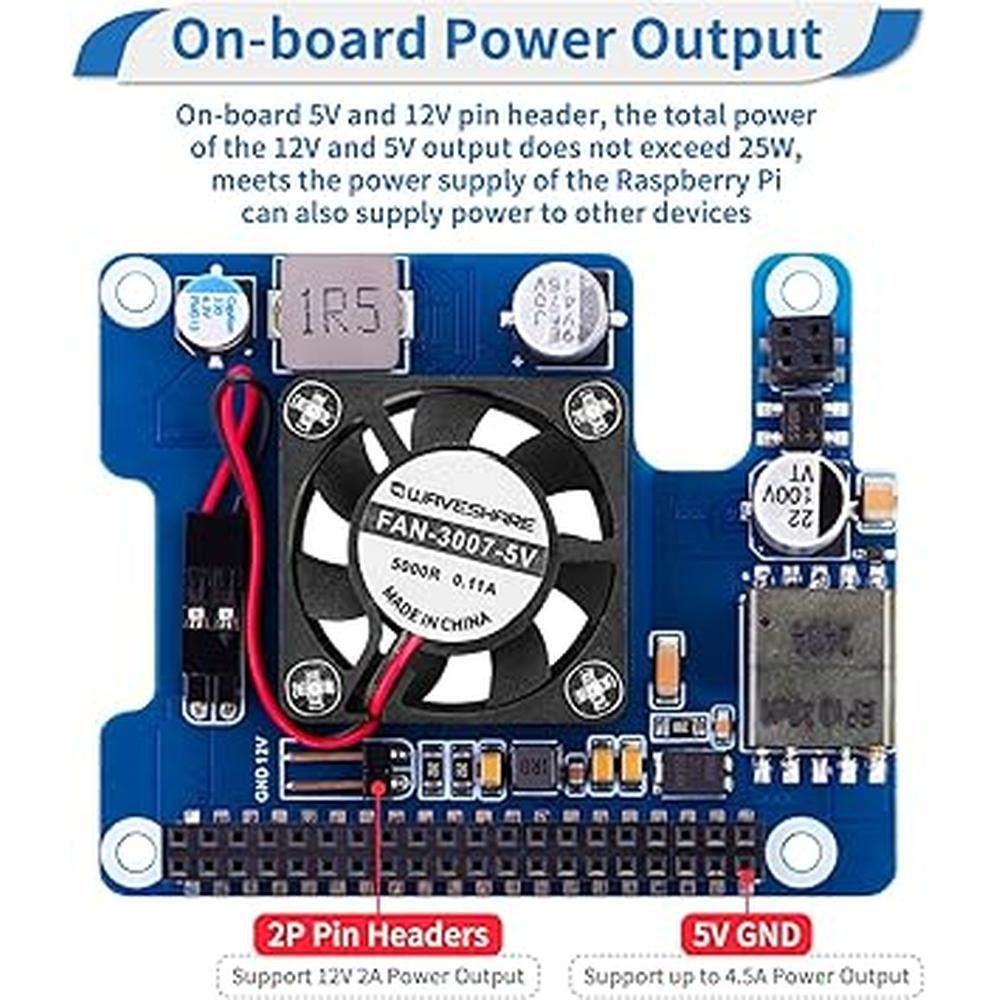

- • On-board Power Output On-board 5V and 12V pin header, the output power of the 5V interface can be up to 4.5A, the 12V interface can be up to 2A(the total power of the 12V and 5V output does not exceed 25W), meets the power supply of the Raspberry Pi can also supply power to other devices

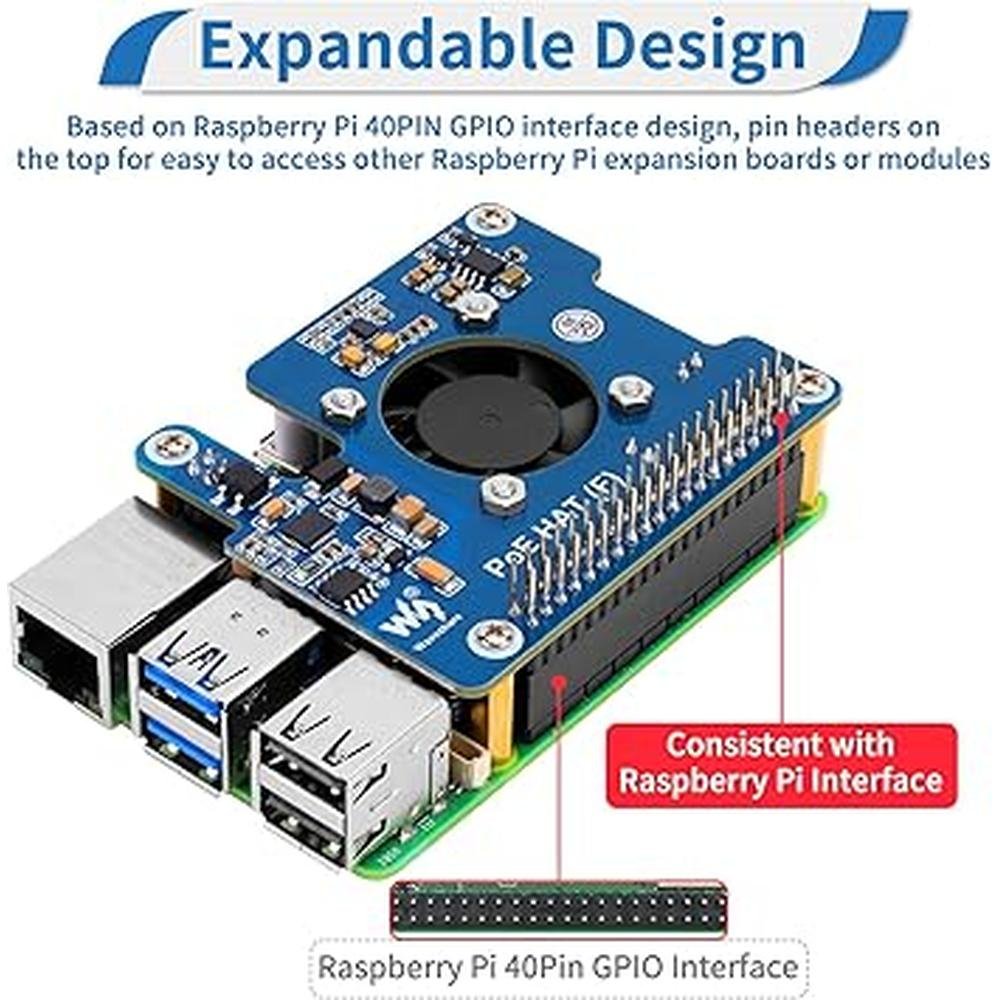

- • Expandable Design Based on Raspberry Pi 40PIN GPIO interface design, pin headers on the top for easy to access other Raspberry Pi expansion boards or modules
- • Great Heat Dissipation Effect Onboard high-speed active cooling fan, with thermal paste and metal heat sink accelerates heat dissipation for Raspberry Pi motherboard more stable operation
Specifications & Details
| SKU | PIB0CY7WHDRC |
|---|---|
| RAM | LPDDR4 |
| Brand | MakerFocus |
| Series | Raspberry Pi 5 |
| Operating System | Linux |
| Item Weight | 0.059 kgs |
| Product Dimensions | 2.22 x 2.76 x 2.76 inches |
| Item Dimensions LxWxH | 2.22 x 2.76 x 2.76 inches |
| Number of Processors | 1 |
| Manufacturer | MakerFocus |
Product description

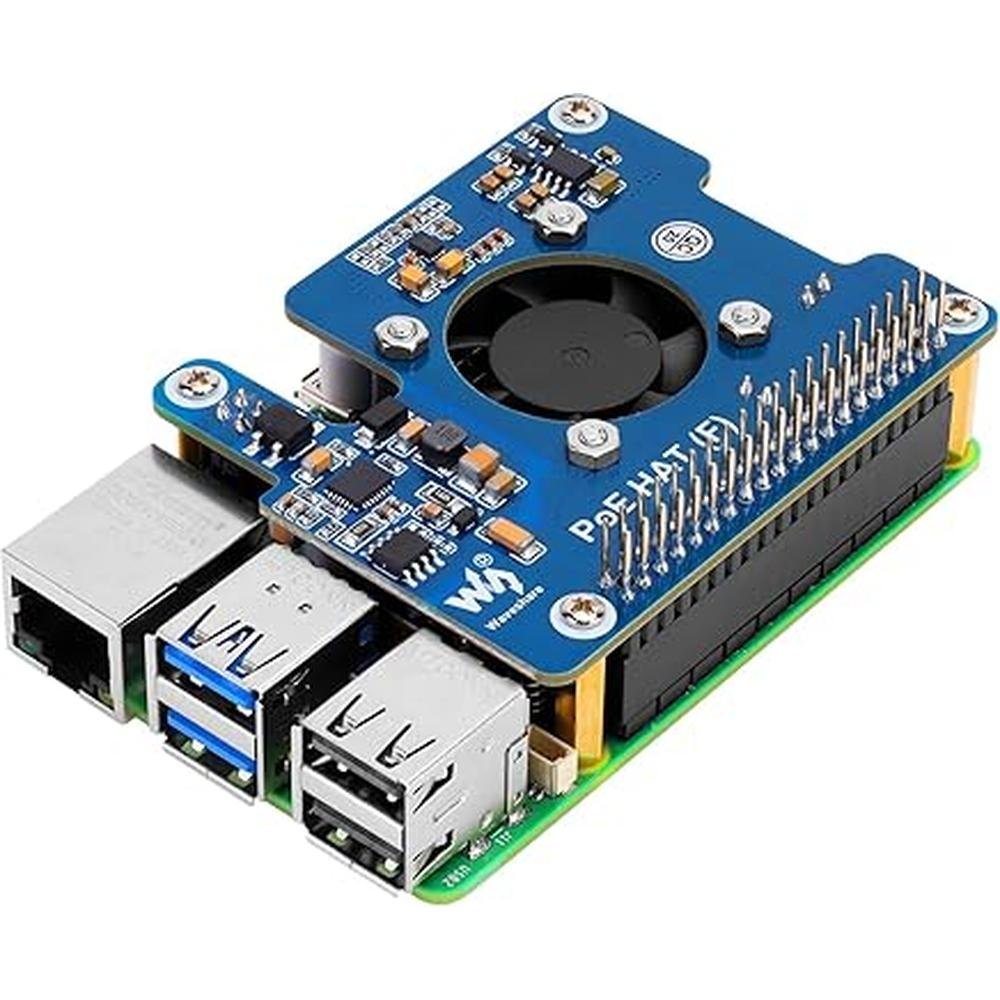

Descriptionbr Power over Ethernet (PoE) expansion board for the Raspberry Pi 5, supporting the IEEE 802.3afat networking standard. It is suitable for use with PoE routers or switches that support the IEEE 802.3afat networking standard, allowing the Raspberry Pi to be networked and powered over a single cablebrbr Highlightsbr 1. Based on the Raspberry Pi 40PIN GPIO interface for Raspberry Pi 5br 2. Supports PoE Power over Ethernet, supports IEEE 802.3afat PoE network standardbr 3. Fully isolated switched mode power supply (SMPS)br 4. Onboard high speed active cooling fan and metal heat sink to accelerate heat dissipationbrbr How to Install?br Put on the thermal tape first, then install the metal heat sink, and then install the PoE expansion boardbrbr Parametersbr PoE power input 37V 57V DC inputbr Dimensions 56.5 70.0 mmbr Power Outputbr GPIO pin 5V 4.5A (max)br 2P Pin 12V 2A (Max)brbr Notebr The output power of a single port of a conventional switch is about 15W, if the output power is greater than 15W, you need to use a single port 30W output switch to provide sufficient powerbrbr Package Contentbr 1 Raspberry Pi 5 PoE HAT (F) br 1 Metal Heatsinkbr 3 Thermal Tapebr 5 Studs br 9 Screws
