Product description

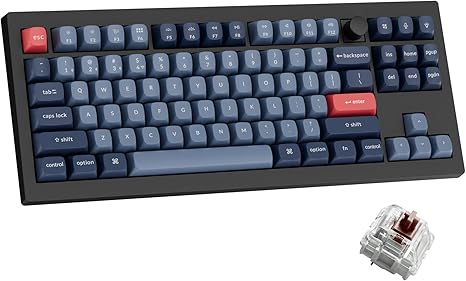

Keychron V3 Max QMK/VIA Wireless Custom Mechanical Keyboard
The V3 Max is a classic TKL Layout QMK/VIA wireless mechanical keyboard upgraded with a 2.4 GHz wireless connection, featuring a 1000 Hz polling rate (on both 2.4G and wired modes). Its gasket mount design, sound absorbing foam, double-shot PBT keycaps, and more take your typing experience to a new level, delivering heightened levels of comfort and productivity.

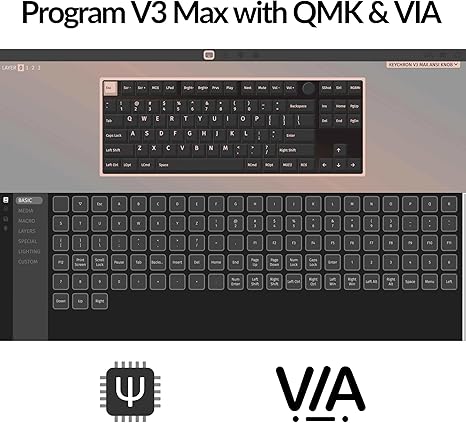

Remap with QMK & VIA
Simply connect the V3 Max to your device with a cable, drag and drop your favorite keys or macro commands to remap any key you want on any system (macOS, Windows, or Linux).
ARM Cortex-M4 32-bit STM32F402 MCU which is powerful, and equipped with 256K Flash will provide more flexibility for developers.
*Note: User can remap a key on wired mode only. Once it's done, the keymap will work on both wireless and wired modes.

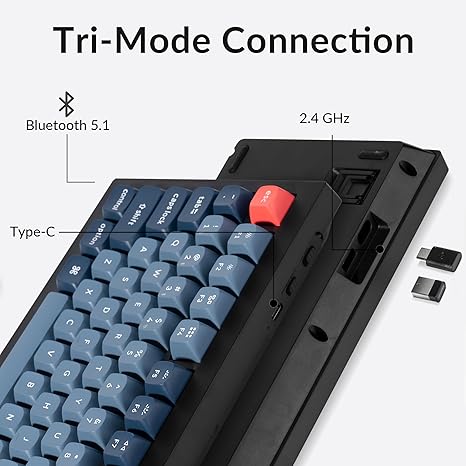

2.4 GHz and Bluetooth Connection
Experience peak gaming performance on the fly with the 2.4 GHz wireless connection boasting a rapid 1000 Hz polling rate. For seamless multitasking across your computer, phone, and tablet, you can effortlessly connect the V3 Max via Bluetooth 5.1 to three devices.
Support macOS, Windows and Linux
Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Keychron V3 Max comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.
OSA Profile Double-shot PBT Keycaps
Our unique OSA profile double-shot non-backlight shine through PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.
South-facing RGB LED Lights
The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed.

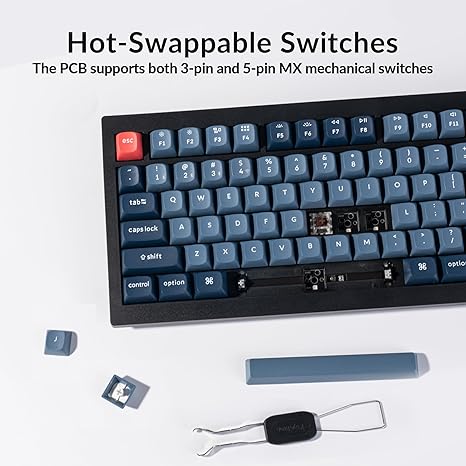

Hot-swappable
You can hot-swap every switch with almost all of the 3pin and 5pin MX style mechanical switches on the market without soldering required.
Specs
Dimension 367.8 x 149 mm / 14.48 x 5.87 Inch
Weight 696 g ± 10 g / 1.53 lbs

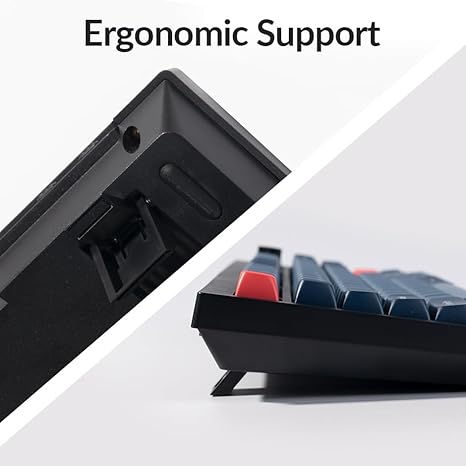

Angle 4° / 7° / 10°
Body Material ABS Plastic
Plate Material PC
Polling Rate 1000 Hz (2.4 GHz and wired) / 90 Hz (Bluetooth mode)
Battery 4000 mAh Rechargeable li-polymer battery
Compatible System Windows/macOS/Linux
N-Key Rollover (NKRO) Yes for both wireless and wired modes
Hot-swappable Yes. Compatible with most of the 3 pin & 5 pin MX mechanical switches such as Gateron, Cherry MX, Kailh, etc.
Keycaps Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape)
Switches Gateron Jupiter
Backlight South-facing RGB LED
Stabilizer Screw-in PCB stabs
BT Working Time Up to 100 hours (Lowest brightness)
MCU ARM Cortex-M4 32-bit STM32F402 (256KB Flash)
