Product description
Play Video

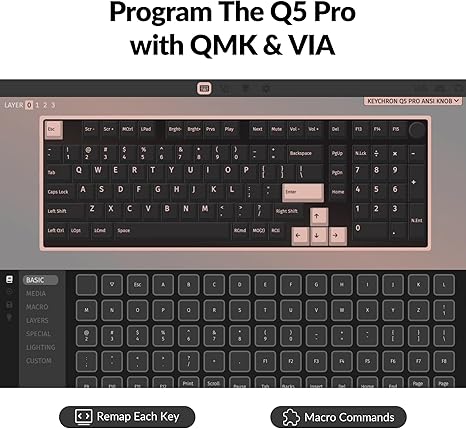

Remap with QMK & VIA
QMK / VIA is open-source software for keyboards that allows anyone to easily program and remap each key or macro (incl. the knob) on macOS, Windows, or Linux. *Note: User can remap a key on wired mode only. Once it's done, the keymap will work on both wireless and wired modes. Please download the keymap file (guide in the manual) to use VIA as the code is still not yet auto-recognized.

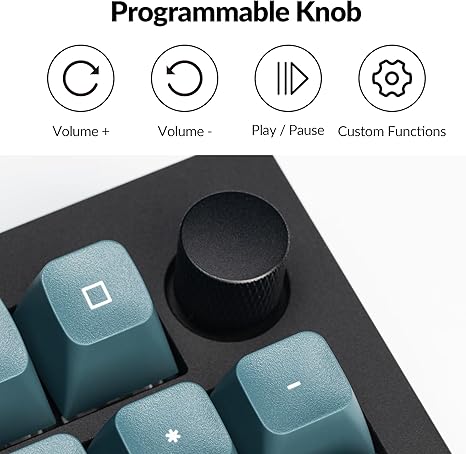

101 Keys + 1 Knob

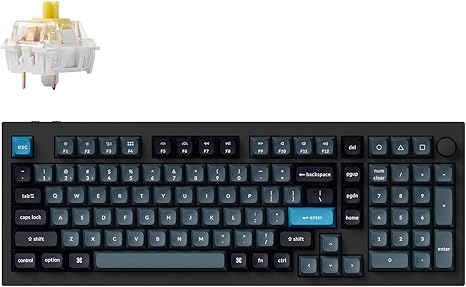

A unique 96% layout QMK/VIA wireless mechanical keyboard with a full aluminum body.
96% Layout Wireless and Wired CNC Aluminum Body Hot-swap
Keychron K Pro Mechanical Switch
By optimizing the switch mold, the Q5 Pro switch wobbles less than the standard mechanical switch and feels smoother on each hit. Plus, the factory pre-lubed K Pro switches will ensure the best fingertip smoothness.
PCB Stabilizers
We’ve integrated the PCB-mounted screw-in stabilizers for a smoother typing experience with less wobbliness on the big keys such as the space bar, shift, enter, and delete keys. You can even customize your favorite stabilizers on your own.
An Epic Core Inside The Keyboard
A powerful ultra-low-power ARM Cortex-M4 32-bit STM32L432 chip (MCU) equipped with 128K Flash will provide more flexibility for developers. The polling rate is 1000 Hz right out of the box on type-c wired mode (90 Hz on wireless mode), which makes the latency hardly noticeable even in competitive games.
N-Key Rollover
NKRO greatly improves operational efficiency, especially when playing games on wireless/wired mode.
Dimension 408 x 145 mm
Weight 2160 g ± 10 g

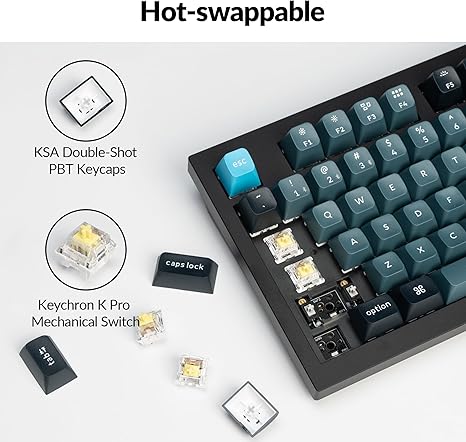

Hot-Swappable Yes. Compatible with most of the 3 pin & 5 pin MX mechanical switches such as Gateron, Cherry MX and Kailh, etc.
Switch Face South-facing RGB Backlit
Stabilizers Screw-in PCB stabilizer
Body Material Full CNC machined aluminum
Plate Material PC
Keycap Profile KSA double-shot PBT keycaps, not shine-through
Polling Rate 1000 Hz (wired) / 90 Hz (wireless)
Connection Bluetooth / Type-C wired
Battery 4000 mAh Rechargeable li-polymer battery
Compatible System macOS/Windows/Linux
N-Key Rollover (NKRO) Yes for both wireless and wired modes
MCU Ultra-low-power ARM Cortex-M4 32-bit STM32L432 (128KB Flash)
BT Working Time Up to 100 hours (Lowest brightness)
Operating Environment -10 to 50?
