- About this Item

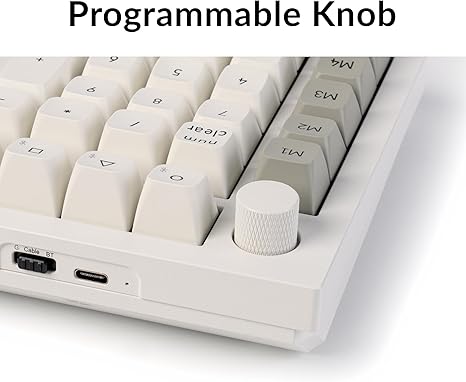

- • The Q0 Max is a full-metal custom number pad with a macro column and rotary encoder knob on the left side. Available as a separate numeric keypad or a huge customizable key set with QMK support, offering superior performance such as 2.4 GHz wireless, Bluetooth 5.1, 1000 Hz polling rate, PBT keycaps, and more for that premium thock feel.
- • The durable metal body is crafted with 6063 aluminum that is processed through CNC machined, polished, anodized, sandblasted, and undergoes 24 more manufacturing stages to make this solid metal piece of art that is the Q0 Max.
- • 2.4 GHz and Bluetooth Connection - The 2.4 GHz wireless and wired connection boasts a rapid 1000 Hz polling rate. You can also connect the Q0 Max with up to 3 devices via a stable Bluetooth 5.1 for seamless multitasking.
- • Enhanced Thock Feel - Added a combination of premium acoustic foams such as IXPE, PET, and Latex. Together with our double-gasket design, screw-in stabilizers, and more. Each keystroke has become more enjoyable.
Specifications & Details
| SKU | PIB0CYGNYBSQ |
|---|---|
| Package Dimensions | 8.03 x 7.6 x 3.27 inches |
| Item Weight | 1.066 kgs |
| Manufacturer | Keychron |
| Language | English |
| Batteries | 1 Lithium Polymer batteries required. (included) |
Product description

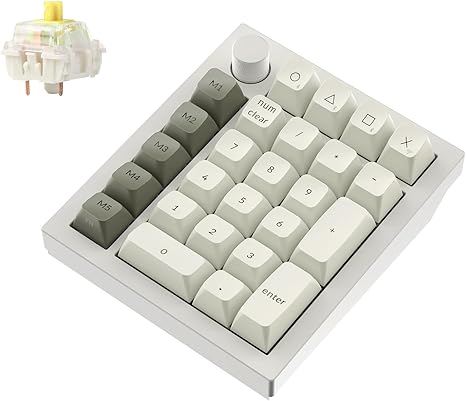

Keychron Q0 Max QMK Wireless Mechanical Number Pad
The Q0 Max is a full-metal custom number pad with a macro column and rotary encoder knob on the left side. Available as a separate numeric keypad or a huge customizable key set with QMK support, offering superior performance such as 2.4 GHz wireless, Bluetooth 5.1, 1000 Hz polling rate, PBT keycaps, and more for that premium thock feel.

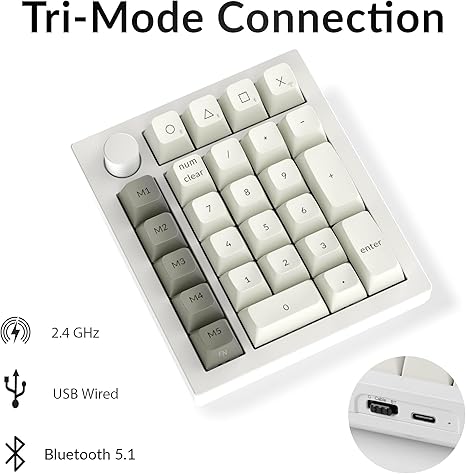

Wireless and Wired
Experience peak gaming performance on the fly with the 2.4 GHz wireless connection boasting a rapid 1000 Hz polling rate. For seamless multitasking across your computer, phone, and tablet, you can effortlessly connect the Q0 Max via Bluetooth 5.1 to three devices.
Durable Double-Shot PBT Keycaps
To further fine-tune your typing experience, we designed our unique Keychron spherical-angle (KSA profile) double-shot keycap set with premium non-backlight shine through PBT material, that is oil-resistant and durable for long-term use.
Change Any Key with Ease
Hot-swap every switch on the Q0 Max with almost all the MX mechanical switches on the market (e.g.: Cherry, Gateron, Kailh, Panda, etc.) without soldering required.

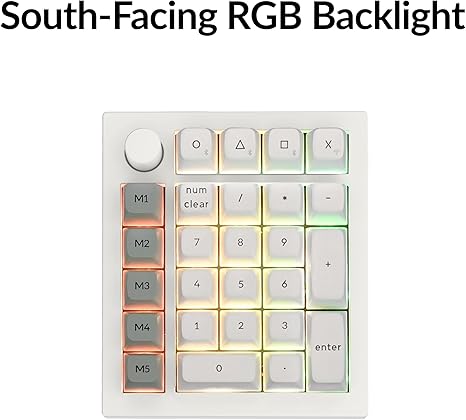

South-Facing RGB Backlight
The south-facing RGB is designed to better illustrate backlit from typist angle with 22 types of RGB backlight settings. You can further fine-tune the hue, saturation, brightness, effect speed, and different modes, or even remap these keys with QMK/VIA.

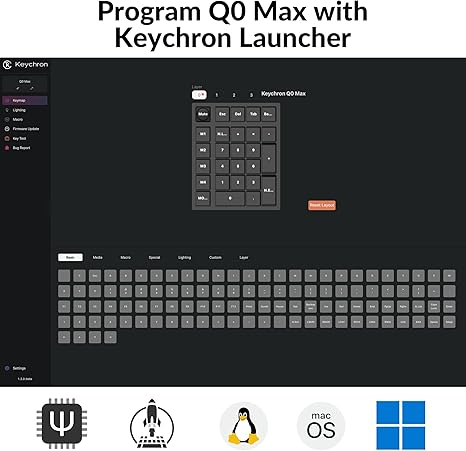

Remap Any Key with Ease
Simply connect the Q0 Max to your device with a cable, open the Keychron Launcher web app, drag and drop your favorite keys or macro commands to remap any key on any system (macOS, Windows, or Linux) for a fluid workflow.
ARM Cortex-M4 32-bit STM32F402 MCU which is powerful, and equipped with 256K Flash will provide more flexibility to create your keymap with open-sourced QMK firmware.
*Note: User can remap a key on wired mode only. Once it's done, the keymap will work on both wireless and wired modes.
Specs
Dimension 118.2 x 137 mm / 4.65 x 5.39 Inch
Weight 684 g ± 10 g / 1.51 lbs
Body Material Aluminum
Plate Material Steel
Polling Rate 1000 Hz (2.4 GHz and wired) / 90 Hz (Bluetooth mode)
Keycap KSA double-shot PBT keycaps, not shine-through
Switch Gateron Jupiter
Stabilizer Screw-in PCB stabilizer
Backlight South-facing RGB LED
Hot-swappable Yes. Compatible with most of the 3 pin & 5 pin MX mechanical switches such as Gateron, Cherry MX and Kailh, etc.
MCU ARM Cortex-M4 32-bit STM32F402 (256KB Flash)
N-Key Rollover (NKRO) Yes for both wireless and wired modes
Battery 1800 mAh Rechargeable li-polymer battery
Wireless Working Time Up to 50 hours (Lowest brightness)
Compatible System macOS/Windows/Linux
Connectivity 2.4 GHz / Bluetooth / Type-C wired
