Product description
Play Video

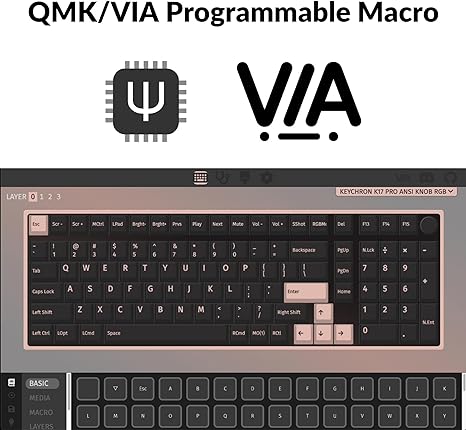

Remap with QMK & VIA
QMK / VIA is open-source software for keyboards that allows anyone to easily program and remap each key or macro (incl. the knob) on macOS, Windows, or Linux. *Note: User can remap a key on wired mode only. Once it's done, the keycap will work on both wireless and wired modes. Please download the keycap file (guide in the manual) to use VIA as the code is still not yet auto-recognized.
103 Keys (96% Layout)

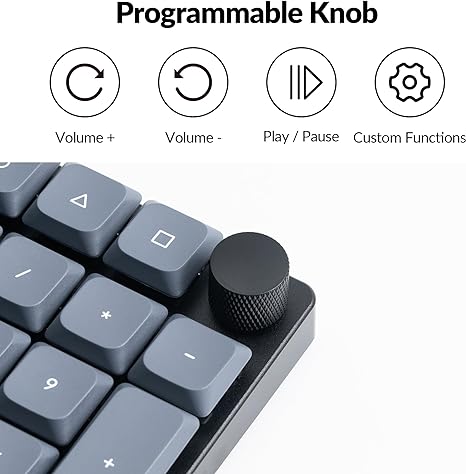

A unique 96% layout QMK/VIA wireless mechanical keyboard with a programmable knob.
Numpad + A Knob Wireless and Wired Ultra-Slim Hot-swap
Low-Profile Gateron Switch
The Gateron low-profile MX 2.0 Mechanical switch is designed to enhance reliability. Gateron's reputable switches are your best choice for a precise, smooth, and reliable fingertip feel whether you prefer linear (red), clicky (blue), or something in between (brown).
Redesigned Stabilizers
We’ve redesigned the stabilizers to make it stay on the level the same way as the switch while making sure it still delivers reliability and less wobble on the big keys like the space bar, left Shift, backspace, and Enter key.
An Epic Core Inside
A powerful ultra-low-power ARM architecture MCU equipped with 128K Flash will provide more flexibility for developers. The polling rate is 1000 Hz on wired mode (90 Hz on wireless mode) right out of the box, which makes the latency hardly noticeable even in competitive games.
Low-Profile Double-shot PBT Keycaps
The K17 Pro comes with our unique double-shot PBT keycaps that are made of durable non-backlight shine through PBT material with excellent oil resistance for long-term use.
Dimension 387.2 mm x 120.4 mm (15.24 x 4.74")
Weight 679g / 1.50 lbs
Number of Keys 103
Switch Face North-facing RGB Backlit
Number of Multimedia Keys 12
Frame Material ABS+Aluminum frame
Keycap Material Low-profile double-shot PBT
Polling Rate 1000Hz (Wired Mode) / 90Hz (Wireless Mode)
N-Key Rollover (NKRO) Yes for both wireless and wired modes
Battery 2000 mAh rechargeable li-polymer battery
BT Working Time (Backlit off) Up to 167 hours (Lab test result may vary by actual use)
Connection Bluetooth and Type-C cable
Compatible System macOS/Windows/Linux
Typing Angle 2.48º, 3.94º and 6.30º
MCU Ultra-low-power ARM Cortex-M4 32-bit STM32L432 (128KB Flash)
Hot-Swappable Compatible with Gateron/Keychron low-profile mechanical switches
