- About this Item
- • Mini Display Port Extend your Surface Pro display by utilizing the HDMI input or Mini DP. (Only one display at a time )
- • 4K HDMI Supports (3840 pixels wide by 2160 pixels high. 4096 pixels wide by 2160 pixels high 30hz) Mini Displayport supports resolutions up to 3840 x 2160 pixels 60hz
- • SD Micro SD Quickly transfer SD and Micro SD memory card data to and from your Surface Pro tablet. SD 3.0 enabled transfer speeds.
Specifications & Details
| SKU | PIB07M9D2T9X |
|---|---|
| Package Dimensions | 6.34 x 3.54 x 1.26 inches |
| Item Weight | 0.085 kgs |
| Manufacturer | Juiced Systems |
| Is Discontinued By Manufacturer | No |
Product description

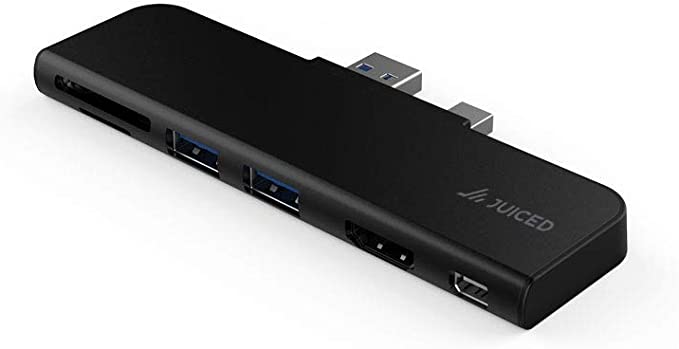

The Juiced Systems Optix Adapter was made for the Microsoft Surface Pro 6 and is compatible with Surface Pro 5 (2017) and Surface Pro 4. The adapter adds additional ports to your Surface Pro 6. Two USB 3.0 ports (5 Gbps) are available for flash drives, mouse, keyboard or external hard drives. Extend your Surface Pro 6 display using the HDMI port or the Mini DisplayPort (only one additional monitor is supported). Transfer memory card data to your Surface Pro using the SD or Micro SD memory inputs (both ports can be used simultaneously).? Easily charge your Surface Tablet while the adapter is in use. The adapter will not block the Microsoft Stock charging cable. Enhance your Surface Pro tablet with the most versatile business and travel friendly accessory available.

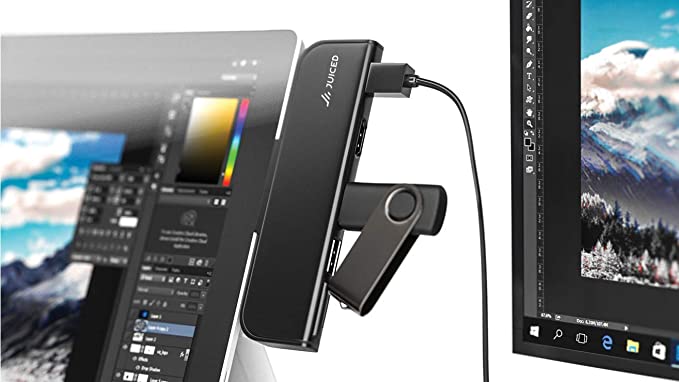

Connect an additional monitor
Choose an HDMI monitor or Mini DP input to extend your Surface's external display. The Optix adapter gives you the easy option of choosing your external display port. Please note you can not use both ports simultaneously, only one external monitor at a time, is supported.
Connect Essential Devices
Expand Surface Pro 6 Functionality
Connect external devices such as, SD Memory cards,Micro SD Memory cards, mouse, flash drives, USB CD ROM, printers, and other USB adapters.
Extended Display Options
DisplayPort version 1.2 can support video resolutions of up to 3840 x 2160 pixels(4K) at a refresh rate of 60Hz
4K HDMI 1.4 supports 3840 x 2160 Ultra High Definition 4Kx2K@30hz
Compatibility
Surface Pro 6 | Surface Pro 5 ( 2017) | Surface Pro 4
* Adapter will not block or impair stock charging cable.
Available Ports:
4K HDMI
MINI DP
2x USB 3.0
SD
MICRO SD
Specifications:
Two USB 3.0 Ports ( 5Gbps )
4K HDMI (1.4) Port
Mini DisplayPort (1.2)
SD & Micro SD Input
Product Dimensions: 115x42x9.5mm
Aluminum body construction
