- About this Item
- • Versatile Compatibility - Widely compatible with SFF 8436 and QSFP MSA compliant equipment from Mellanox, Dell, Juniper, Arista, Extreme, NOKIA, H3C and more brands

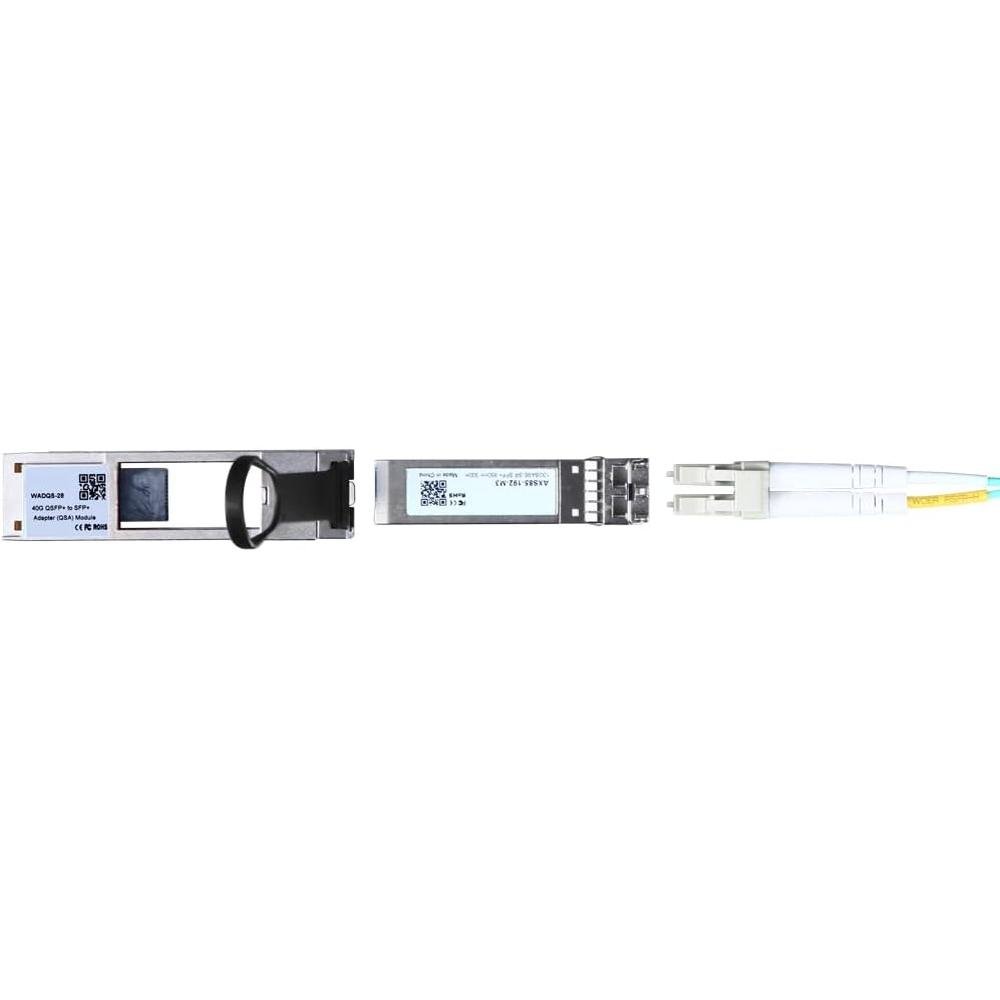

- • Comprehensive SFP Support - This QSA adapter fits all SFP optics and cable reaches, including SFP-10G-SR, SFP-10G-LR, SFP-10G-ER, SFP-10G-ZR, 10G SFP copper cable, and 10G SFP active optical cable (I2C read port information comes from SFP port module)
- • Cost-effective Conversion from QSFP to SFP Port - Ipolex 40G to 10G Adapter Module allows smooth and cost-effective migration to 40 Gigabit Ethernet by providing an option to use lower-speed. Plug and play, no configuration required
- • Stable Performance - low insertion loss, low crosstalk, and low EMI emission all metal housing design and secure latching mechanism Operating case Temp range at -20 to 85
Specifications & Details
| SKU | PIB082PSBS9S |
|---|---|
| Product Dimensions | 6.3 x 2.6 x 0.8 inches |
| Item Weight | 0.040 kgs |
| Manufacturer | ipolex |
| Item model number | 40G-SR4 |
Product description

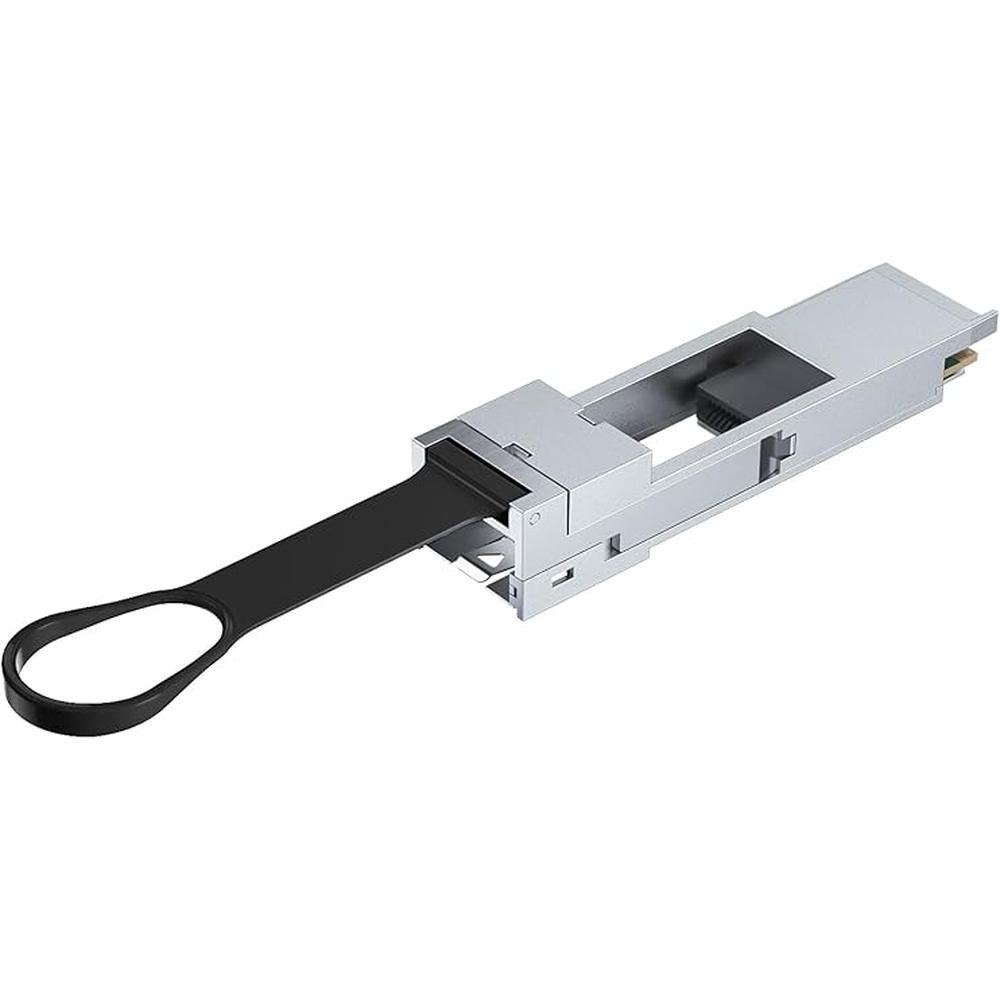

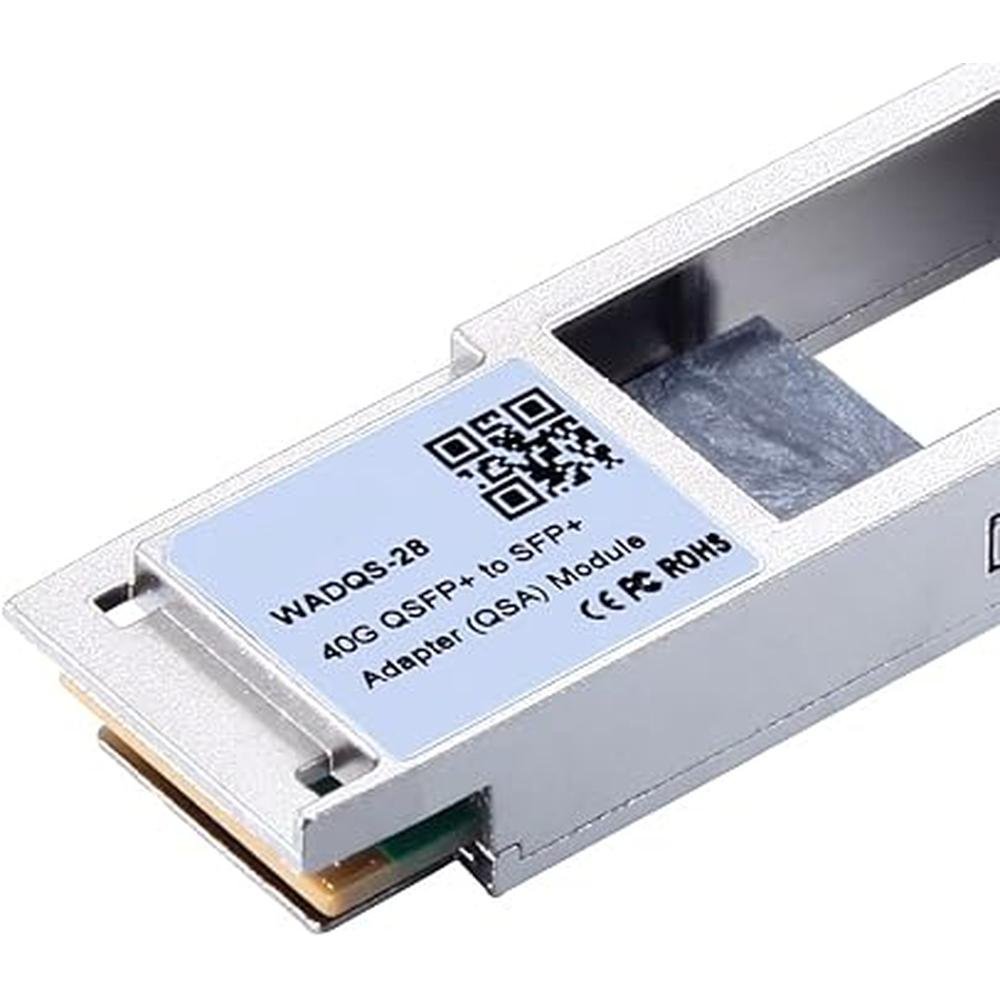

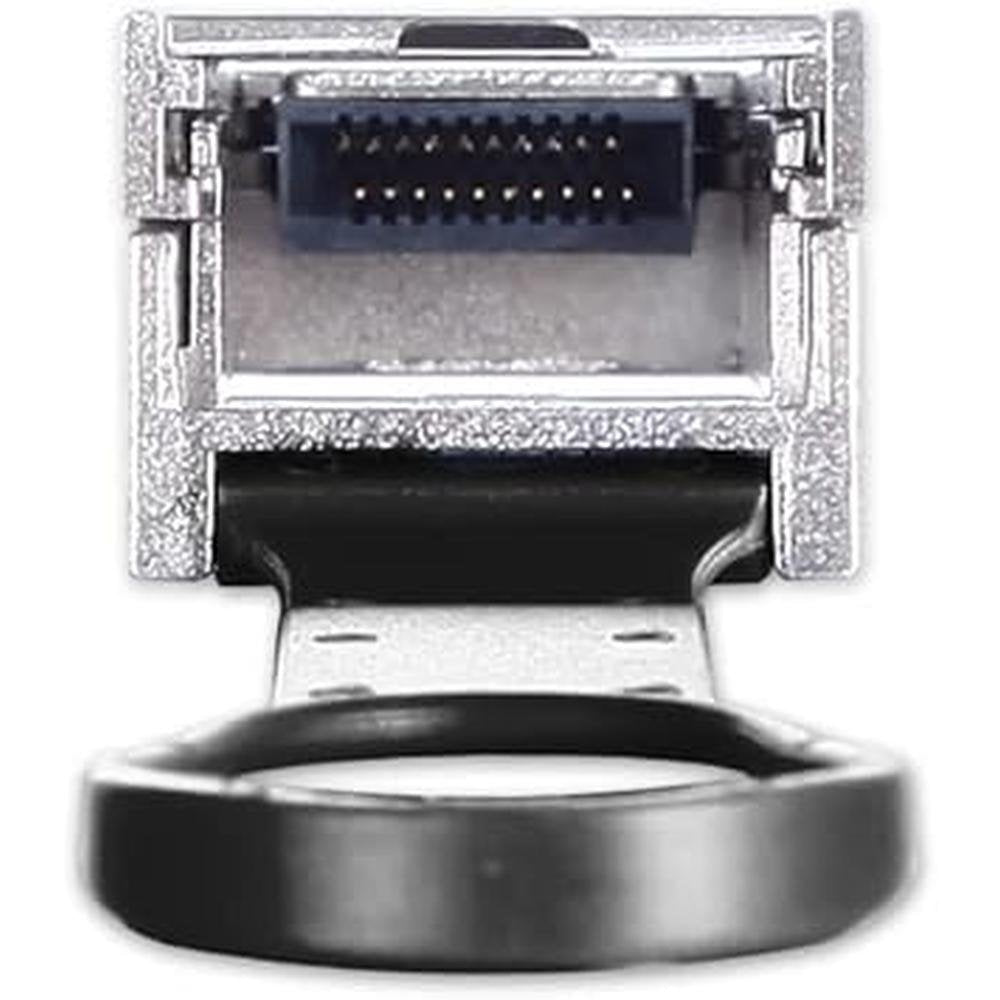

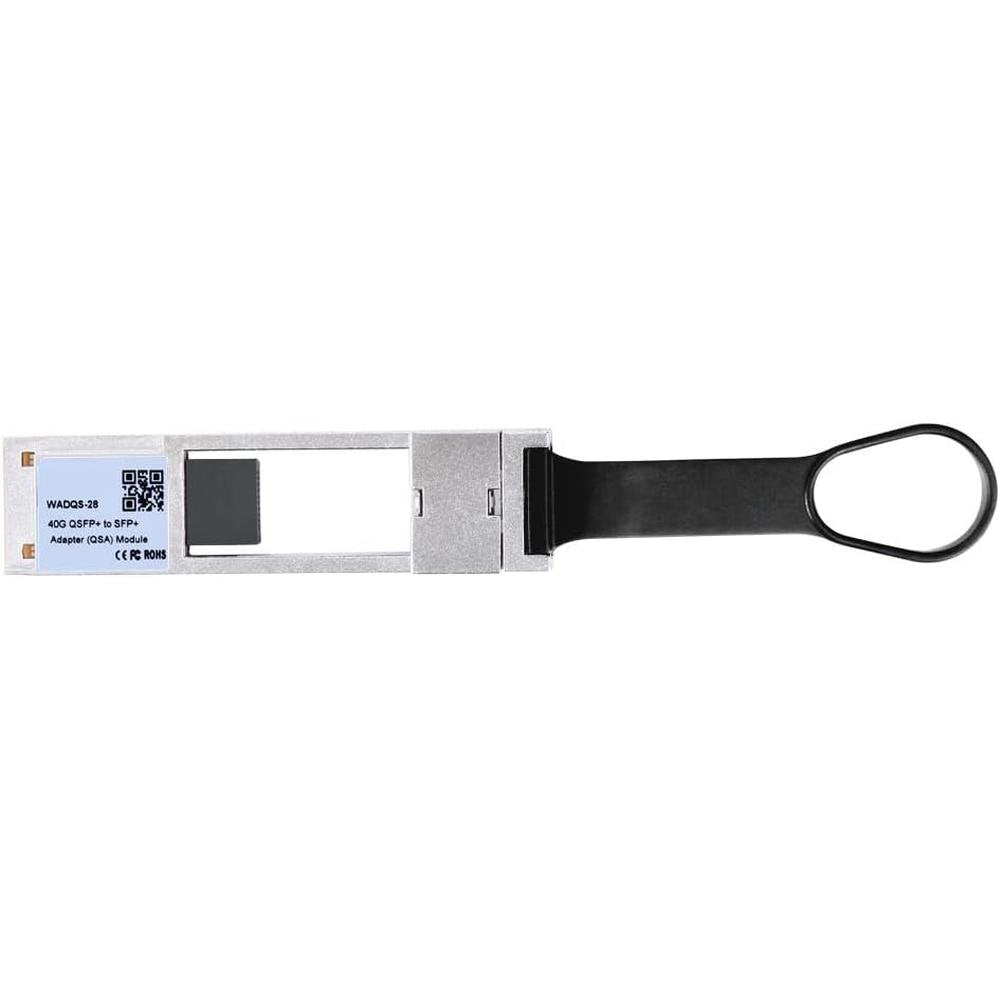

pbWADQS-10bp pQSA-40, the QSFPnbspto SFP Adapter has a built-in SFP adapter under QSFP form factor, with data rate up to 14Gbps per channle. This QSA does not support reading SFP DDM info.p pb2 Version for different I2C designbp pVersion A QSA-40A adapter without EEPROM, the device will read DDM from the SFP transceiver that is connected into the QSA.p pVersion B QSA-40B adapter with EEPROM, the device will read DDM from the QSA.p pbNoticesbp pVersion B is equivalent to CISCO CVR-QSFP-SFP10G, but could not support Cisco N9K devices.p pbFeaturesbp p Secure latching mechanismp p RoHS compliantp p Low crosstalkp p Low insertion lossp p Operating case temperature -20C 85Cp p Storage Temperature -40C 125Cp p Supply Voltage 3.15 3.45Vp pbApplicationsbp p QSFP to SFPp br br br br br brbrp
