- About this Item

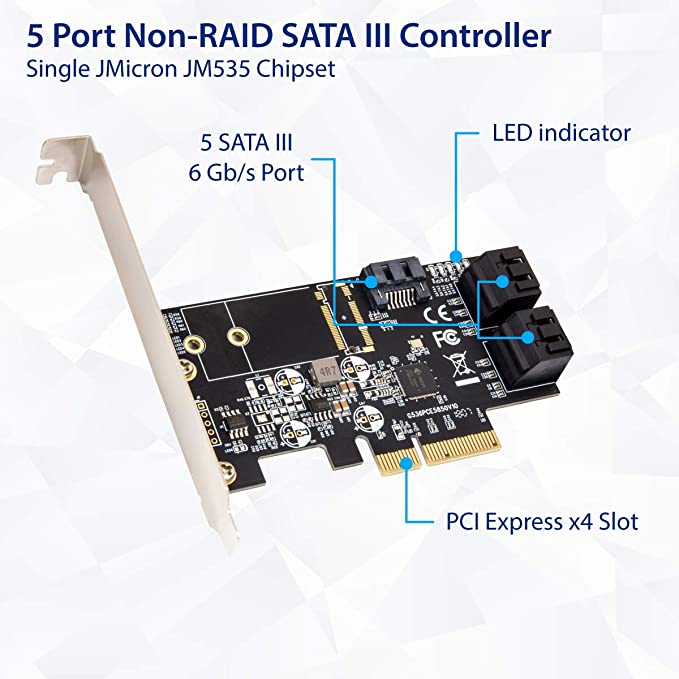

- • Connect five SATA drives to any free PCI-E x4 Slot, providing up to 1700 MB s Speed.
- • Plug and play supported, No additional software installation or setting required.
- • Can support port Multiplier that is not in a RAID configuration.
Specifications & Details
| SKU | PIB07ST9CPND |
|---|---|
| Brand | IO CREST |
| Series | SI-PEX40139 |
| Item model number | SI-PEX40139 |
| Operating System | Windows, macOS, Linux |
| Item Weight | 0.136 kgs |

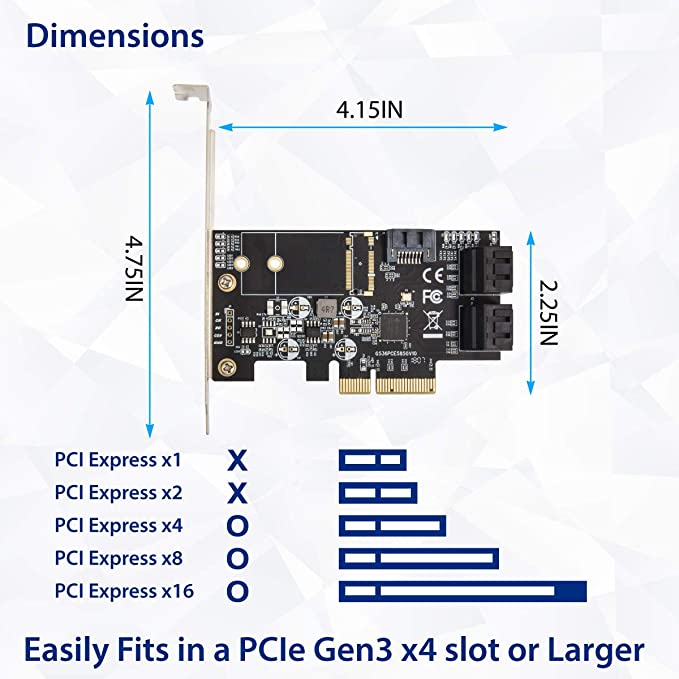

| Product Dimensions | 4 x 4.75 x 0.75 inches |
| Item Dimensions LxWxH | 4 x 4.75 x 0.75 inches |
| Manufacturer | IO Crest |
| Is Discontinued By Manufacturer | No |
Product description

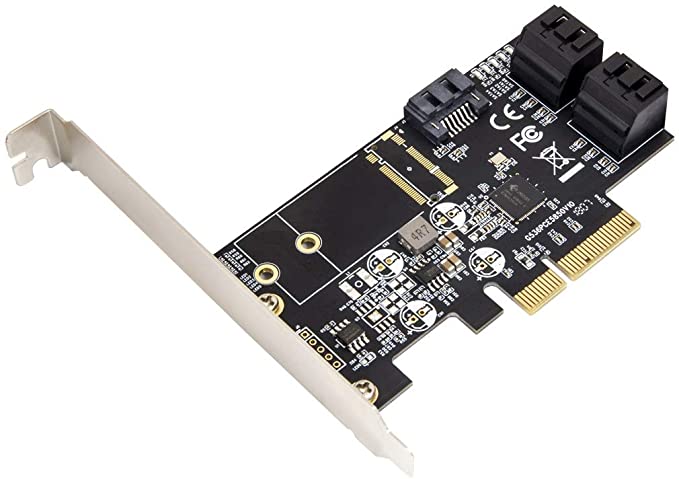

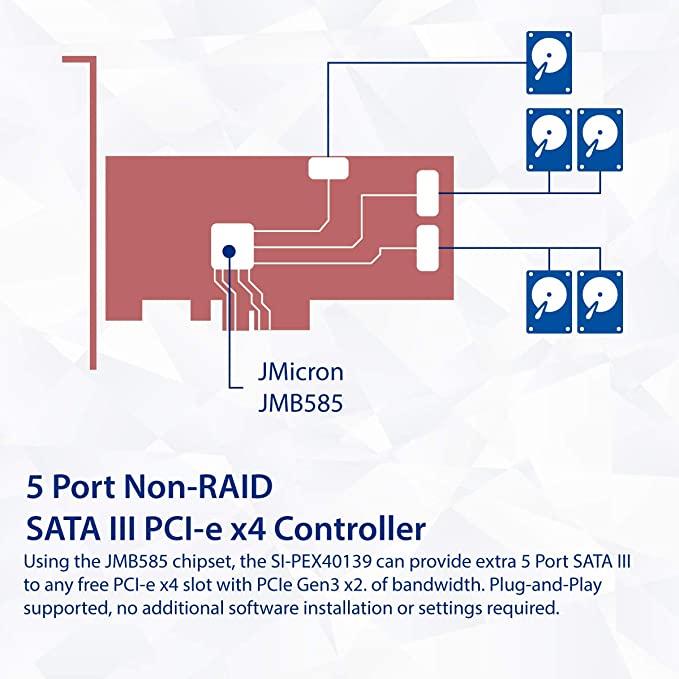

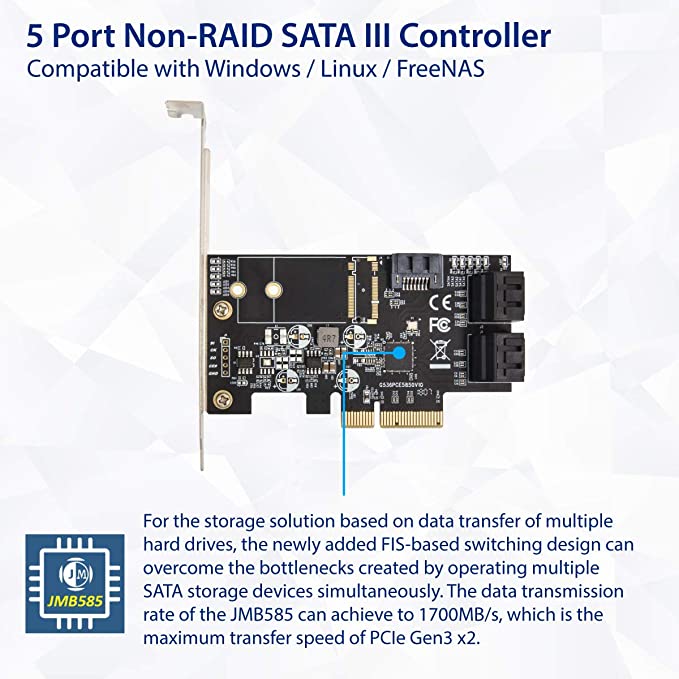

Using the JMB585 chipset, the SI-PEX40139 can provide extra 5 port SATA III to any free PCI-E x4 slot with PCIe Gen3 x2 bandwidth. For the storage solution based on data transfer of multiple hard drives, The newly added FIS-based switching design can overcome the bottlenecks created by operating multiple SATA storage devices simultaneously. The data transmission rate of the JMB585 can achieve to 1700MB/s, which is the maximum transfer speed of PCIe Gen3 x2.
