Industrial 10 Ports Gigabit Ethernet Switch 1000M Din Rail Network Switch, Black

Product description

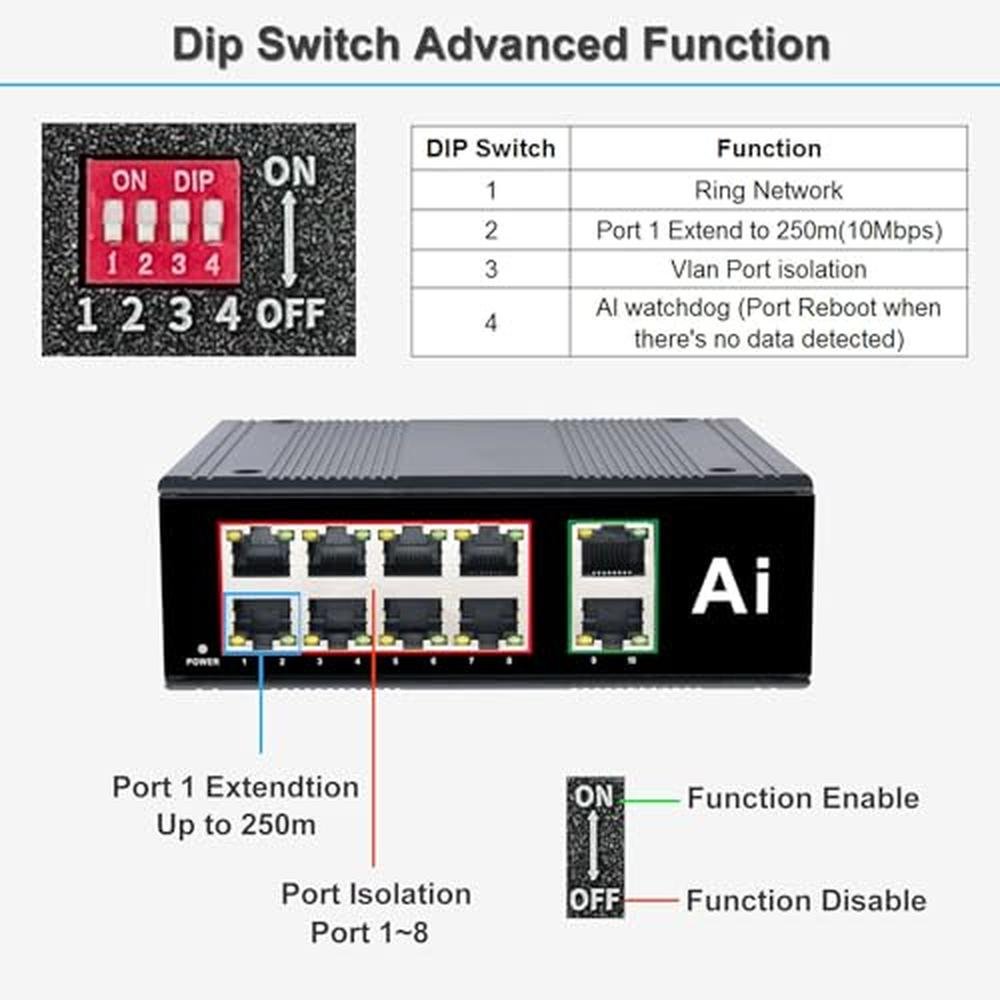

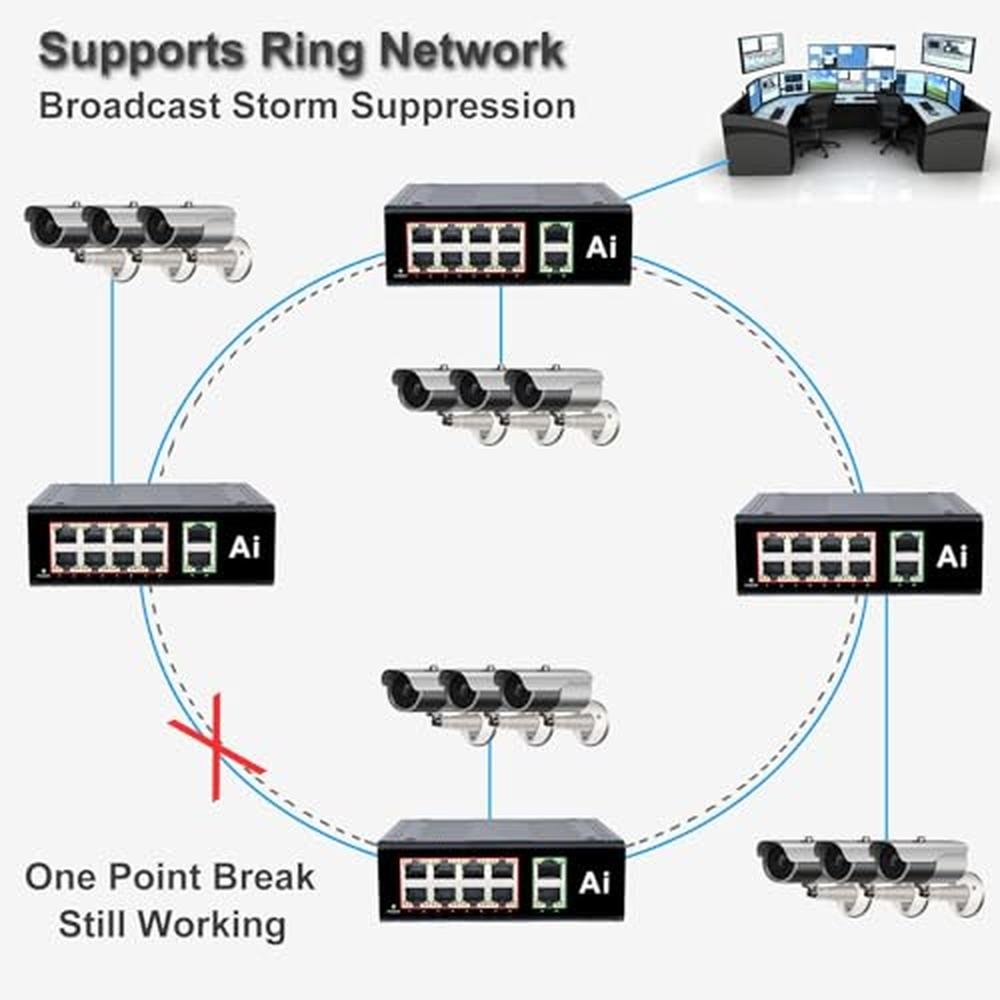

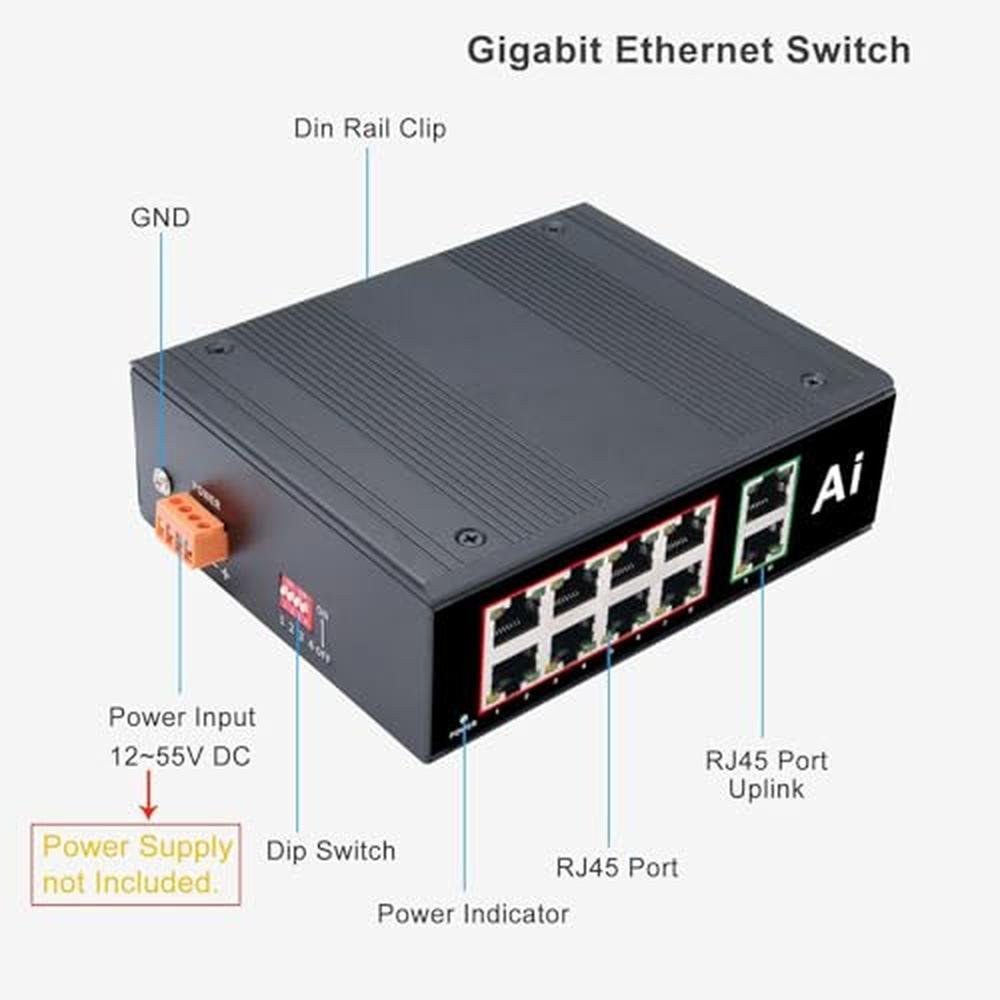

This 10 Ports Ethernet Switch features a high-strength IP40 protective casing, industrial-grade EMC design, and supports a wide range of redundant power supply to enhance the reliability of communication networks. It utilizes a four-level DIP switch for LPP ring network protection, BSP broadcast storm suppression, VLAN port isolation, and AI watchdog. The Industrial Din rail Mount Switch using a standard 35mm DIN rail, making it widely applicable in various fields such as smart grids, rail transportation, integrated pipe corridors, intelligent transportation, smart cities, mining and metallurgy, oil and petrochemicals, new energy, smart factories, ships, defense industry, and building security, providing favorable protection for industrial communication. Features: * 10-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function * Supports auto-negotiation and 10/100Mbps half/full duplex and1000Mbps full duplex * Supports Ring Connection and port isolation * Supports DIN-Rail installation * 12~55VDC wide range power input * Industry standard design, IP40 rugged high-strength metal case * -40C to 80C (-40F to 176F) operating temperature Specifications Standard: IEEE802.3 10Base-T Ethernet, IEEE802.3u100Base-TX Fast Ethernet, IEEE 802.3x flow control Max Packet Length: 9K Bytes. Address Table Size: 4K MAC Address Operating mode: Store and forward Switch Capacity: 20Gbps/non-blocking Ethernet Port: RJ45 10/100/1000Mbps Ethernet Transmission distance: 100m (328ft) Casing Material: Aluminum Case Mounting Options: DIN-Rail / Wall-mount Power consumption: <8W Mini Size (WxDxH): 6.02x5.04x1.93in (153 x 128 x 49 mm) Note: If you have any questions or find the device not work, please contact us. Our professional technical staff will teach you how to use or help you find the problem and solve it..
