Product description

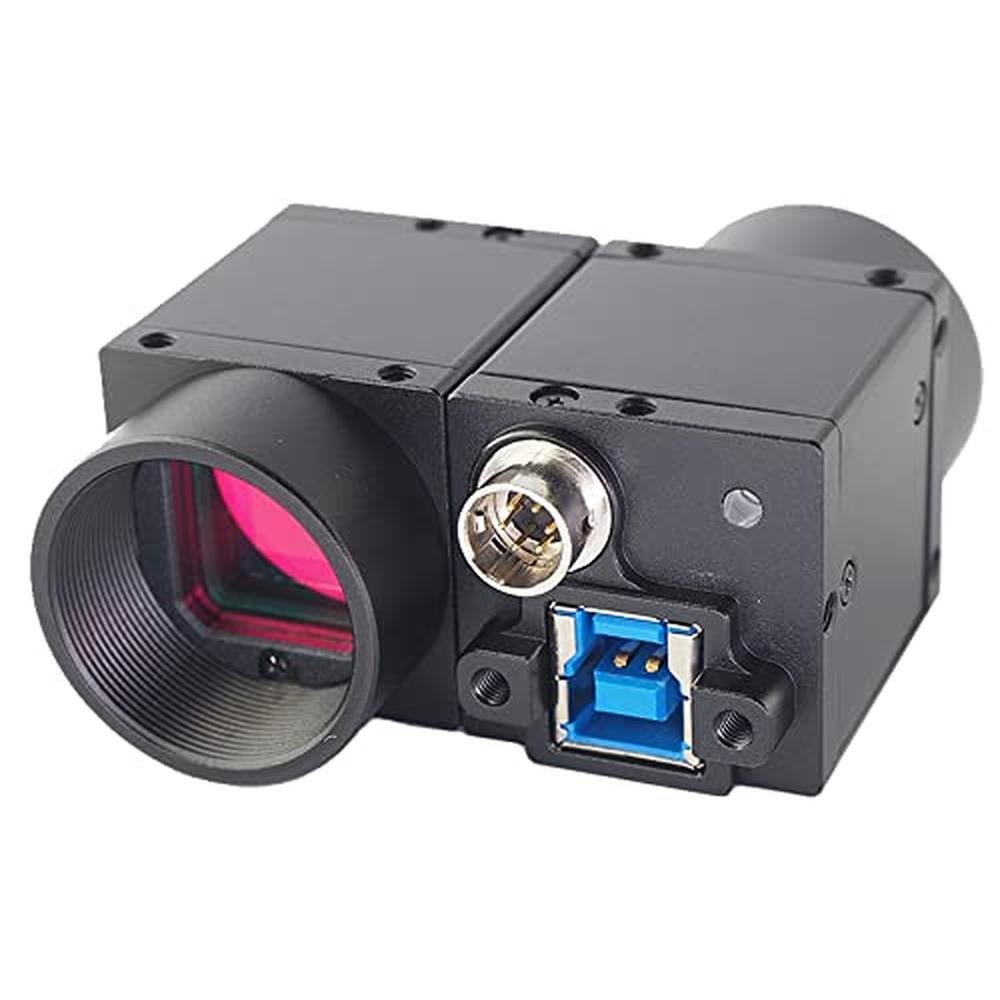

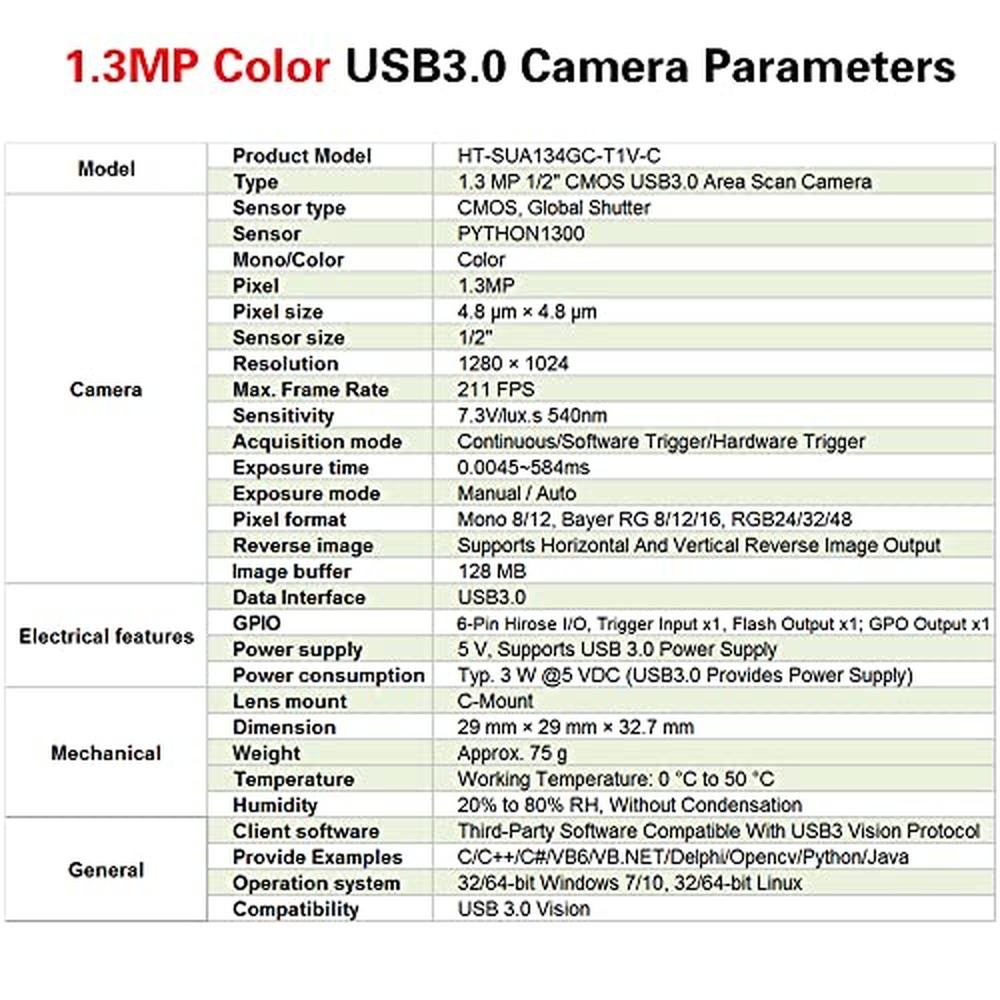

Product Model:HT-SUA134GC-T Type:USB 3.0 Camera Sensor type:CMOS, Global Shutter Sensor:PYTHON1300 Mono/Color:Color Pixel:1.3MP Pixel size:4.8 m 4.8 m Sensor size:1/2" Resolution:1280 1024 Max. Frame Rate:211 FPS Sensitivity:7.3V/lux.s 540nm Acquisition mode:Continuous/Software trigger/Hardware trigger Exposure time:0.0045~584ms Exposure mode:Manual / Auto Pixel format:Mono 8/12, Bayer RG 8/12/16, RGB24 Reverse image:Supports horizontal and vertical reverse image output Image buffer:128 MB Data Interface:USB3.0 GPIO:6-pin Hirose I/O, Trigger input x1, flash control output x1; GPO output x1 Power supply:5 V, Supports USB 3.0 power supply Power consumption:Typ. 3 W @5 VDC (USB3.0 provides power supply) Lens mount:CS/C-Mount Dimension:29 mm 29 mm 32.7 mm Ingress protection:IP30 (under correct lens installation and wiring) Temperature:Working temperature: 0 C to 50 C (32 F to 122 F) Storage temperature: -30 C to 70 C (-22 F to 158 F) Humidity:20% to 80% RH, without condensation Client software:Third-party software compatible with USB3 Vision Protocol Provide Examples:C/C++/C#/VB6/VB.NET/Delphi/Opencv/Python/Java Operation system:32/64-bit Windows 7/10, 32/64-bit Linux Compatibility:USB 3.0 Vision.
Technical specifications
| SKU | PIB09XQZNPPV |
|---|---|
| Shooting Modes | Automatic |
| Exposure Control Type | Manual |
| Color | Color |
| Video Capture Resolution | 1.3mp |
| Water Resistance Level | Not Water Resistant |
| Continuous shooting speed | 211 frames_per_second |
| File Format | [POSSIBLE VALUES image file formats (e.g., .bmp, .jpg, .tiff), video file formats (e.g., .avi, .mp4)] |
| Video Capture Format | MPEG-4 |
| Effective Still Resolution | 1.3 mp |
| Compatible Devices | Desktop |
| Image stabilization | Digital |
