Specifications & Details
| SKU | PIB0BRN6XS46 |
|---|---|
| Brand | ORIVISION |
| Series | Cam Link 4K |
| Item model number | Cam Link 4K |
| Operating System | Mac OS |
| Item Weight | 0.018 kgs |
| Product Dimensions | 2.05 x 0.98 x 0.55 inches |
| Item Dimensions LxWxH | 2.05 x 0.98 x 0.55 inches |
| Color | UCH701 USB 3.0 4K HDMI Video Capture Card |
| Manufacturer | Nantong ZYDZ Electronic Co.,Ltd. |
Product description
Step 1: Add new sources, choose“ Video Capture Device” / “Audio Input Capture”
Support Input Resolution Max Input can be 4K
Support Output Resolution Max Output can be 1080P
Video Output Format YUV, JPEG
Support Color 24/30/36bit Deep color
Support Audio Format L-PCM
Input cable distance ?15m,AWG26 HDMI standard cable
Max Working Current 0.2A/5VDC
Operating Temperature Range (-10 to +55?)

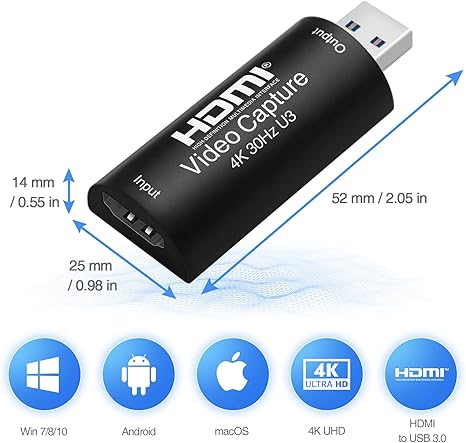

Dimension (L x W x H) 52x25x14 (mm)
Weight 15.6g
Notes
1. Computer hardware configuration requirements:
CPU: PC i5-3400 or above; NB i7-3537U 2.0GHZ or above
Graphics card: PC NVIDIA GT630 or above; NC NVIDIA GT735M or above
Run memory: 4G RAM
2. Package include:
Video capture card 1PC
(please download the USER MANUAL from this listing webpage if you need)
