Product description
WATCH VIDEO IN PHOTO GALLERY FOR PRODUCT DEMO

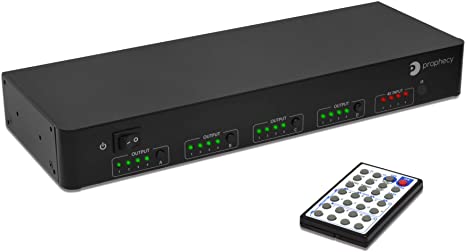

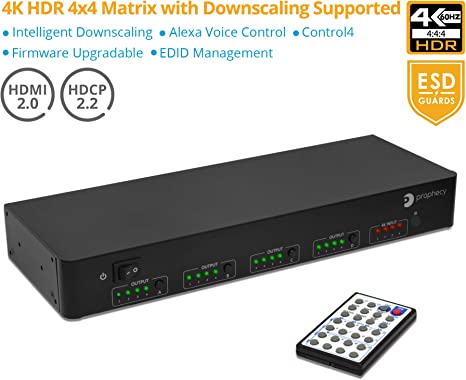

gofanco Prophecy 4K HDR 4x4 Matrix with Downscaling Support
Allows you to connect up to four HDMI source devices and independently distribute any source to any of the four HDMI displays. Easily switch between any of the four sources onto any of the four connected displays. Choose to have the same content on all displays or different content on each display!
4K to 1080p auto downscaling feature allows mixed 4K and 1080p displays. DOES NOT downscale from 4K HDR to 1080p correctly (1080p display will look washed) or HDR to SDR.
Support for Control4 home automation with firmware download and includes Alex Echo Voice control source switching capability (requires set up steps).
Top of the Line HDR10 4x4 HDMI Matrix Switcher
Features
Supports HDMI 2.0 & HDCP 2.2
Supports high resolutions: HDR at 4K @60Hz (YUV 4:2:0 10-bit) + 4K @60Hz (YUV 4:4:4 8-bit)
Supports up to 7.1-channel audio, Dolby Digital, DTS Digital, Dolby TrueHD, DTS-HD Master audio formats, and all other HDMI standard formats
Smart EDID management allows for automatic facilitation of format control between source and display to ensure high quality video
Firmware upgradeable for expanded compatibility through mini USB or RS-232
Unique and innovative Alexa Echo Voice Control of source switching
Auto downscaling from 4k to 1080 for mixed resolution output
Supports Control4 Home Automation
Intelligent Auto Downscaling (Scaler Matrix)
Rare solution to provide simultaneous mixed 4K and 1080p resolution display outputs.
Great for using a mixture of new and old TVs or monitors. Without this feature, having one 1080p display would force all displays to output 1080p.
** Downscaling to 720p and 480p is not supported. Cannot downscale from HDR. See Important Notes**
Experience HDR
10-bit High Dynamic Range (HDR) provides a increased level of contrast between light and dark images to create a more vivid image. HDR truly takes 4K to the next level. You need to see it to believe it!
Multiple Source Switching Options
Front Panel Push Buttons
Local IR Remote Control
RS-232 Control
IP Control
Alexa Echo Voice Control
Important Notes
Downscaling to 720p and 480p is not supported.
YCbCr 4:2:2 downscaling is not supported.
Frame rate conversion (e.g., 60Hz to 24Hz) is not supported.
4K @30Hz monitors will display in 1080p @60Hz when the source content is 4K @60Hz.
Splitter can bypass 4K HDR data content but cannot process it to make 4K HDR content fit 1080p non-HDR proportionally.
If your source device isn't working in RGB color schema, switch to YUV
Specifications
Video resolutions: Up to 4K @60Hz YUV 4:4:4 8-bit & HDR at 4K @60Hz YUV 4:2:0 10-bit
HDMI 2.0a, HDCP 2.2
Supports mixed 4K & 1080p display outputs. A 4K video source device can simultaneously display 4K content to 4K monitor(s) and 1080p content to 1080p monitor(s) via downscaling.
Switching methods: 1) Push buttons, 2) IR remote, 3) RS-232 control, 4) IP control, 5) Cloud & Alexa Echo voice control
HDMI Audio: Supports DTS-HD, Dolby TrueHD, 7.1ch digital audio and all other HDMI standard formats
Smart EDID management
Firmware upgradable for expanded compatibility
Housing: Surface mountable metal enclosure
Country of origin: Taiwan
Regulatory approvals: FCC, CE, RoHS
What's in the Package
Prophecy 4K HDR 4x4 Matrix with Downscaling Support
Power adapter
IR receiving cable
IR remote control
Surface mount accessories
User’s manual
Matrix44v2 PRO-Matrix44-SC Matrix44-HDBT Matrix44-HD20 Matrix42-HD20 Matrix88
Input x Output 4x4 4x4 4x4 4x4 4x2 8x8
Max Resolution 4K @30Hz 4K @60Hz 4:4:4 4K @60Hz 4:2:0 4K @60Hz 4:4:4 4K @60Hz 4:4:4 1080p @60Hz
HDMI/HDCP HDMI 1.4 / HDCP 2.2 HDMI 2.0 / HDCP 2.2 HDMI 1.4 / HDCP 2.2 HDMI 2.0 / HDCP 2.2 HDMI 2.0 / HDCP 2.2 HDMI 1.3 / HDCP 1.4
Extender No No 4K @60Hz (4:2:0) & 4K @30Hz up to 130ft (40m), 1080p/3D up to 230ft (70m) No No No
Mixed Resolution Output None 4K & 1080p None None 4K & 1080p None
Switch Methods Front Panel Buttons / IR Remote / RS-232 Control Alexa Echo Voice / Front Panel Buttons / IR Remote / RS-232 / GUI IP Control / Control4* Front Panel Buttons / IR Remote / RS-232 / GUI IP Control Front Panel Buttons / IR Remote / RS-232 / GUI IP Control Front Panel Buttons / IR Remote / RS-232 / GUI IP Control Front Panel Buttons / IR Remote / RS-232 Control / Web GUI
Bandwidth 10.2 Gbps 18 Gbps 10.2 Gbps 18 Gbps 18 Gbps 10.2 Gbps
HDR No Yes No Yes Yes No
RS-232 Control Yes Yes Yes Yes Yes Yes
EDID Yes Yes Yes Yes Yes Yes
