- About this Item
- • UPS Plus is a new generation of UPS power management module which supports OTA firmware upgrade and supports RTC onboard.
- • There are two INA219 chip onboard to detect batteries voltage and the voltage output from UPS Plus to Raspberry Pi.
- • Compatible with Raspberry Pi 54B3B3B2BBBAA

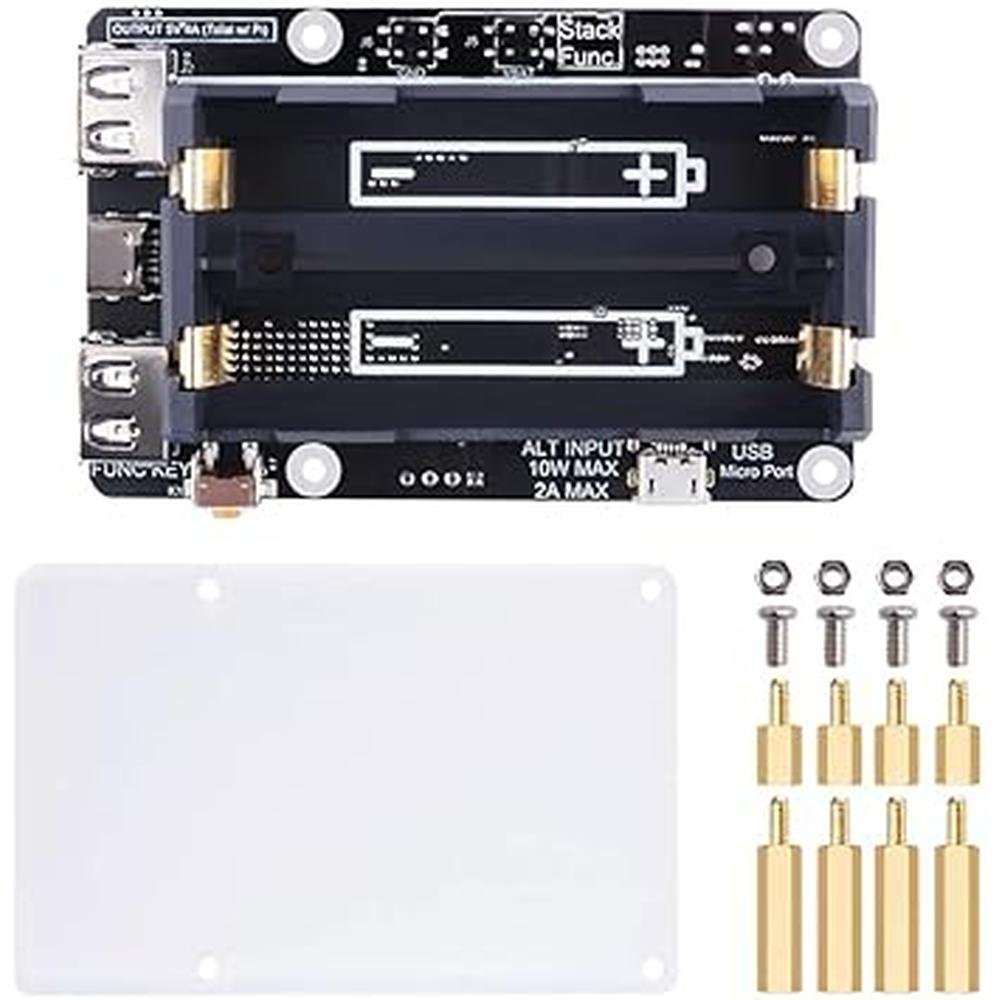

- • Package Inlcudes1 x UPS Plus For Raspberry Pi,4 x M2.5 copper pillar,4 x M2.5 screws,4 x M2.5 long copper stick,4 x M2.5 nuts,1 x Acrylic shield,1 x Instruction
Specifications & Details
| SKU | PIB09NKFYHVK |
|---|---|
| Package Dimensions | 4.65 x 3.27 x 1.65 inches |
| Item Weight | 0.258 kgs |
| Item model number | EEST 1336 |
| Manufacturer | GeeekPi |
Product description
bFeatures bbrEasy to installbr Enhanced power managementbr Remote OTA firmware upgradebr Programmable BACK-TO-AC auto power upbr Programmable sample periodbr I2C communicationbr Standalone RTCbr Support stacked battery designbr brb Specifications bbr Currentvoltage monitoring of Raspberry Pi power supply port. br Battery terminal currentvoltage monitoring, supports two-way monitoring of charge and discharge. br Independent RTC function. br OTA function (supports forced upgrade mode and active upgrade mode). br Power estimationbr Note At least one full charge and discharge cycle must be completed) brHow to use,please refer to wiki.52pi.comindex.php?titleEP-0136
