FEELWORLD T7 7 Inch IPS 4K HDMI Camera Field Monitor Video Assist Full HD 1920x1200 Solid Aluminum Housing DSLR Monitor with Peaking Focus False Colors

Product description

Let Your Video Shooting Become Easier
FEELWORLD has been committed to providing the comprehensive broadcast monitoring and solutions for the professional filmmakers. Whether the upgrade of the excellent display technology from HD to FHD or to UHD 4K resolution, FEELWORLD aims to support the professional creators to obtain the greater benefits and to create more exciting stories, with the most advanced technology to improve the production efficiency.
FEELWORLD Monitor is A Must-have Accessory for Your Shooting Setup.
When youÆve put together rigs made up of powerful equipment, you want to be able to see shots that so much work has now gone into getting to that point. No matter the setup, whether itÆs a shoulder rig, gimbal, tripod, or handheld, you need a FEELWORLD monitor for all your setups which allow you to see, in perfect definition, make sure your shot in focus and accurate exposure, what you are shooting so that you know that the shot you are working hard to get is truly stellar.
Flexible for Your Creative
As a filmmaker you need to pay special attention to the visual aspect in order to capture every moment of emotion. For that reason you can always trust FEELWORLD monitors technology, which allows you to bring your full capacity and creativity taking care of every detail in the most efficient way possible. FEELWORLD monitor helps you to capture those precious moments that you cannot afford to miss.
Easy Multi-angle Monitoring
ItÆs not easy to evaluate your shot solely through your cameraÆs built-in monitor, especially if the entire unit is constantly rotating on a gimbal/ stabilizer, the camera on crane rig jib, One of the biggest issues when you are doing low-angle/ high angle shot is monitoring what youÆre shooting. FEELWORLD monitor is ideal tool for you to monitor the scene since you can install it where you can conveniently see it.
No Only Display, Make Sure Your Shot in Focus and Accurate Exposure
FEELWORLD monitor integrated directly help to make footage analysis/ adjustment especially on focus/ exposure while some cameras can`t transfer their features like Histogram to monitor. Integrated with: Histogram, Peaking Focus Assist, False Colors, Zebra Exposure, Nine Grid, Scan Mode, Zoom, Anamorphic Mode, Pixel to Pixel, Center Marker, Safe Area, Ratio marker, Marker Color, Check Field, Image Flip, Image Freeze, Zoom All, U/D & L/R Zoom, Color Temperature Adjustment.

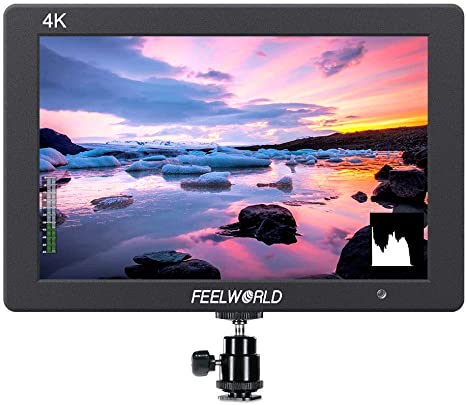

FEELWORLD T7 7" 4K On-Camera Monitor
Professional color calibration, efficiently get accurate color reproduction easily, show the real image when you shooting video.
Its helpful for photographer framing and composition during shooting, post editing title placement.

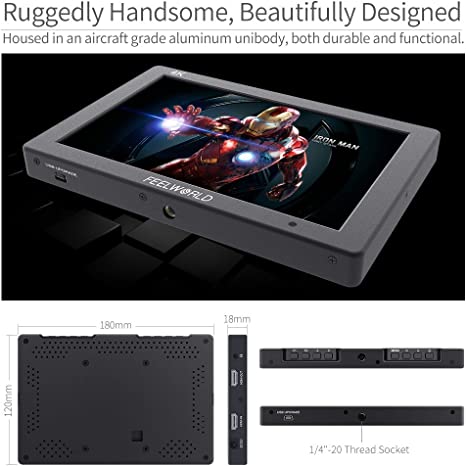

Aluminum Metal Frame, Light weight, durable construction.
The frame of the FEELWOELD T7 is made from aircraft grade aluminum which means you get an incredibly sturdy metal that barely adds any weight to your camera. ItÆs also comfortable enough and and still light enough which makes it perfect for bracing the mounting points.
Compatible Battery
Sony F970, F960, F950,F930, F770, F750, F730, F570, F550, F530, QM91D, QM91, QM90D, QM90, QM71D, QM71, QM70D, QM70, QM51D, QM51, FM71, FM70 series.
(Note battery not include, need purchase sperate)
You can use the 12V 1.5A power adapter ( Inside diameter: 2.1MM, outside diameter: 5.5MM ) to power.
Trouble Shooting
1. Can't turn on the monitor
Make sure to use the standard 12V 1.5A power adapter to connect the monitor. If power is supplied by battery, please check if the battery is fully charged.
2.Have noise during recording
Long press ô<ô button and turn down volume to near zero, can aviod have not nosie during recording. Long press ">" is increase the volume.
3.The monitor display " no signal"
1?Try another HDMI cable.
2?And please try to connect monitor HDMI to your computer, try if the monitor have signal?
3?Change the camera output singal, confirm the monitor input signal whether support the camera output signal.
Professional Color Calibration
Use Rec.709 color standard
FEELWORLD uses the professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, do not distort the color, show the real image when you shooting video.
Accurate Color Reproduction
FEELWORLD monitor support ITU standards and HD video Rec.709 standard consistent color space, advanced image processing technology, so that the image clearly presented, the color is extremely natural, to ensure accurate color reproduction, to reproduce the physical nature of shooting, enabling users to accurately evaluate the quality of various input video signals.
IPS Wider View Angle 160?
Viewing Angle become very important, as the camera operators may shift his/her position relative to the monitor during the shot. T7 IPS 160? wide viewing angle allows the operator to have a clear, easy-to-see image as their position shifts.
Read more
Specification
Display Spec.

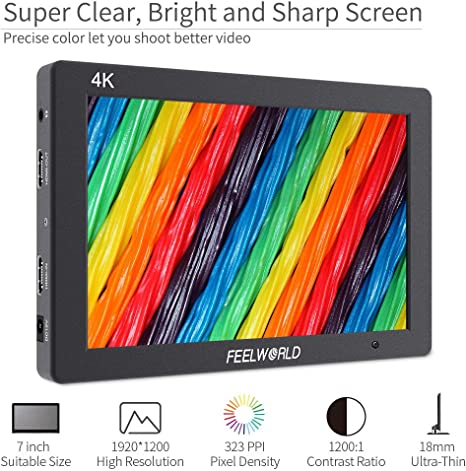

Screen Size: 7" IPS
Resolution: 1920x1200 pixels
Pixel Pitch: 0.07875 (H) x 0.07875 (W) (mm)
Aspect Ratio: 16:10
Brightness: 450cd/m?
Contrast Ratio: 1200:1
Backlight: LED
Viewing Angle: 80?/80?(L/R) 80?/80?(U/D)
Input
1 X HDMIHDMI
Output
1 X HDMIHDMI
Audio
AudioStereo Headphone, Speaker

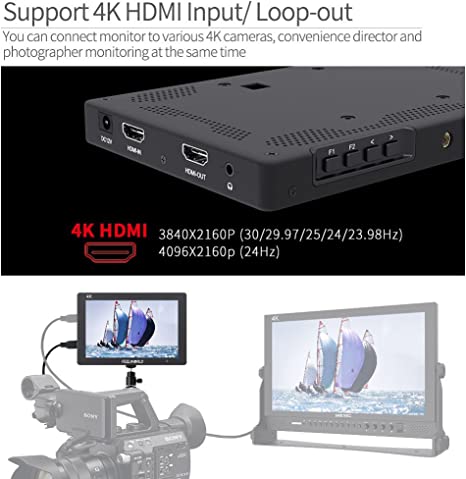

HDMI Input/ Output Support Format
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
4K UHD 3840?2160p (30/29.97/25/24/23.98Hz), 4096?2160p (24Hz)
General
Input Voltage: DC7?24V
Power Consumption: ?8W
Working Temperature: -20?C~55?C
Storage Temperature: -30?C~65?C
Install Way: 1/4"-20 Thread Socket (top, bottom)
Battery Plate: F970 (Standard); D28S/D54, LP-E6, U60 (Optional)
Unit Size: 180Lx120Hx18D (mm)
Unit Weight: 320g/350g (With F970 Plate)
Advanced Features
* Brightness Histogram
* Embedded Audio
* Peaking Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus)
* False Colors
* Zebra Exposure (1-100IRE adjustable)
* Check Field (Red, Green, Blue, Mono)
* Camera Mode
* Anamorphic Mode (1.3x, 2.0x, 2.0x mag)
* Image Flip (H, V, H/V)
* Image Freeze
* Center Marker
* Screen Marker (80%,85%,90%,93%,96%, 2.35:1)
* Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1)
* Color Temperature Adjustment
* Nine Grid (Zoom one of the images to realize the full screen) (Nonsupport in 4K input)
* Zoom (4X, 9X, 16X) (Nonsupport in 4K input)
* Aspect Ratio (Nonsupport in 4K input)
* Pixel to Pixel (Nonsupport in 4K input)
* Zoom All (Nonsupport in 4K input)
* U/D Zoom (Nonsupport in 4K input)
* L/R Zoom (Nonsupport in 4K input)

Standard Accessories:
1? Mini HDMI Cable
1? Sunshade
1? Hot Shoe Mount
1? F970 Battey Plate
1? Operation Manual

FEELWORLD New F6 Plus 5.5 Inch 3D LUT Touch Screen Monitor DC out, 4K HDMI FEELWORLD FW568 5.5 Inch 1920X1080 Monitor DC out, 4K HDMI In/ Out, Tilt Arm FEELWORLD T7 7 inch FULL HD 1920X1200 Field Monitor Aluminum Housing FEELWORLD FW279 7 Inch 2200nit Daylight Viewable Monitor 4K HDMI Input Output FEELWORLD New LUT7 7 Inch 2200nit Touch Screen Monitor with 3D Lut Waveform FEELWORLD LUT7S 7 Inch 2200nit Touchscreen Monitor with 3D Lut 4K-HDMI 3G-SDI
Sceen Size 5.5" Touch Screen 5.5" IPS 7" IPS 7" IPS 7" Touch Screen 7" Touch Screen
Resolution 1920 ? 1080 1920 x 1080 pixels 1920x1200 pixels 1920x1200 pixels 1920x1200 pixels 1920x1200 pixels
Aspect Ratio 16:9 16:9 16:10 16:10 16:10 16:10
Brightness 500cd/m? 500cd/m2 450cd/m2 2200cd/m2 2200cd/m? (Light Sensor) 2200cd/m? (Light Sensor)
Contrast 1000:1 1000:1 1200:1 1200:1 1200:1 1200:1
Signal Inputs 4K HDMI, SD Card 4K HDMI 4K HDMI 4K HDMI 4K HDMI, SD Card 3G-SDI, 4K-HDMI, SD Card
Signal Outputs HDMI, DC OUT 8V, Barrel (5.5mm outer, 2.1mm inner; Power DSLR or mirrorless camera) 4K HDMI, DC OUT 8.4V, Stereo Headphone 4K HDMI, Stereo Headphone, Speaker(built-in) 4K HDMI, Stereo Headphone, Speaker(built-in) 4K HDMI, DC OUT 8.4V, Stereo Headphone 3G-SDI, 4K-HDMI, DC OUT 8.4V, Stereo Headphone
Uibody Plastic Case Lightweight Plastic Housing Rugged Aluminun Housing Lightweight Plastic Housing Lightweight Plastic Housing Lightweight Plastic Housing
Unit Size 148Lx93Hx20D (mm) 142Lx87.2Hx27.5D (mm) 180Lx120Hx18D (mm) 180Lx120Hx25D (mm) 190Lx126Hx27D (mm) 190Lx126Hx27D (mm)
Unit Weight 235g 175g 320g 340g 460g 460g
