- About this Item

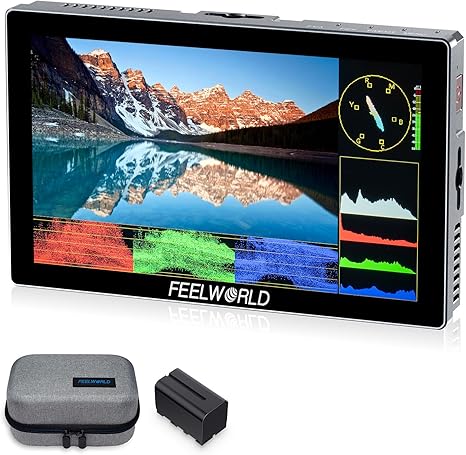

- • 1000 nits Daylight Visible Feelworld P6X 5.5 inch high bright touchscreen camera field monitor provides clear images with 1000 nits daylight viewable, 1920 x 1080 resolution, 160 viewing angle, 1000 1 contrast ratio, make you enjoy sharper and richer colors image
- • Lightweight and Rugged Design It is made of CNC machined aluminum alloy case, the whole camera weighs only 249 grams and the thickness is only 2.2cm, which is both lightweight and sturdy. Suitable for a variety of shooting environments, from outdoor shooting to indoor studios, can be easily carried, to ensure that your shooting equipment to get the best protection
- • Professional Moniting Software P6X on camera monitor is equipped with a variety of professional moniting functions, such as waveform graph, vector graph etc. help you accurate expouse and focus. By importing 3D LUT through SD card, allowing for real-time preview of filming looks during field shooting and simplifying the post-production process
Specifications & Details
| SKU | PIB0DFTJX437 |
|---|---|
| Product Dimensions | 0.86 x 5.45 x 3.32 inches |
| Item Weight | 0.998 kgs |
| Item model number | P6X-ANP75-AMC5-OF-US |
| Batteries | 1 Lithium Polymer batteries required. (included) |
| Manufacturer | FEELWORLD |
Product description
Mulit Interface DC OUT Built in Fan
Multiple Mounting Points
The monitor is equipped with 3 standard 1/4”mounting threads (top, bottom, right side), you can easily mount it on the camera or other types of equipment with a magic arm, bracket, etc.. Meet the different monitoring for photographer or director.
Mini Hot Shoe Mount Adapter
The standard accessory mini hot shoe mount adapter can quick release and attach to camera monitor, led light, flash, microphone, etc. Upper with 180° viewing angle and base with 360° rotation.
Screen Size 5.5" IPS
Resolution 1920x1080 pixels
Pixel Pitch 0.069 (H) × 0.069 (V) (mm)
Aspect Ratio 16:9
Brightness 1000cd/m²
Contrast Ratio 1000:1
Backlight LED
Viewing Angle 160°
Input HDMI 2.0, DC IN 12V (suitbale for Barrel DC5.5*21mm power plug), 5V Type-C (please use 5V/2A or more than 2A Type-C power supply)
Output HDMI 2.0, DC OUT 8V (suitbale for Barrel DC5.5*21mm power plug)
Audio 3.5mm Stereo Headphone
Unit Size 138.5x84.5x22(mm)
Unit Weight 249g
Working Temperature -20°C~50°C
Input Voltage DC7?24V
Install Way 1/4"-20 Thread Socket (right, top, bottom)
